Product Description
Ball mill---Product Description
【Introduction】:A high efficiency and energy saving ball mill with rolling bearing
【Improvement】:Cylindrical energy saving grid ball mill is lined grooved ring plate which increases the contact surface of ball and ore and strengthens the grinding.
【Improvement】:Cylindrical energy saving grid ball mill is lined grooved ring plate which increases the contact surface of ball and ore and strengthens the grinding.
Product Advantages
Product Application
Technical Parameters
Model | Cylinder Diameter(mm) | Cylinder length(mm) | motor Model | Motor Power(kw) | Length(mm) | Width(mm) | height(mm) | Effective Volume(m3) | Max. Ball Load (t) |
MQG0909 | 900 | 900 | Y225S-8 | 18.5 | 4750 | 2213 | 2050 | 0.45 | 0.96 |
MQG0918 | 900 | 1800 | Y225M-8 | 22 | 5000 | 2280 | 2050 | 0.9 | 1.92 |
MQG1212 | 1200 | 1200 | Y225M-8 | 22 | 5788 | 2994 | 2540 | 1.14 | 2.4 |
MQG1224 | 1200 | 2400 | Y315S-8 | 55 | 6673 | 2994 | 2540 | 2.28 | 3.96 |
MQG1515 | 1500 | 1500 | JR115-8 | 60 | 6094 | 3300 | 2766 | 2.5 | 5 |
MQG1530 | 1500 | 3000 | JR125–8 | 95 | 7979 | 3300 | 2766 | 5 | 10 |
MQG2122 | 2100 | 2200 | JR128-8 | 155 | 7750 | 4839 | 3794 | 6.6 | 15 |
MQG2130 | 2100 | 3000 | JR137-8 | 210 | 8744 | 4394.7 | 3110 | 9 | 20 |
MQG2430 | 2400 | 3000 | JR1410-8 | 280 | 9728 | 4956 | 4018 | 12.1 | 22.5 |
MQG2721 | 2700 | 2100 | JR1410-8 | 280 | 9300 | 5500 | 4500 | 10.7 | 24 |
MQG2727 | 2700 | 2700 | JR148-8 | 310 | 9900 | 5500 | 4500 | 13.8 | 29 |
MQG2736 | 2700 | 3600 | TDMK400-32/2150 | 400 | 9765 | 5826.6 | 4674.5 | 18.4 | 41 |
MQG3231 | 3200 | 3100 | TDMK630-36 | 630 | 12750 | 6750 | 5152.5 | 22.5 | 45 |
MQG3236 | 3200 | 3600 | TDMK630-36 | 630 | 14300 | 6760 | 5200 | 24.8 | 58 |
MQG3245 | 3200 | 4500 | TDMK800-36 | 800 | 13896 | 7200 | 5152.5 | 32.8 | 65 |
MQG3639 | 3600 | 3900 | TDMK1000-36/3600 | 1000 | 15000 | 7200 | 6300 | 36.2 | 75 |
MQG3645 | 3600 | 4500 | TDMK1250-40 | 1250 | 15200 | 7750 | 6300 | 41.8 | 90 |

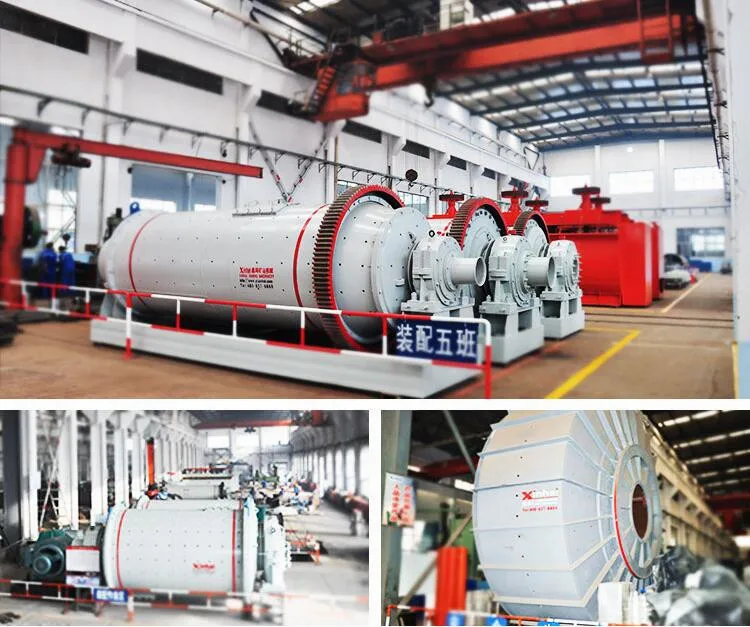

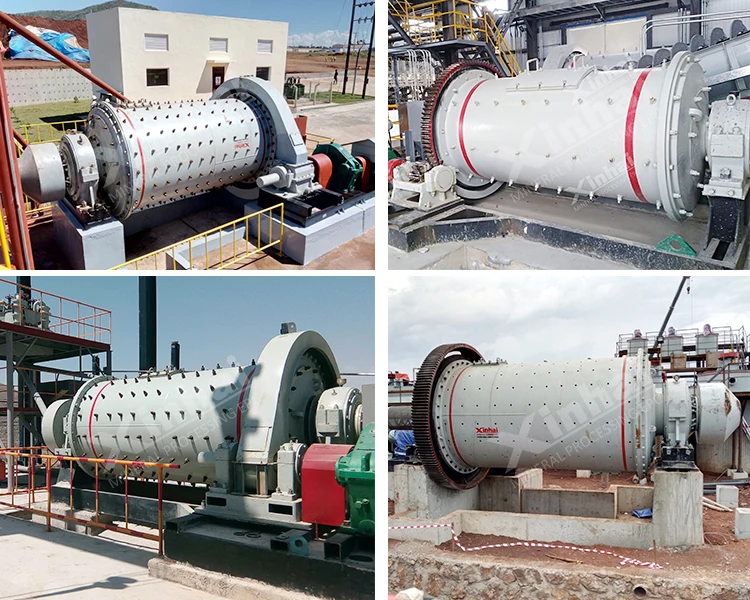

Product Pictures
