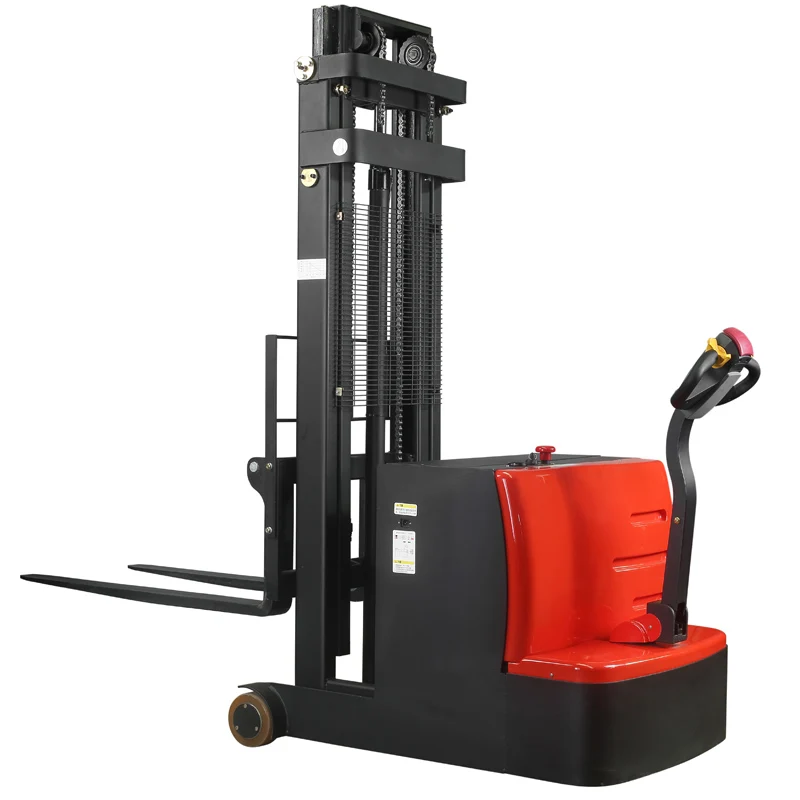

800kg Pedestrian Walking Counterbalance Electric Stacker



Lifting height from 1.6m to 3m

DC Curtis Controller





	Model	Unit	ELES-08CE
Feature	Power		Battery
	Loading Capacity	Q(kg)	800
	Loading Center	C(mm)	450
Dimension	Max Fork Lift Height	H(mm)	1600/2000/2500/3000
	Min. Fork Height	H1(mm)	65
	Overall Fork Width	E(mm)	Adjustable
	Fork Length	L(mm)	1070
	Fork Thickness	H3(mm)	32
	Single Fork Width	B1(mm)	100
	Overall Length	A(mm)	2300
	Overall Width	B(mm)	1065
	Mast Lowered Height	H4(mm)	2075/1540/1790/2040
	Max extend height	H5(mm)	2075/2495/2995/3495
	Min. Turning Radius	Wa(mm)	1140
Performance	Driving Speed	Km/h	3~5
	Lifting Speed	m/s	0.07~0.13
	Lowing Speed	m/s	0.1~0.13
	Gradeability	%	4~6
Wheels	Wheel Material		PU
	Driving Wheel	mm	φ210*70
	Loading Wheel	mm	Φ160*70
Motor	Driving	Kw	DC0.75
	Lifting	Kw	DC2.2
Battery	Voltage	V	24
	Capacity	ah	120AH/12v(X2)
Brake			Electromagnetic
Controller			CURTIS 1212P
Self Weight		KG	1230

















Q1: How long is the  Warranty for EVERLIFT product?
A1: EverLIFT provides 12 months or 1000 hours for the whole machine from on board time.

Q2: How about the delivery time?
A2: Usually EverLIFT producing time is 15- 20 days after we receive the advanced payment. For some standard products, we may have stock and could delivery immediately.

Q3:  How about the continuous working time for the electric series forklifts ? And How long time to charge the battery full ?
A3: EverLIFT battery continuous working time is around  3-6 hours (working time depend on battery  volume).It needs usually 8 - 12 hours to charge the battery, EverLIFT's charger is automatic, after the  battery is full, it will stop working automatically.

Q4: Can EverLIFT provide customized products? OEM products or ODM products?
A4: Yes, EverLIFT can provide customized products per your request, both OEM and ODM are  acceptable. We do a lots of non-standard products, welcome your special reqeust.

Q5: What’s the specification of the chargers?
A5:  Our chargers voltage could be 110V 220V 240 380V 415V ( 1 phase or 3 phases,50/60HZ). Power plug could be USA/UK/AUSTRALIA/EUPROPEAN standard.

Q6: Could we request our own color for the products?
A6: Yes, of course, you just need to offer us the RAL code.
