muti-storey buildings using hoist suspended gondola

Jiuchuang zlp series suspended platform perfectly suited to lightweight applications and such as painting and decorating,refurbishing,jointing and repairs,widows cleaning,etc.In order to ensure the safety of construction,each high level suspended platform is equiped with the following safety protection devices:

1.service brake in the LTD hoist

2.two safety lock for the wire ropes

3.with upper limit switch

4.with emergency stop button

5.phase loss protector(optioanl)

6.load limit protector for the hoist(optional)

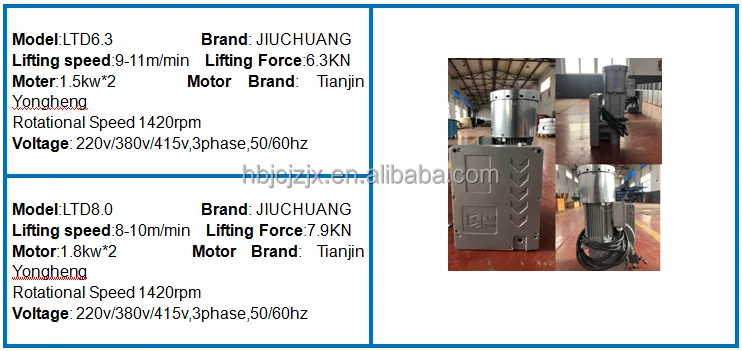

LTD Series hoist:

The hoist is the core part of the basket and is used to drive the up and down movement of the working platform.It uses a three phase asynchronous brake motor to compalet the climbing along the wire rope through the speed reduction mechanism and the rope reel mechanism.The speed device can realize the manual smooth sliding down of the hanging basket

1.LTD series hoist use a type rope reel mechnism

2.high strength die casting aluminum alloy box

3.high strength nitrided alloy steel for transmission

4.motor and connection box protection class:IP55

5.standard components ensure easy access to all wearing parts

6.thermal overload protection device(optional)

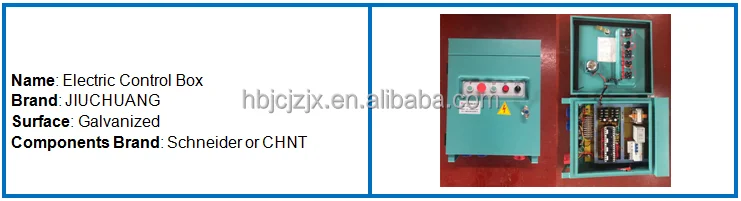

Electical control system:

CHINT,Schneider,Tianshui the ordnance factory components,design concept of outstanding low fault and practicability.Button groove,alloy hinge,overload protection.Set the door off,to prevent dust,rain,snow and inconveniet operation

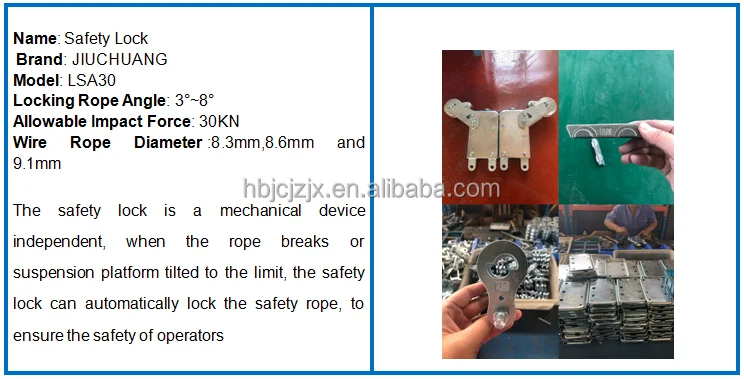

Safety lock:add the stainless steel material,the lock core extension thickening,glow nitriding,anti rust,corrosion resistance,abrasion resistance,impact resistance

 Our services:

1.Our equipment have 1 full year warranty and lifetime maintenance.

2.OEM and ODM service.

3.We are looking for dealers and distributors in worldwide

 Our company has a complete and perfect the storage and transportation, efficient logistics. We will packing the machine according to the customer'needs
