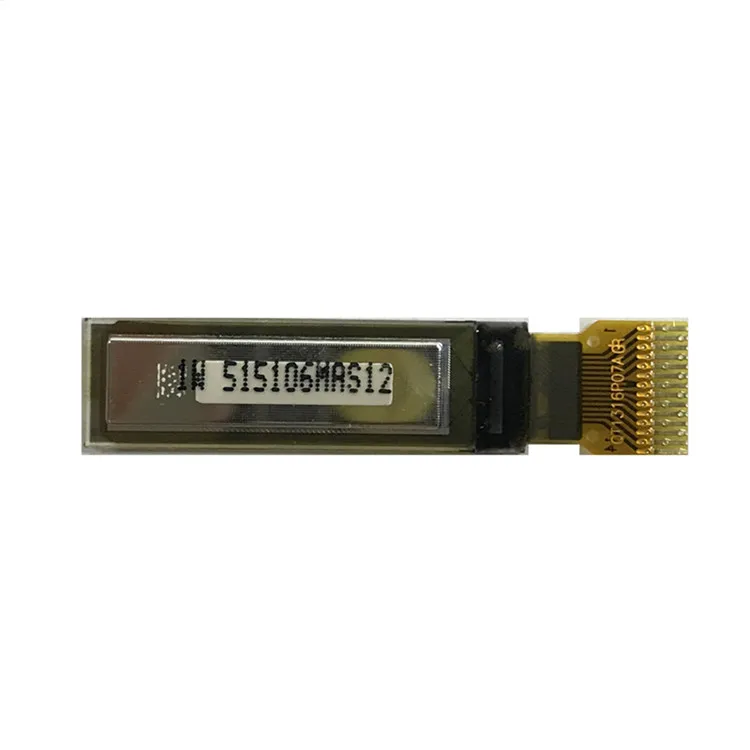

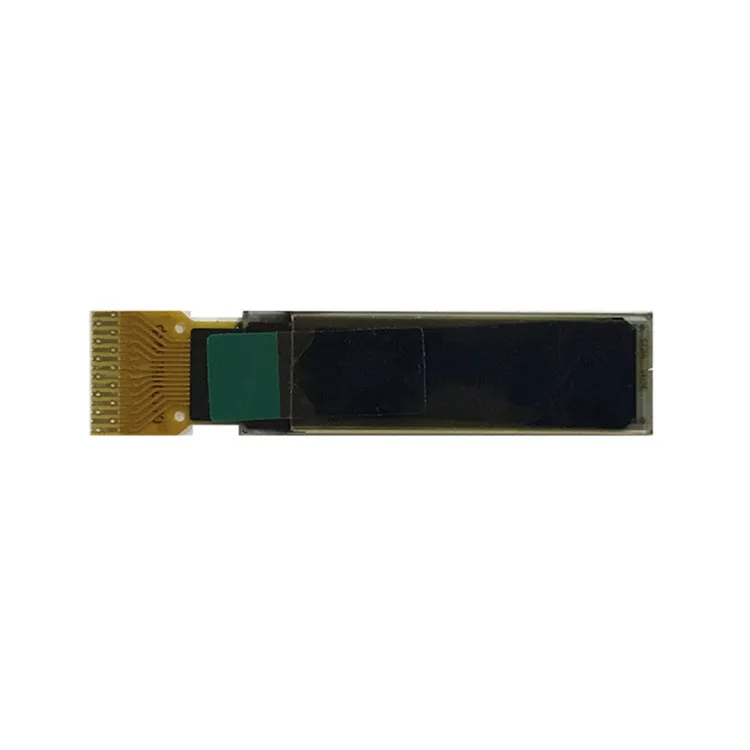

Oled-дисплей 0 87 дюйма 128x32 пикселей с контроллером
- Категории: OLED\/E-Paper Module >>>
- Поставщик: Shenzhen,Enrich,Electronics,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Product Description
PRODUCT PARAMETERS
| 1.Product name : | ENH-OB0087001A |
| 2.Size: | 29.0x8.7x1.22mm |
| 3.Viewing area: | 22.856x6.824mm |
| 4.Active area : | 21.356x5.324mm |
| 5.Resolution: | 128x32 |
| 6.Display color: | monochrome white |
| 7.Drive method: | 1/32 duty |
| 8.Viewing angle: | Fulling angle |
| 9.Working temp : | -40℃~+70℃ |
| 10.Storage temp : | -40℃~+85℃ |
| 11.Connector: | FPC |
| 12.Drive IC : | SSD1316 |
| 13.Backlight : | N/C |

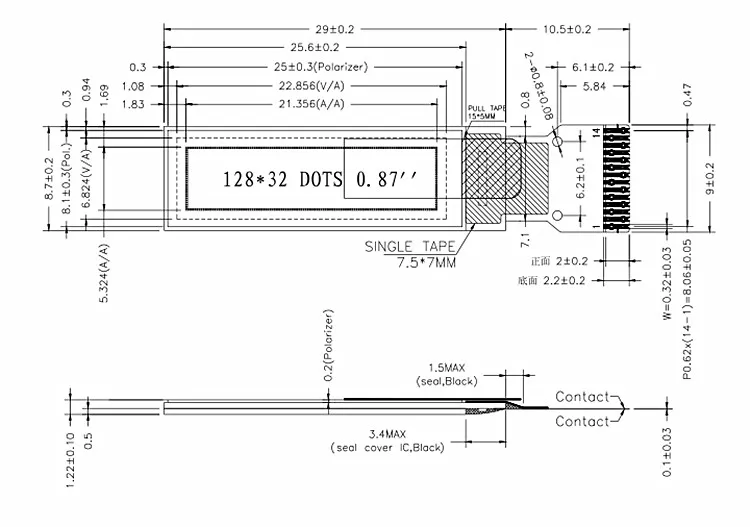

LCD OUTLINE SIZE
Company Introduction
CUSTOM PROCESS
(PRICE OF CUSTOM LCDS WILL BE DEPENDS ON THE REQUIREMENT)
1.Firstly,discuss and confirm all of the details.
2.Payment for tooling process.
3.Formal drawing will be sent within 5 days and confirmed by your side.
4.15-20 days for tooling process.
5.Samples(5-20 pcs)will be sent to you to test and confirmed.
6.Place order for mass production after samples are confirmed.
Contact us
