Перфорационный станок для металлических листов
US $6500-$67500
1500 мм Перфорированный станок для металлической сетки/1500 пробивки металлических
- Категории: Other Metal & Metallurgy Machinery >>>
- Поставщик: Anping,Baochuan,Wire,Mesh,Products,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Mild Steel Round Hole Staggered Pitch Perforated Sheet Metal Punching Machine

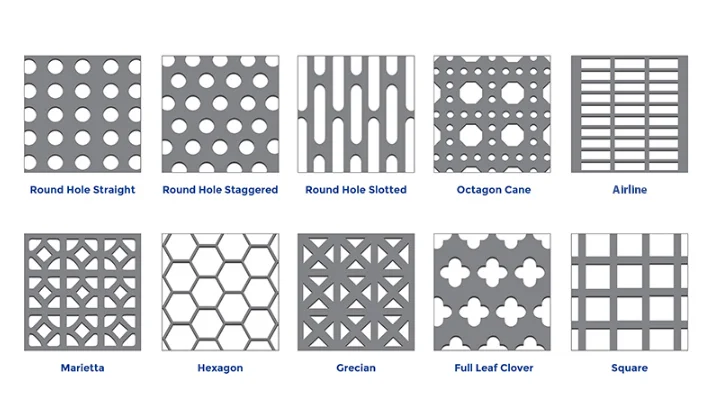

Different hole shape perforated metal
Specifications of Punching Press:
| Model | JM31G-80 | JM31G-125 | JM31G-160 | JM31G-200 |
| Nominal Force(KN) | 800 | 1250 | 1600 | 2000 |
| Nominal Stroke(MM) | 2 | 3 | 3 | 3 |
| Slide Stroke(MM) | 30 | 30 | 30 | 30 |
| SPM(MIN) | 160-280 | 160-240 | 160-220 | 150-200 |
| Max Die Height(MM) | 360 | 400 | 400 | 420 |
| Die Height Adjustment(MM) | 50 | 50 | 50 | 50 |
| Boster(F.B*L.R*T)(MM) | 550*980 | 600*1180 | 700*1380 | 800*1550 |
| Boster Opening(F.B*L.R)(MM) | 500*950 | 550*1050 | 600*1250 | 650*1450 |
| Between Columns(MM) | 1000 | 1200 | 1400 | 1600 |
| Motor Power(KW) | 11 | 18.5 | 22 | 30 |
| Air Pressure(MM) | 0.5 | 0.5 | 0.5 | 0.5 |
| Net Weight(KG) | About 9000 | About11500 | About15000 | About19000 |
1.Welded steel plate framework with high intensity of machine body. 2.The middle crankshaft adopts special rolling bearing,and the precision roller bearing is adopted for front and rear side. 3.Combined pneumatic friction clutch and brake. 4.Equipped with hydraulic overload protecting device. 5.Eight-side precision needle roller guide rail. 6.Pitman screw locked up with oil pressure. 7.Electric shut height adjustment with digital display. 8.Equipped with lifting balance cylinder device. 9.Duplex valves imported from Japan. 10.Control by PLC with international brand. 11.Buttons,indicators,AC contactors,air circuit breakers and other controlling devices are imported from international brand. 12.Electronic cam device with intelligent top dead center stop function and several safety function. Optional air cushion device,NC feeding machine,light curtain and inverter with international brand to fulfill stroke adjustment.

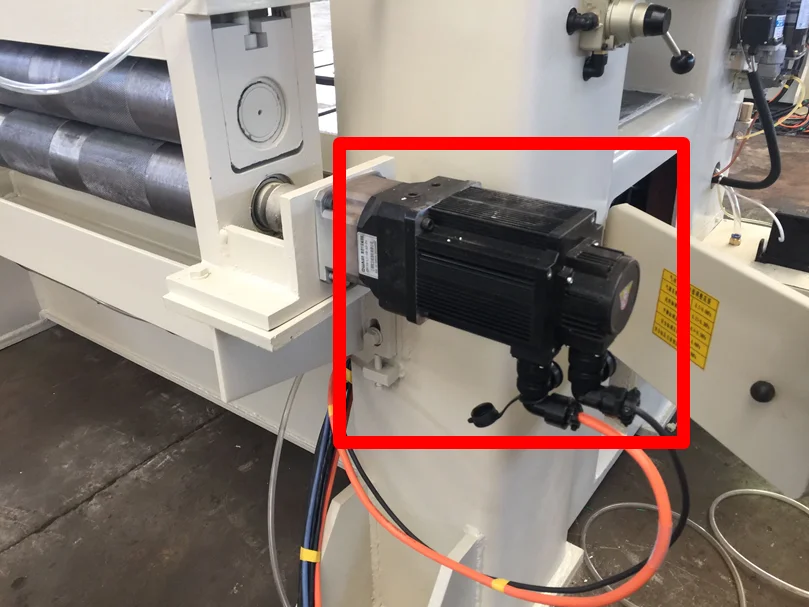

Our Motor is Servo Motor, which can adjust many things through PLC.

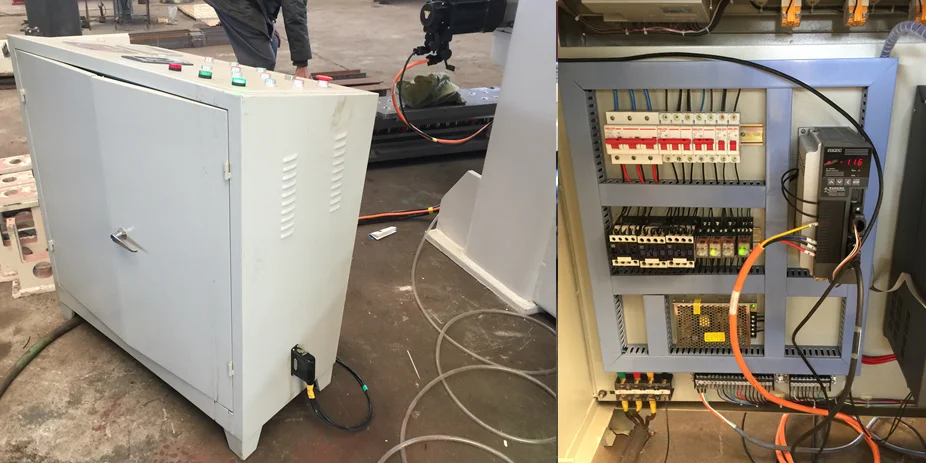

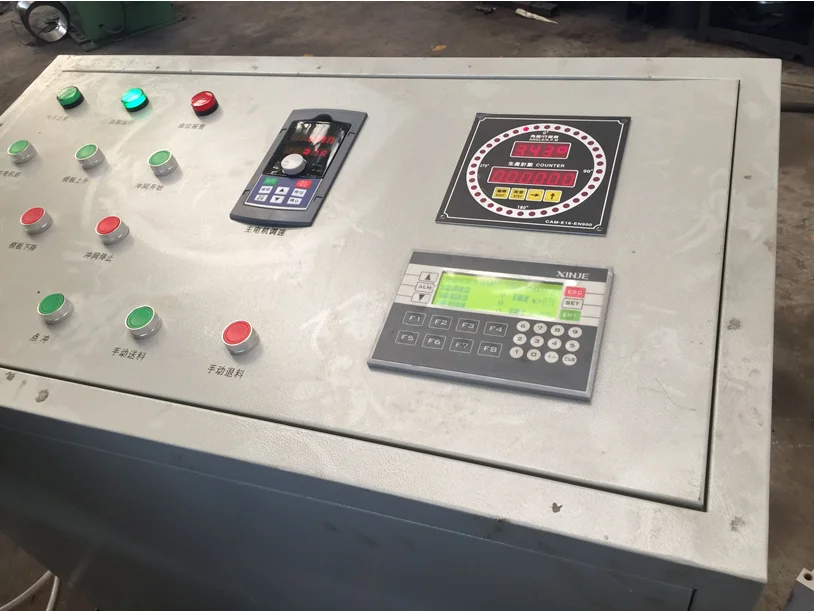

All our PLC we had the Chinese and English, good news, if you used other language, then we will used your country language

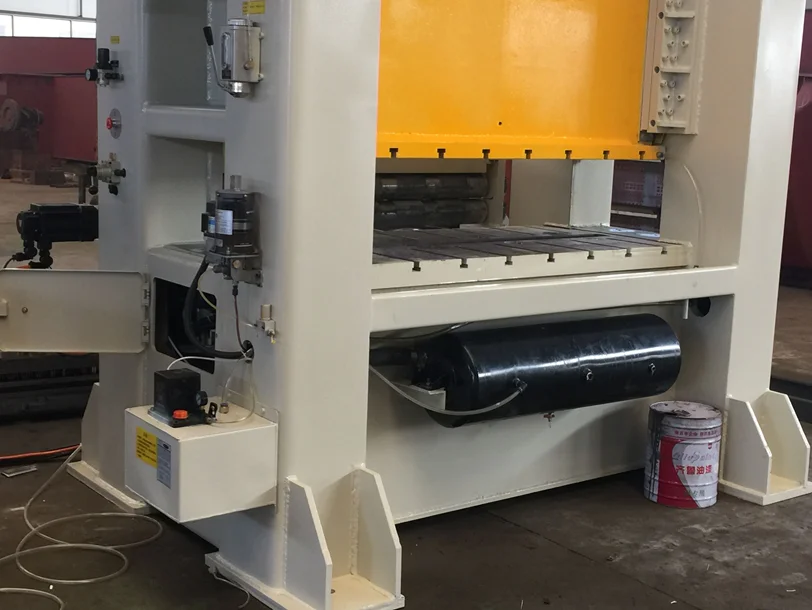

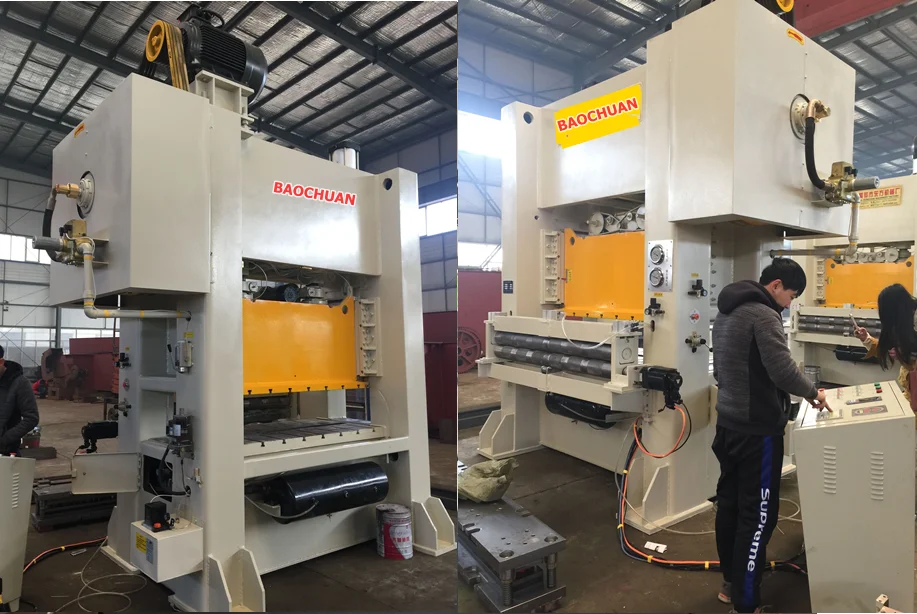

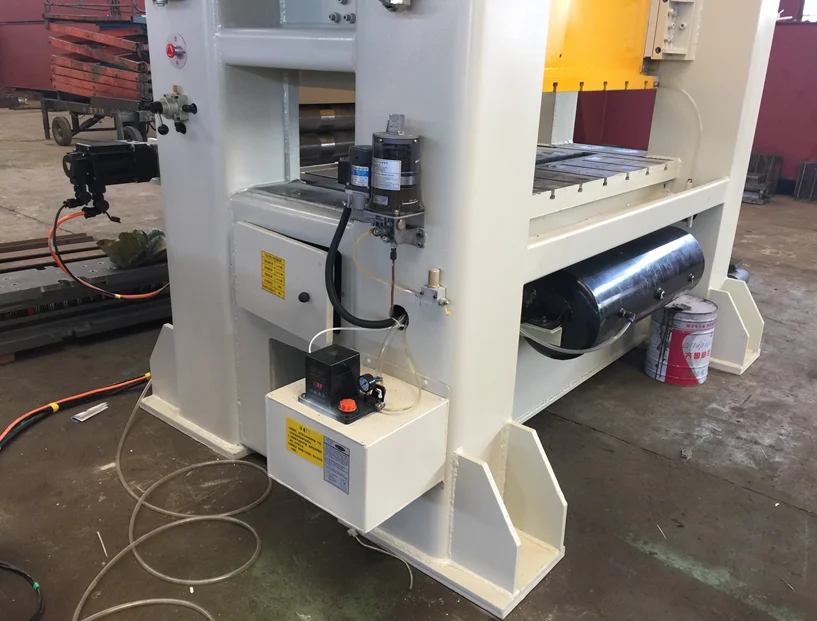

More detail pictures of the machine:
Perforated steel is extremely versatile and applies itself to a variety of applications such as balustrade infill panels, railings infill panels, acoustics and soundproofing, security screens, louvres and ventilation, and air conditioning grilles.
This is our client
|
If you need more detail and quotation, only contact us now
