Carabao Energy Drink / Coke Cola Filling Machine Carbonated Beverage Glass Bottle Packaging Machine / Line



Quick information

1. DGCF24-24-8 Carbonated soft drink filling machine

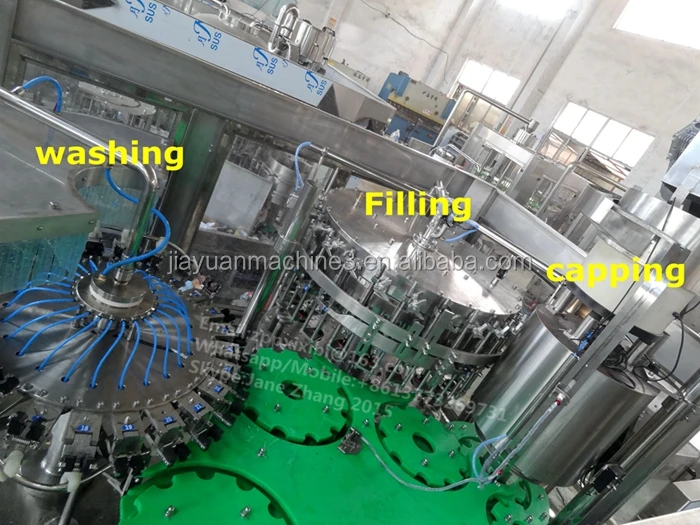

2. Monobloc machine----It contains washing filling capping three parts.

3. It suitable for Glass bottle with crown cap



The high-quality stainless machine is made and designed through introduce of technology from Germany KRONES Co., which has stained to the national top. It is mainly used for filling carbonated beverage with the method of holding the bottoms of the bottles. Adopting PLC control, automatic liquid level inspecting and hygienic structure, which is convenient to be operated and maintained.



Features:

1. Multiple Usage: The filler provide a comprehensive range of different bottle sizes (height 150-320mm, Dia. 50-100mm)

2. Easy adjustment: An automatic height adjust device is available which offers you very easy operation only by pressing a button. For filling different size of bottles, relative parts can be easily and quickly changed without tools.

3. Advanced construction features: The filler carousel is mounted on a huge heavy duty combined bearing, which guarantees optimum smooth running of the filling bowl. The centering bell assemblies precisely locate the necks of bottles onto filling valves. The design of suspended and cantilevered bottle lift cylinders and bottle platforms allows easy, unrestricted remove of broken glass following bottle explosion which, with the addition of well protective of piston rods, minimizes the risk of damage of sliding surface of cylinders.

4. High efficiency and low beverage loss: Owing to the special constructions features the machinery can run at high speed with low rate of glass broken. In the event of bottle breakage a burst flushing system can remove any fragments from the bottle platform, filling valve and centering bell assembly, filling valve automatically be closed in very short time avoiding beverage and gas loss.

5. Sanitation: All parts which contact with beverage are made with high quality polished stainless steel. The CIP system offers automatically cleaning and sterilization of the filler.

6. Using PLC control the machine monitors, the filling liquid level automatically. Made up of high quality stainless steel, it is sanitation. Operation and maintenance is convenient.



Technique parameter:

Model:	DCGF18-18-6		DCGF24-24-8	DCGF32-32-12		DCGF40-40-12
Capacity :500ml	3000		8000	12000		16000
Bottle shape:	roud or square
PET bottle: (mm)	(Bottle Diameter):φ50-.φ110mm   (Height):150-340mm
Cap:	PE srew cap
Filling precision:	≤±5mm
Filling pressure:(Mpa)	0.15-0.35	0.15-0.35		0.15-0.35	0.15-0.35
Rinsing pressure:(Mpa)	0.2-0.25	0.2-0.25		0.2-0.25	0.2-0.25
Filling volume :(L)	3.5	4		6	8
Overall size:(mm)	2450*1800*2200	2780*2200*2350		3600*2650*2350	3800*2950*2400
Weight: (kg)	3000	4000		5000	6000



Main Pictures

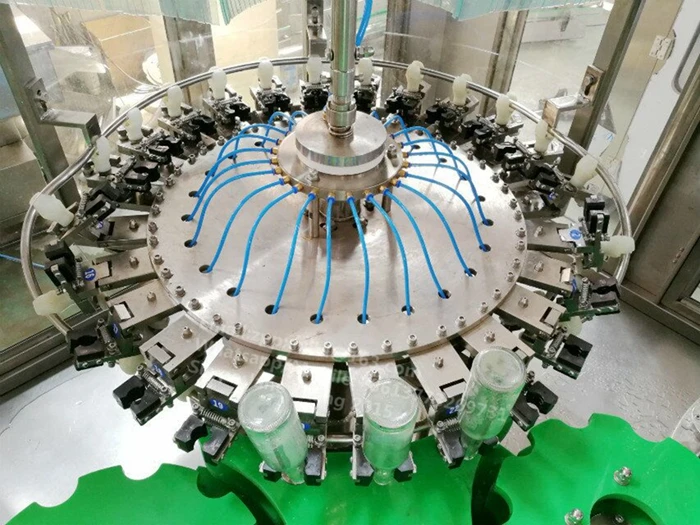

24 heads washing part

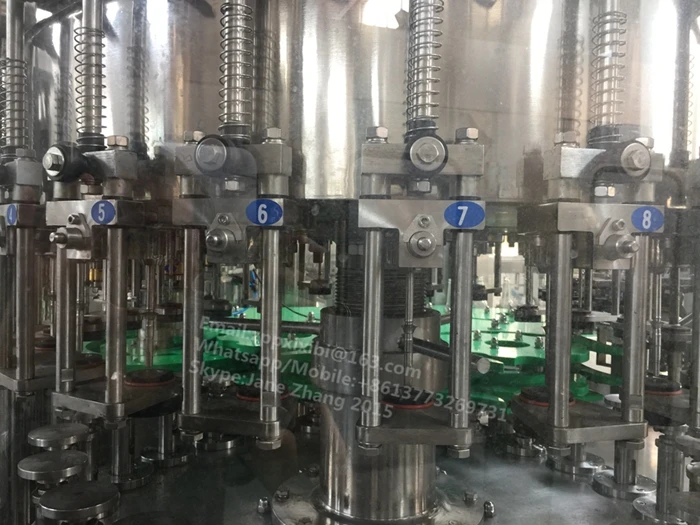

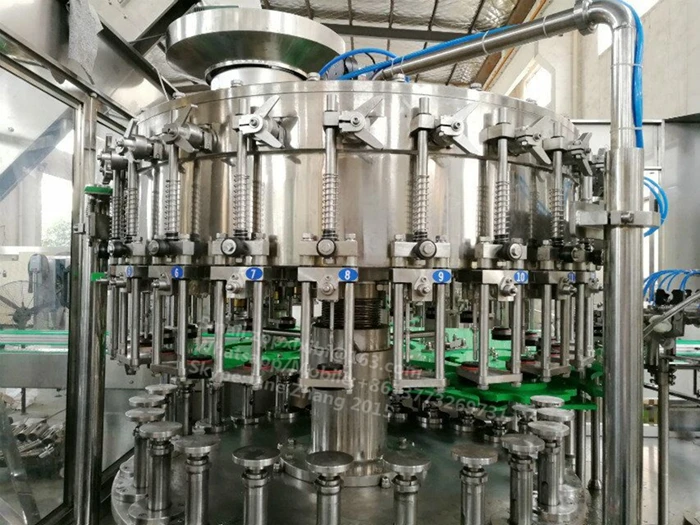

24 heads filling part

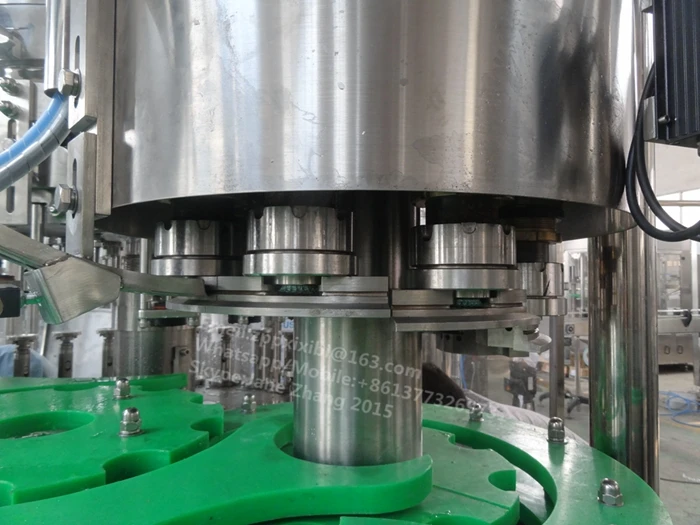

 8 heads capping part

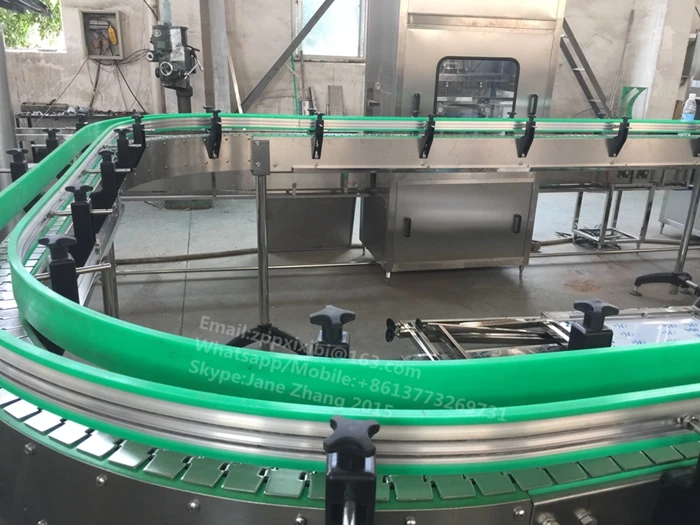

Falt conveyor

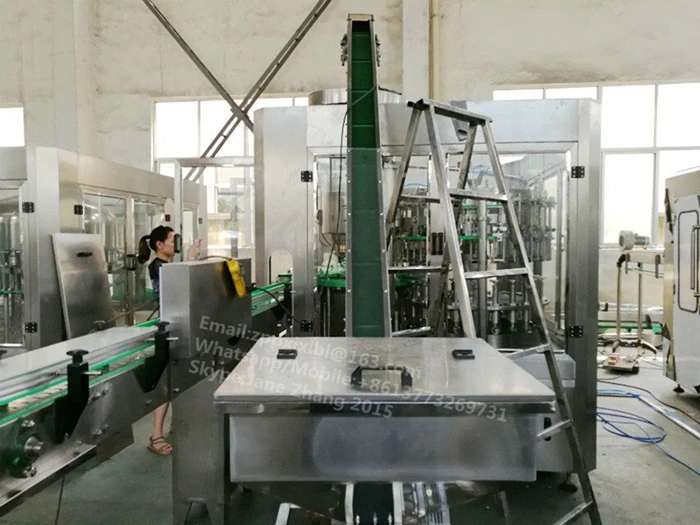

Cap elevator

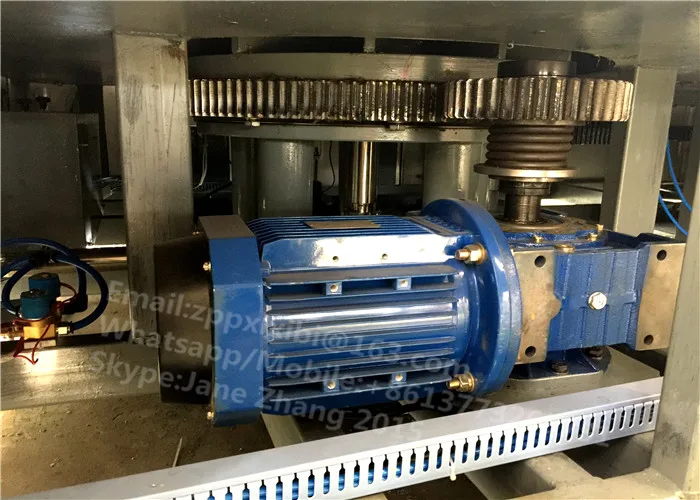

Main motor

IF you want to the detailed quotation,please leave me these message
1, bottle vlolume
2, bottle materail (machines for glass bottle and plastic bottle are different)
3, how many bottles per hour you want to produce ?
4, do you need this water filling machines only or whole water production line



Our factory can provide products as below

1.Pure/mineral/drinking/spring/distilled water filling machine/complete production line

2.Juice/juice pulp(particle) filling machine/complete production line

3.Tea/mikl drink/vinegar/soy sauce filling machine

4.Carbonated drink/beer/cola/soda water filling machine/complete production line

5.5 gallon/20 liter water barrel filling machine/complete line

6.Complete water treatment system

7.Bottle packaging system.Bottle blowing and moulding machine
