SHUOBAO от 3000 до 5000a импульсный выпрямитель постоянного тока для покрытия
- Категории: Industrial Power Supply >>>
- Поставщик: Dongguan,Shuobao,Industrial,Equipment,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Product Description

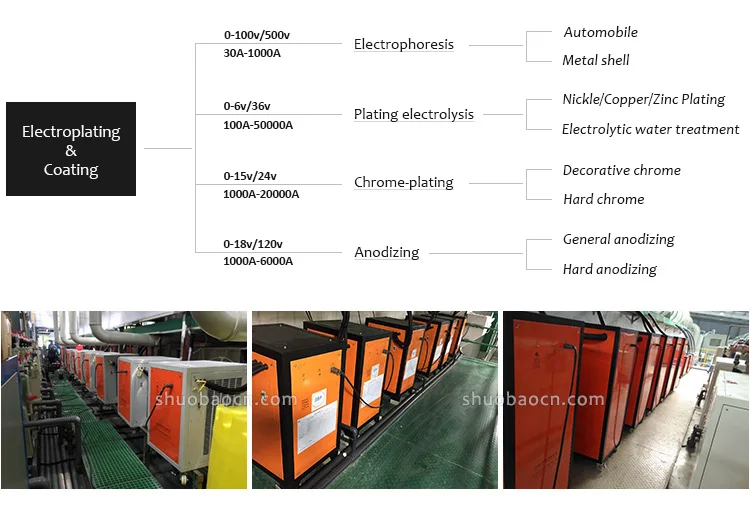

The product adopts IGBT inverter soft switch rectifier technology, is mainly as finish electroplating rectifier power supply of all kinds of metal and nonmetal (like electroplating zinc, nickel, chrome and titanium etc), it can also be used as electrolytic rectifier power supply, general anodizing power supply and DC heating supply etc.
- Operation mode: local/remote operation mode can be chosen
- Output control mode: constant current/constant voltage output control mode can be chosen.
- Rectifier mode: IGBT inverter soft switch rectifier, 5% energy-saving comparing with common switch rectifier power supply, 15-25% energy-saving comparing with thyristor rectifier
- Main protection functions: deficient phase, overvoltage, under voltage, quick fuse alarm protection of AC power supply, output over current and current limiting protection, output short circuit and instantaneous overload protection, over temperature and overheat protection of IGBT power component, switch rectifier transformer, quick rectifier diode component and BUS copper bar, overheating and high pressure protection of wind machine, low block PWM trigger pulse protection.
| AC input | 380V |
| AC input power | 110KW |
| DC input voltage | 0-20V continuously adjustable |
| DC output current | 0-5000A continuously adjustable |
| Out put power | 100KW |
| Defensive function | Under voltage, over voltage, overload, short circuit protection, thermal protection. |
| Power DC protection time | More than 20msec |
| Overload protection | 105~120% Rated output current |
| Short-circuit protection | Instantaneous short-circuit |
| Operating temperature range | -20℃~50℃ |
| Type of cooling | water-cooling |
| Dimensions (L * W * H)mm | 620*530*1450 |

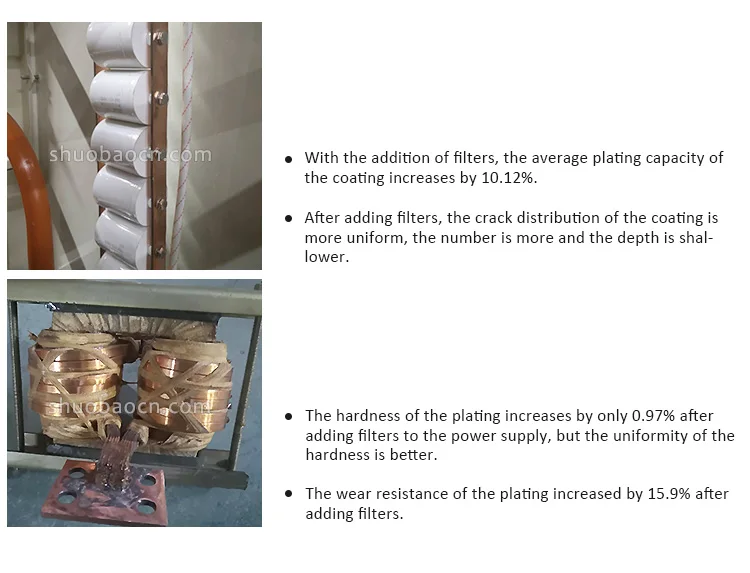

After adding filters to common high frequency switching power supply, the ripple coefficient decreases from more than 60% to less than 3%. The deep plating ability, uniform plating ability, micro-crack rate and wear resistance of the coating are improved to a certain extent. The hardness, current efficiency and brightness of the coating are basically the same as those without adding filters. The degree of coke burning in high area is reduced.
Company Information
Shuobao Industrial Equipment Co.,ltd belongs to JEC group, which is a manufacturer specialise in reaserch and develpment, innovation, porduction and marketing in electroplating equipment items. All our PUMPS/RECTIFIERS all with CE AND EMC REPORTS.

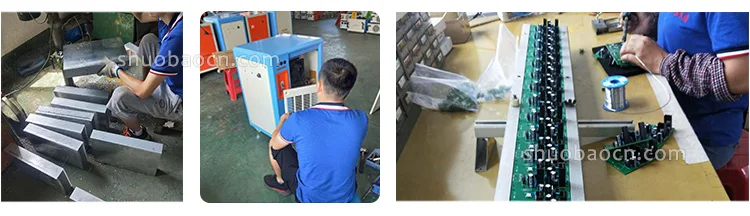

WORKSHOP:
CUSTOMERS

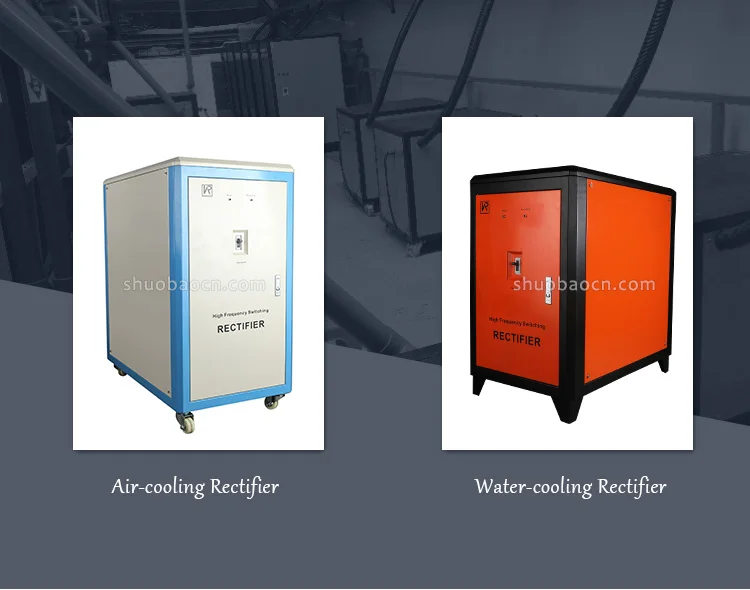

Popular Models
Certifications
Packaging & Shipping
FAQ
Q: Are you a factory or not?
A: 100% sure we are manufacturer which located in Dongguan City.
Q: Are you molding injection the equipment by yourself?
A: Yes, we have filter and pump molding injection equipment to make the mould by ourselves.
In order to give best price to client.
Q: How long is the warranty?
A: One year. Excluding the artificial damage.
Q: How to get the right model quotation regarding to the filter unit and pumps?
A: Only just the flow capacity/tank liter, also the chemical details are enough.
