Датчик обнаружения значения жидкости PH0-14 + зонд PH электрода

Overview:

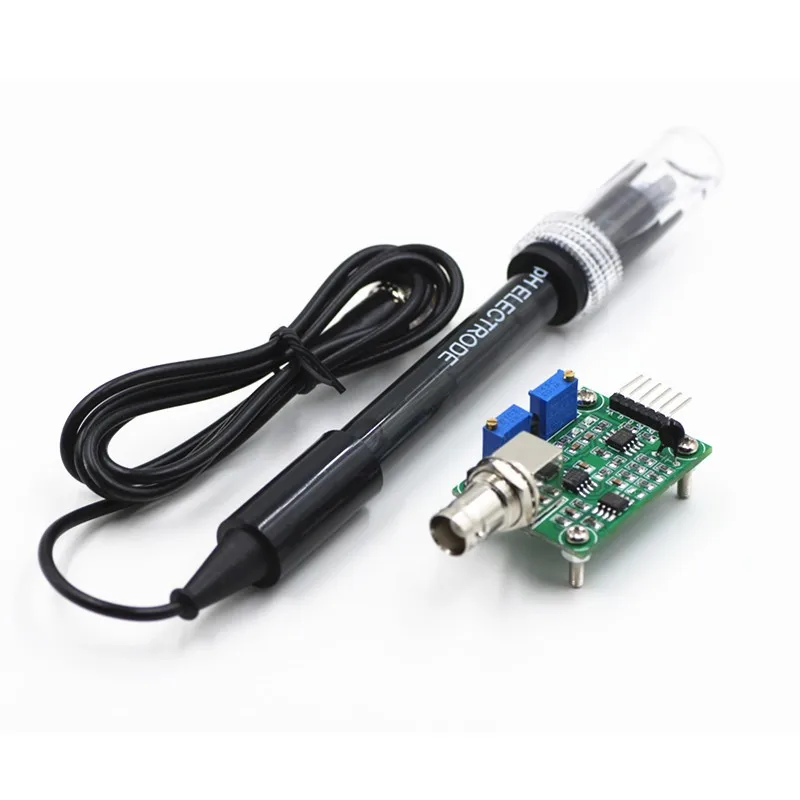

Liquid PH0-14 Value Detect Sensor Module + PH Electrode Probe BNC



Features:

Heating voltage: 5 ± 0.2V (AC ? DC)

Working current: 5-10mA

Detectable concentration range: PH0-14

Detection Temperature range: 0-80 ℃

Response time: ≤5S

Settling Time: ≤60S

Component Power: ≤0.5W

Working temperature: -10 ~ 50 ℃ (nominal temperature 20 ℃)

Humidity: 95% RH (nominal humidity 65% RH)

Module Size: 42mm × 32mm × 20mm

Output: analog voltage signal output

With 4pcs M3 Mounting Holes


Package Includes:

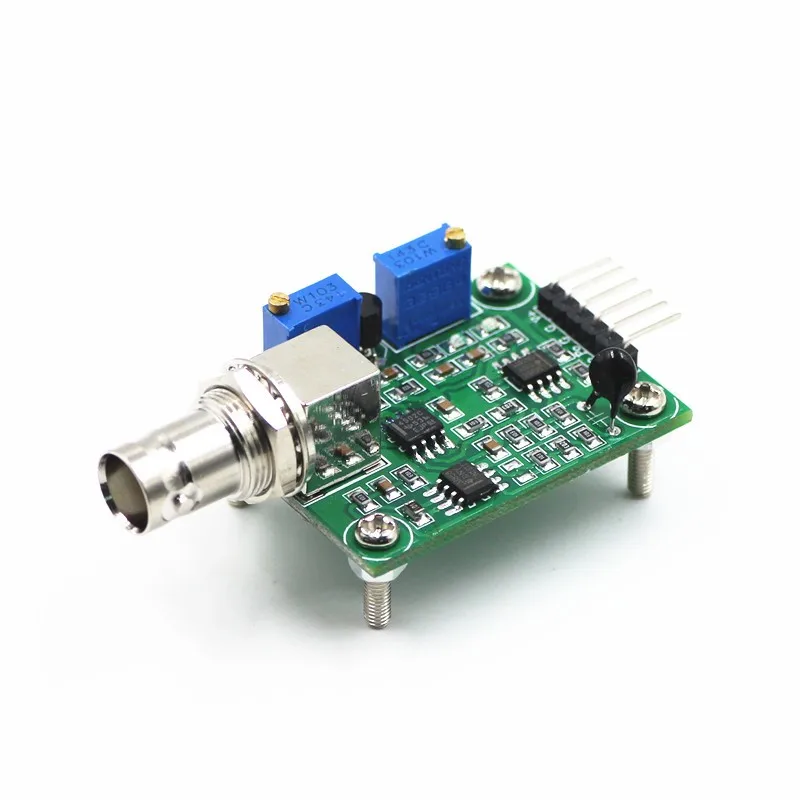

1pcs Liquid PH0-14 Value Detect Test Sensor Module

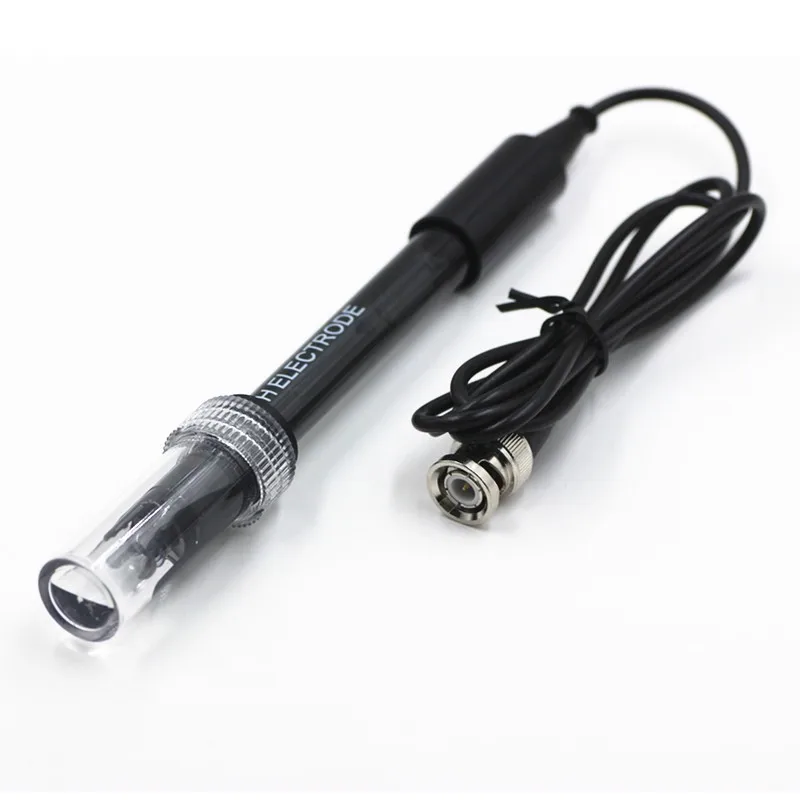

1pcs PH  Probe Hydroponic Sensor BNC Interface

Yes, we are manufacturer.

Normally 3-5 working days after payment; Special requirement orders, delivery time is negotiable.

We will replace new items for you at once and then we make the judgement for the issue.

1-3 months to replace new items for free.
1-2 years repairing free according to different products.

Yes, we do. We can design according to your requirement, MOQ usually 2-10.

Yes, we do. We can start to prepare your goods when receive 30% payment, and send them after get the rest 70% payment.

We accept Paypal, T/T, Alibaba Trade Assuarce, Western Union, Wechat, Alipay, in Cash (RMB or USD).
