Высококачественный электрический ножничный подъемник с электроприводом высотой 14 м и сертификатом
- Категории: Подъемные платформы >>>
- Поставщик: Qingdao,Sinofirst,Machinery,Co.,ltd
Поделиться:
Описание и отзывы
Характеристики

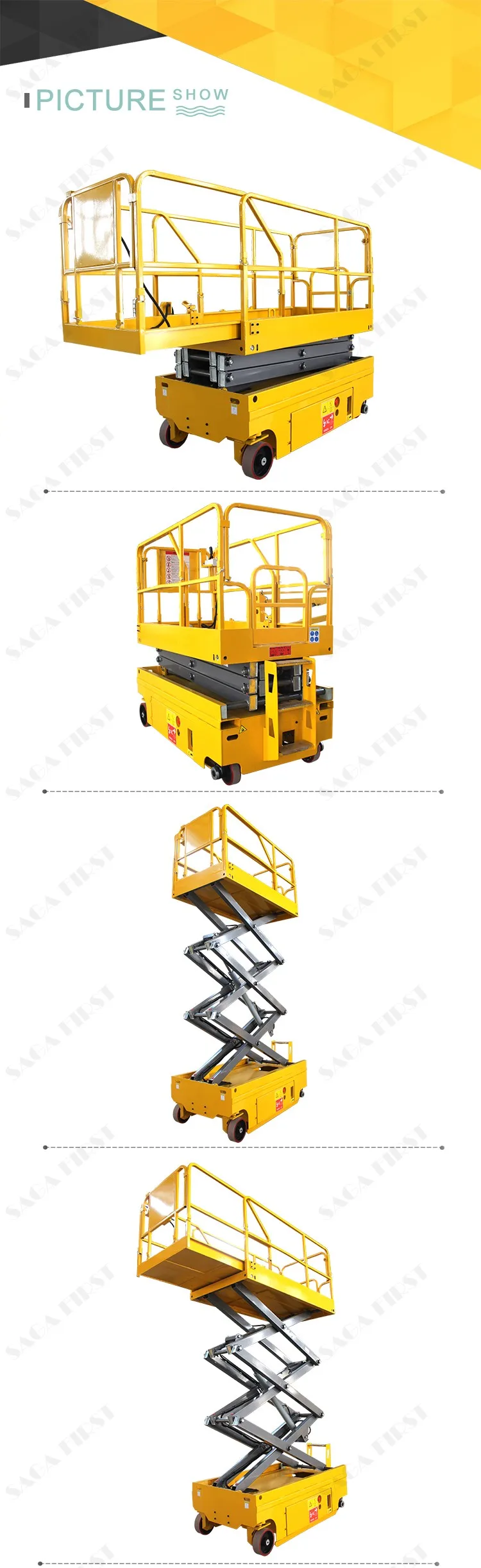

CE Certified High Quality 14m Height Electric Driven Battery Lifting Scissor Lift
- OEM & ODM Service -
| Model Type | ESP06A | ESP06 | ESP08A | ESP08 | ESP10 | ESP12 |
| Max.working height(m) | 8 | 8 | 10 | 10 | 12 | 14 |
| Max.platfrom height(m) | 6 | 6 | 8 | 8 | 10 | 12 |
| Lifting capacity(kg) | 230 | 230 | 230 | 230 | 230 | 230 |
| Extended platform capacity(kg) | 113 | 113 | 113 | 113 | 113 | 113 |
| Platform size(m) | 2.26*0.81*1.1 | 2.26*1.13*1.1 | 2.26*0.81*1.1 | 2.26*1.13*1.1 | 2.26*1.13*1.1 | 2.26*1.13*1.1 |
| Overall size (guardrail unfolding)(m) | 2.475*0.81*2.213 | 2.475*1.17*2.213 | 2.475*0.81*2.341 | 2.475*1.17*2.341 | 2.475*1.17*2.469 | 2.475*1.17*2.597 |
| Overall size (guardrail removed)(m) | 2.475*0.81*1.763 | 2.475*1.17*1.763 | 2.475*0.81*1.891 | 2.475*1.17*1.891 | 2.475*1.17*2.019 | 2.475*1.17*2.149 |
| Extended platform size(m) | 0.9 | 0.9 | 0.9 | 0.9 | 0.9 | 0.9 |
| Ground clearence(m) | 0.1/0.02 | 0.1/0.02 | 0.1/0.02 | 0.1/0.02 | 0.1/0.02 | 0.1/0.02 |
| Wheel base(m) | 1.92 | 1.92 | 1.92 | 1.92 | 1.92 | 1.92 |
| Minimum turn radius(inner wheel) | 0 | 0 | 0 | 0 | 0 | 0 |
| Minimum turn radius(outer wheel)(m) | 2.1 | 2.2 | 2.1 | 2.2 | 2.2 | 2.2 |
| Driving motor(v/kw) | 2*24/0.75 | 2*24/0.75 | 2*24/0.75 | 2*24/0.75 | 2*24/0.75 | 2*24/0.75 |
| Lifting Motor(v/kw) | 24/1.5 | 24/1.5 | 24/1.5 | 24/1.5 | 24/2.2 | 24/2.2 |
| Lifing speed(m/min) | 4 | 4 | 4 | 4 | 4 | 4 |
| Running speed(folding)(km/h) | 4 | 4 | 4 | 4 | 4 | 4 |
| Running speed(rising) | 0 | 0 | 0 | 0 | 0 | 0 |
| Battery(v/ah) | 4*6/180 | 4*6/180 | 4*6/180 | 4*6/180 | 4*6/180 | 4*6/180 |
| charger(v/a) | 24/25 | 24/25 | 24/25 | 24/25 | 24/25 | 24/25 |
| Maximum climbing ability | 25% | 25% | 25% | 25% | 25% | 25% |
| Maximum working allowable angle | 2°/3° | 2°/3° | 1.5°/3° | 2°/3° | 2°/3° | 1.5°/3° |
| Wheel Size(driving wheel)(mm) | Φ250*80 | Φ250*80 | Φ250*80 | Φ250*80 | Φ250*80 | Φ250*80 |
| Wheel size(stuffed)(mm) | Φ300*100 | Φ300*100 | Φ300*100 | Φ300*100 | Φ300*100 | Φ300*100 |
| Net Weight(kg) | 1985 | 2300 | 2100 | 2500 | 2700 | 2900 |
Scissors Platform Lift is equipped with two kinds of motors, hydraulic lifting motor and electric driving motor. Hydraulic lifting motor supply power to lift up and down smoothly. Electric driving motor supply power to move forward,backwoard, turn around. Working Principle is different with hydraulic drive self propelled scissor lift.
Product Description
Scissors Platform Lift moves and lifts all by battery power. Operator can control lifting, moving, turning and all movement on the platform through the control system.
Proportional control Automatic pothole protection Self-lock gate on platform
Non marking tyre Automatic brakes system Emergency Stop Button
Emergency Lowering System Cylinder Check Valve Tilt sensor with Alarm
Safety Maintaince Rod Forklift Holes Folding Guardrails
Extended Platform Charger Protection Flicker

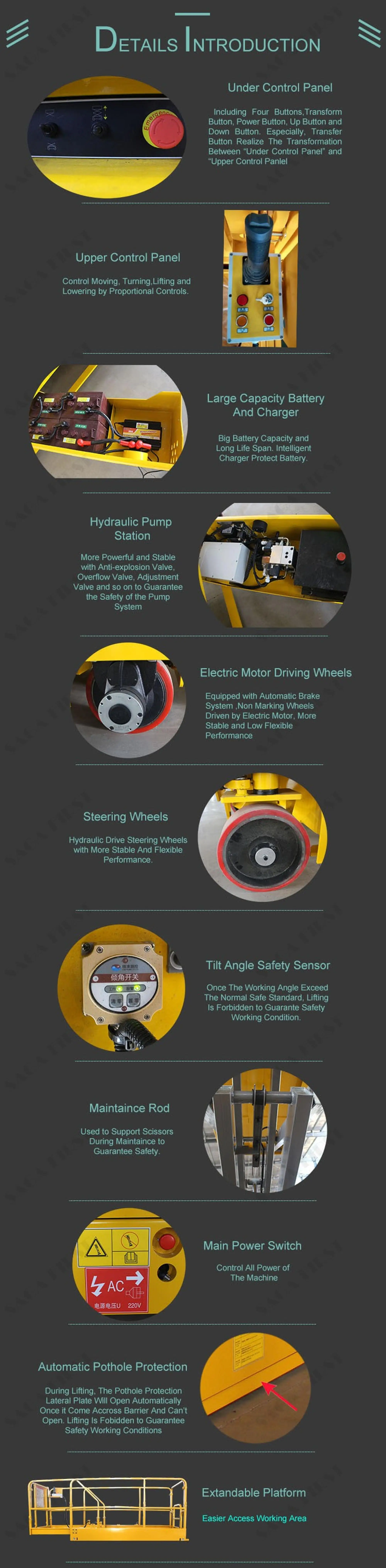

Detailed Images
Safety Precautions:
1. Explosion-proof valves 2. Spillover valve 3. Emergency decline valve
4. Check Valve 5. Adjustment Valve 6. Tilt Angle Sensor
7.Automatic pothole protection 8.Self-lock gate on platform 9.Safety Maintaince Rod

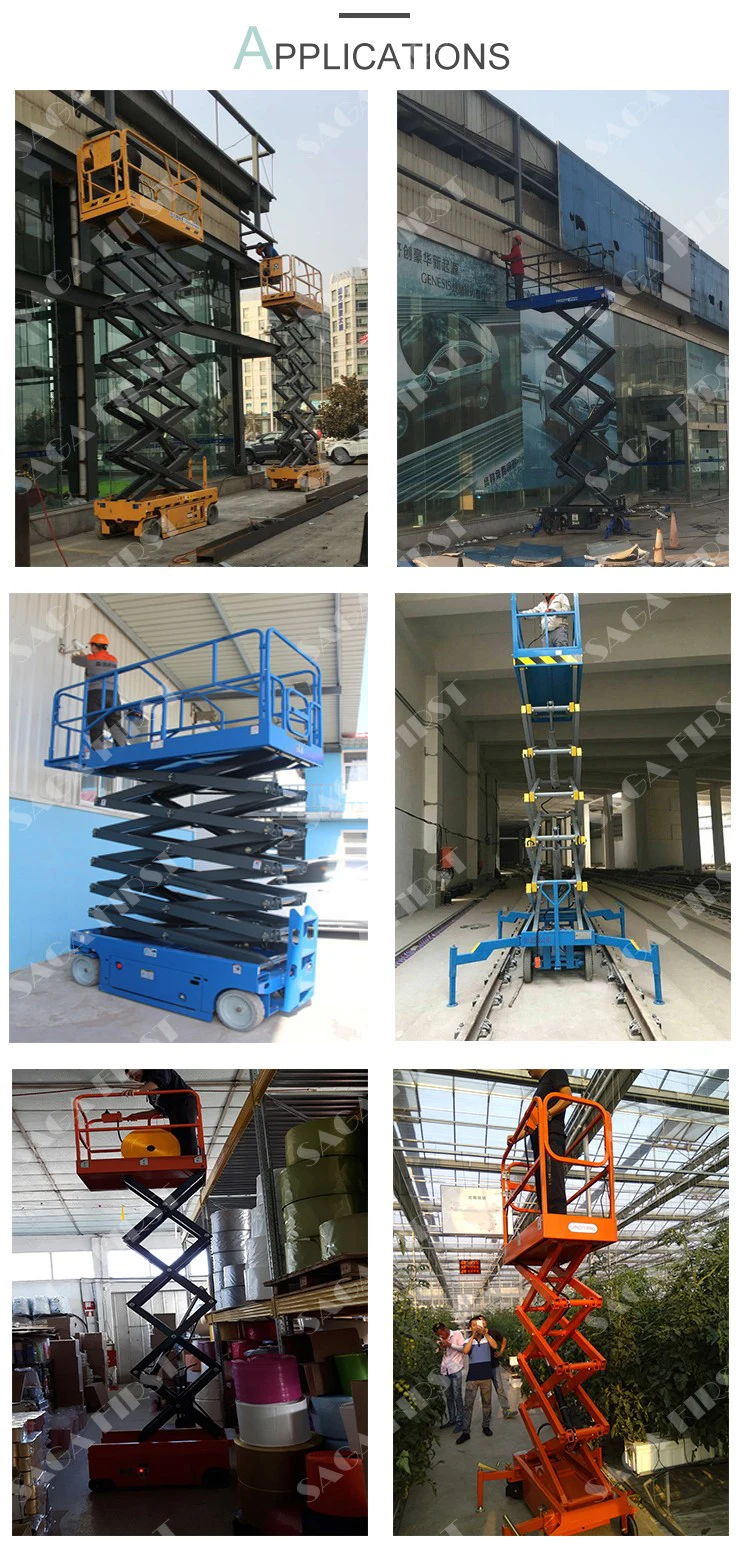

Applications
Scissors Platform Lift is widely used in construction site, building maintenance, factory daily aerial work maintenance and various kinds of aerial work.
Certifications
Scissors Platform Lift are approved by European certificates and meet the international standards.
Questions | Answers |
Are you a factory or trading company? | We're factory with over 12years exporting experience. |
What's the MOQ? | 1UNIT,the more,the better. |
What's the payment terms? | <USD4999: 100%TT in advance. >USD5000: 30%TT in advance,balance before shipment. >USD100,00: TT or Irrevocable L/C At Sight. |
Do you offer OEM&ODM service? | Yes,like lifting capacity, lifting height, size of platform,painting color,logo,manual etc. |
What's the delivery time? | 15~20days after down payment |
What's the quality warranty? | 24 months.Offer free parts for replacement. |
How can I get the after-sales service? | We offer videos,pictures and technical guidance immediately. |
What's your QA&QC policy? | 3times 100% inspection before shipping. |
Can you tell me your clients in my country? | Of course. But only after the permittance of customers. |
Buy Online
Both the buyer and seller can create order online on Alibaba Trade Assurance
Contact Us
Dennis
Sales Manager,Overseas Trade Department
Qingdao Sinofirst Machinery Co., Ltd
Mob:+86-18562653283
Whatsapp/Wechat:+86-18562653283
Skype:Dennis Gaomingfang
Email:dennis(at)liftawp.com
