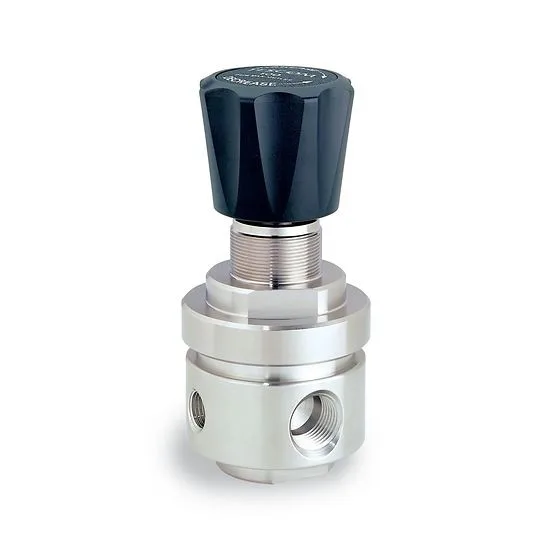

Одноступенчатый газовый регулятор из нержавеющей
- Категории: Pressure Regulators >>>
- Поставщик: Fanovo,(shanghai),Industries,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Product Description
Brass Series Single Stage Gas Regulator
Maximum Inlet Pressure 500, 3000 psig / 34.5, 207 bar
Outlet Pressure Ranges 0-25, 0-50, 0-100, 0-150 psig / 0-1.7, 0-3.4, 0-6.9, 0-10.3, 0-13.8 bar
Body Material Brass, 316 Stainless Steel
Seat Material 3000 psig / 207 bar inlet: CTFE
500 psig / 34.5 bar inlet: Teflon®
Bonnet 300 Series Stainless Steel
Diaphragm 316 Stainless Steel, Elgiloy®
Seal Teflon®
Seat Retainer Nitronic 60
Remaining Parts 316 Stainless Steel
Port Size & Type 3/8, 1/2
NPTF
1/2, 1
Flange
Operating Temperature -40°F to 140°F / -40°C to 60°C

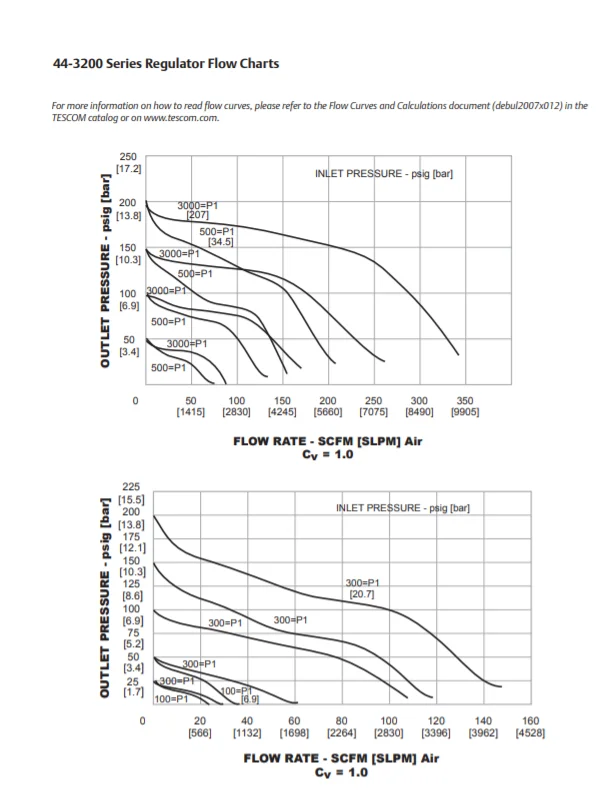

Flow Capacity Cv = 1.0, 1.8 (Optional)
Load Type Spring
Weight (without gauges) 3.5 lbs / 1.6 kg
Features
True metal-to-metal diaphragm seal to minimize diffusion
Five outlet pressure ranges are available
Gauge ports are standard
Optional high flow model (Cv = 1.8) is available

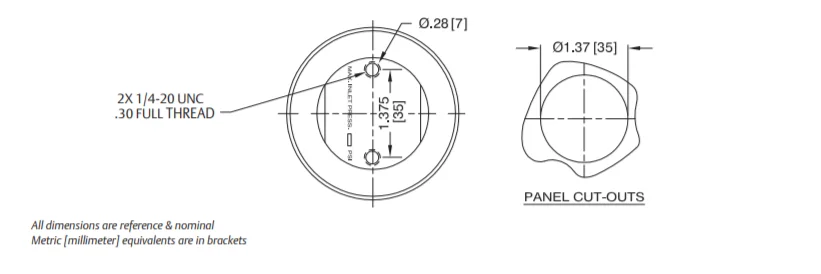

Panel mounting is optional
Non-venting is standard
Flanged end connections available
Non-venting is standard
| \t | \t |
| \t | \t |
| \t | \t |
| \t | \t |
Material Test Tools
Fanovo imported Spectrometer machines for metal test, keep materials of each order meet Customers' need. The metal includes stainless steel 304, 316L, lead free NSF brass, CW 617, Monel 400, etc.
Material Analysis Equipment
All incoming material before production will be tested by material analysis machine
Material Test Report
Material test report will be shipped with each order, Fanovo guarantees the materials qualified for customers.
Spectrometer Machine for Material Test
Fanovo is capable to test brass, stainless steel, Aluminum etc.
Fanovo Images
Incoming Quality Control
Fanovo will do 100% inspection for incoming material, brass bar, stainless steel, steel etc.
Lean Manufacturing
IPQC department will inspect the process of Turning&milling, Fanovo do production accord to DWG.
Imported CNC
5-axis machining involves using a CNC to move a part along five different axes simultaneously
6 Pcs 400T forging machine
Automatic Assembly for valves
5S management assembly Line
Certification
Fanovo are carrying out Total Quality Management and obtained ISO 9001 for management The quality responsibility is divided into quality divisions ( SQC, IQC, IPQC, FQC, OQC). Fanovo promises Just-in-time delivery and fine manufacturing for our customers. Meanwhile Fanovo has the certification of NSF/ANSI 61, UPC/ CE for main products including brass valves, fittings, couplings, etc.
Delivery Packaging
Fanovo's delivery packing by sea is in Carton Box and pallet. Ensure your shipment arrives safely and on time by packing your goods well. It's one of the most important things Fanovo can do to reduce the risk of delays and damage during transit.
Inner Box :White Box or Color Box
Carton Box: Corrugated Box With Item Label
Pallet Packing: By Sea/ By Air
Sea shipping
Fanovo recommend to ship by sea if quantity is big that saves much freight for customers.
DHL/ UPS/ FEDEX/TNT/ Special Air Delivery
Good for sample delivery and small volume
FAQ
Q: Are you trading company or manufacturer ?
A: We are a manufacturer with our own trading company in Shanghai.
Q: How long is your delivery time?
A: Generally it is 2-10 days if the goods are in stock. or it is 20-40 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
Q: Can you customize products for your customers?
A: Yes, Customized service is one of our core business, we have no small MOQ request.
Q:Will you do 100% inspection before Shipment?
A: Our QC will do 100% inspection and we will take the 100% claims if defective.
