LXD 18L-2 машина для маркировки дорог с двойным цилиндром и холодной

Specification

It is designed for large-scale road,especially apply to city road,airport and express way etc.

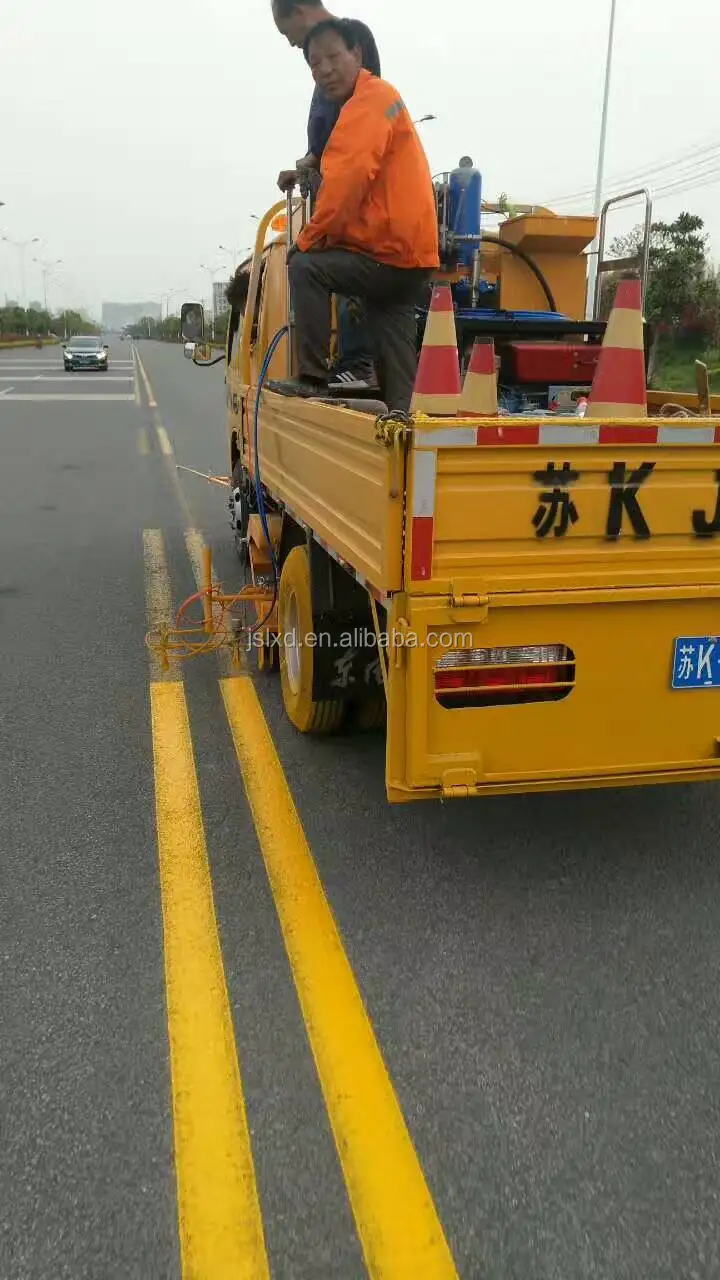

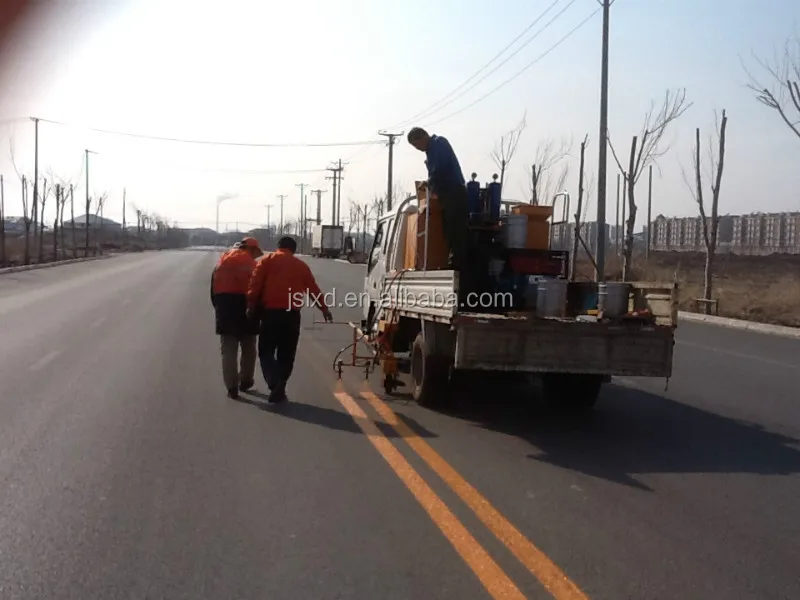

It can mark actual line,dotted line,double yellow line etc.

It is equipped with double spray gun and double paint bucket,also can add additional manual spray gun, to make it mark lines in different color at the same time.

Maximum flow

18L×2

Maximum work pressure

30Mpa

Spraying width

50-900mm

Spraying thickness

0.2-0.6mm

Work performance

Four spray guns can work together

Dimension

1530×1230×1380mm

Net weight

820kg

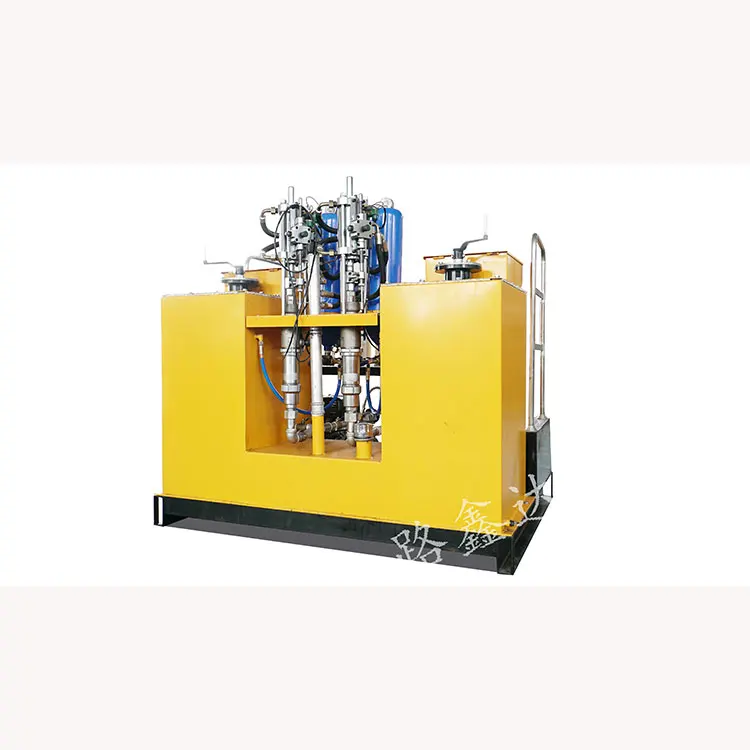

Main engine configuration

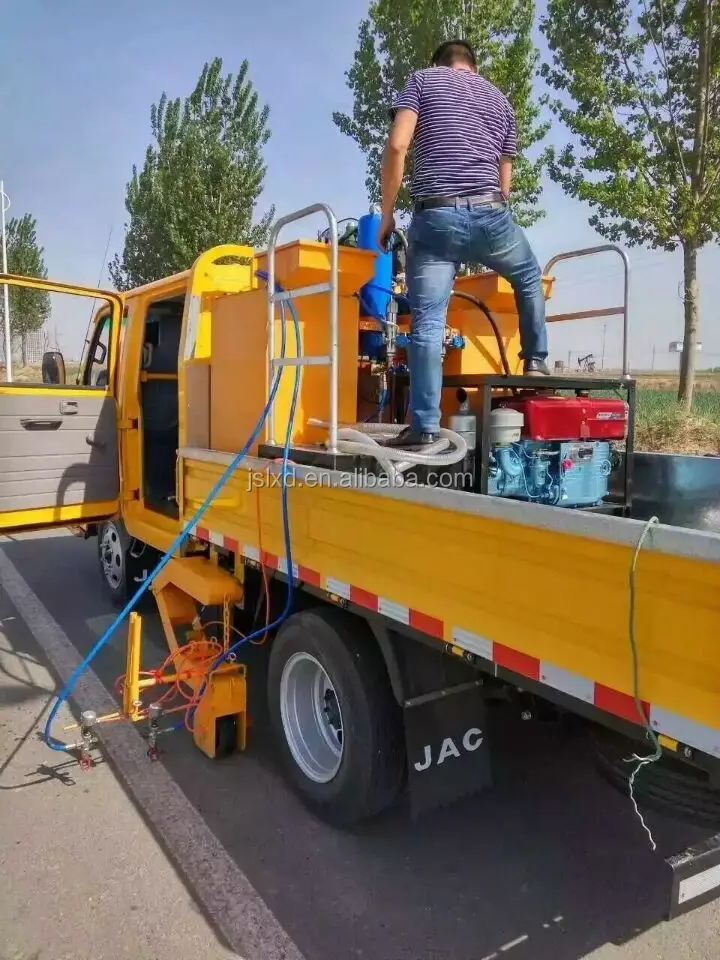

Truck loading configuration

270 Honda engine

Automatic break line machine (SIMENS)

Gear pump

Manual controller (SIMENS)

Oil tank

Shelf of the spray gun (one group)

Pressure regulator

two solenoid valves (COMAZZI)

Accumulator

two automatic spray gun

Reverser

four pieces of high pressure tube(3.5m)

Reversing oil tank

Rotary encoder(OMRON)

Paint high pressure pump

10m High pressure tube,one manual spray gun

Strainer

One Yellow Paint bucket and one white Paint bucket

Air compressor

One set of Water line shelf
