High efficiency Double shaft gum adhesive tape jumbo roll cutting machine
Product Description
Usage:
Suitable for cutting bopp tape, PVC tape, PE tape, masking tape, double sided tape, kraft tape, foam tape, duct tape, industrial tape, protective film, etc.
Main Features
1. Centralized control panel: all operation controls. For this machine are centralized in a control panel.
2. Control panel provides major functions: material and blade running speed (LED screen display), width counter, number of cuts counter.
3. Silicon lubricating system prevents the blade from sticking on adhesives and allows smooth cutting at all times. Silicon liquid is re-circulated.
4. The blade is back pressure controlled through an air and hydraulic combination, giving maximum cutting stability and fast blade retract after each cut, cutting pressure can be easily adjusted to suit various types of materials.
5. Cutting circular knife and main shaft power force adopted with AC step-lessadjusting motor and available in any rotating direction.
6. Cutting width setting up controlled by servo motor adjustable equipped with ball screw to secure accurate size.
7.PLC programmable control.
Technical parameters:
| width | 1300mm |
| max. cutting diameter | 160mm |
| min. cutting width | 1mm |
| paper core diameter | 25.4-76.2mm |
| rould kinfe diameter | 180mm |
| dimension | 3000*1300*1550mm |

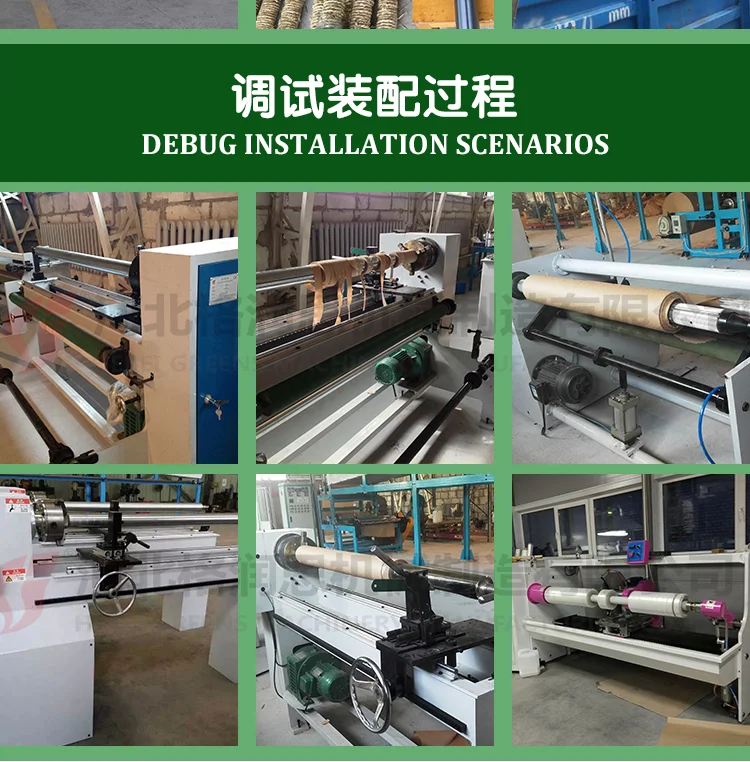

factory photos
Company Information
Hebei GREENS Machinery Manufacturing Co.,Ltd(Hebei LVJOE Machinery Manufacturing Co.,Ltd) was established in 1998, it’s a diversified development enterprises with researching,designing,manufacturing,project equipment integration. We are a strong company nationally of comprehensive strength in the adhesive tape machinery manufacturing. GREENS had won a lot of national awards, such as high-tech enterprise certificate, many self-patent certificates, the European Union issued CE quality system certification, and ISO9001 quality system certification. We are praised as a municipal civilization group inHebeiProvince; the contract and promise keeping group.
For more information, welcome to contact with cynthia.
skype: cyhthia1202
wechat: 0086 13032613755
whatsapp: 008613032613755
