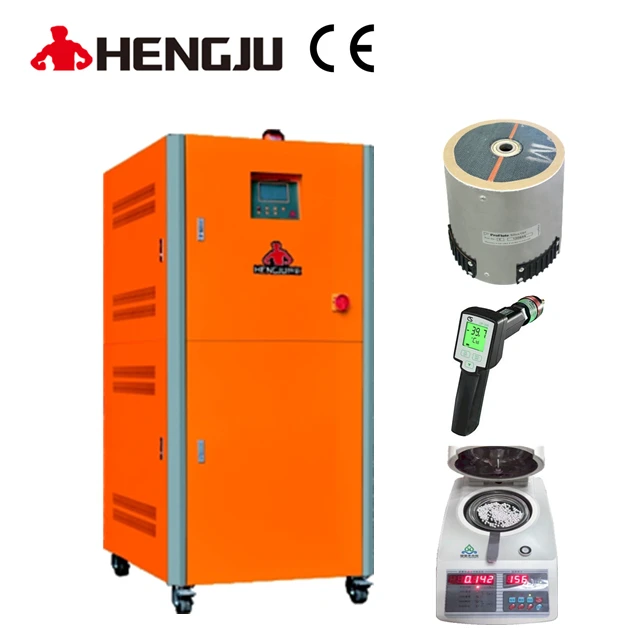

Недорогой пластиковый воздухоосушитель 3 в 1 15 л с низкой точкой росы энергосберегающая пластиковая

1. The 3 in 1 compact designed for dehumidifying dryer assures that the drying process is operating in the entire sealed system, avoiding to humidify again the raw materials contacts to the air after being dried, achieving as good drying results.
2. Mircocomputer P.I.D control system, with protective functions of over-heat protection, motor overloaded, motor reverse protection, delayed cooling downtime.
3. Alternative for touch-screen liquid crystal display, are available to display operational conditions, trouble shooting and maintenance instructions.
4. Low dew point reach -40℃ to ensure materials drying completely by dried air.
5. Downwards blowing design to prevent heat loss and increase drying efficiency.
6. Double insulating hopper prevents heat loss and maintains regular temperature.
7. With advanced technology,provides safely,reliable,space-saving and high performance.

Some examples for our HCF series,please contact us for other model~

Model		HCK-25	HCK-50	HCK-100	HCK-200	HCK-400
Dryer Hopper	Capacity(L)	25	50	100	200	400
	Heat Protection Material	Fiberglass+Staninless Steel
Dry-Air Dew point		-40℃
Temperature(℃)		80-160
Blower Power(KW)		0.75	1.1	2.2	5.5	7.5
Regeneration Blower(KW)		0.25	0.25	0.55	0.75	2.2
Drying Heater(KW)		5.4	5.4	12	8	21
Regeneration Heater(KW)		3.9	3.9	5.4	7.2	10
Pipe Sizes	Drying(mn)	51	51	63	76	100
	Cooling(lnch)	3/4"
	Regeneration(mn)	38	38	51	51	63
Conveying Blower(KW)		1.1	1.1	1.5	2.2	3.7
Conveying Distance(m)	Stage 1	10
	Stage 2	10
Hose Size(Inch)		1.5				2
Sensor Hopper Capacity(L)		6	6	6	6	10
Vacuum HOPPER Capacity(L)		6	6	6	6	10
Dimension LxWxH(cm)		100×87×180	100×87×180	165×130×225	178×130×286	225×138×349
Approx.Net Weight(KG)		310	360	550	750	900

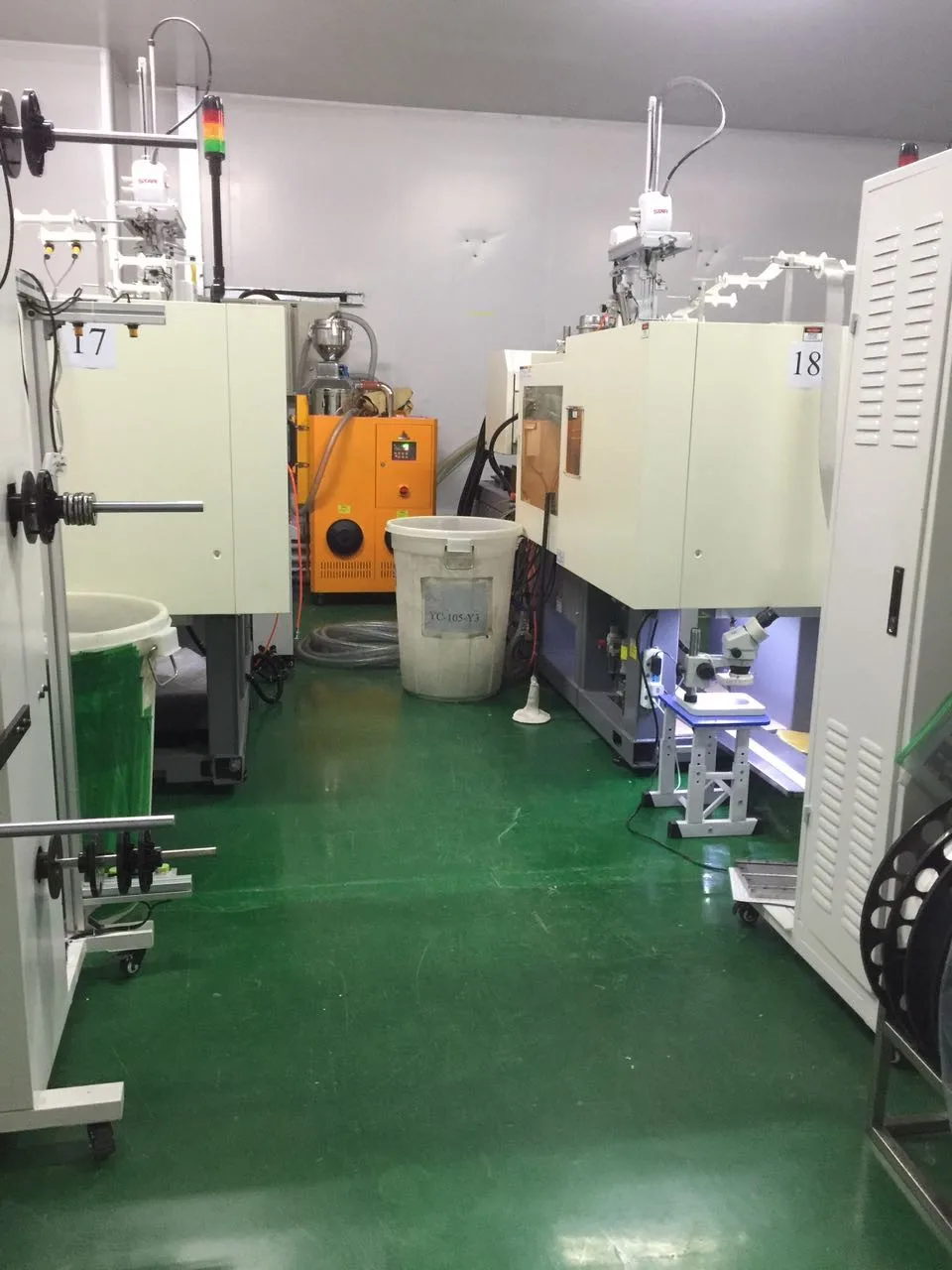

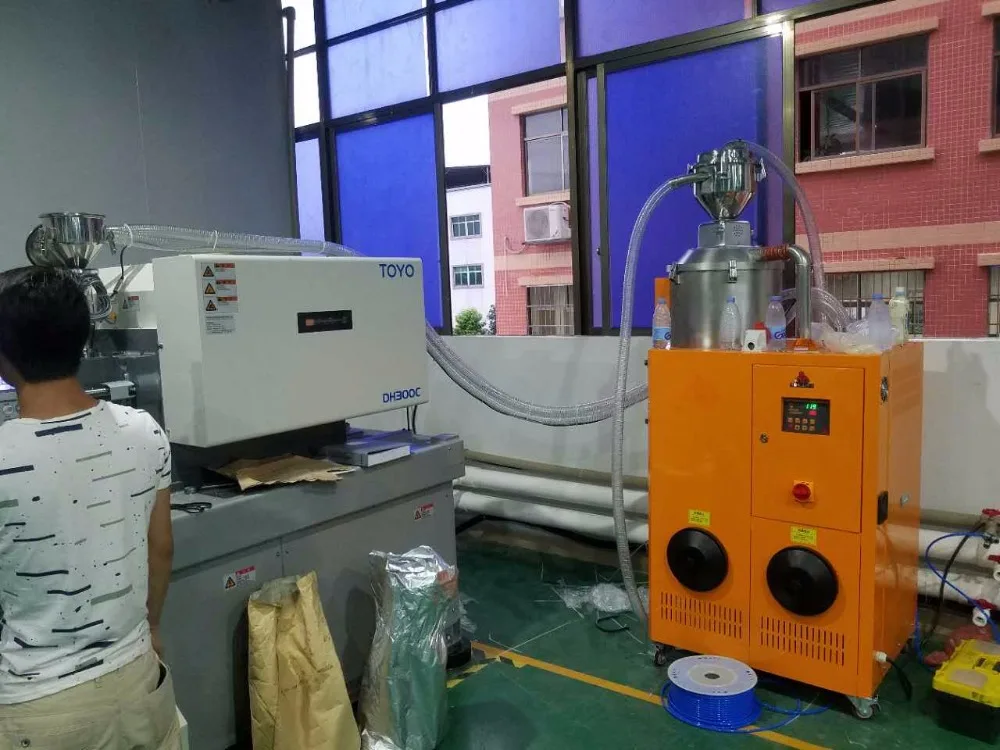

Customer Case

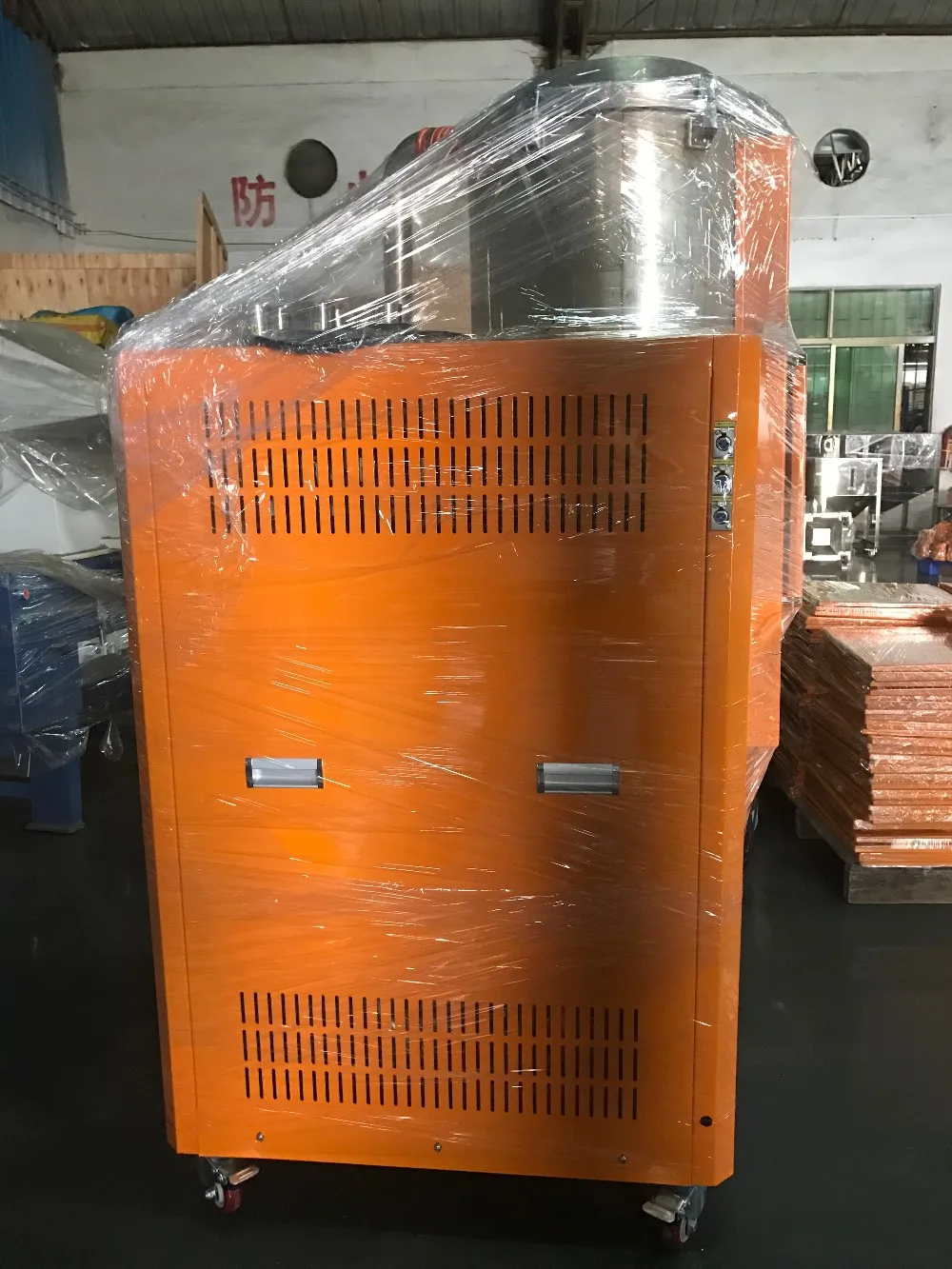

Packing & Delivery

Our Company

Certifications

Exhibition

FAQ

Related Products

Standard hopper dryer

Energy-saving euro-hopper dryer

Honeycomb dehumidifier

Auto Loader

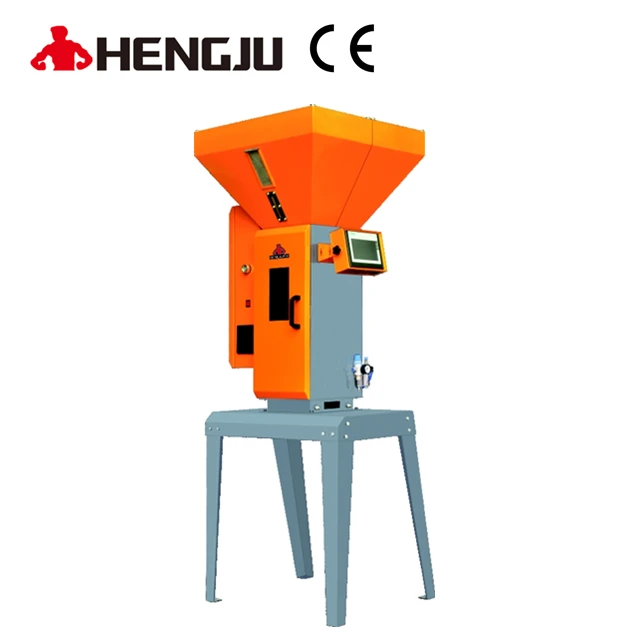

Gravimetric blender
