Rs232 беспроводной cinterion mc35i gsm/gprs

Цена:*

Стоимость в USD (на сегодня):Узнать

Количество:

rs232 wireless cinterion mc35i gsm/gprs modem

Product Description

rs232 gsm gprs modem.jpg

Product specification:

Product	GSM/GPRS modem
Function	Voice/Data/Fax/SMS transmission
Interface	RS232 DB9 + RJ11
Chipset	MC35I module
General features:	• Dual-Band EGSM900 and GSM1800 • Compliant to GSM phase 2/2+ • Output power: – Class 4 (2 W) for EGSM900 – Class 1 (1 W) for GSM1800 • Control via AT commands • SIM Application Toolkit • Multiplex RS232 interface • Power save mode • Supply voltage range 8...30 V • Dimensions: 65 x 74 x 33 mm • Weight: 130 g • Ambient temperature: –20 °C ... +55 °C
Specifications for data transfer:	• GPRS class 8 (up to 85.6 kbps) • Full PBCCH support • GPRS mobile station, class B • CSD up to 14.4 kbps • USSD • Non transparent mode • V.110 • Coding scheme CS1, 2, 3, 4
Specification for fax:	• Group 3, class 1, 2
Specifications for SMS:	• Point-to-point MO and MT • SMS cell broadcast • Text and PDU mode
Specifications for audio:	• Half rate (HR) • Full rate (FR) • Enhanced full rate (EFR) • Basic hands-free operation – Echo cancellation – Noise reduction

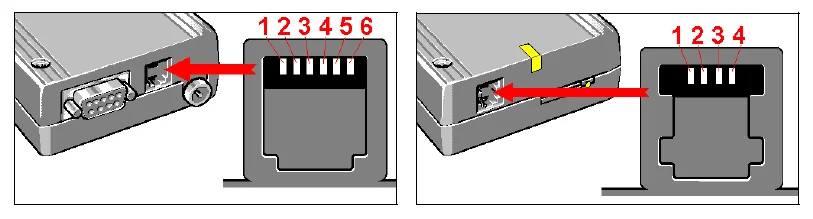

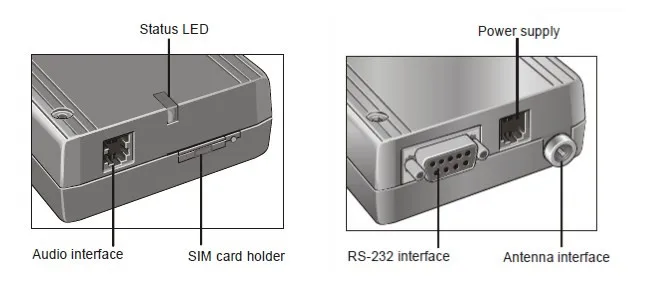

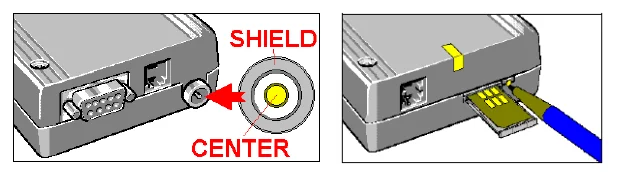

Interfaces:	• Plug-in power supply • Handset audio interface • Mini-SIM card reader • Antenna connector FME (male) • V.24/V.28 interface on the 9-terminal sub-D socket • Operating status LED
Additional features:	• Phone book • Multiparty call • Call diverting • Real-time clock • Alarm management • Several ringing tones • DTMF (Dual Tone Multi Frequency)

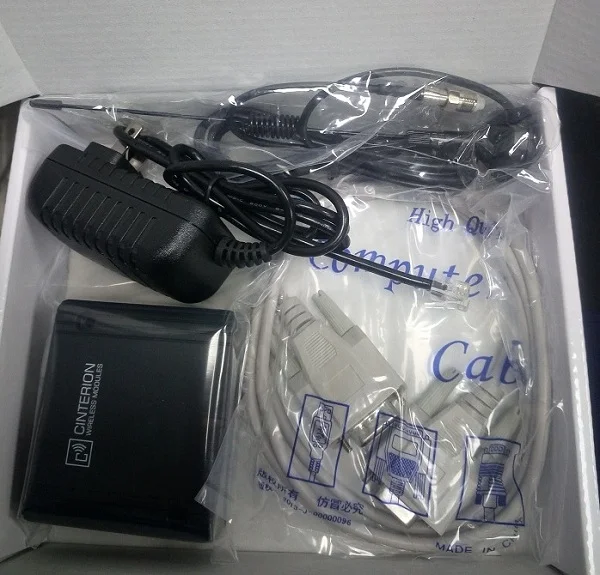

Package list:

1X modem

1X antenna

1X RS232 (serial) cable

1x RJ11 cable

1X power adapter

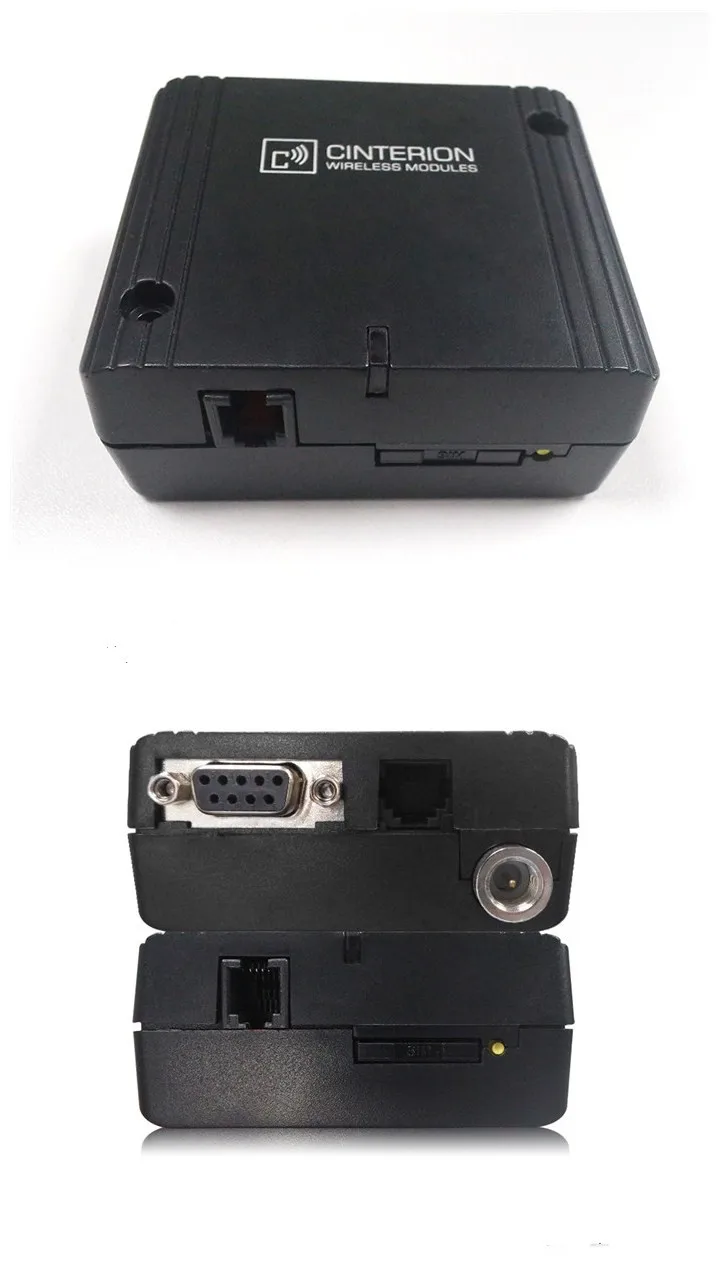

cinterion mc75I modem.jpg

Detail pictures:

Application:

application .jpg
