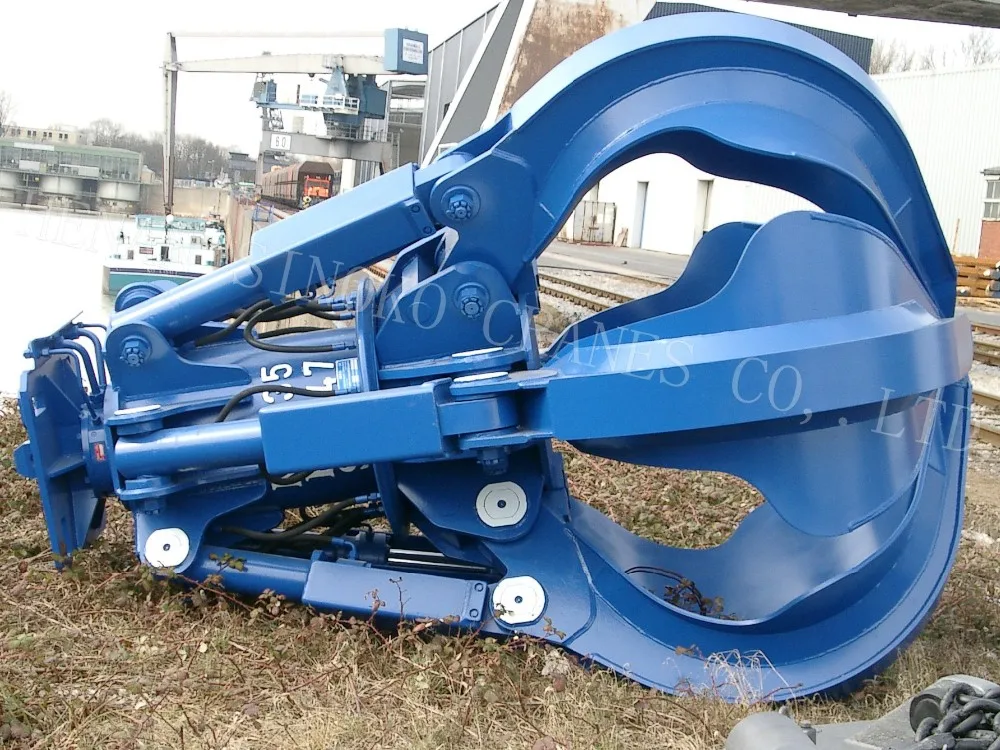

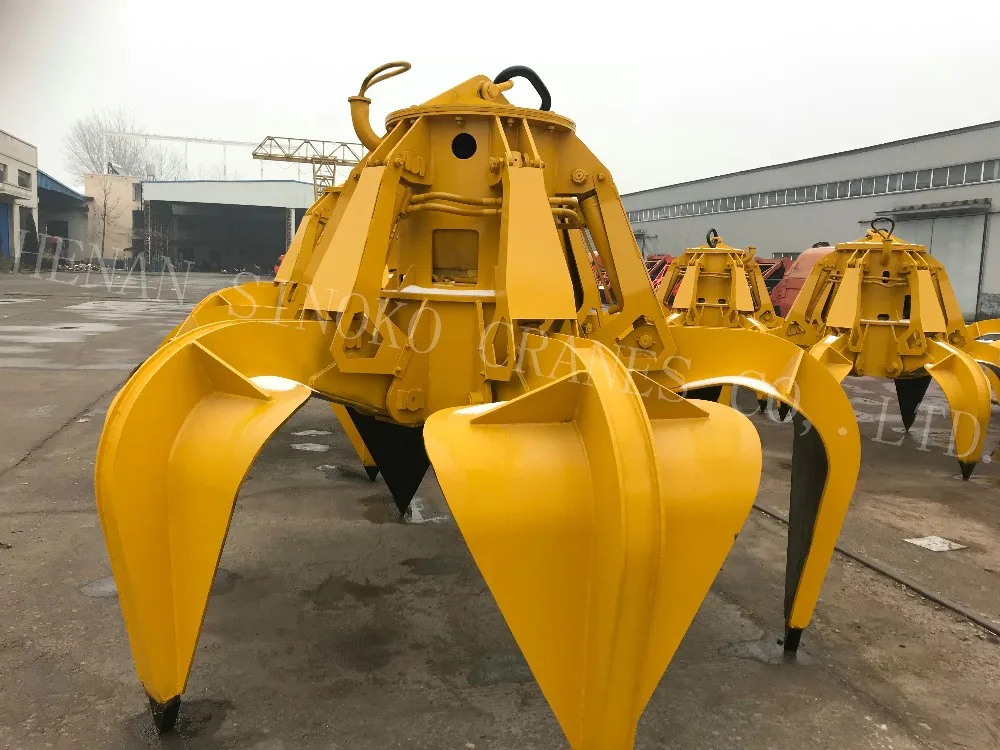

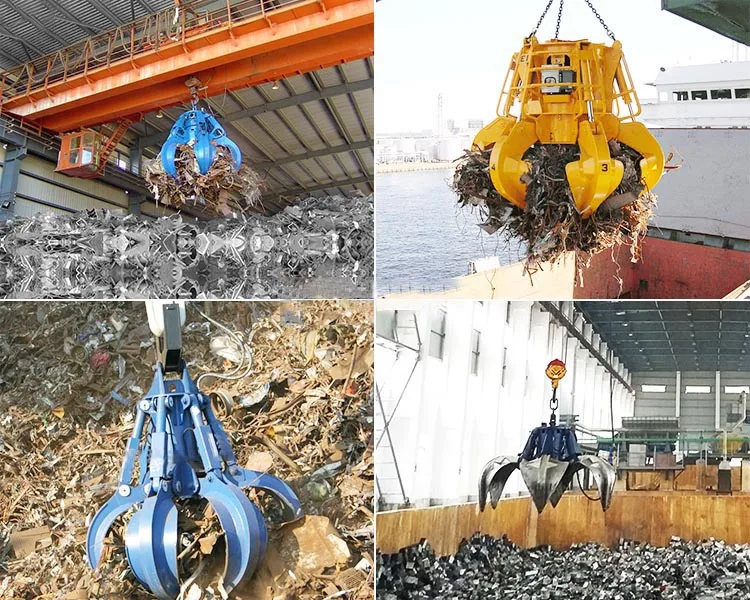

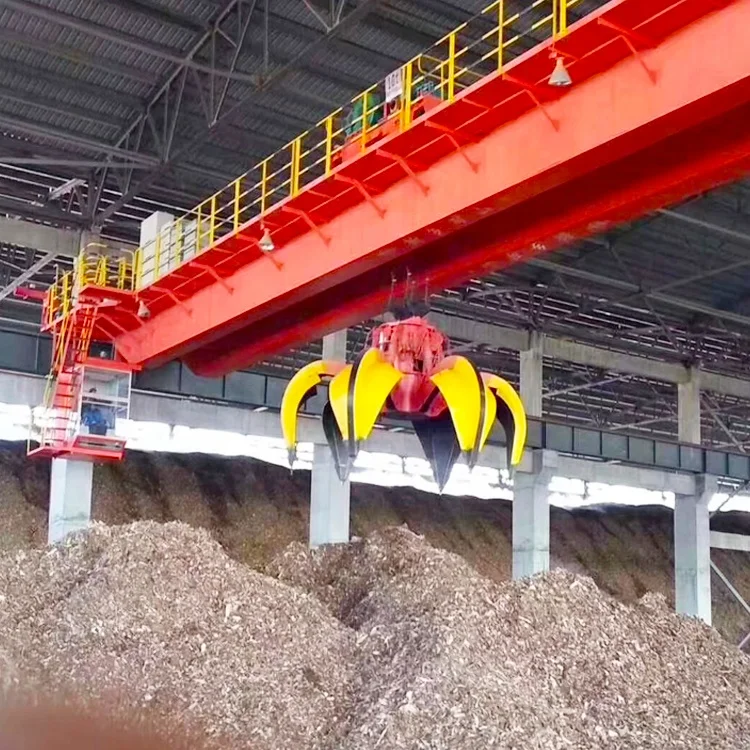

Electric hydraulic multivalve grab and electric hydraulic double disc grab are the manufacturing technology that our company introduces from Europe and America. According to the German technology material, and the hydraulic element device was imported from Europe and America, It incorporates advanced electric hydraulic machinery technology, which has huge grasping force, high automation, is the ideal loading and unloading tool of large, pig iron castings, ore to scrap the acquisition, garbage, iron powder, strew, slag material. It mainly used for steel mill, forest, coal mine, harbor wharf, scrap steel acquisition, garbage disposal, biological energy industry and so on.
MODEL | Unit | SC04 | SC06 | SC08 | SC10 | SC20 |
Weight | KG | 550 | 950 | 1300 | 1650 | 2050 |
Max jaw opening | MM | 1700 | 1750 | 1950 | 2180 | 2800 |
Height of closed grapple | MM | 1470 | 1650 | 1750 | 1900 | 2500 |
NO.of Jaw | Piece | 4-5 | 4-5 | 4-5 | 4-5 | 4-5 |
Pressure | Bar | 260 | 260 | 260 | 260 | 260 |
Cylinder volume | Litre | 400 | 600 | 800 | 1000 | 1500 |
Operating flow | Lpm | 20-70 | 60-120 | 60-120 | 60-120 | 60-120 |
weight class | Ton | 5-11 | 12-17 | 18-25 | 26-35 | 35-45 |

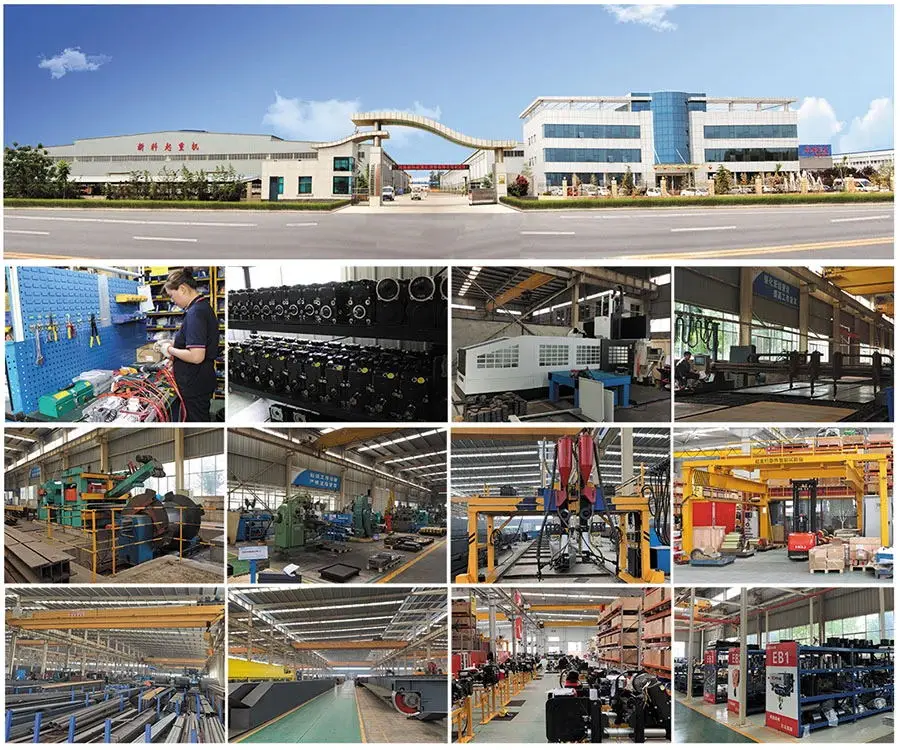

Henan Sinoko Cranes Co,.Ltd is a modern manufacturing enterprise,which has a tight technical cooperation with one of the world biggest professional crane manufacturing-Konecrane Group SWF company from the date it's been built. The company keeps focus on the cutting edge technology and developments of European style cranes.
We have more than 1200 employees, among which there are more than 180 engineers and technicians. The factory area is about 280 acres. The registered capital is 108.80 million RMB and total capital 220 million RMB.
The 210-plus sets of advanced manufacturing and testing equipments enable us to make high quality products.
Based on Konecrane's technique, our products have advantages of slim size, light weight, excellent free maintenance performance, continuing working efficiency, advanced configuration, galvanized steel rope, disc brake for lifting safety, hardened reducer, PLC lifting limit switch etc. they are innovative products in China crane industry. The products ranges are:China standard and European standard overhead crane, gantry crane and light scale crane equipments. The core parts of European type crane use Konecrane group-SWF company. Structural parts are fabricated according to Konecrane's drawing and technological standard. The whole crane performance reach international advanced level.
Sinokocranes acquired production licenses from China national technical supervision bureau and passed through ISO9001:2000 international quality control standard, ISO14001:1996 environment and OHSAS18001 health and safety standard.
