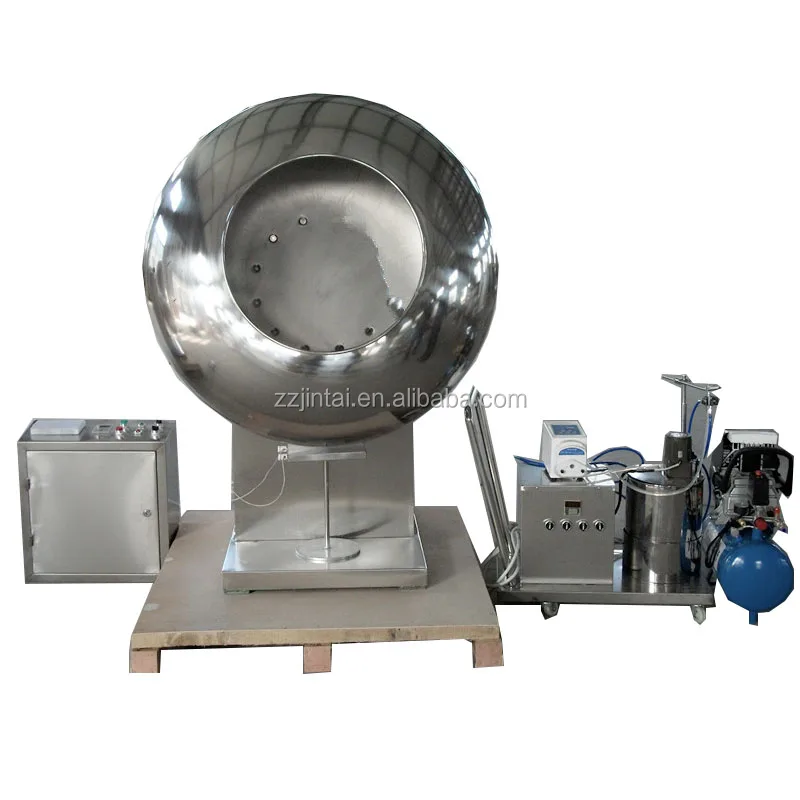

Professional automatic tablet pill heating coating pan machine
This tablet film coating pan machine is mainly used for sugar coating & polishing of tablet / pill in pharmaceutical industry, and also for shaping ball, mini-pill, pellet , mixing and polishing in the industry of food, chemicals, etc.
Technical Parameters:
| Model | BY200 | BY300 | BY400 | BY600 | BY800 | BY1000 | BY1250 | BY1500 |
| Dia of sugarcoating dish (mm) | 200 | 300 | 400 | 600 | 800 | 1000 | 1250 | 1500 |
| Production capacity (kg/time) | 1 | 2 | 5 | 15 | 30-50 | 50-70 | 80-150 | 300-400 |
| Rotation speed(r/min) | 46 | 46 | 46 | 36 | 36 | 32 | 28 | 26 |
| Power of motor(KW) | 0.37 | 0.37 | 0.37 | 0.75 | 1.5 | 1.5 | 3 | 5.5 |
| Power of fan(W) | 75 | 75 | 75 | 75 | 120 | 120 | 180 | 370 |
| Power of heat(KW) | 1.2 | 1.2 | 1.2 | 2 | 2 | 3 | 5 | 6 |
| Overall size(mm) | 500*350 *700 | 500*350 *700 | 550*400 *800 | 800*600 *900 | 1000*800 *1430 | 1100*1000 *1560 | 1250*1200 *1820 | 1500*1500 *1980 |
| Weight(kg) | 36 | 37 | 38 | 85 | 205 | 220 | 350 | 600 |
Application:
Chocolate coating & polishing, peanut coating & flavoring, tablet coating, ball-rolling for dyring agent / chemical filling / Al(OH)3 ball / porcelain ball, etc.

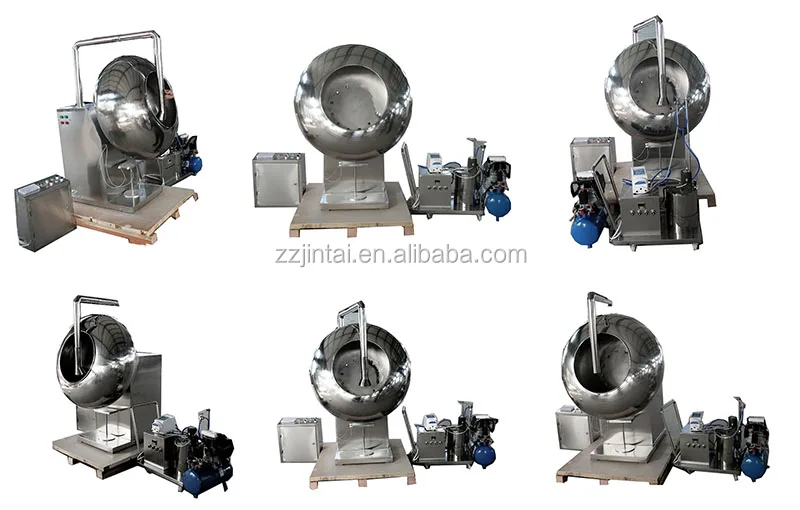

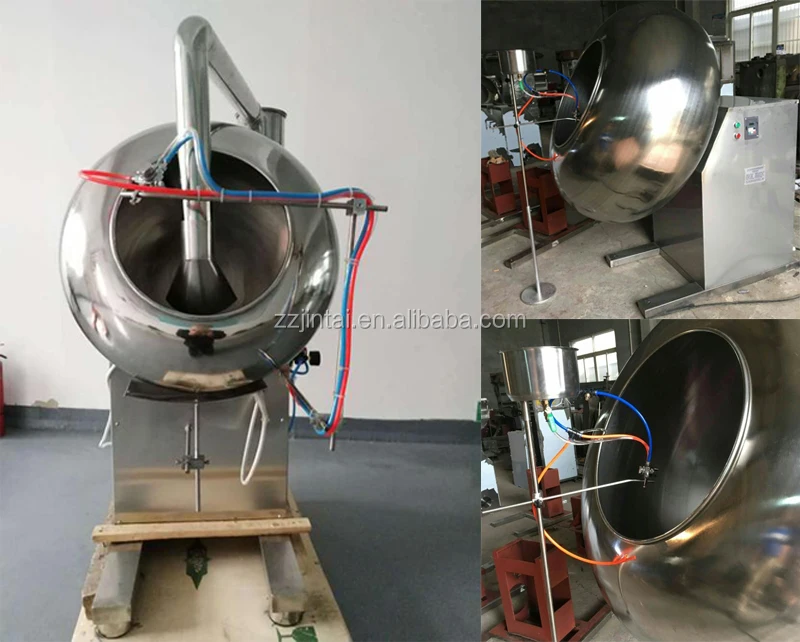

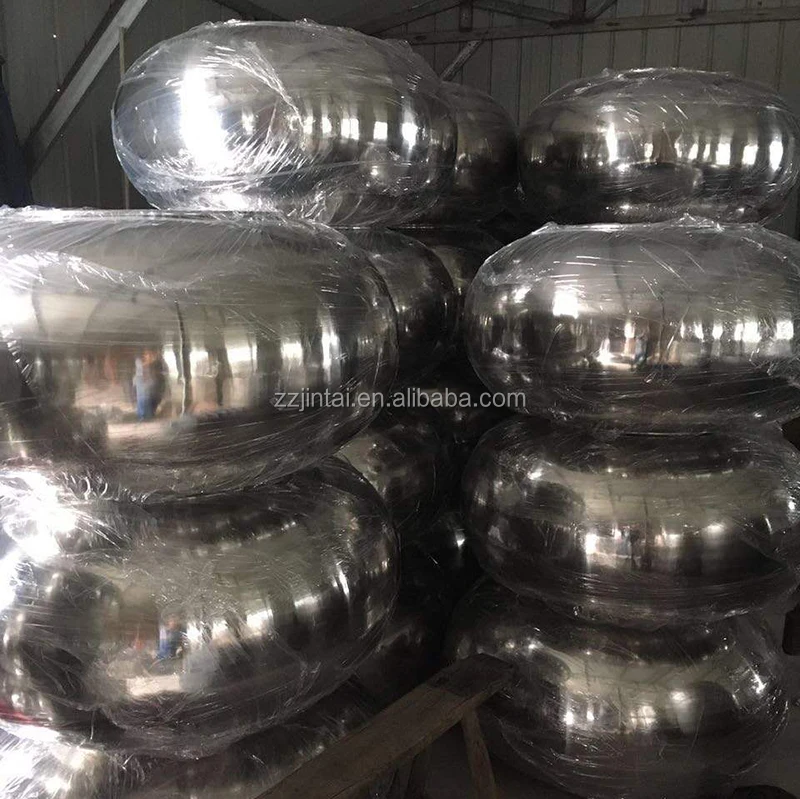

Machine real pic:
More Products

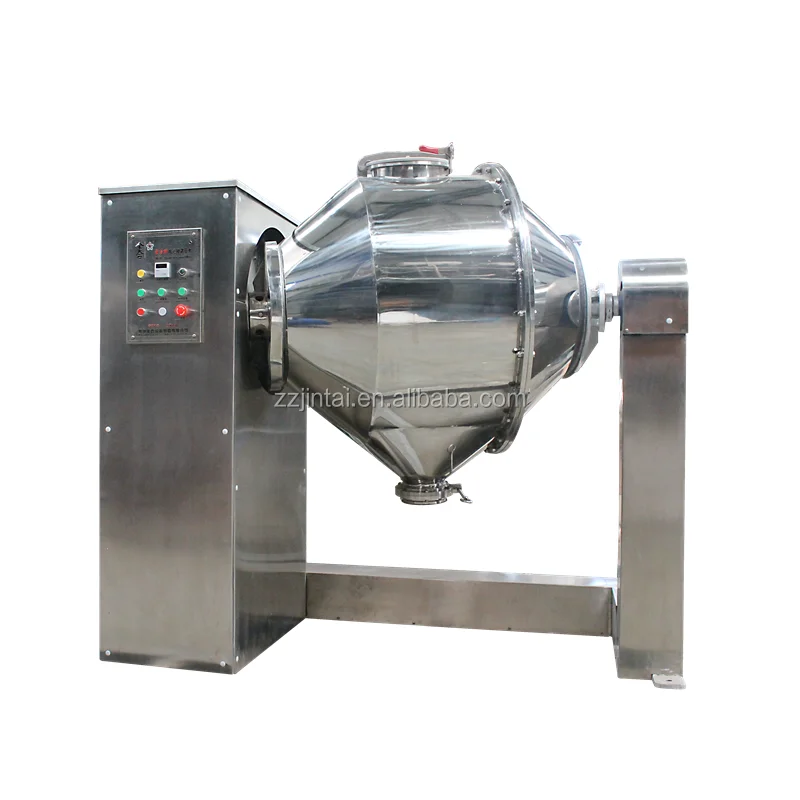

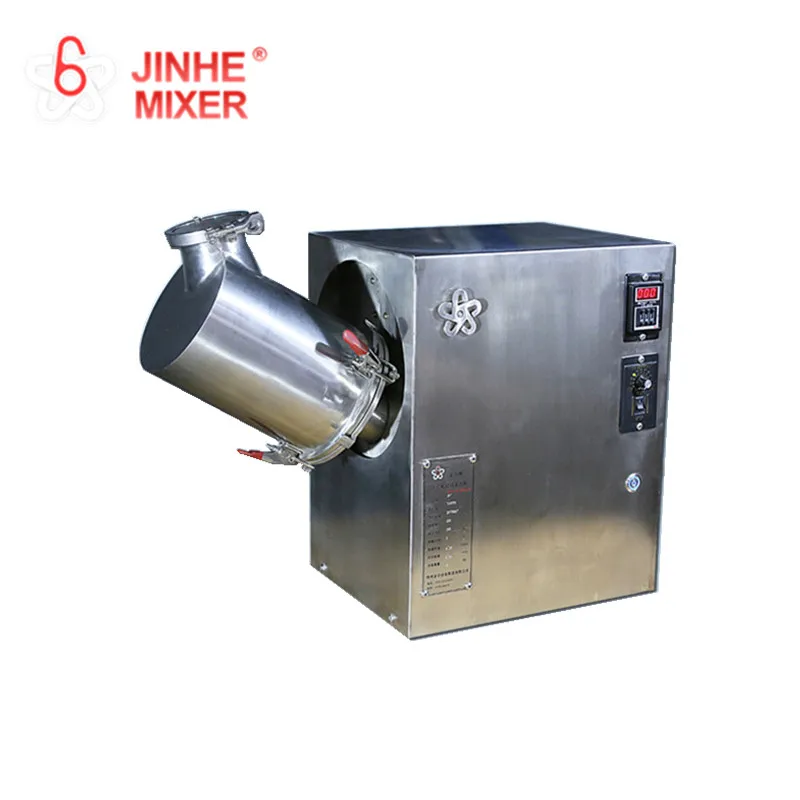

JHX double movement powder mixer JHT lab use small desktop powder mixer

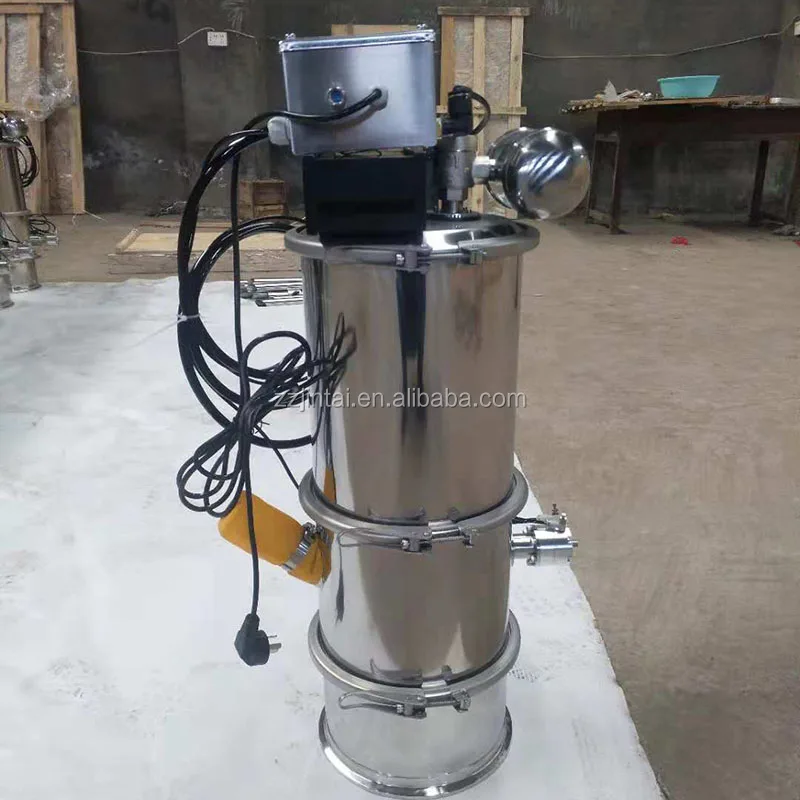

JHN replaceable barrel mixer vacuum powder feeding machine

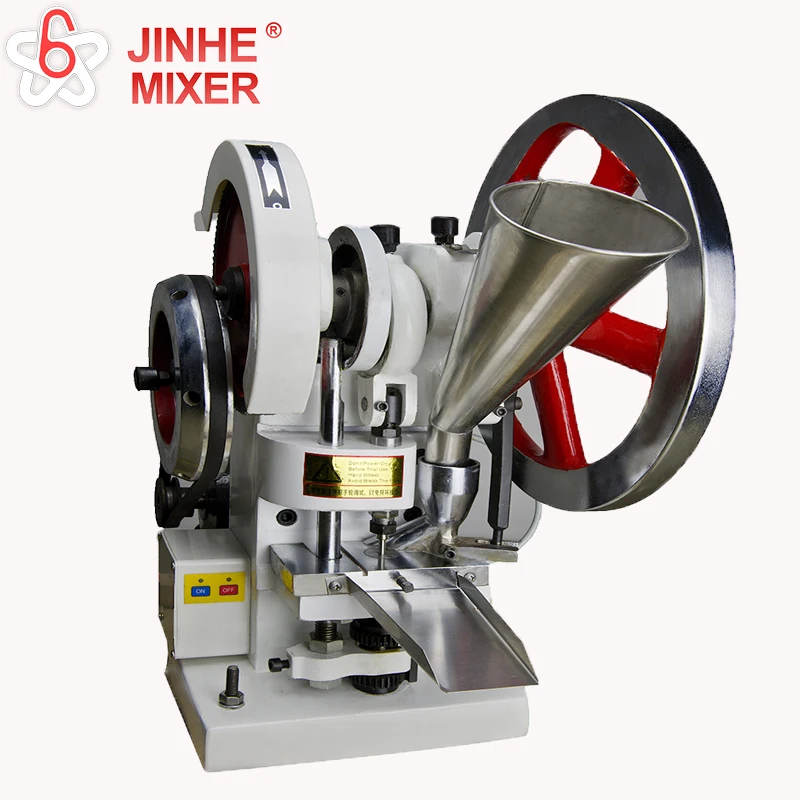

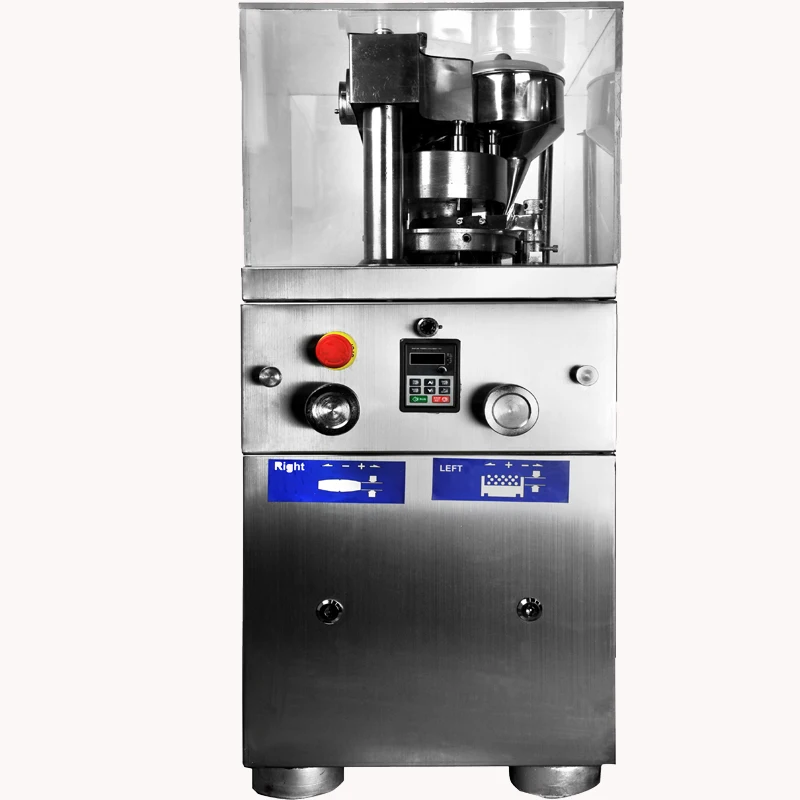

TDP single punch tablet press machine ZP5/7/9 multiple punch rotary tablet press

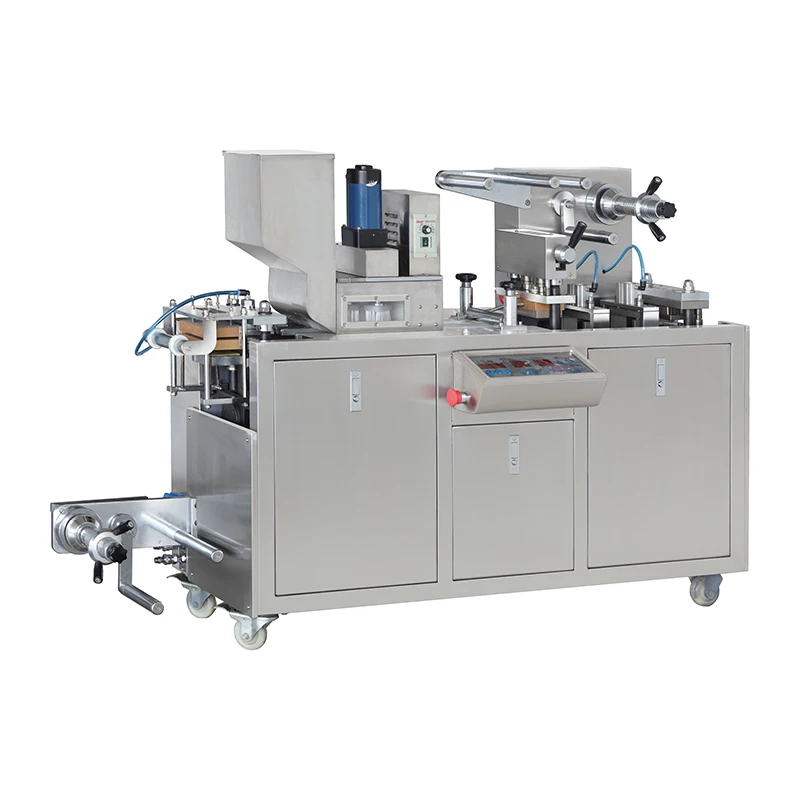

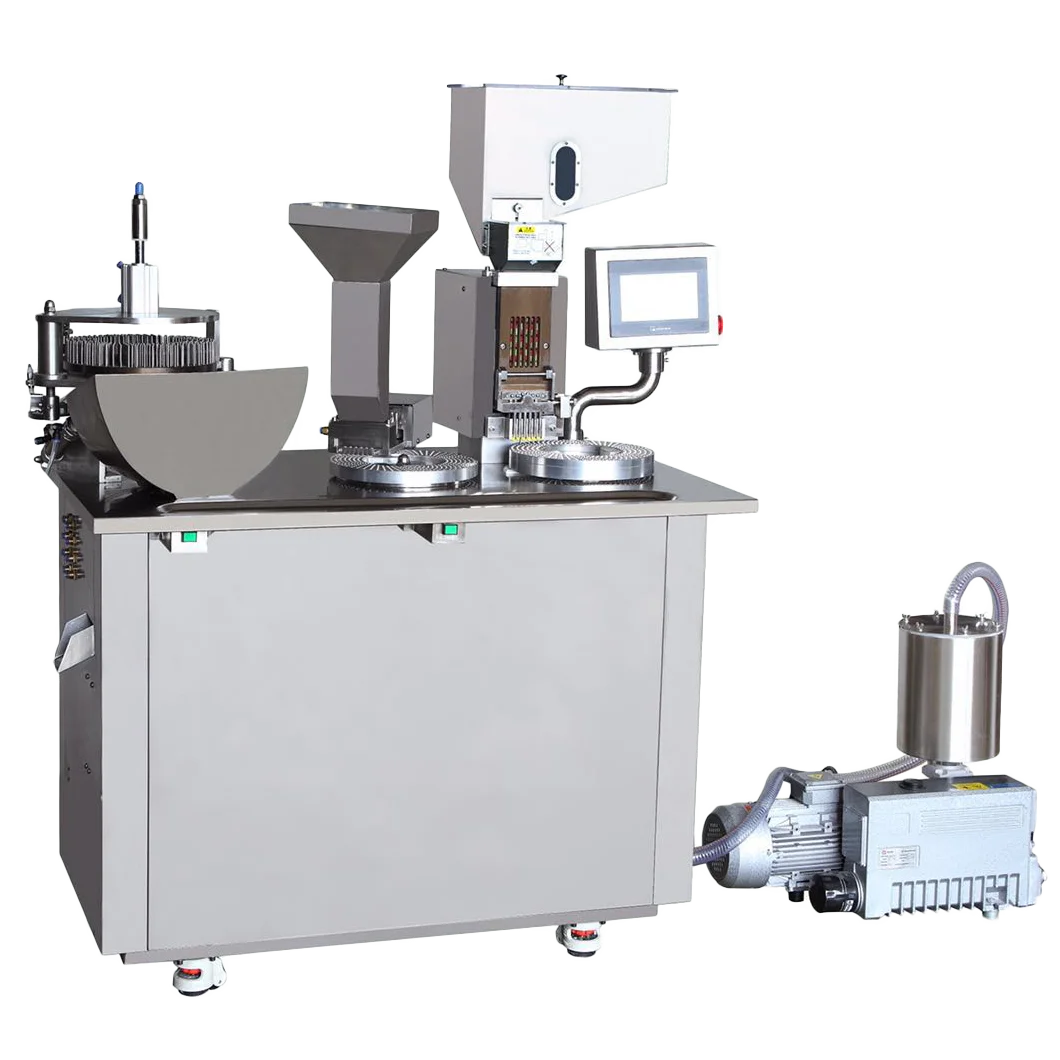

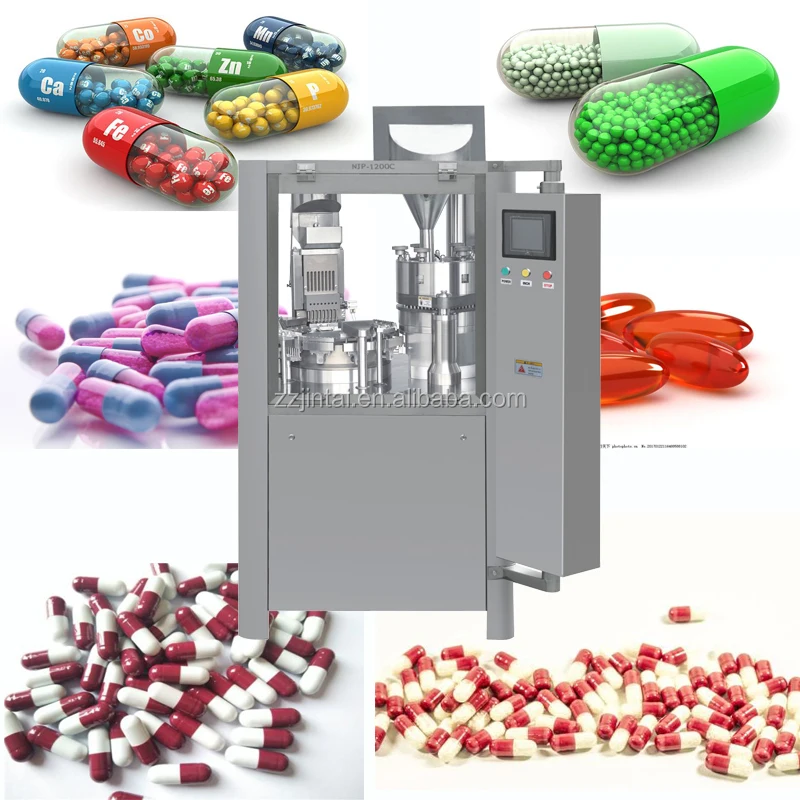

NJP Automatic Capsule filling machine DPP-150 Aluminium plastic blister packaging machine
