professional producing sphagnum moss dehydrator

About sphagnum moss dehydrator, there are 4 layers 304 stainless steel mesh belt in the drying oven,after several times fall and turn over,the materials will be in uniform contact with the hot air which generated by the Sphagnum moss,also called Herba Sphagni, has excellent water retention, drainage and ventilation effect, can be used for a long time and don't decompose. It is one of the superior materials for planting and cultivating substrates.For the convenience of transportation and storage,they usually sell Sphagnum moss after drying and baling.



Sphagnum moss processing generally need three stages:

1.Dehydrator: put fresh Sphagnum moss into dehydration machine, most of water will be lost;

2.Dryer: use conveyor to transport dehydrated materials into mesh belt dryer, after dried the moisture will at 24%;

3.Baler: press the dried Sphagnum moss into 5kg blocks or 10kg blocks.

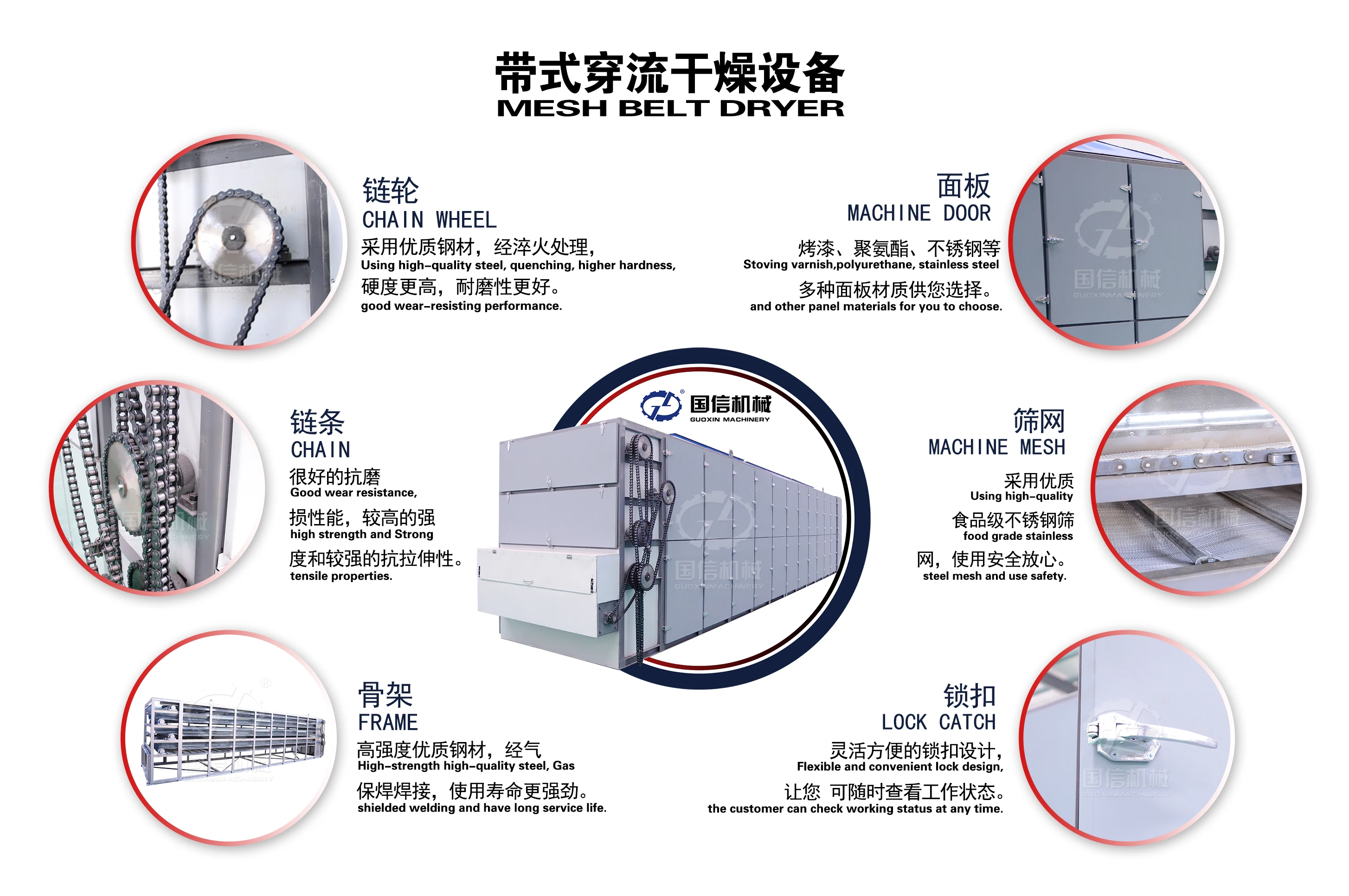

About sphagnum moss dehydrator, there are 4 layers 304 stainless steel mesh belt in the drying oven,after several times fall and turn over,the materials will be in uniform contact with the hot air which generated by the furnace, then dried materials out from discharge conveyor.

You can choose coal, wood chips, diesel, nature gas, electricity etc. as fuel.

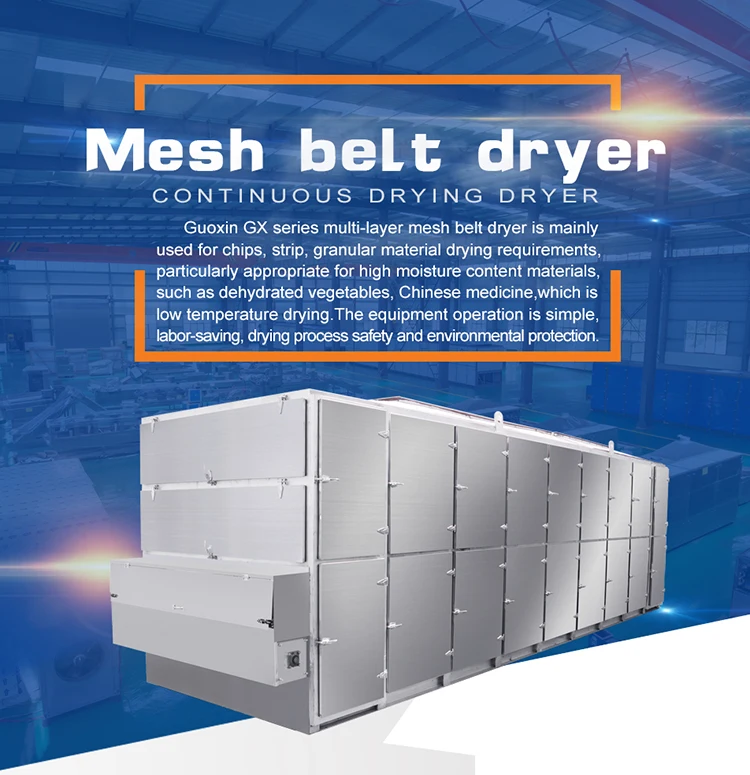

Use our mesh belt dryer to dry Sphagnum, will reduce a lot of drying time, labor and drying area, easy to operate, guaranteed the dried materials' quality.

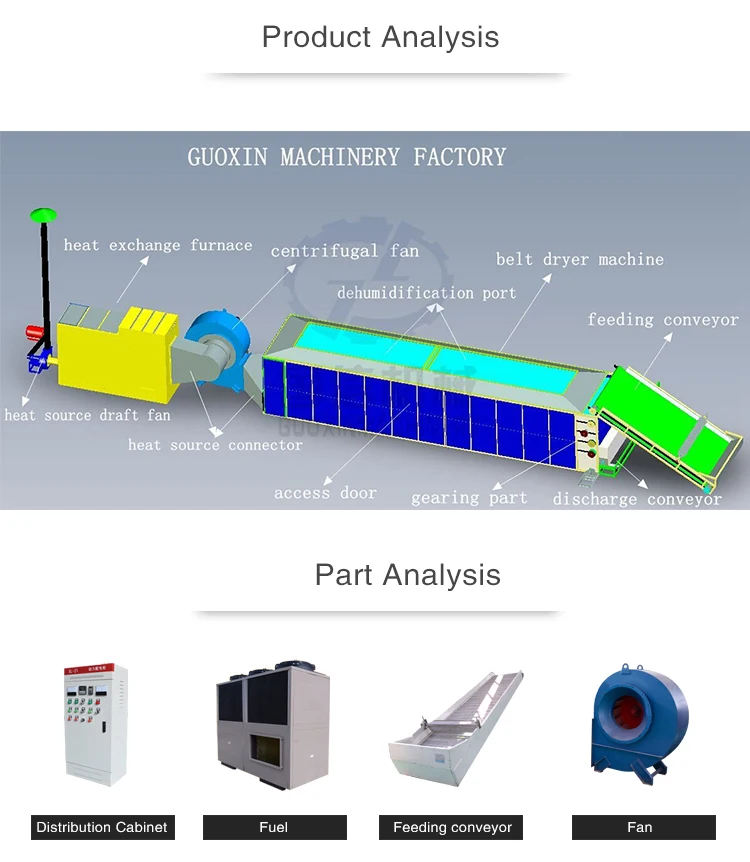

 The structure sphagnum moss dehydrator

1.Heat Exchange Furnace

2.Induced Draft Fan

3.Feeding Conveyor

4.Distribute Device

5.Dryer Body

6.Discharge Device

7.Electricicy Control Panel

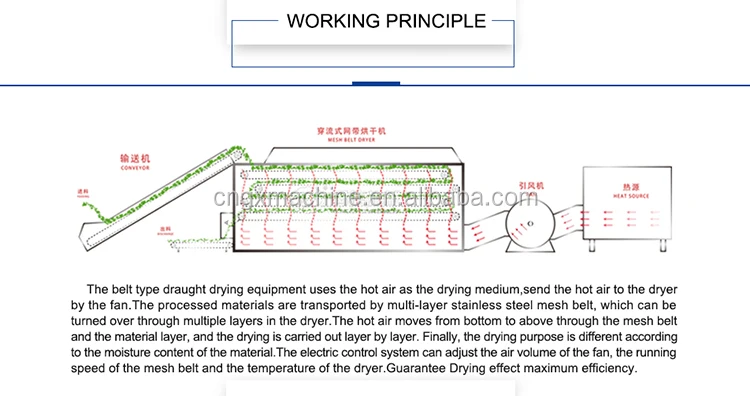

The working principle of sphagnum moss dehydrator

The sphagnum moss dehydrator utilize the hot air produced by the heat furnace as the drying medium. Through the hot air distribution unit, the hot air is transported to the mesh belt.

The hot air volume, mesh belt running speed, temperature and humidity can be adjusted by the electric control system, to ensure the continuous and automatic operation.

the sphagnum moss dehydratornot only according to heat to dry, but also according to strong air, so the drying capacity improve alot.

Technical parameters of sphagnum moss dehydrator

Model(Width*Length)	GX1.5-6-4	GX2-8-4	GX2-9-4	GX2-10-4	GX2-12-4
Layers	4
Drying area(Square meter)	29	45	51	57	69
Spread thickness of material(mm)	50-200
Working temperature(℃)	0-120
Drying time(hour)	0.1-5
heat exchange furnace(M)	3.2*1*2.7	3.9*1.26*3	3.9*1.26*3	4.7*1.5*3	4.7*1.5*3
Induced draft fan(kw)	11	15	15	22	22
Exhaust fan(kw)	1.5		2.2
Feeding conveyor(kw)	1.5	2.2	2.2	2.2		3
Discharge conveyor(kw)	0.55
Total power(kw)	14.55	19.25	19.95	26.95	27.75
LP gas consumption (90 degree fanrenheit)	20m³/H	25m³/H	28m³/H	30m³/H	36m³/h
Electricity consumption	25kwh	30kwh	35kwh	40kwh	45kwh
Place requirement (W*L*H)M	4.5*14*2.7	5*19*2.8	4.5*20*2.8	5.5*21*2.8	5.5*23*2.8

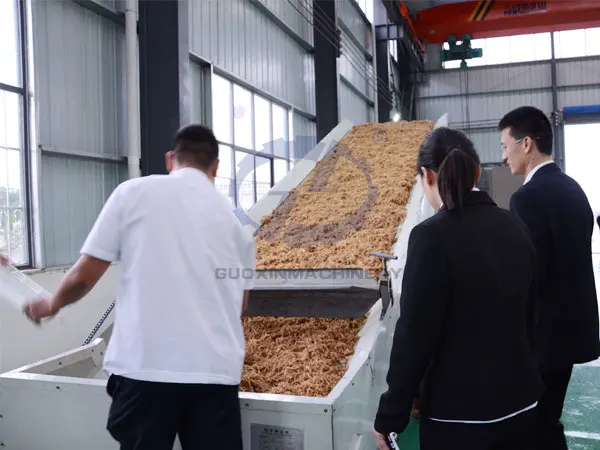

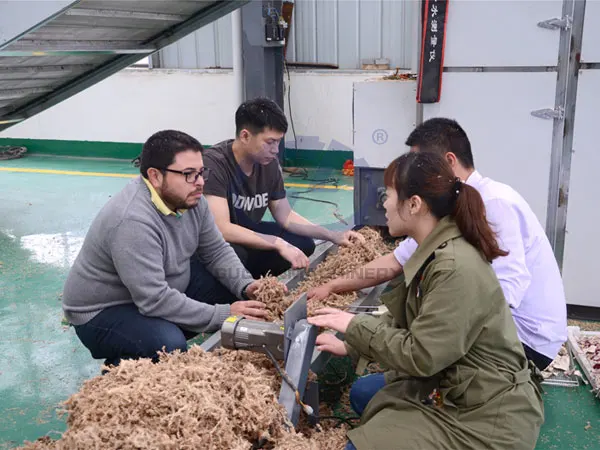

The customer visit our factory to check sphagnum moss dehydrator

Packaging & Shipping

For sphagnum moss dehydrator,Packing machine with wooden box, or delivery with Container without packing, to prevent them from destroying during transportation. Then, we will choose the most convenient and economic way to delivey goods. Besides, if our customer have specific demand with delivey, we can make it.

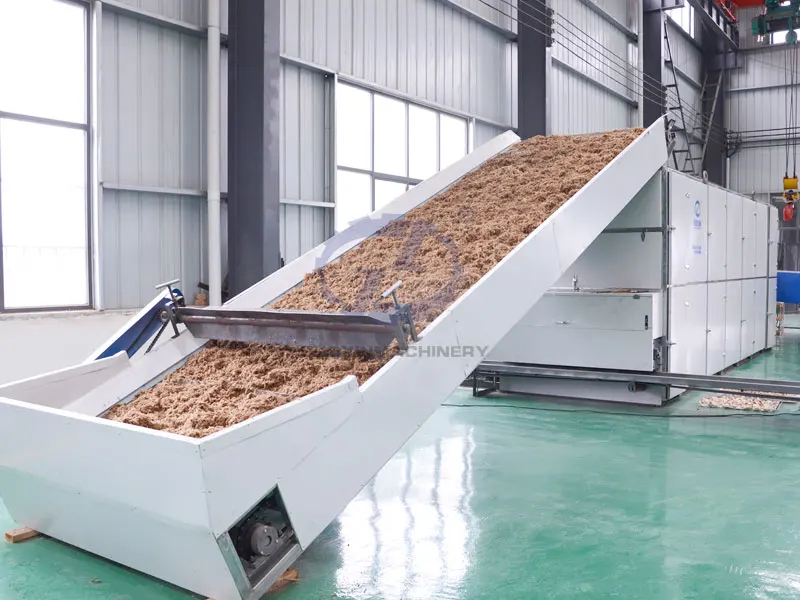

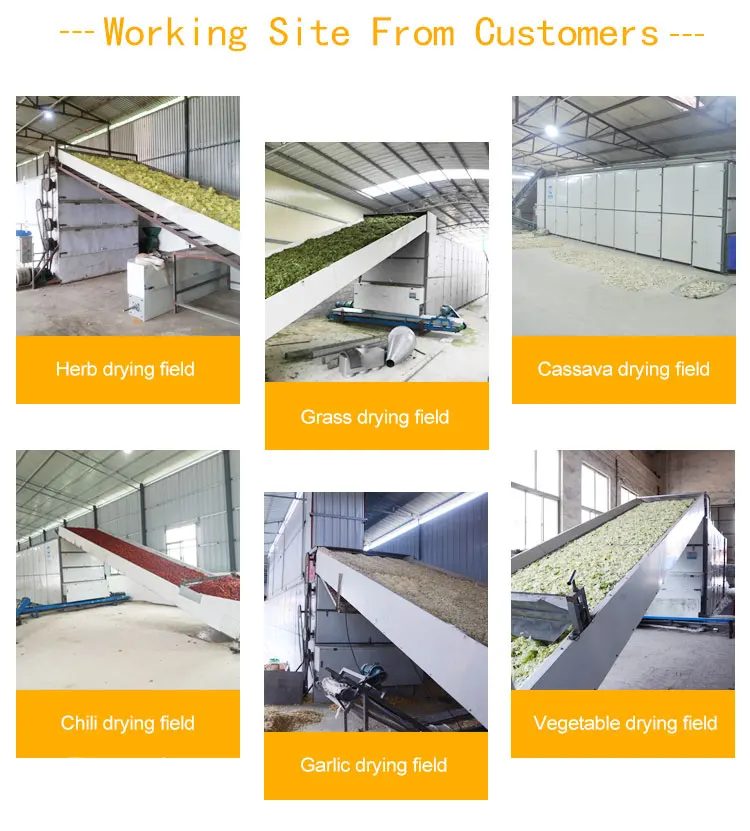

Successful working sites about sphagnum moss dehydrator



Our Services for sphagnum moss dehydrator

Pre-sale services:
Act as a good advisor and assistant of clients; enable them to get rich and competitive

from the returns of their investment.
1) Select suitable equipment model.
2) Design and manufacture products according to clients’ special requirements.
3) Train technical personnel for clients.
4) Professional suggestion for customer.
Services during the sale:
Respect clients; devote ourselves to improving the total value of clients.
1)take photos(including raw material, semi-products, final products, and loading products)
1) Pre-check and accept products ahead of delivery.
2) Prepare all clearance documents, so that the customer clearance smoothly.
After-sale services:
Provide considerate services to minimize clients’ worries.
1) Provide civil engineering drawings of the equipment.
2) Free training(including installation,maintenace) to every customer.
3) Install and debug the equipment, ensure the dryer running smoothly.
4) Examine the equipment regularly.
5) Take initiative to eliminate the troubles rapidly at site.
6) Distribute the guarantee fittings door-to-door.
7) Provide technical exchange and support.
