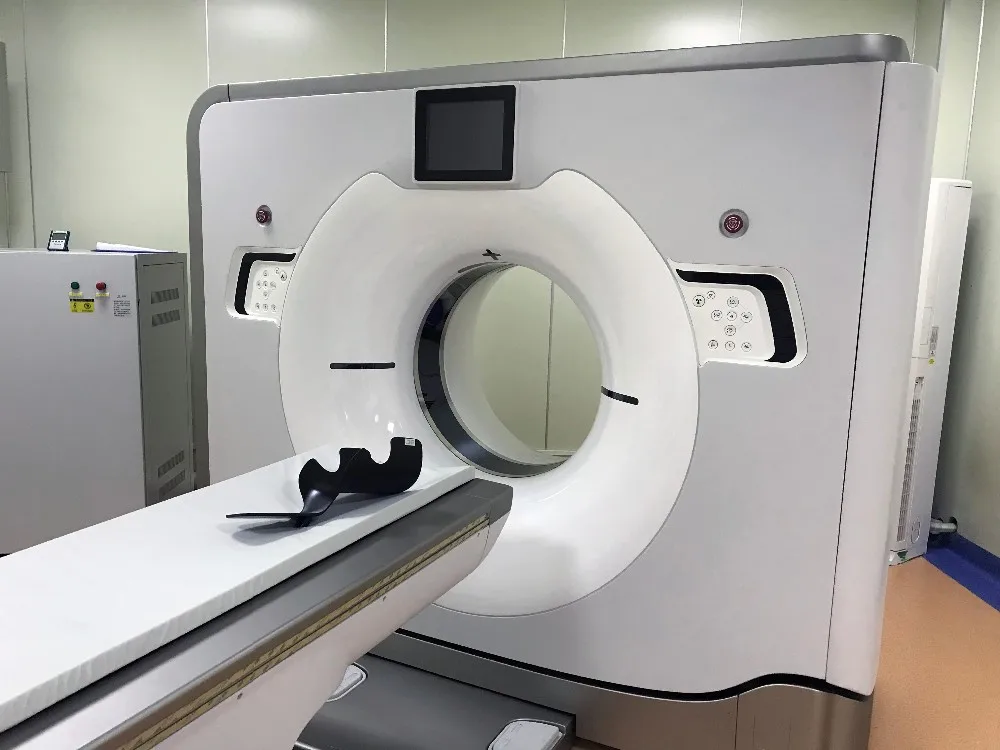

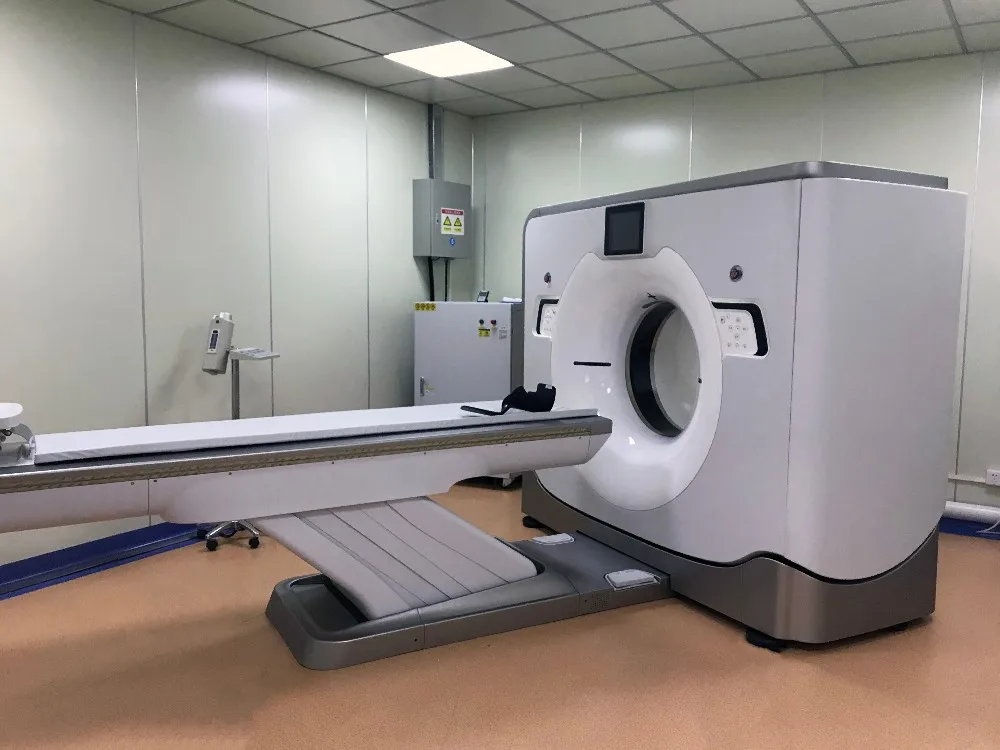

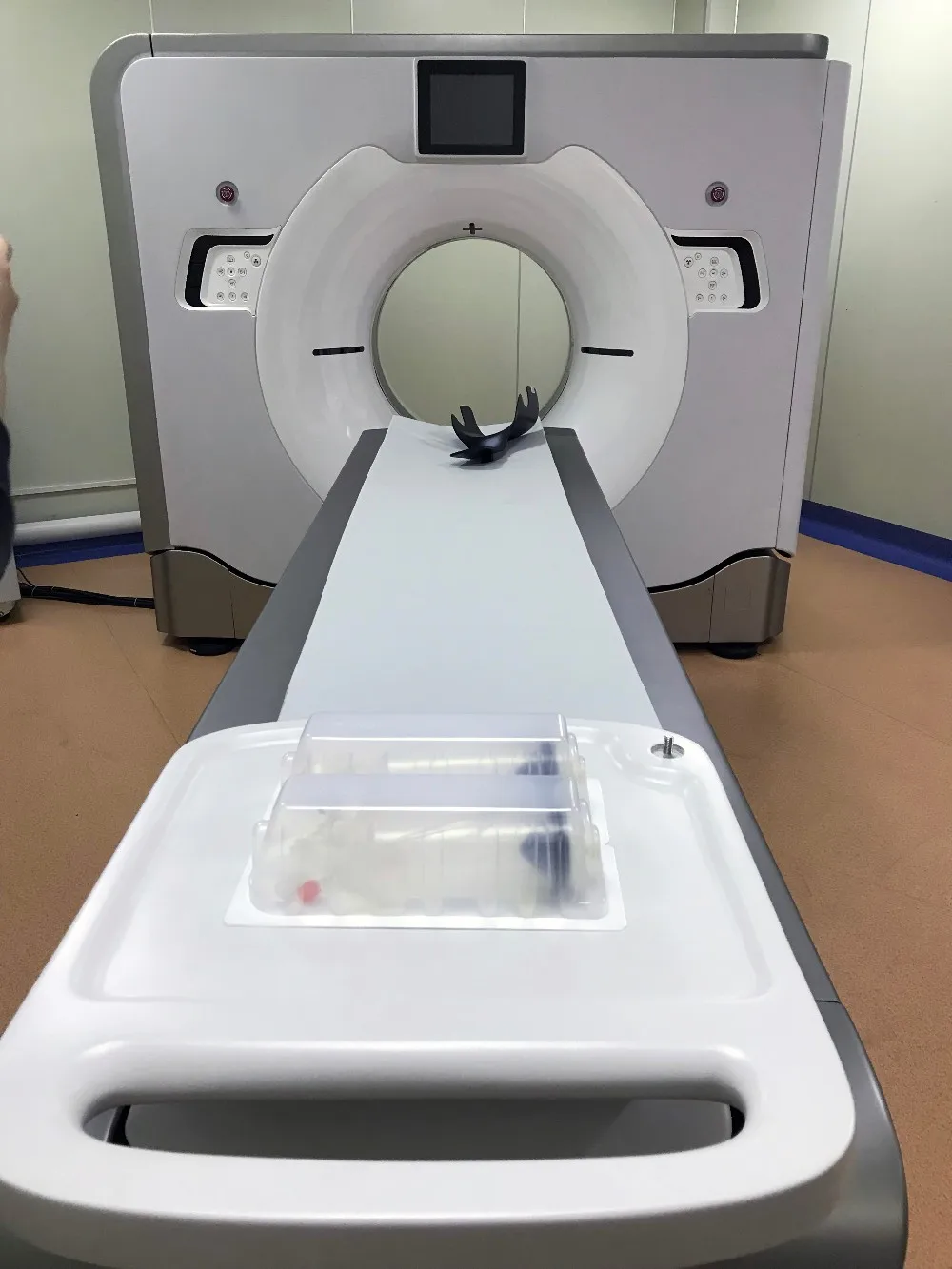

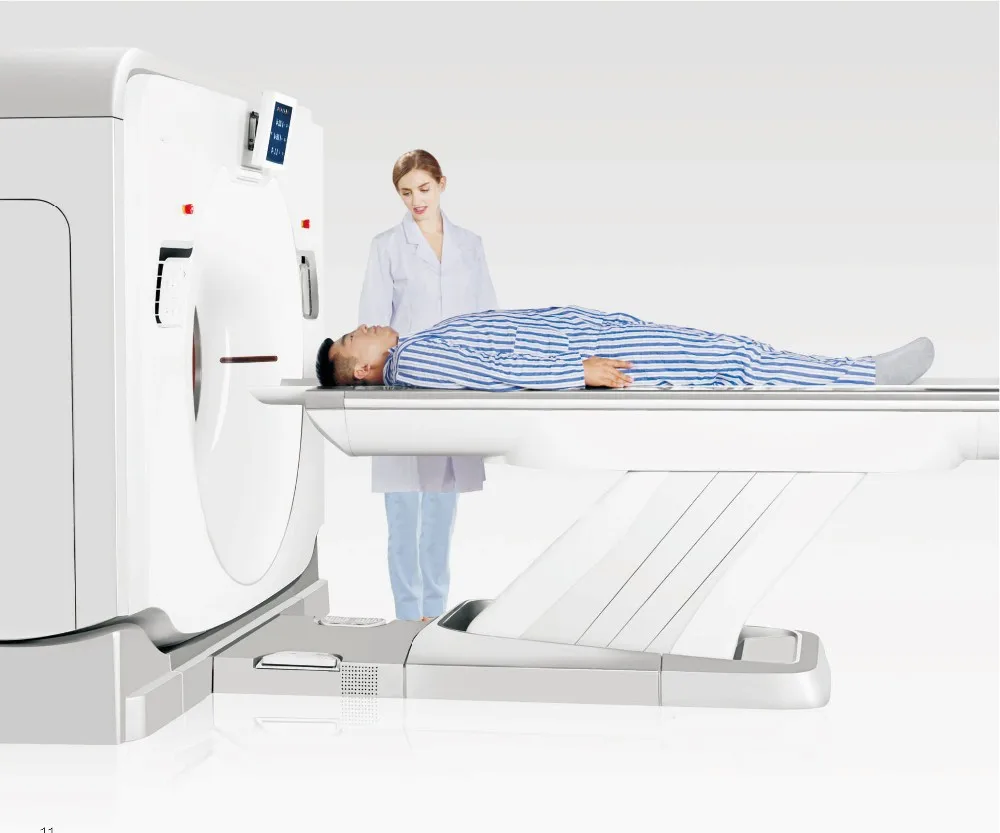

Цифровой многосекционный спиральный CT сканер 16 HD MSLCTX04 лучшего

Best quality digital 16 HD multi-slice spiral CT scanner MSLCTX04

Product Application

Main Features

16 HD standard hardware

Aperture: 70 cm

0.5s per 360 degree rotation speed 5Gbits / s data transmission

Dual-mode rack tilt, mechanical inclination ± 30 °, digital inclination ± 50 ° Laser positioning device

12.1-inch LCD information display

Patient respiratory indication device

X-ray Tube

Brand: DUNLEETM

Heat capacity: 5.0MHU

Tube focus: large 1.0mm × 1.0mm, small 0.5mm × 1.0mm Tube anode heat dissipation: 815kHU / min

Tube cooling device: Oil & air cooling, cooling power of 6kW

HV Generator

Power: 50kW

Voltage range: 80kV, 100kV, 120kV, 140kV fourth gear optional

Tube current: 10mA ~ 420mA

Detectors and collimators

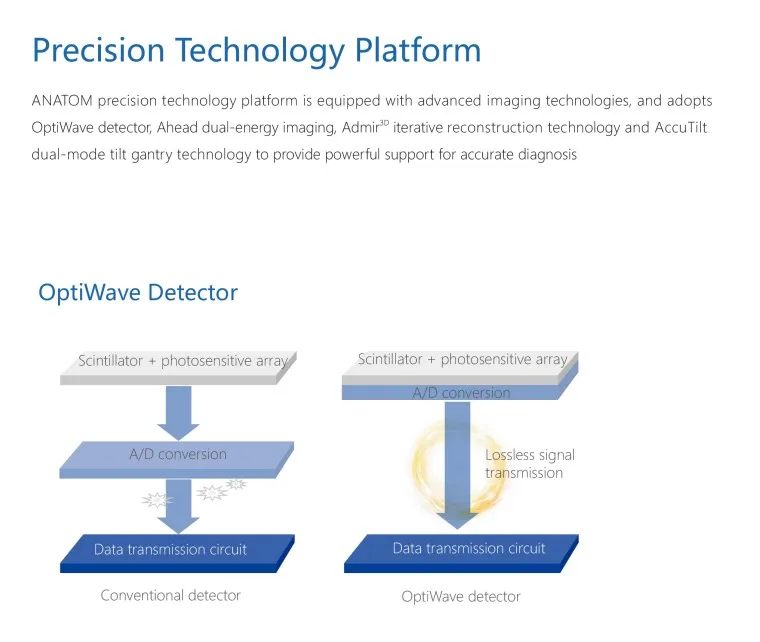

OptiWave optical wave detector Detector of Z-axis rows: 32 rows

Detector of Z-axis physical width: 20mm Elements of detector per row: 912

Total number of elements: 29,184

Acquisition mode: 16 × 0.625mm, 16 × 1.25mm
