Автоматическая машина для вакуумного формования пластмассовых пузырьков (штамповка резка сбор

Описание и отзывы

Характеристики

Plastic vacuum forming machine Full-Automatic Computer Control High-Speed Thermoforming Machine PLC vacuum plastic molding



30% than other similar suction molding machine manufacturers save electricity!

Specifications

High Speed Vacuum Blister forming machine PVC, PET,APET Vacuum Blister forming machine Plastic blister forming machine CE

JY-71(76)H High Speed Vacuum Blister forming machine  Thermoforming Machine

Main Application

1. Plastic vacuum blowing/ extruding/transforming machine, is suitable for materials like APET,PETG,PS,PVC,PC,PP, etc. The machine can transform plastic sheets into various plastic holow shells for packaging applications like: Toys, hardware, foods, electronics products, etc.

2. Plastic Blister Packaging

Product Features:

Smart Digital man-machine interface operation system installed

Vertical plastic feeding mode, more smooth, reliable while cost less time.

Special designed thermoforming device, electricity consumption decreased by 50% compared to old ones.

Full-closed thermoforming designing, installed jolting mold stripper, to protect the molds.

Plastic sheets width adjustment device installed, to make full use of every plastic sheet

High efficiency cooling system, enhance working speed and product quality.

Full imported famous brand components for the machine, high quality and longger life span1:

1.CONFIGURATION

1.Vacuum pump	100m3/h £¨Germany BUSCH /Weili£©
2.touch screen	7.7inch(Panasonic£©
3.relay	Japan OMRON
4.cylinder	ZHICHENG(Germany )
5.solenoid valve	Japan CKD
6.heating system	Infrared ceramic heat tiles£¨Germany£©
7. Temperature regulation system	PLC
8.Chiller	ANGES 3HP (Germany)
9. Water nozzle	10pcs£¨ST-6/Japan£©
10.Invert	Japan OMRON
11.PLC	Panasonic Japan

2: MAIN PARAMETER OF MACHINE

1.forming length	800MM-1220MM
2.forming width	460-710MM(460-760MM sheets)
3.forming height	Within 180MM
4.sheetthickness	0.15MM---1.2MM 380V  50Hz(ÈýÏàËÄÏß)
5.productivity	220---580pcs/hour
6.power supply	38OV/220V,50Hz[3 phase, 4 wires]
7.power consumption	15---20KW
8.wind pump of auxiliary	11HP
9.overall dimension	L4100¡ÁW1300¡ÁH2240
10.weight	3200KG

The manufacturer have the right to modify the design and specilfication without prior notice.

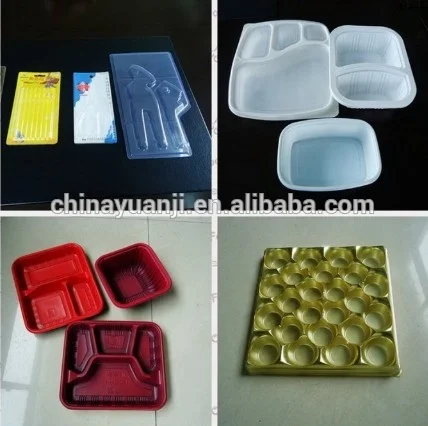

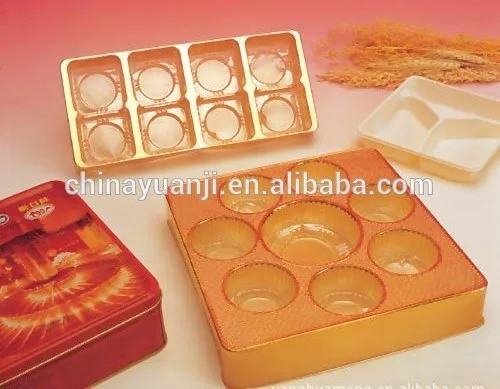

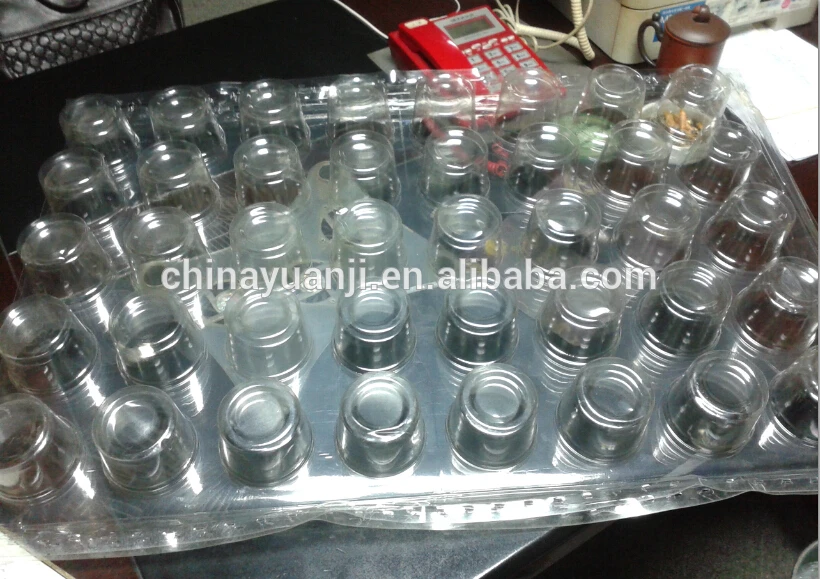

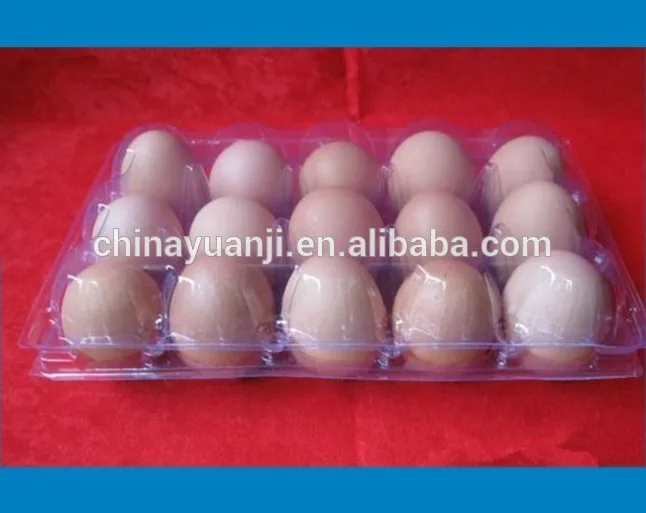

Suck plastic molding sample
