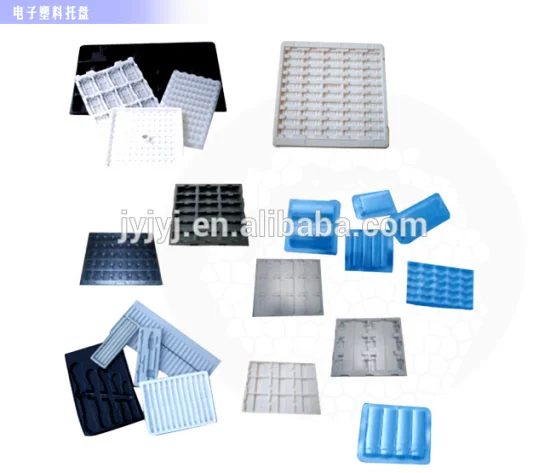

Automatic High - speed vacuum forming machine (JY-1200L) Electrical and mechanical type
main parameters and specifications
|
applicable width
|
950~1200mm adjustable
|
Forming Length
|
1350~2200mm adjustable
|
Forming Height
|
200mm(Highest)
|
Production speed
|
220~480 times/h(Depending on product shape and thickness of the sheet)
|
Electric power
|
General 22~46KW the largest power is 82.8KW
|
Tempering device
|
Adjustable solid state relay
|
Motor power
|
2.25KW
|
Zipper pulls motor
|
3.7KW
|
Vacuum pump
|
5KW 200cubic meters / hour
|
Chiller
|
5KW
|
Machine Power
|
90KW
|
Power Supply
|
three phase 380V 50/60HZ
|
Matching air compressor
|
15KW 20HP(It needs to be prepared by customers)
|
Machinery Size
|
10200(L)×2100(W) ×3166(H)mm
|
Weight
|
4500kg
|
Main configuration and description
name
|
brand/ Model
|
Producing area
|
Remark
|
vacuum pump
|
BUSCH RC200
|
Germany
|
Air displacement 200 cubic meter/hour
|
Limit switch
|
SCHINEIDER
|
France
|
|
spray gun
|
LIQUID ST-618 spray gun
|
Japan-Taiwan joint venture
|
Two gas one water
|
AirTAC
|
NORGREN
|
Britain
|
|
Timer Relay
|
OMRON
|
Japan
|
|
intermediate relay
|
OMRON
|
Japan
|
|
Air assemble element
|
SQW Caliber 5
|
Japan joint venture
|
Automatic drainage
|
air cylinder
|
ZHICHENG
|
China-Germany joint venture
|
|
Chiller
|
CAMC
|
China-Hong Kong joint venture
|
|
Heating brick
|
650W153 Heating brick
|
GuangdongJoint venture
|
|
pressure regulator
|
AIKS or MEIGEER
|
Hongkong
|
|
Zipper pulls motor
|
LUSHEN
|
Taiwan
|
|
Frequency shifter
|
Mitsubishi
|
Japan
|
|
Beam guide rail
|
Channel steel track
|
Taiwan
|
|
Model plate
|
Size is 96010601200×2200mm(one combination Model plate)
|
Note: The regular size is 960mm (must be allocated)
|
Have iwo templates Assembly
|

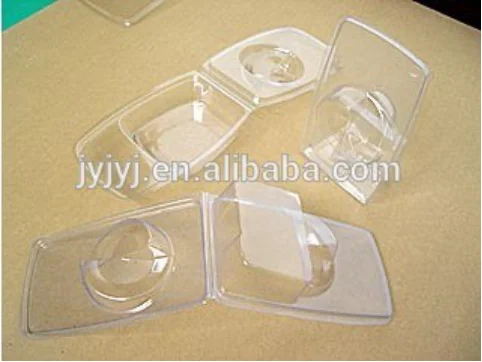

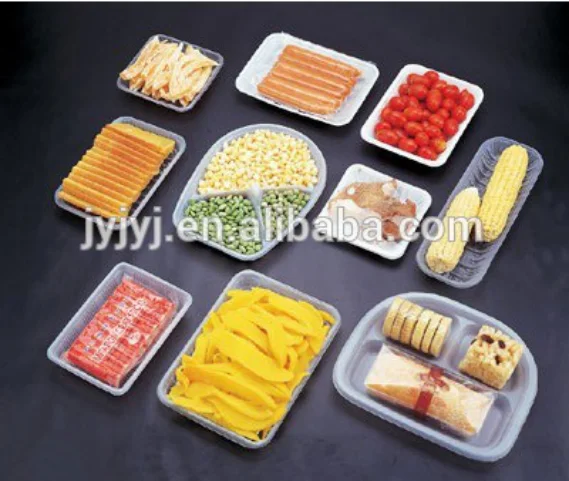

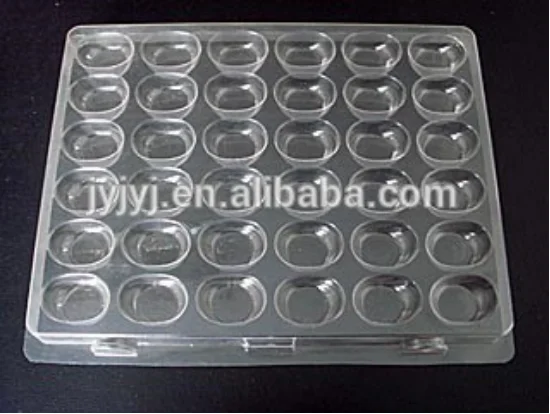

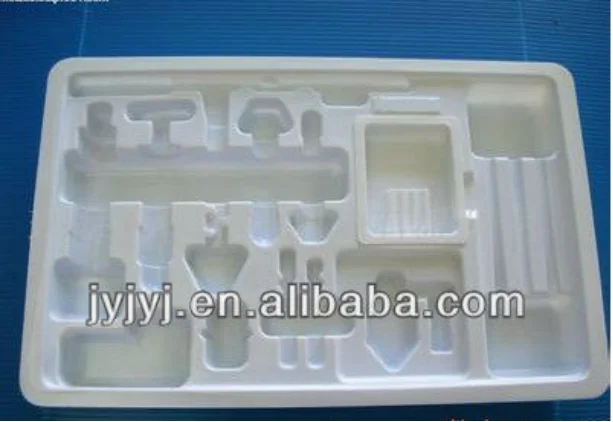

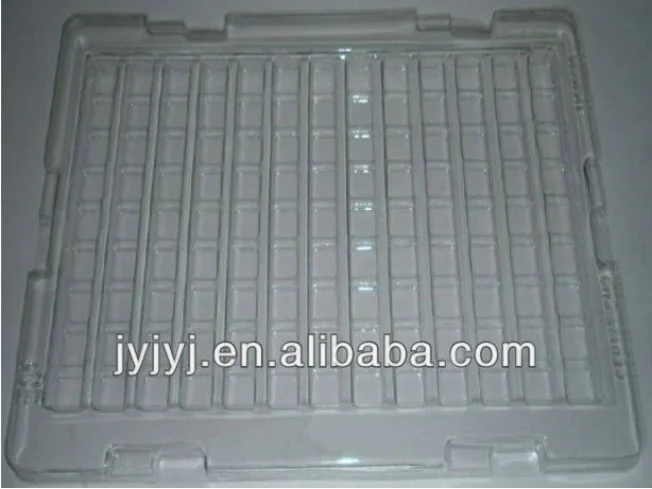

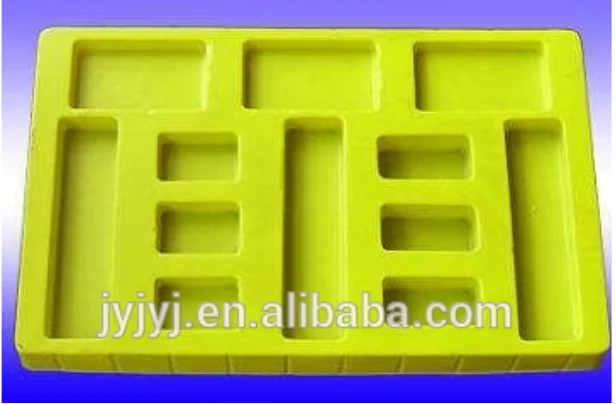

Automatic High-speed thermoforming machine's main function and characteristics
1. Second slow vacuum
2. first/Second upper mold function
3. Stripping shock
4. one-temperature-controlled devices
5. Automatic upper mould motor tuning system6. Heating furnace asbestos tile insulation system
7. Heating System is Solid-state relay,More stable8. motor Zipper Pulls
|
