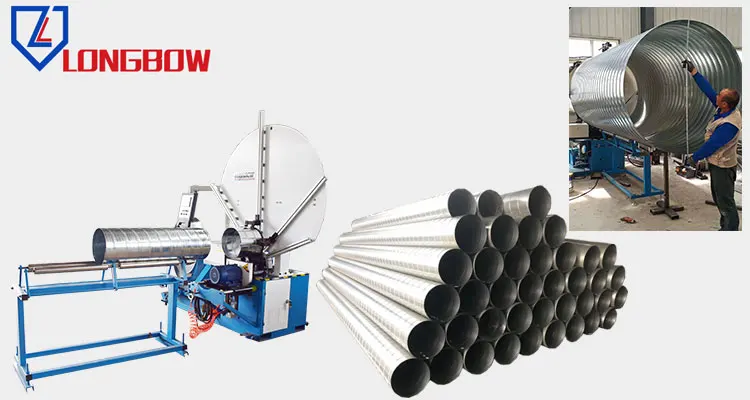

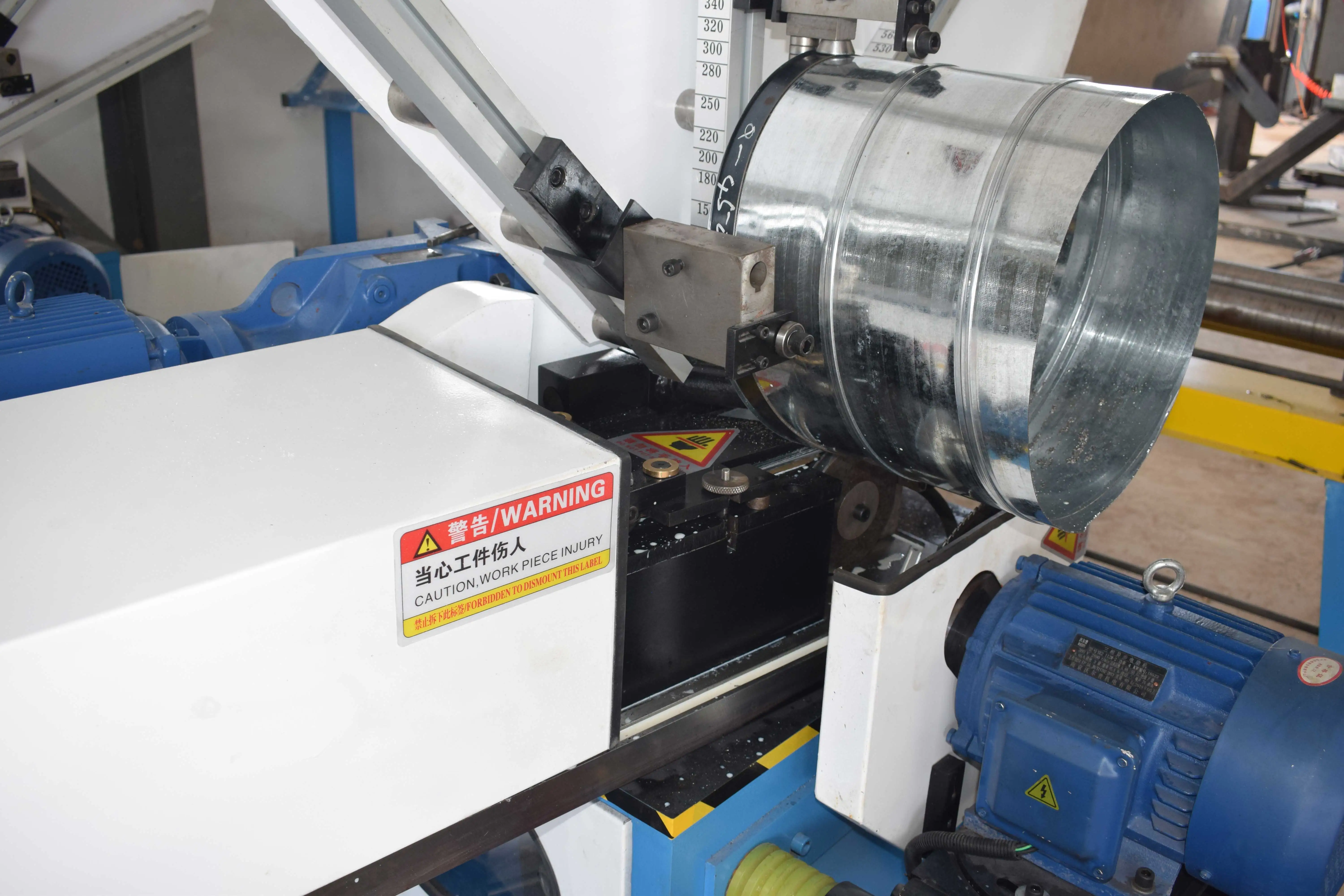

Оборудование для производства гальванизированных воздуховодов формовочная машина
- Категории: >>>
- Поставщик: Maanshan,Longbow,Machinery,Manufacturing,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Products Description
Performance Features
Spiral duct,ever since its entry into the market because of its excellent performance and low selling prices,in the application of ventilation and air conditioning system continuously promoted,at present most of the products are widely used in coal mine,shipbuilding,ventilation,purification,bridges,dust removal,airport,tunnel construction industry.Then company after years of reaserach to introduce advanced science and technology development of spiral duct has reached domestic advanced level,volumes of 80-1500mm diameter,processing of thickness 0.4-1.2mm,the company has more than duct production line.
Main Features
1.ventilation system:a fresh air and exhaust ,to exclude harmful gas outdoors,the outdoor fresh air to the indoor.In general,the
flow of ventilation system is very big,therefore require the use of Yin force smaller air pipelines,in order to save cost and operation cost,spiral duct is the most suitable.Usually use galvanized iron pipe,corrosive and special stainless steel tube used in damp places
2.air conditioning system:sprial duct can stick a thermal insulation material,the apprearance is beautiful.
3.platoon lampblack system:hotel,restaurant,hotel kitchen has produced a large number of lamblack,need discharge,using spiral duct is appropriate,good strength,economic and practical.
4.the dust removal sytem:dust removal device of the collection and transmission,can use spiral duct.
5.bulk material conveying:pneumatic conveying system,some more fine some loose material particles,can use spiral duct transmission,low cost,good effect.
flow of ventilation system is very big,therefore require the use of Yin force smaller air pipelines,in order to save cost and operation cost,spiral duct is the most suitable.Usually use galvanized iron pipe,corrosive and special stainless steel tube used in damp places
2.air conditioning system:sprial duct can stick a thermal insulation material,the apprearance is beautiful.
3.platoon lampblack system:hotel,restaurant,hotel kitchen has produced a large number of lamblack,need discharge,using spiral duct is appropriate,good strength,economic and practical.
4.the dust removal sytem:dust removal device of the collection and transmission,can use spiral duct.
5.bulk material conveying:pneumatic conveying system,some more fine some loose material particles,can use spiral duct transmission,low cost,good effect.
Diameter range | Φ80-Φ1500mm |
Tube Length | 120-8000mm |
Galvanization:0.5-2.0mm | |
Stainless steel:0.4-0.8mm | |
Aluminum:0.5-1.2mm | |
Width of Strip | 137-140mm |
Strip Speed | 1-38/min |

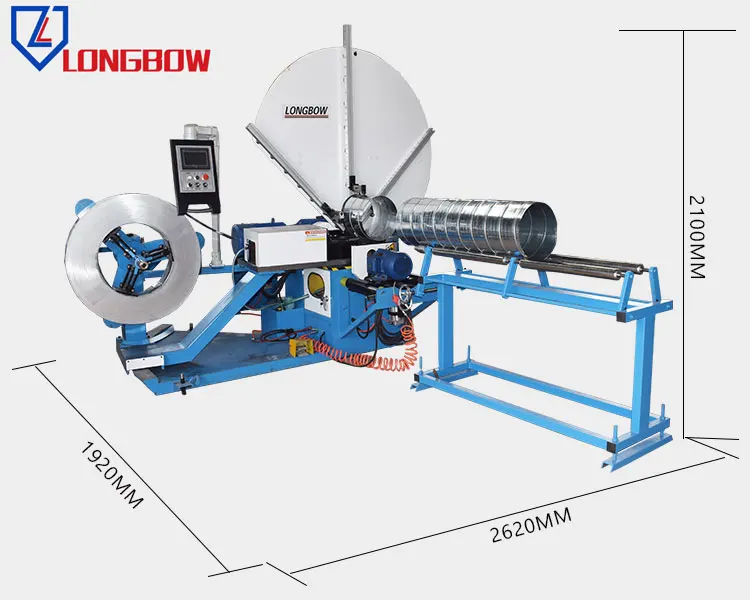

Dimension (L x W x H): | 2620x1920x2100mm |
Lock seam | Outside tube, on the inside on request |
Weight | 2300kg |
Control System | PLC automatic control |
Compressed air power | 0.5-0.7kmp |
Electrical | 380V/3PH/50HZ(According to customer’s request) |
Main Motor Power | 5.5kw |
The power of cutting motor | 4kw |
Suitable Material | Aluminum, Stainless steel, Galvanized steel |

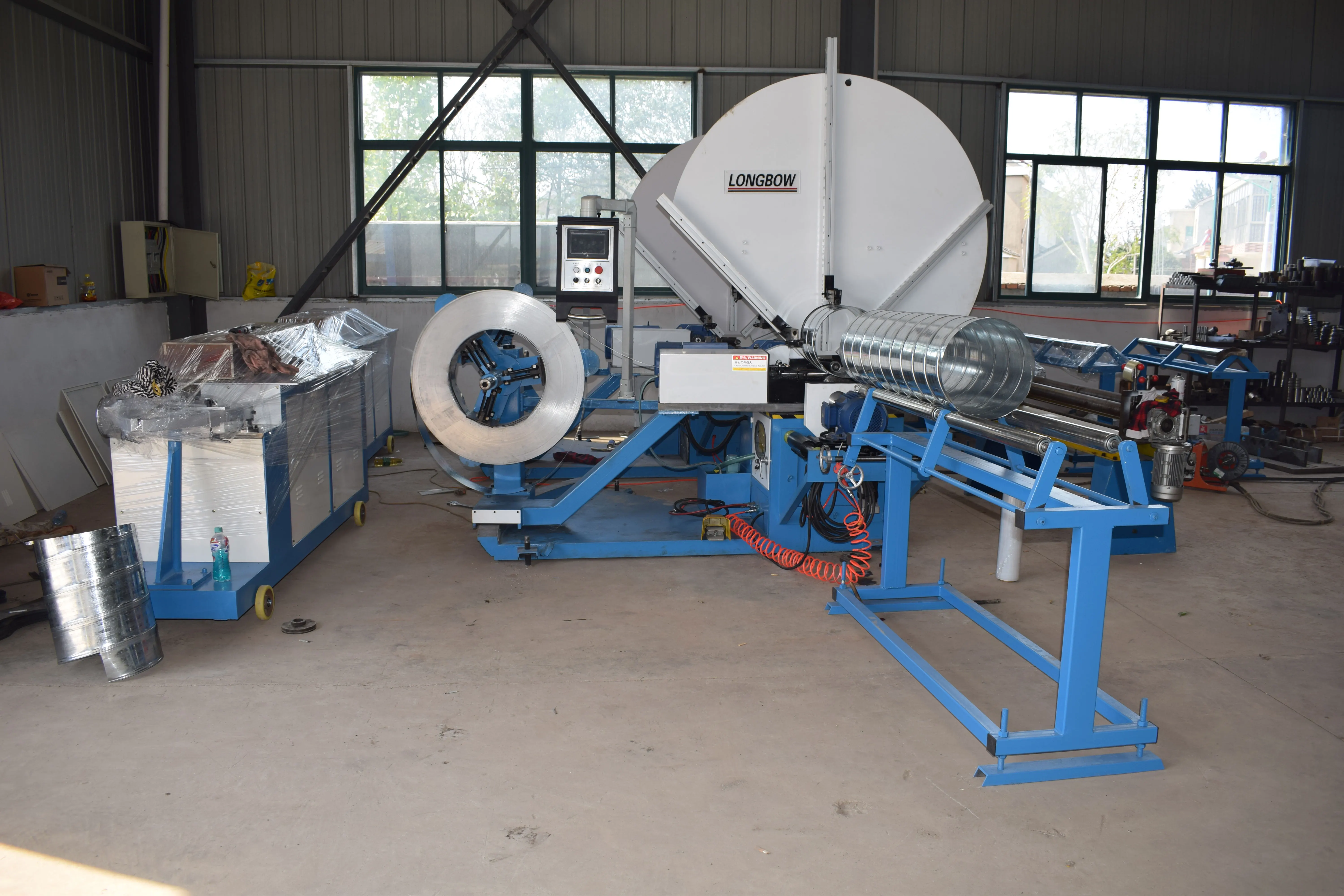

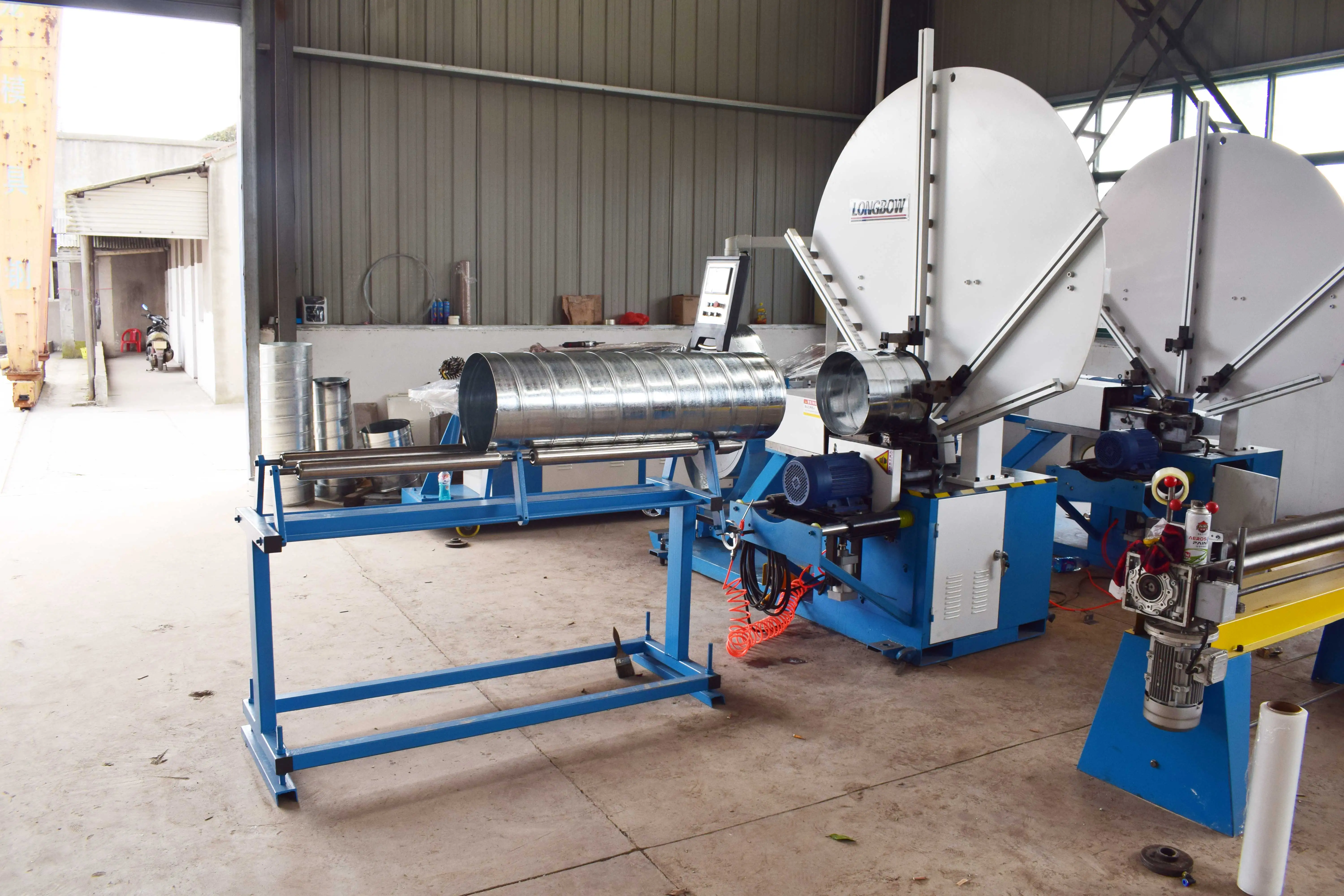

Details Images
machine parts
Name:Flanging mold
Material:High alloy tool steel
Original:china
Selected high quality steel products are made by forging, high temperature quenching, fine grinding and other processes. Ensure that each rolling wheel is inspected and installed on the equipment after passing the inspection.
machine parts
Name: Steel strip mold
The standard machine is equipped with steel belt mould, which can roll round pipes of different diameters through steel belt mould of different lengths, and optional pipe mould.
Brand:LONGBOW
Original:chinaThe standard machine is equipped with steel belt mould, which can roll round pipes of different diameters through steel belt mould of different lengths, and optional pipe mould.
machine parts

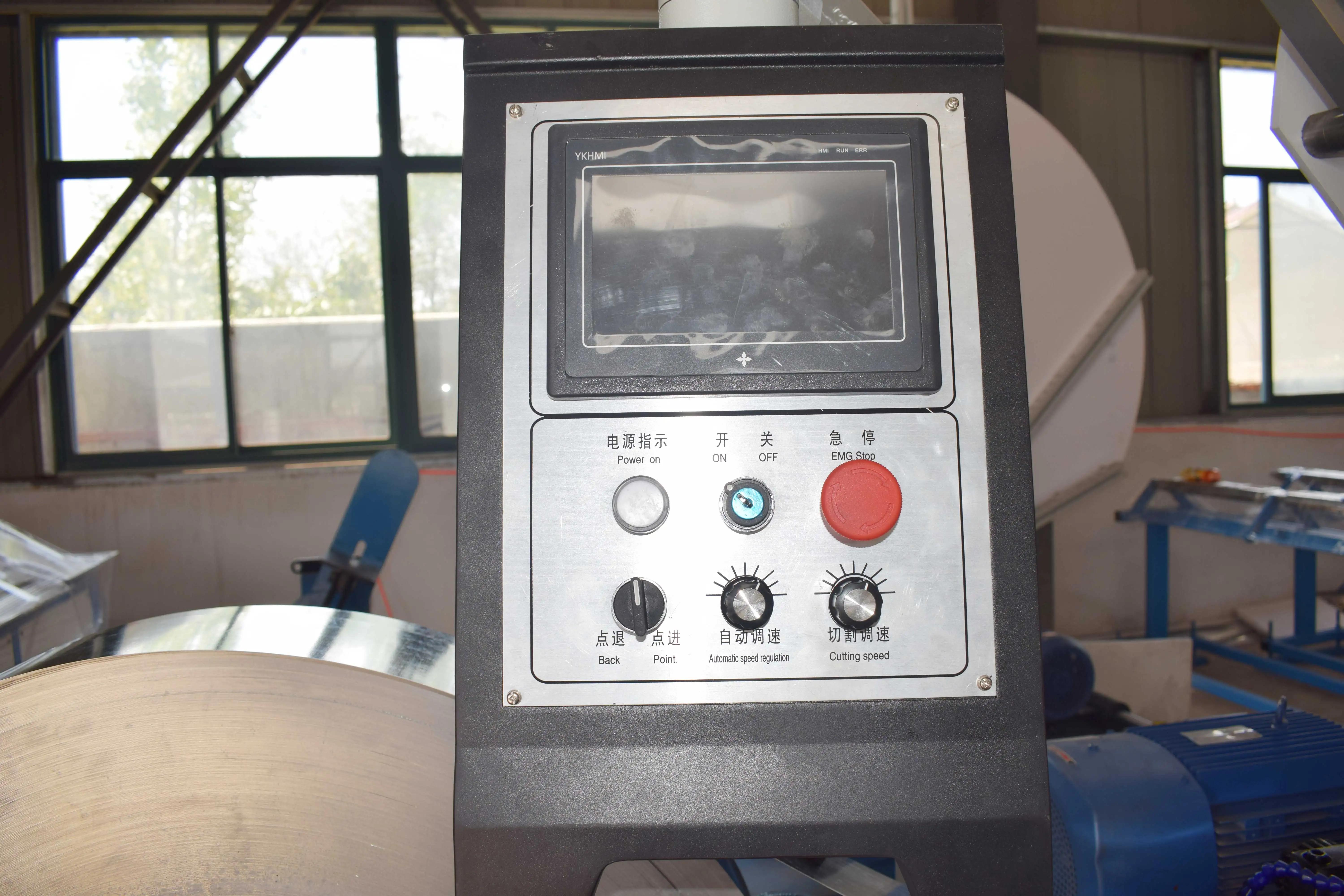

Name: Control system
Brand: YKHMIOriginal:china
The numerical control operating system improves the visual degree of operation to make the operation easier and more convenient, and at the same time increases the precision of production.
machine parts

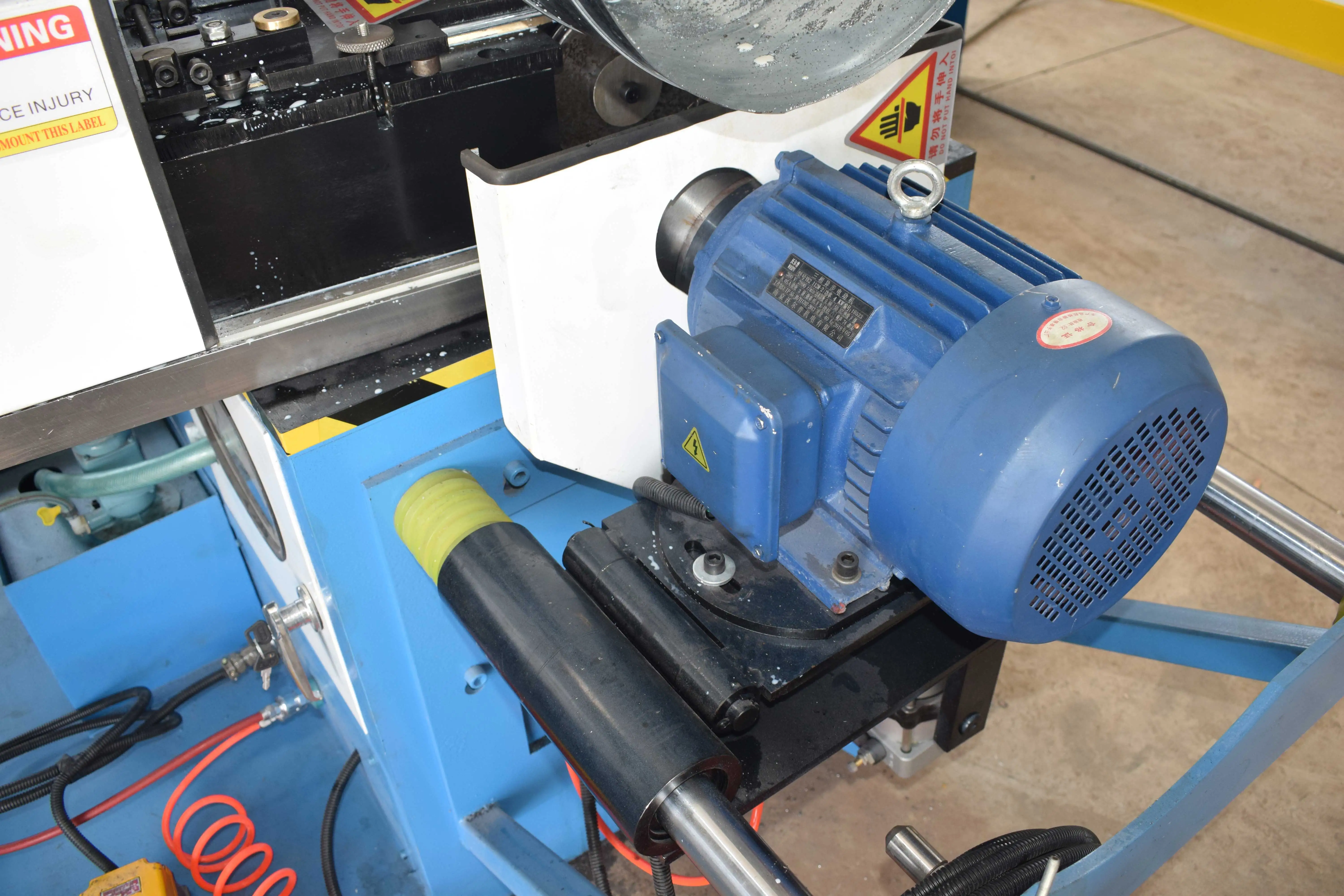

Name: saw motor
Power:4kw
Original:china
The standard machine adopts the saw blade cutting mode, uses the numerical control system to input the required pipe length,automatically positions for cutting, and can be equipped with plasma cutting
Power:4kw
Original:china
The standard machine adopts the saw blade cutting mode, uses the numerical control system to input the required pipe length,automatically positions for cutting, and can be equipped with plasma cutting
Our Campany
Certifications
Cooperative partner
Packing & Delivery
Packaging | ||
Dimensions (mm) | 2700(L)*2000(W)*2180(H) | |
Weight | 2350kg | |
Packaging Details | The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request. | |
Packaging | ||
Dimensions (mm) | 2700(L)*2000(W)*2180(H) | |
Weight | 2350kg | |
Packaging Details | The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request. | |
Related Products
FAQ
1. Are you manufacturer or trading company?
We are manufacturer.
2. What shall we do if don't know how to operate your machine?
We can dispatch our engineers to your country and you can also send your engineers to our factory for learning operation. Besides, there are detailed installation and operating instructions attached, it is very simple. We have telephone and email support at 24 hours per day.
3.How about your machine quality?
LONGBOW company is a mature brand in CHINA,through our 12 years research in technology,our design including structure and detailed security and precision has enhanced greatly,and can match all the CE standard or more strict standard.Our machines distribute worldwide to about 50 countries where there are metal plate industry And where there are our machines,there are good reputation and terminal user satisfaction.
4. What are your payment terms?
3.How about your machine quality?
LONGBOW company is a mature brand in CHINA,through our 12 years research in technology,our design including structure and detailed security and precision has enhanced greatly,and can match all the CE standard or more strict standard.Our machines distribute worldwide to about 50 countries where there are metal plate industry And where there are our machines,there are good reputation and terminal user satisfaction.
4. What are your payment terms?
We support T/T, L/C, D/P, D/A, Western Union and so on. TT, 30% in advance, 70% balance before the shipment.
