Миниатюрный волоконно-оптический усилитель Yatai 1550 нм catv
- Категории: Телекоммуникации >>>
- Поставщик: Yantai,Yatai,Photoelectricity,Equipment,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Yatai 1550nm mini edfa

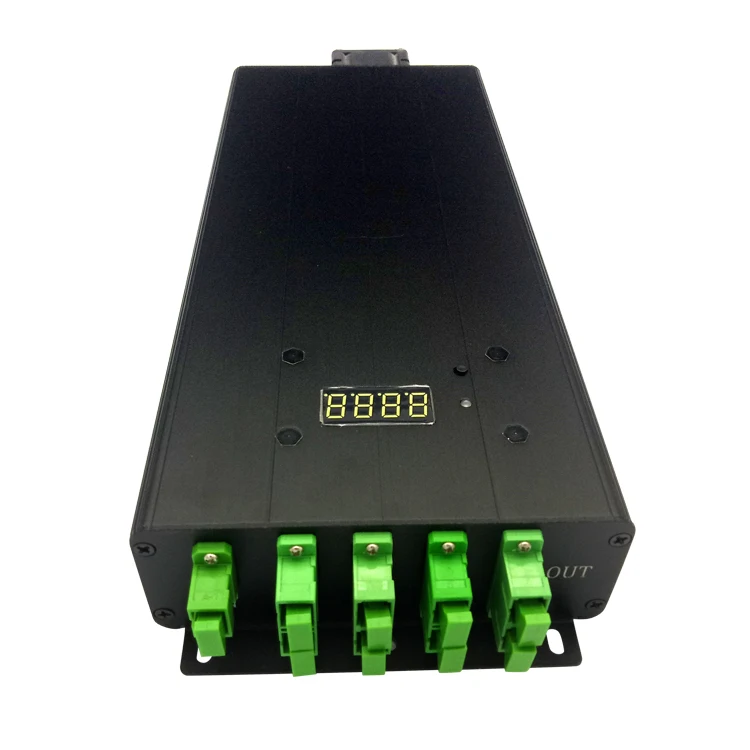

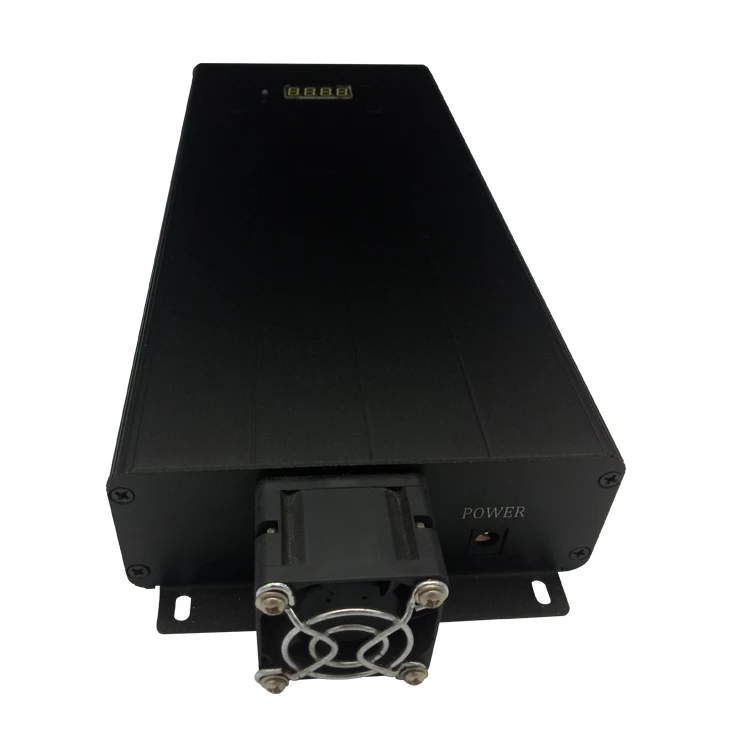

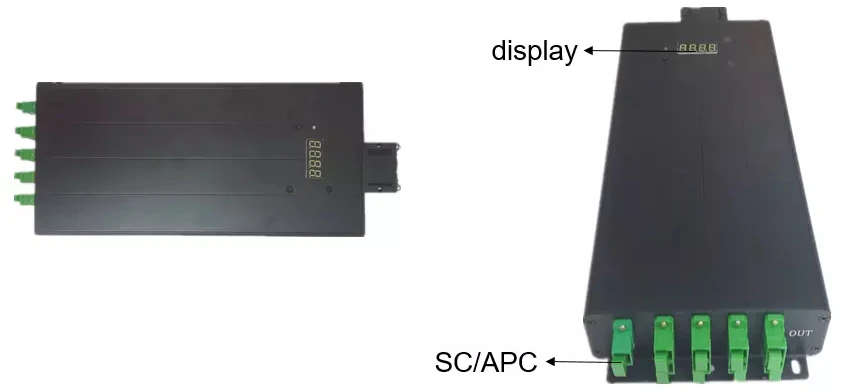

Product Display
 |
 |

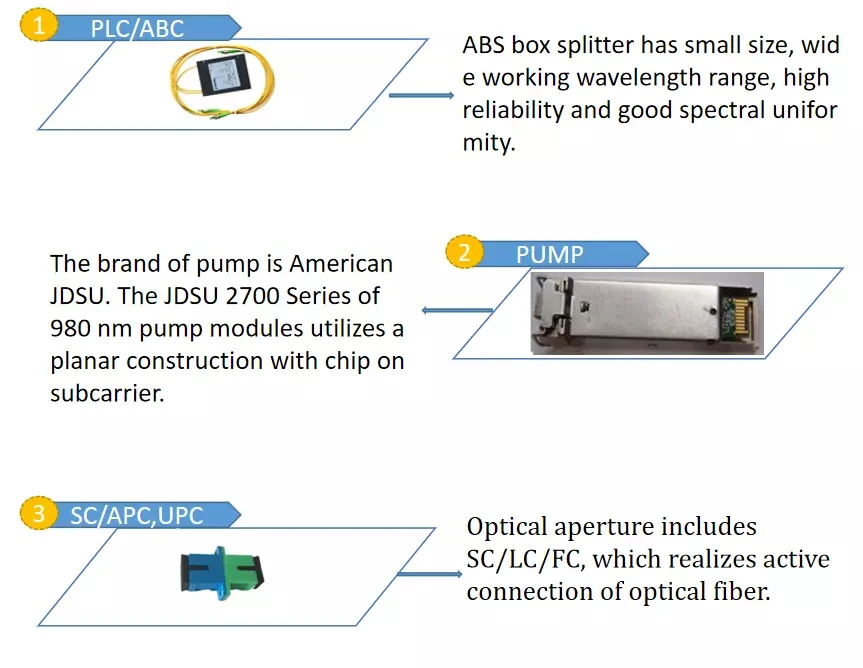

Product Advantages
Product Parameters
| Parameter | Symbol | MIN | TYP | MAX | UNITS |
| Operating wavelength | λc | 1540 | 1550 | 1565 | nm |
| Saturated Output Power Note1 | Po | 13 | ------ | 33 | dBm |
| Input Power | Pi | -3 | ------ | +10 | dBm |
| Gain | G | ------ | ------ | 30 | dB |
| Noise Figure Note2 | NF | ------ | ------ | 6 | dB |
| Output Power Stability | ΔPo | ------ | ±0.05 | ±0.2 | dB |
| Input Isolator | ISOi | 30 | ------- | ------ | dB |
| Output Isolator | ISOo | 30 | ------- | ------ | dB |
| Input Pump Leakage | PLi | ------- | ------- | -35 | dBm |
| Output Pump Leakage | PLo | ------- | ------- | -45 | dBm |
| Return Loss | RL | ------- | ------- | -45 | dB |
| Polarization Dependent Gain | PDG | ------- | ------- | 0.3 | dB |
| Polarization Mode Dispersion | PMD | ------- | ------- | 0.5 | ps |
| Operating Temperature | Tw | -5 | ------- | 60 | ℃ |
| Storage Temperature | Ts | -40 | ------- | 80 | ℃ |
| Humidity Note | ------- | 10 | ------- | 90 | % |
| Input Power Supply | Vps | 100 | ------- | 240 | VAC |
| Output Power Supply | Vps | 5 | ------- | 12 | VDC |
Production Process
Packaging & Delivery
Related Products
![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
Company Information
| Q | What is the MOQ? |
| Our MOQ is one piece. | A |
| Q | Can I print my logo or drawings? |
| Absolutely!Send us your drawing sign,we will print it for you. | A |
| Q | How about the warranty? |
| 1-5 Year. | A |
| Q | Can I have my own customized products? |
| Yes,OEM and ODM orders are very welcomed. | A |
| Q | Terms of payment? |
| 1.30%. 2.100%. 3.Wesern union. 4.Credit card. | A |
