Автоматическая машина для заточки лезвий деревообрабатывающего

Описание и отзывы

Характеристики

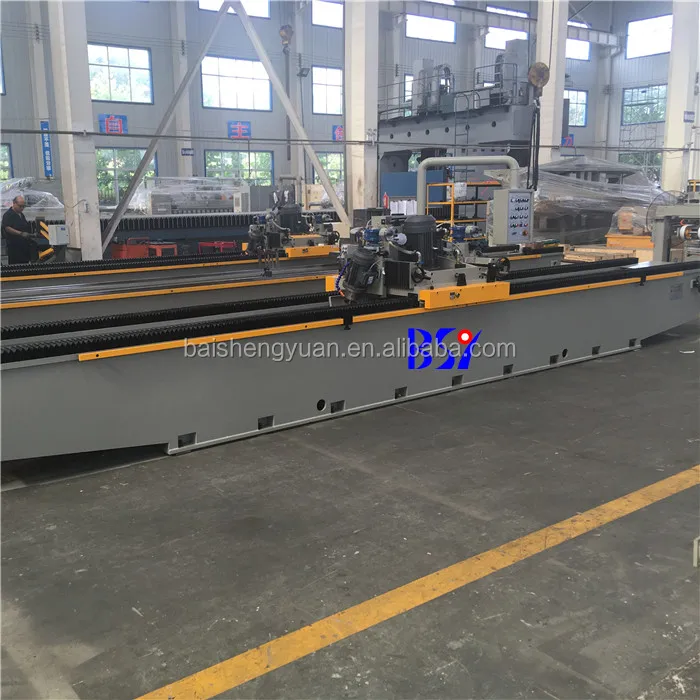

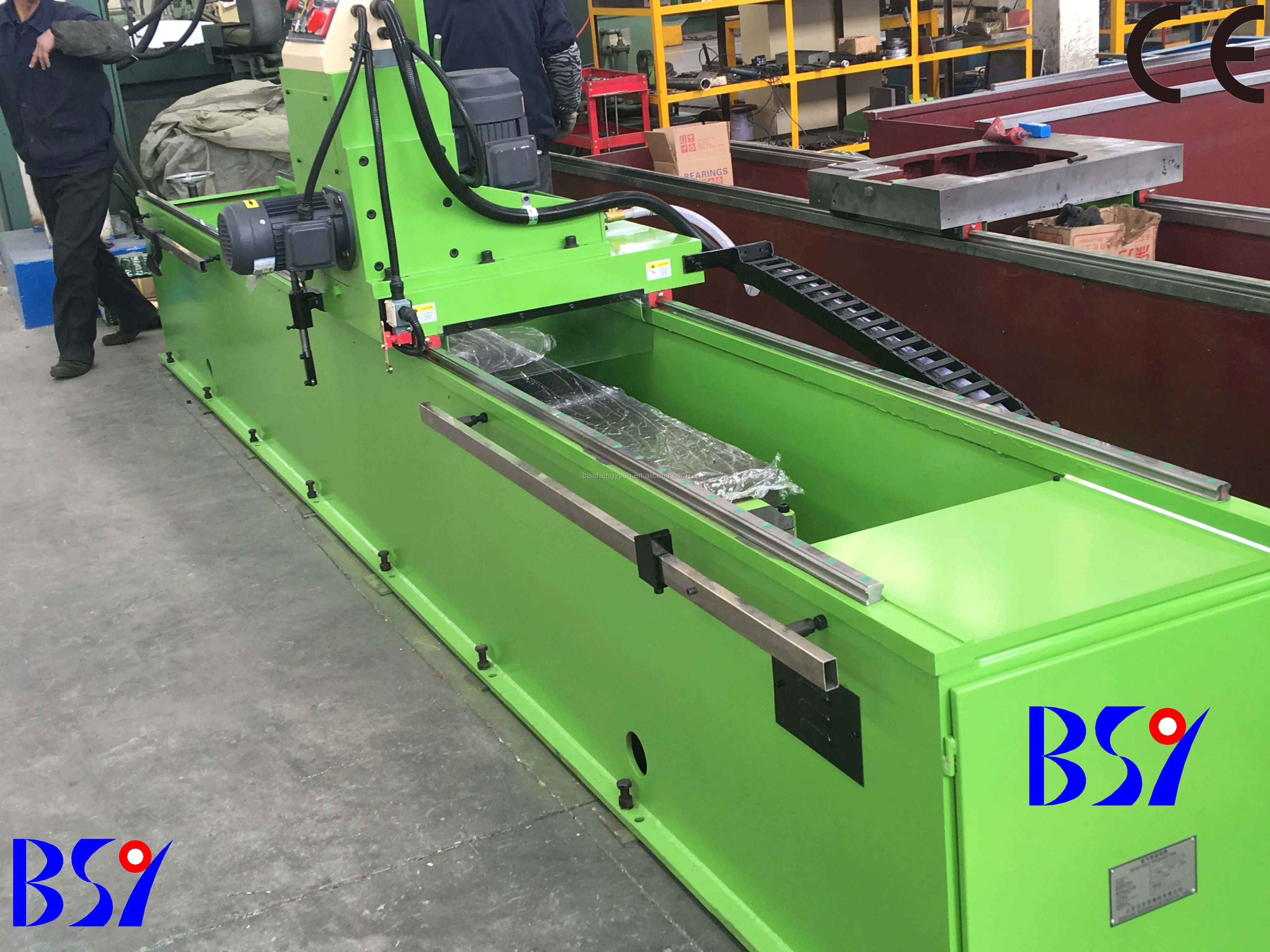

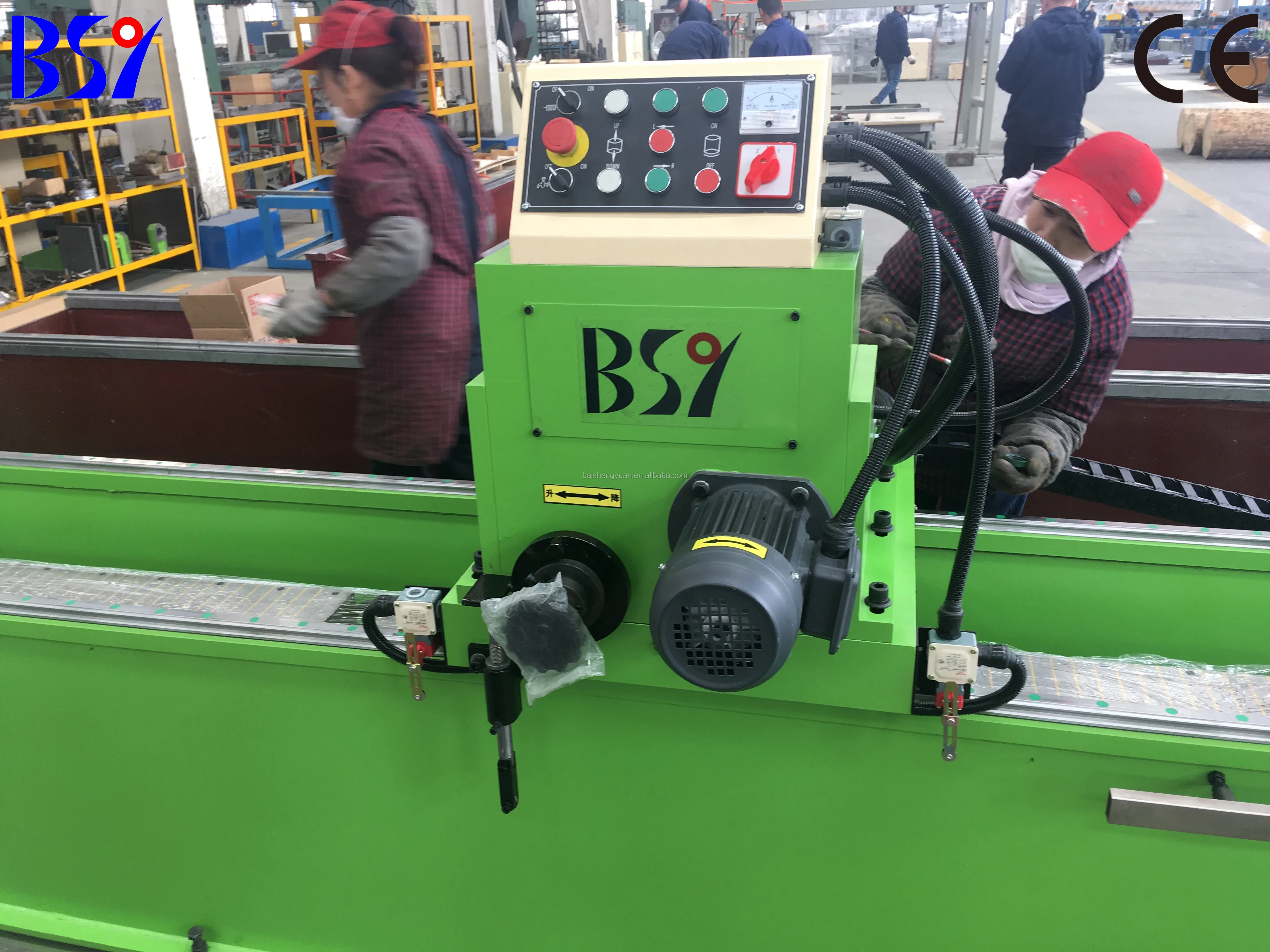

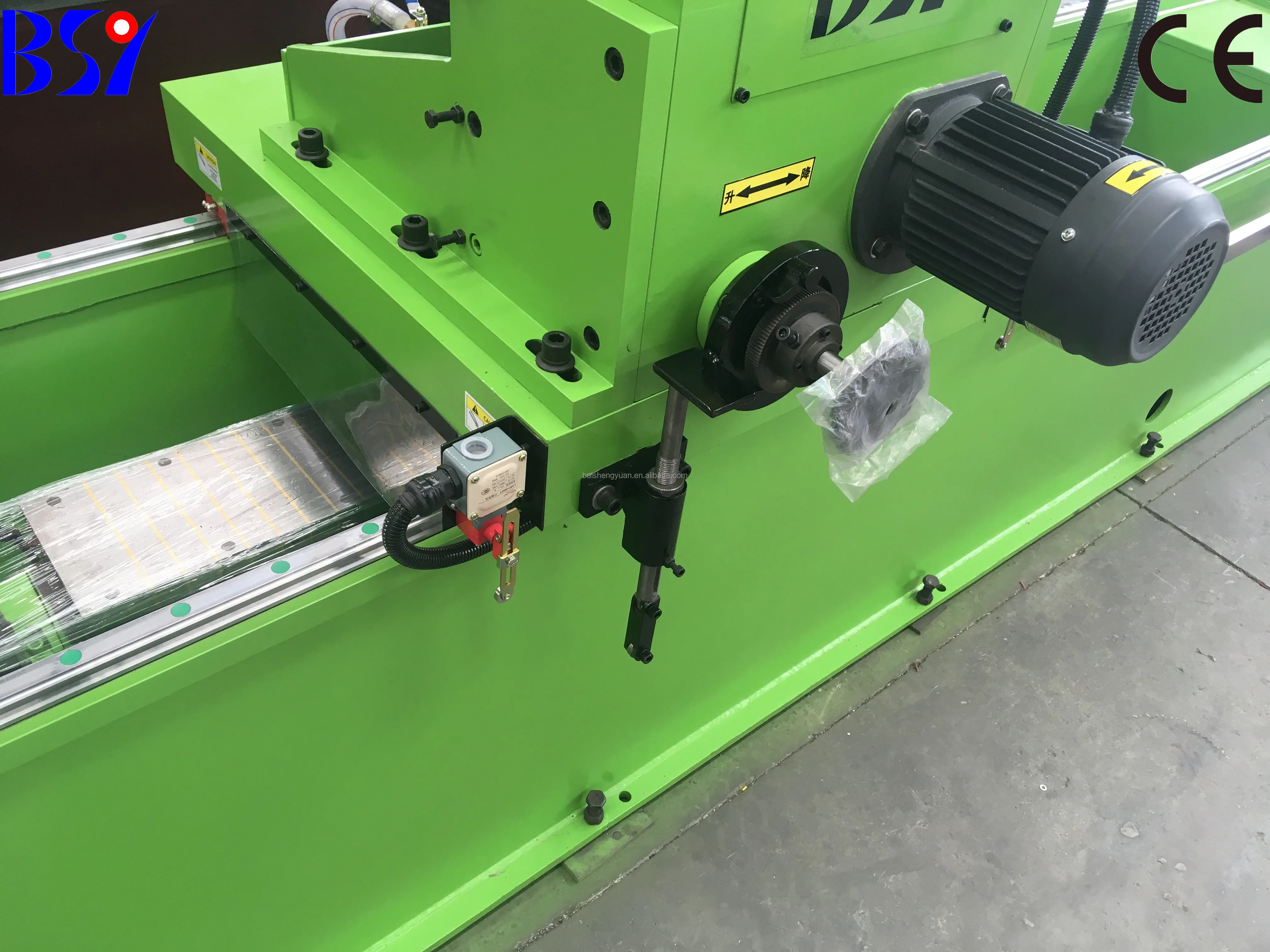

Automatic knife grinder machine for woodworking knife/woodworking blade grinding machine

Product Application:

This knife grinder machine is mainly used in straight blade cutting tool in different angles,suitable for all kinds of cutter tools of plywood,furniture,printing,textile industry etc.It is also used to the oblique opening of high speed tool steel.

Technical Parameters:

Model	DM4500B	DM3500B	DM3000B	DM1500B
Max.grinding length	4500mm	3500mm	3000mm	1500mm
Table width	180mm	180mm	180mm	180mm
Power of grinder motor	4kw	4kw	4kw	4kw
Grinding speed	15m/s	15m/s	15m/s	15m/s
Slide plate feeding speed	12/18m/min	12/18m/min	12/18m/min	15.2m/min
Angle range of working table	90	90	90	90
Overall sizes	6500x1250x1300mm	5500x1250x1300mm	4900x1250x1300	3220x1250x1300
Weight	3600kg	3200kg	2850kg	1500kg



Features:

1. The working table is of electromagnetic chunk with strong magnetic power and lower consumption.

2. The spindle motor is professionally made for grinding knife, with high precision and easy maintenance.

3. The machine has a double tilting fillet to lock tight the electro-magnetic chunk, so the grinder is more stable.

4. The machine chooses rack driving, so the grinding head traveling is smoother.

5. The button is chosen from Top brand which has a reliable quality. It is easy to operate and has a long life span.

6. The switch and the contactor is choose from French Schneider electric components which are well known in the world. The quality is beyond all doubts.

7. The moving up and down of the grinding head is depended on the ball screw. The machine can use for a long time without the dropping of the knife. It is the no clearance transmission.





About US:

SHANDONG BAISHENGYUAN GROUP         CO.,LTD

1. Leading manufacturer of woodworking machinery in China, found in 1956. specialize in this field for more than 60 years.

2. Almost 30 year export experience, exported dozens of countries in Asia, Europe, Africa and America. All products are quite popular among clients.

3.Specializing in plywood production line and finger joint board production line. We have our own designers to meet any of your requirement.

4. Having own after –sale maintenance center, our engineer can go to overseas for installation and commissioning.



Any questions,please feel free to contact with us:
