Brand | JTS or OEM |
Company Type | Manufacturer and Trader |
Material | Chrome Steel GCR15 |
Certificate | ISO9001:2015 |
MOQ | 1PCS |
Package | Tube or Single Box |
Model: 20000CC, 20000CCK, 20000CC/W33, 20000CCK/W33, 20000CCK+H0000, 20000CCK/W33+H0000
Application: Precision instrument, Low noise motor, Automobile, motorcycle and other machines.

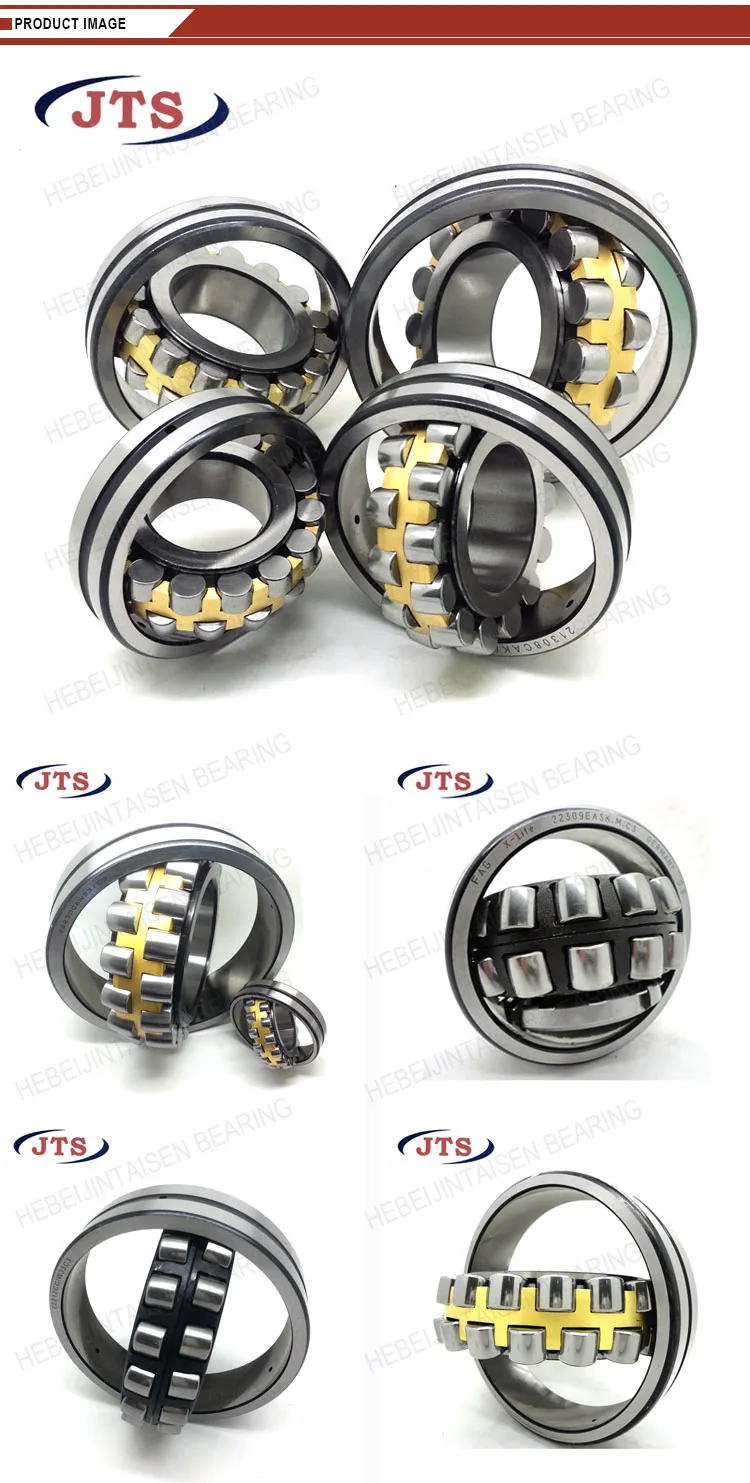

Description: Spherical roller bearing has two columns of roller, mainly endure radial load and also withstand any direction of axial load at the same time. This kind of bearing own a high capacity of radial load especially suitable for heavy load or vibration, but can’t bear pure axial load , The outer ring groove of this bearing is spherical, so it's favorable in regulating the heart. Spherical roller bearings and self-aligning ball bearing are the same at the structure theory and character, so they can substitute each other in the permission of load capacity and speed limit.
Bearing No. | Dimensions | Load ratings | Weight | |||||
d | D | B | r | Dynamic | Static | |||
Cylindrical bore | Tapered bore | mm | min | Cr (kN) | C0r (kN) | kg | ||
22205 CC | 22205 CCK | 25 | 52 | 18 | 1.0 | 35.7 | 35 | 0.18 |
22205 E | 22205 EK | 25 | 52 | 18 | 1.0 | 42 | 43 | 0.18 |
22206 CC | 22206 CCK | 30 | 62 | 20 | 1.0 | 47 | 50 | 0.28 |
22206 E | 22206 EK | 30 | 62 | 20 | 1.0 | 60 | 63 | 0.28 |
22207 CC | 22207 CCK | 35 | 72 | 23 | 1.1 | 66 | 72 | 0.43 |
22207 E | 22207 EK | 35 | 72 | 23 | 1.1 | 77 | 85 | 0.43 |
22208 CC | 22208 CCK | 40 | 80 | 23 | 1.1 | 73 | 81 | 0.52 |
22208 E | 22208 EK | 40 | 80 | 23 | 1.1 | 89 | 97 | 0.52 |
22209 CC | 22209 CCK | 45 | 85 | 23 | 1.1 | 77 | 88 | 0.56 |
22209 E | 22209 EK | 45 | 85 | 23 | 1.1 | 93 | 105 | 0.56 |
22210 CC | 22210 CCK | 50 | 90 | 23 | 1.1 | 85 | 100 | 1.00 |
22210 E | 22210 EK | 50 | 90 | 23 | 1.1 | 97.8 | 118 | 1.00 |
22211 CC | 22211 CCK | 55 | 100 | 25 | 1.5 | 99.5 | 120 | 0.82 |
22211 E | 22211 EK | 55 | 100 | 25 | 1.5 | 115 | 137 | 0.82 |
