Chisung electric dual arm 500kg swing gate operators remote control automatic swing gate opener
Product Description
Technical Parameters
1 | Power Supply | AC220V±10V 50/60HZ |
2 | Electric motor | AC220V/110V |
3 | Motor speed | 1.6cm/s |
4 | Operating Temperature | -20°C~+60°C |
5 | Relative Humidity | ≤95%, No Condensation |
6 | Power of motor | 320W |
7 | Max Each leaf length | 3.5m |
8 | Rotational speed | 1800RPM |
9 | Single arm Max gate weight | 500Kg |
10 | Running time protection | Adjustable |
11 | Current | 1.5A(220AC) |
12 | Rod's max travel | 400mm |
13 | Auto closing delay time | Adjustable |
14 | Gate move speed | 12m/min |
15 | Application | home automation |
16 | Protection class | IP45 |

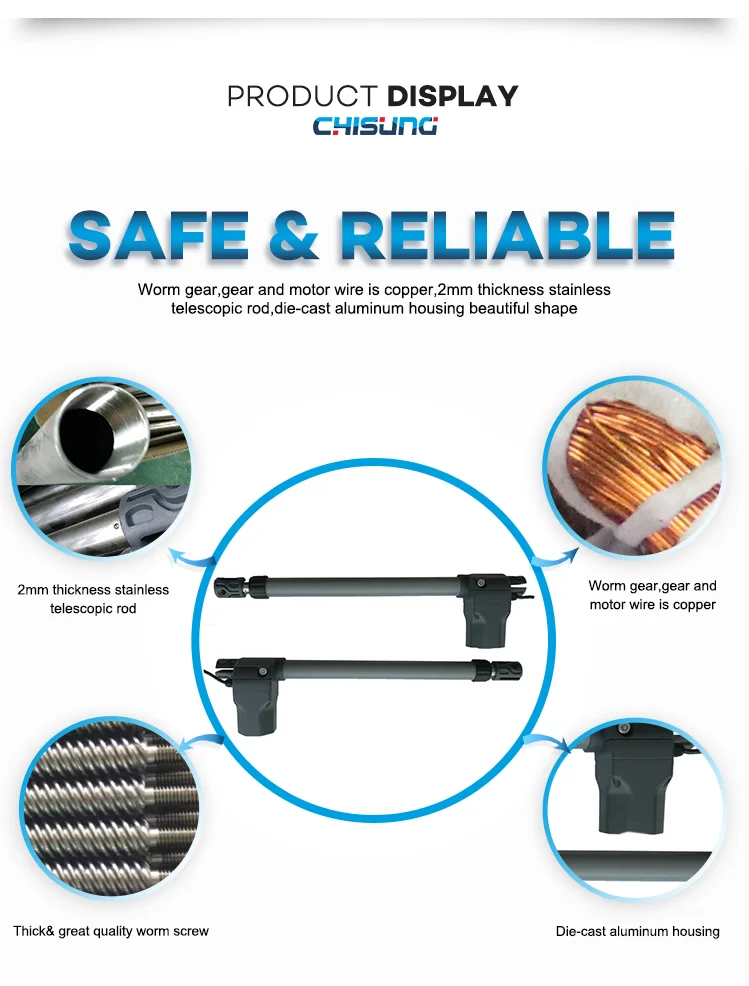

Product display
Advanced technology
Appliction
Related Products
Company Information
Trade information
| MOQ | 1set |
| Prot | Shenzhen,Guangzhou and others |
| Payment terms | L/C;T/T;MoneyGram |
| Producing capacity | 3000 Sets/Month |
| Leading time | 15days |
| Package | Carton |
FAQ And Contact us

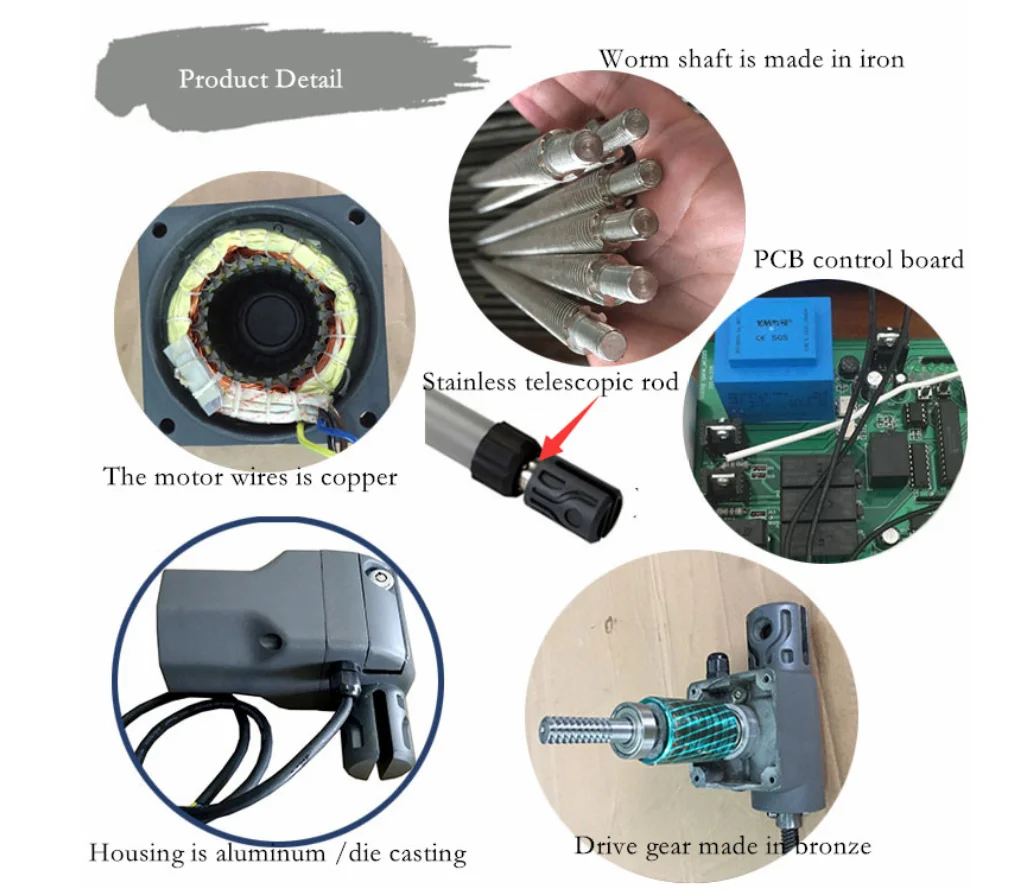

1.What is material this product made of ?
--------It is die-cast aluminum housing, gear is copper, stainless telescopic rod, the motor wires is copper.
2.Can it be used outside ?
-------- Yes, our dual swing gate opener could be used inside and outside of gate.
3.What is the frequncy of your remote control?
-------- It is 433Hz.
4.What is the longest time for opening and closing the gates ?
-------- It is about 12s. It could be set up depending on your demand.
5.What's you warranty?
-------- 1 year time warranty, little charge after one year, and all the life time technology freely.
