Specification
Product Name | YLSZ13 | ||||||
Drive Type | Single motor drive | ||||||
Type of Load | Push/pull | ||||||
Limit Switch | Built-in | ||||||
Voltage | 12V/24VDC | ||||||
Stroke | Customized (better to be under 500mm) | ||||||
Mounting Dimension | Min: 115mm+stroke; Max: 115mm+stroke+stroke (see below drawing) | ||||||
Speed | 4-48mm/s | ||||||
Load Capacity | 4000N max. | ||||||
Duty Cycle | Max. 10% or 2 minutes in use followed by 18 min. rest | ||||||
Certificate | CE, UL, RoHS | ||||||
Application | sofa; tepoy; vehicle seat | ||||||

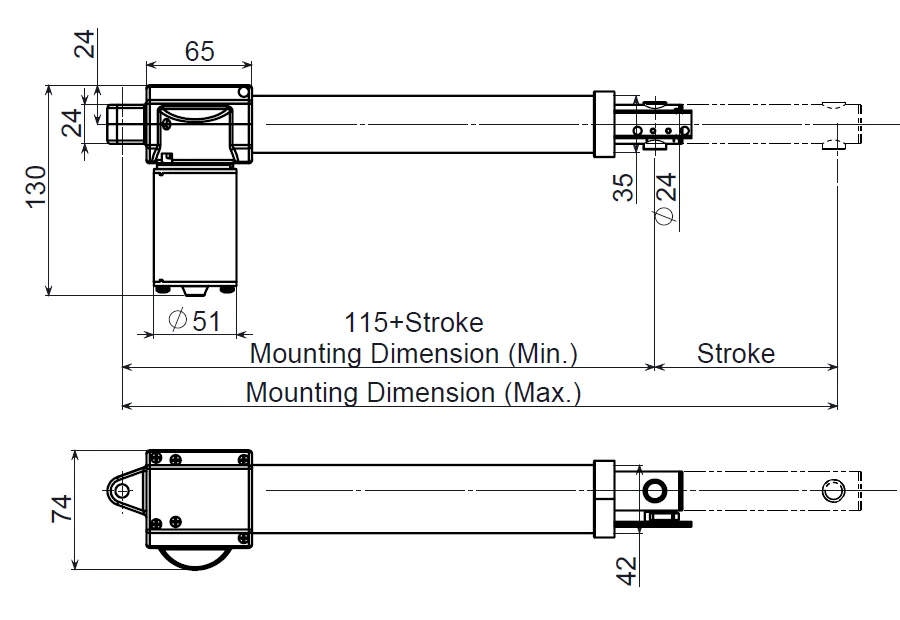

Min.mounting dimension=115mm+stroke
Max.mounting dimension=115mm+stroke+stroke
Details Images
Product Application
In medical care such as surgery bed, patient lifter, hoist equipment;
In auto industry such as car seat;
In office such as height adjustable table and projector.
Certificate
Company Profile
We specialize in research and development, production and sales of dc motor, linear actuator and control system.
We have several subsidiaries, except linear actuator factory, we have an injection mold factory, and a carbon brush (for motor) factory. All the plastic parts are produced by ourselves.
Exhibition
Product packaging
Poly bag for every actuator → Cardboard between every layer → Cartons packed into pallets
Delivery
All available shipping ways could be applied, by courier, air or sea.
Accept appointed shipping company.
Full-way tracking the cargos for you before the goods arrive.
Accept appointed shipping company.
Full-way tracking the cargos for you before the goods arrive.
