Product Description
XCMG official underground boring machine EBZ200A mining roadheader
EBZ200A roadheader is designed as compact structure, low body, low center of gravity. easy operation, good working performance.
1. Electric control system
EBZ200A roadheader adolts flame proof and intrinsically safe switch box and control box with small size, light weight, flexible operation, which is safety and reliable: main controller is installed in a closed casing that can effectively block out electromagnetic interference; working condition is shown with LCD screen, menu mode is used for operating interface with flexible and safe parameter setting; it is equipped with functions such as overvoltage, motor overload, open-phase, short circuit, over temperature and earth leakage lockout.
EBZ200A roadheader adolts flame proof and intrinsically safe switch box and control box with small size, light weight, flexible operation, which is safety and reliable: main controller is installed in a closed casing that can effectively block out electromagnetic interference; working condition is shown with LCD screen, menu mode is used for operating interface with flexible and safe parameter setting; it is equipped with functions such as overvoltage, motor overload, open-phase, short circuit, over temperature and earth leakage lockout.
2. Hydraulic system
The hydraulic system of EBZ200A roadheader adopts transfer case, several pumps control, with main hydraulic components coming from international brands.
3. Spraying system
Spraying system of EBZ200A roadheader include inside and outside spray systems, of which the front is after-pick spraying which is used to strength outside spraying, the latter is reasonable in design and equipped with leakage detection function.
4. First freighter
Straight structure is adopted for first freighter, which can achieve smooth lapping with hauler bed and transportation.
Straight structure is adopted for first freighter, which can achieve smooth lapping with hauler bed and transportation.
5. Traveling mechanism
The traveling mechanism is a high integration of internationally advanced motor and reducer, whose big output torque can adapt to operations with large dip angle. If there is limit for weight or total weight during transportation, it can be disassembled for transportation.
The traveling mechanism is a high integration of internationally advanced motor and reducer, whose big output torque can adapt to operations with large dip angle. If there is limit for weight or total weight during transportation, it can be disassembled for transportation.
Product Paramenters
Item | EBZ200A |
Overall weight | 58000 kg |
Dinting undercut | 440/215 mm |
Ground clearance of machine | 250 mm |
Height of Range of positioning cutting | 5030/4650 mm |
Width of Range of positioning cutting | 6260/5700 mm |
Area of Range of positioning cutting | 31.5/26.4 m² |
Gantry height | 400 mm |
Compressure strength of coal petrography to be cut | ≤90/70 Mpa |
Climbing capacity | ±18° |
Travelling speed | 7 m/min |
Min. turning radius | — |
Grounding pressure | 0.132 Mpa |
Gross power | 325 kW |
Power of Cutting motor | 200/110 kW |
Power of pumping stations motor | 110 kW |
Supply voltage | AC1140V |
Frequency of supply | 50Hz |
Rotation speed of cutting head | 46/23 r/min |
Loading capacity | Star wheel type/4.2 m³/min |
Crawler width | 600 mm |
Out. Width of crawlers | 2520 mm |
Tensioning style | Cylinder tensioning and snap-gauge locking |
Water pressure of outside spraying | ≥1.5 MPa |
Water pressure of inside spraying | ≥3 MPa |
Max. non-removable parts size | 3.125×1.39×1.41 m |
Max. non-removable parts mass | 5900 kg |

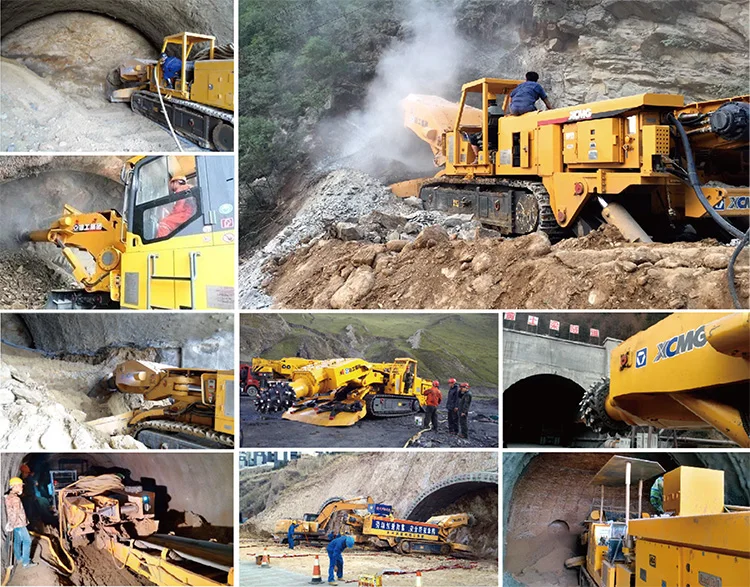

Product Show
