Product Description
The main performance characteristics：
1.M Hanna high strength cast iron, internal honeycomb rib structure, high rigidity, long service life.
2.Spindle adopts imported from Japan King combination diamond. After the quenching and tempering and frequency processing, after fine grinding with 4 imported bearings (other manufacturers spindle 3 bearing), ensure high quality and high precision.
3.Three shaft screw fine grinding with advanced phosphor bronze nut, durable.
4.Horizontal milling with 4 gear shaft speed (other manufacturers for the 2 gear shaft), a wide range of variable speed, torque.
X6325 series Turret milling machine
1.Robust construction and heavy duty design.
2.The machine body is made of Meehanite cast iron.
3.The milling head is made of SCM-21.Imported from TaiWan.

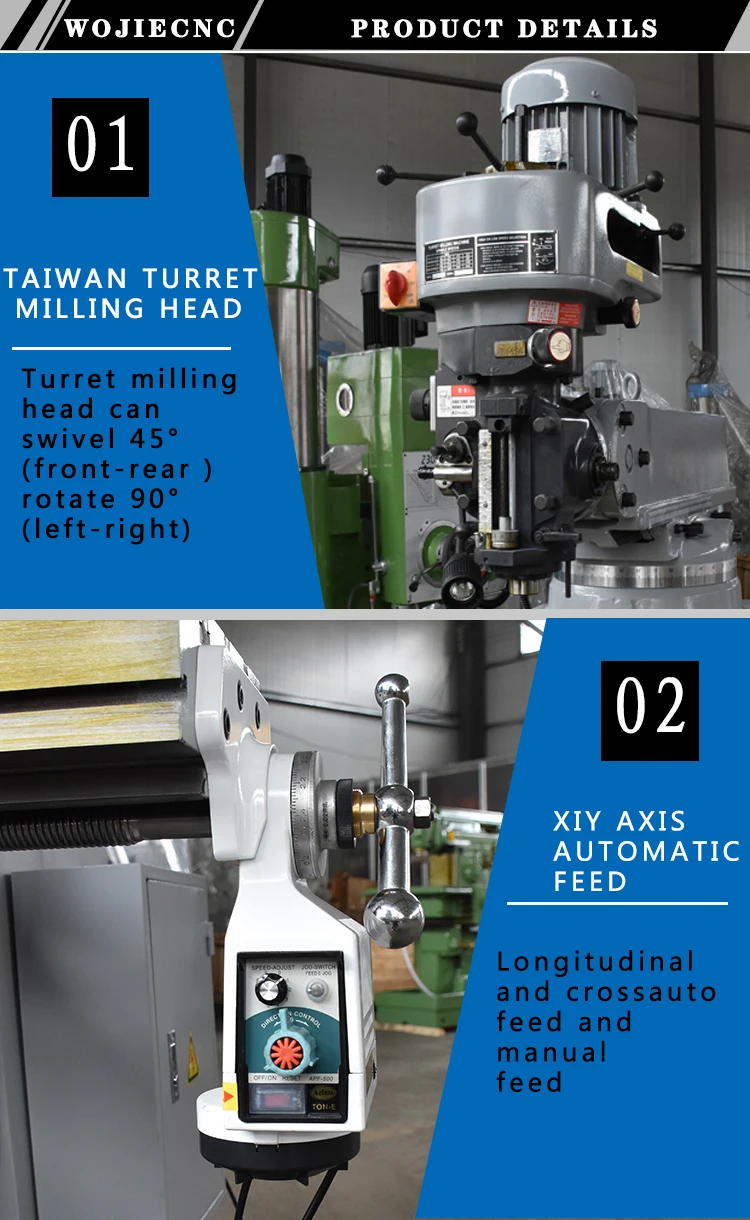

4.The milling head can swing 90°right and left side,45°front and back side.
5.The ram can swing 180°horizontally.

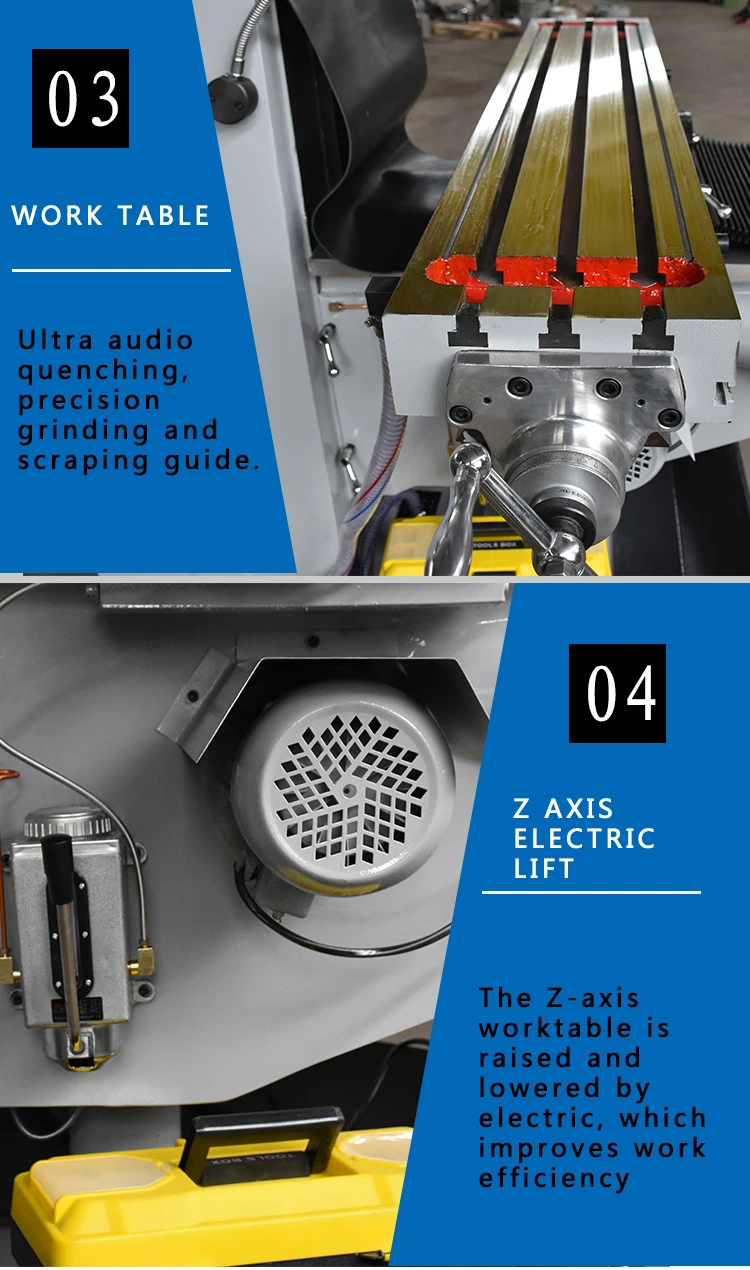

6.The working table and guide rail are heating treated and precision grinding.
7.DRO and dividing head are for option.
Product main technical specifications:
1.M Hanna high strength cast iron, internal honeycomb rib structure, high rigidity, long service life.
2.Spindle adopts imported from Japan King combination diamond. After the quenching and tempering and frequency processing, after fine grinding with 4 imported bearings (other manufacturers spindle 3 bearing), ensure high quality and high precision.
3.Three shaft screw fine grinding with advanced phosphor bronze nut, durable.
4.Horizontal milling with 4 gear shaft speed (other manufacturers for the 2 gear shaft), a wide range of variable speed, torque.
X6325 series Turret milling machine
1.Robust construction and heavy duty design.
2.The machine body is made of Meehanite cast iron.
3.The milling head is made of SCM-21.Imported from TaiWan.
4.The milling head can swing 90°right and left side,45°front and back side.
5.The ram can swing 180°horizontally.
6.The working table and guide rail are heating treated and precision grinding.
7.DRO and dividing head are for option.
Product main technical specifications:
Specifications | X6325 | ||||
Table size | 1270x254(10”x50”)mm | ||||
Table travel | 780/400/420mm | ||||
T slot(number-width-pitch) | 3-16-50mm | ||||
Spindle taper | standard:R8 optional:ISO40 | ||||
Spindle speed range | standard:16 steps, 50HZ:65-4500 ,60HZ:80-5440rpm Optional:variable 65-4000 rpm | ||||
Spindle travel | 127mm | ||||
Spindle feed range | 0.04,0.08,0.15(3 steps)mm | ||||
Distance between spindle nose and table surface | 90-510mm | ||||
Main motor power | 2.2kw | ||||
Head rotation (left - right ) | ±90° | ||||
Head rotation (front - rear) | ±45° | ||||
Weight | 1400kg | ||||
Overall dimension | 1550x1650x2250mm | ||||
Standard Accessories:
Plastic splashing guard
Draw bar
Oil collecting plate
Tool & toolbox
Reduction sleeve
work lamp
cooling system
Optional Accessories:
Power feed

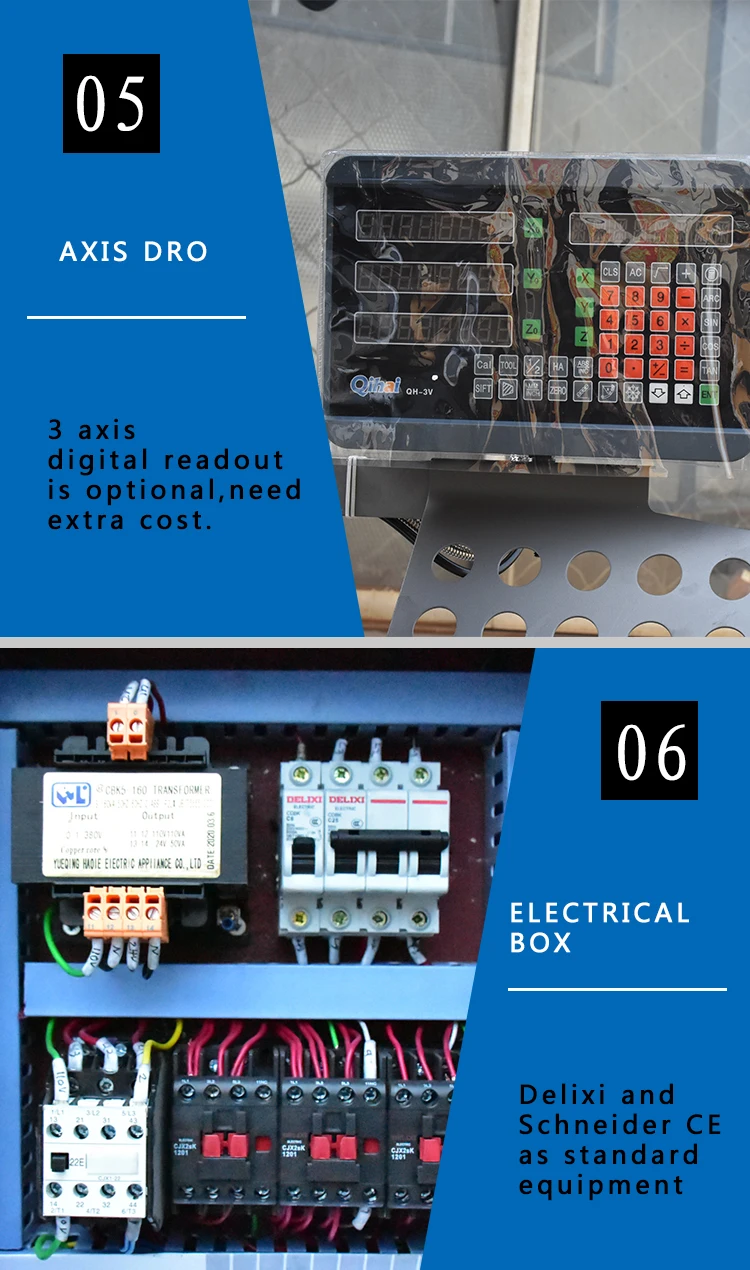

3-axis Digital Reading
Machine Vise
Milling Chuck
Variable milling head
Air drawbar
Dividing Head
Rotary TablKits
Turret milling machine
Plastic splashing guard
Draw bar
Oil collecting plate
Tool & toolbox
Reduction sleeve
work lamp
cooling system
Optional Accessories:
Power feed
3-axis Digital Reading
Machine Vise
Milling Chuck
Variable milling head
Air drawbar
Dividing Head
Rotary TablKits
Turret milling machine
Products Detail
Related Products
Company Introduction
Packing&Shipping
Sales And Service Network
FAQ
1. What is the payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;Irrevocable LC at sight .
When we receive the advance payment, we will start to make production.when the machine is ready , we will take pictures to you.after we got your balance payment. we will send the machine to you.
2. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
3.When is the delivery time?
A: If the machine you will order is standard machine, we can ready the machine within 15days. if some special machines will be some longer. The ship time is about 30 days to Europe, America. If you are from Australia, or Asia, it will be shorter. You can place order according to delivery time and ship time.we will give you the answer accordingly.
4. What is your trade terms?
A : FOB, CFR,CIF or others terms are all acceptable.
5. What is your minimum order quantity and warranty?
A: MOQ is one set, and warranty is one year.but we will offer lifetime service for machine.
6. What is the package of the machines?
A: The machines standard will be packed in plywood case.
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;Irrevocable LC at sight .
When we receive the advance payment, we will start to make production.when the machine is ready , we will take pictures to you.after we got your balance payment. we will send the machine to you.
2. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
3.When is the delivery time?
A: If the machine you will order is standard machine, we can ready the machine within 15days. if some special machines will be some longer. The ship time is about 30 days to Europe, America. If you are from Australia, or Asia, it will be shorter. You can place order according to delivery time and ship time.we will give you the answer accordingly.
4. What is your trade terms?
A : FOB, CFR,CIF or others terms are all acceptable.
5. What is your minimum order quantity and warranty?
A: MOQ is one set, and warranty is one year.but we will offer lifetime service for machine.
6. What is the package of the machines?
A: The machines standard will be packed in plywood case.
