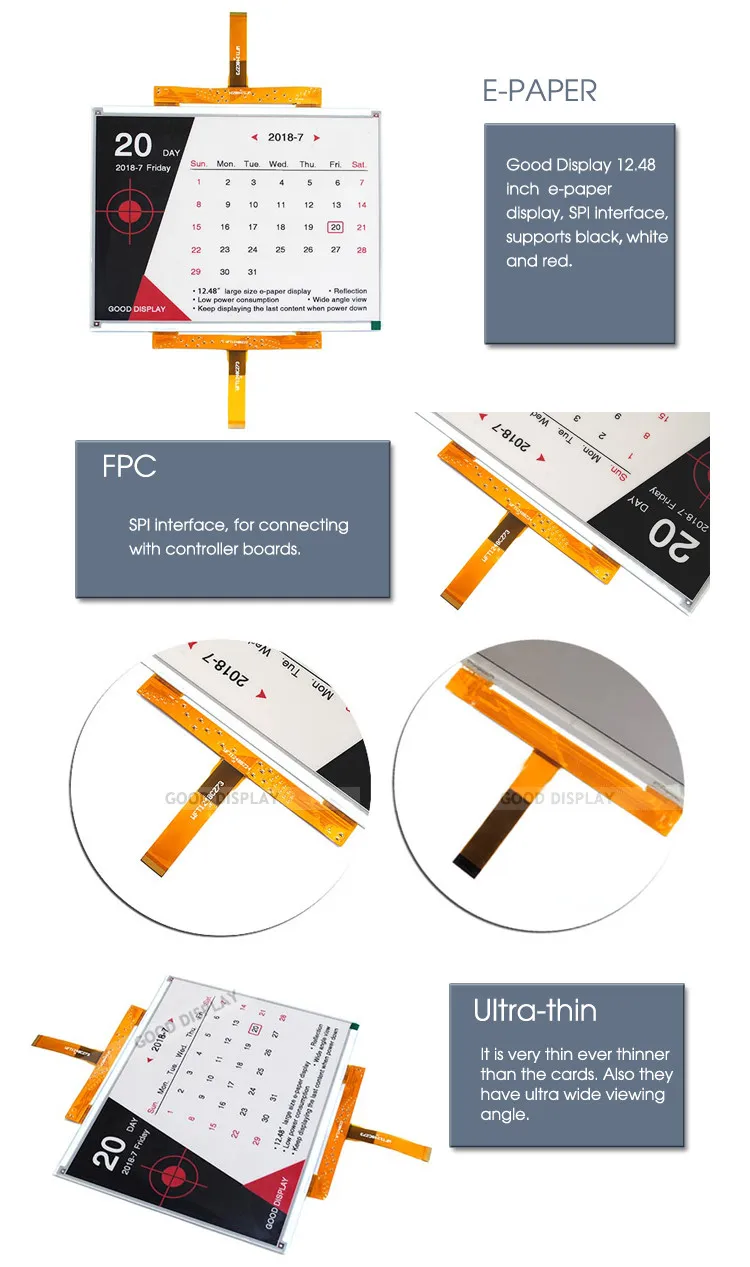

12.48 inch color e ink display 1304*984 resolution 13 inch epaper display
\t\t\t\t\t\t\t\t\tGeneral Description \t\t\t\t\t\t\t
This is a 12.48 inch color e ink display 1304*984 resolution 13 inch epaper display, communicating via SPI interface. The refresh time is 20s. The I2C signal master interface to read built-in temperature sensor. Its IC is UC8179. We also have black-white-yellow and black-white for you to choose.
In view of so many advantages: ultra low power consumption, near 180 degree view angle, readable under sunlight, GDEW1248Z95 is a very good choice for applications like shelf label, smart tags, smart home application, industrial instrument, smart cards and other related products.
In view of so many advantages: ultra low power consumption, near 180 degree view angle, readable under sunlight, GDEW1248Z95 is a very good choice for applications like shelf label, smart tags, smart home application, industrial instrument, smart cards and other related products.
If you need any electronic paper display accessories, such as touch panel, frontlight, electronic label shell, please contact us, we could provide the customized services for you.
Note: All of 3-color epaper doesn't support partial refresh
What's included in the package
Standard Accessory Name | Qty | |
1 | 12.48 inch color e ink display 1304*984 resolution 13 inch epaper display | 1 |
2 | Come with helpful development demo kit with resources and manual (Please contact our sales, we will send the you the documents by email, thanks) | 1 |
Main Parameters
Part Number | GDEW1248Z95 |
Type | Dot Matrix |
Size | 12.48 inch |
IC | UC8719 |
Resolution | 1304x984 |
Outline Size(mm) | 261.5x211x1.18 |
Active Size(mm) | 252.976x190.896 |
Pixel Pitch(mm) | 0.194x0.194 |
Operating Temp. | 0℃~+40℃ |
Storage Temp. | -25℃~+60℃ |
Connector | Two FPC Interface |
Interface | SPI |
Max Grayscale | 2 |
Color | Black,White,Red |
Package Volume | 6kg |
Refresh Time(s) | 20 |
Power Consumption(mW) | 82.5 |
Standby Power Consumption(mW) | 0.71 |

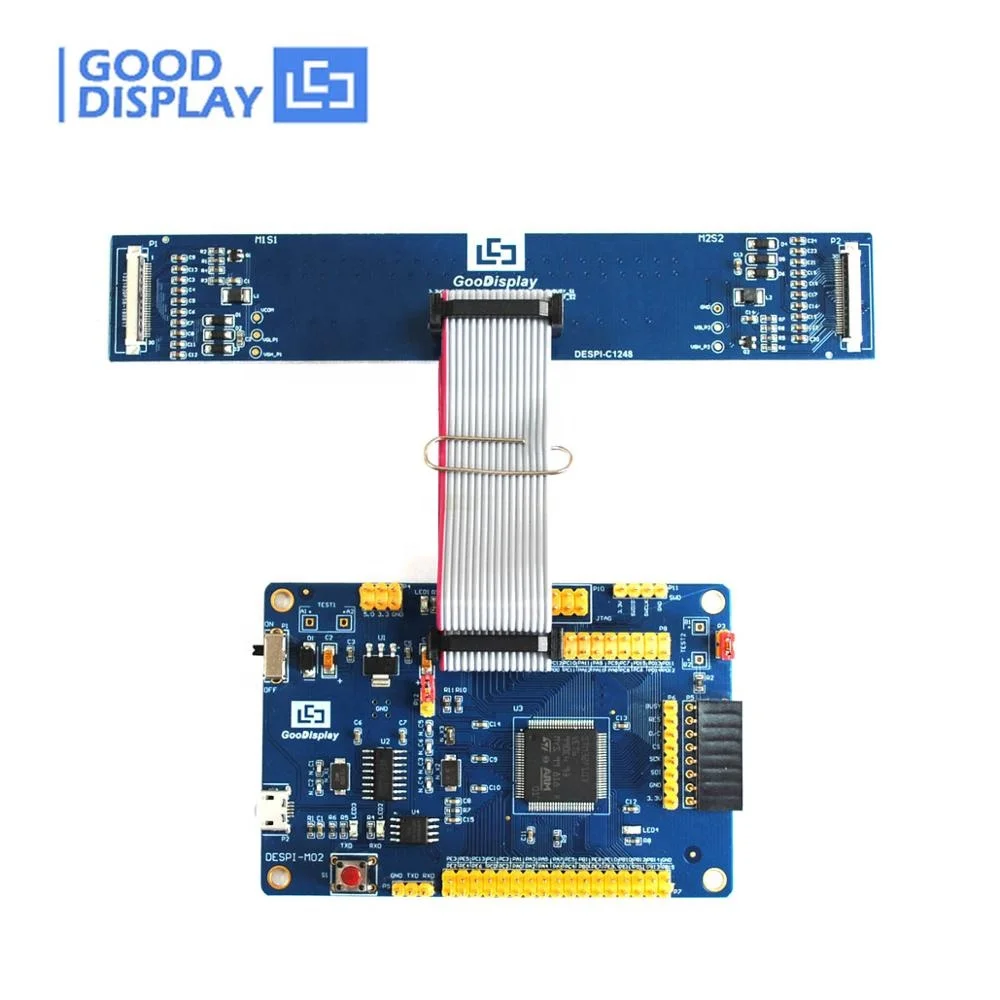

Matched Demo Kit
Match Demo Kit

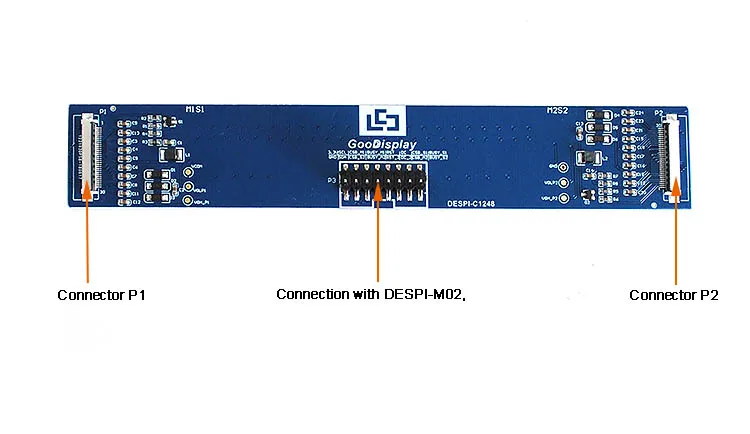

Development Kit for 12.48 inch SPI interface e ink Display.
We can provide you demo kit and technical support.
Please click the picture for more details.
*Notice that the above price does not include the Demo Kit.
12.48 inch color e ink display 1304*984 resolution 13 inch epaper display
Particulars
\t\t\t\t\t\t\t\t\tOther Products \t\t\t\t\t\t\t
Same Size Product List
Part Number | Resolution | Refresh Time(s) | Color |
1034x984 | 6 | BW | |
1034x984 | 30 | BWY |
