Product Description

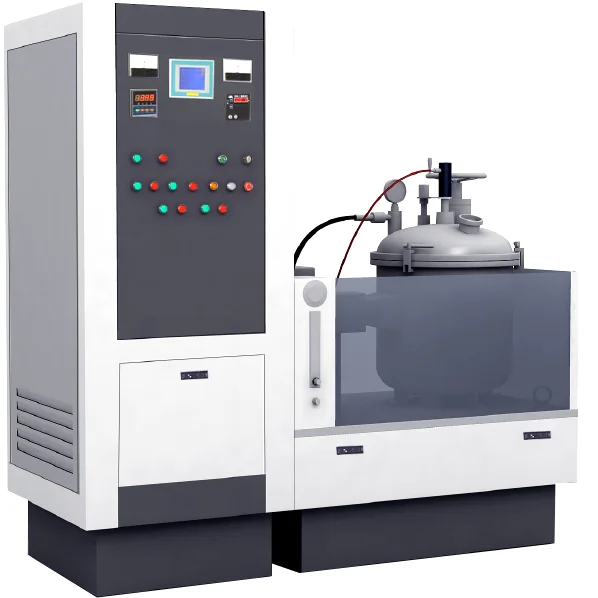

High Temperature & Low Vacuum Microwave Sintering Furnace for Various Solid Materials
Features
1. HAMiLab-V is the 3rd generation of SYNOTHERM high temperature microwave laboratory system. It's eloquent and sophisticated design accents this system's advanced state-of-the-art technology. It is composed of 4 sub-systems that are integrated to create a truly hands-off experience of processing materials and metals, chemical and biological samples. The only standard in manufactured high-temperature, high-power research furnaces, HAMiLab-V is composed of a double-layer, water-cooled, vacuum sealed, stainless steel heating chamber that is attached to vacuum and gas-infiltration systems that provides a highly controlled environment for processing samples. Energy is delivered to the sample loads by direct energy transfer from a high precision micro head, capable of delivering up to 6 kW of microwave power to heat samples to temperatures only limited by the state-of-the-art in insulation materials.
2. This amount of energy delivered at the high efficiency inherent in microwave processing easily heats samples to temperatures above 1600C in minutes, not hours. And our energy delivery systems are made, assembled and individually tested with care, and have unrivalled durability. They are rated for 5,000 hours of operation. HAMiLab's control system is equally as sophisticated, giving users complete control over all operational parameters. Samples are heated and cooled on a precise heating schedule that is programmed and stored into the system with a touch of button on the liquid crystal touch display. Each system comes standard with a high-precision optical pyrometer for accurate temperature measurement over a broad range of temperatures up to 2250C. Metals, technical ceramics, glasses, PM parts, virtually any system that is studied in a laboratory can be processed in the HAMiLab-V to yield end-products of the finest quality.
Specifiacations
Model | HAMiLab-V3000 | HAMiLab-V6000 |
Output Power | 0.5 – 2.85kW variable | 0.6 - 6.0kW variable |
Microwave Frequency | 2450 ± 25MHz | |
Overall Dimensions (mm) | 800 × 2200 × 1800 (W×L×H) | |
Cavity Dimensions (mm) | Φ500 × 560 (Dia. × H) | |
Effective Heating Zone (mm) | Φ150 × 160 (Dia. × H) | |
Maximum Temperature | 1600oC | |
Temperature Measurement | Raytek IR pyrometer, 450 - 2250oC | |
Control System
| PLC (18 sections of temperature control), embedded system connected to laptop via USB, with data storage and printing functions. | |
Control Panel Display | 8” touch-pad LCD or laptop | |
Temperature Control Precision | 0.3% ± 1oC | |
Power Control Precision | < ± 2% | |
Vacuum Limit | < 100 Pa | |
Atmosphere Control | 2 channels (optional) | |
Process Atmosphere
| Air, oxygen, nitrogen, argon and weak reductive atmosphere, etc. | |
Protection and Safety
| Anode over voltage, anode over current, anode power surpass, electromagnet watchdog, magnetron temperature, external interlock. | |
Microwave Leakage | < 1mW/cm2 (Safety standard < 5mW/cm2) | |
Cooling | Water, 0.8 - 2m3/h at pressure > 0.15MPa | |
Product Images
Our Company & Team
Certifications
Cooperative Partner
Packaging & Shipping
PACKAGE:
1 Standard exported package: Internal anticollision protection, external export wooden box packaging.
2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.
3 Responsible for the damage during the shipping process, will change the damage part for you for free.
DELIVERY TIME:15-20 days after confirming order,detail delivery date should be decided according to production season and order quantity.
FAQ
About Product
1.Which procedure to secure your Quality?
Our company has own research & development and production base, the products have been calibrate by central laboratory professionals before before they leaves the factory, ensure the accuracy of test results and authority.
2.How about your company product after-sales service system?
Product after-sale guarantee period is 12 months,and we can provide lifetime repair guarantee.We have agents in some countries,they can provide door-to-door service.If there is no agent,our professional pre-sales and after-sales department can reply you within 24 hours for any technical problems.
3.Products standards?
Our instruments adopts ISO, ASTM, DIN, EN, GB, BS, JIS, ANSI, UL, TAPPI, AATCC, IEC, VDE and other international testing standards.
4.Our country's power supply and plug are different, how do you solve it?
We can according to different countries and the power plug, equipped with transformer and plug that in accordance with your local requirement.
5.Payment methods?
T/T, L/C, D/P and so on
6.Packing method?
Standard export wooden box packaging
7.How about customers evaluation for your products?
Our company has established long-term cooperation with the SGS, Bureau Veritas, TUV and Intertek,our high quality products and first-class after-sales service.Our services get the trust of the customer satisfaction and recognition for themselves.
8.Main export market?
Now our products have been exported to North America, Europe, southeast Asia, South America and other countries.
10.How to ensure the customer standard use the instrument?
We can provide each product related video showing how to install and operate.If you have specific needs, we also can arrange engineer to the customer's company for equipment operation training.
About Shipping
1.Order processing?
Please allow a processing time of 12-24 hours for your order(s) to ship. Equipment orders will take up to 2 weeks before leaving our warehouse. (Order processing is done during normal weekdays only, no holidays or weekends.)
2. Shipping methods?
1 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.
2 Responsible for the damage during the shipping process, will change the damage part for you for free.
3.Order tracking?
Online order can be tracked by login to your account. Please allow 24 hours after order is shipped to see logging details.
If you need a tracking number for your order, please send an email to us with your order/invoice number.
4. Import/export tax, duty, GSM, Customs Clearance, and etc?
All import/export related expenses are sole responsibility of the buyer; charges will vary from country to country. Please consult with your local import experts or transportation carrier for more details.
5.Lost or Stolen packages?
Please report all lost or stolen packages to us at the earliest possible time. An investigation will be open soon after reporting the incident to us, and a final ruling will be issued by the carrier for the claim after 10-15 business days. A replacement package will be sent as soon as the claim is accepted by the responsible carrier.
2. Shipping methods?
1 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.
2 Responsible for the damage during the shipping process, will change the damage part for you for free.
3.Order tracking?
Online order can be tracked by login to your account. Please allow 24 hours after order is shipped to see logging details.
If you need a tracking number for your order, please send an email to us with your order/invoice number.
4. Import/export tax, duty, GSM, Customs Clearance, and etc?
All import/export related expenses are sole responsibility of the buyer; charges will vary from country to country. Please consult with your local import experts or transportation carrier for more details.
5.Lost or Stolen packages?
Please report all lost or stolen packages to us at the earliest possible time. An investigation will be open soon after reporting the incident to us, and a final ruling will be issued by the carrier for the claim after 10-15 business days. A replacement package will be sent as soon as the claim is accepted by the responsible carrier.
