Перфорационный станок для металлических листов
US $6500-$67500
Автоматический Nc выпрямитель для разматывания листового металла машина автоматический контроль работы стали новый продукт 2020
- Категории: Other Metal & Metallurgy Machinery >>>
- Поставщик: Dongying,Besco,Machine,Tool,Limited
Поделиться:
Описание и отзывы
Характеристики
Product Description
Product Application

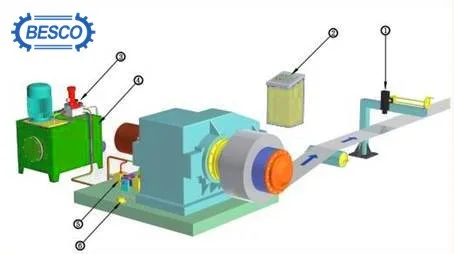

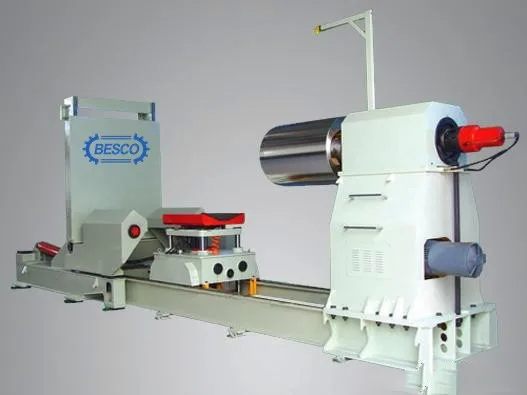

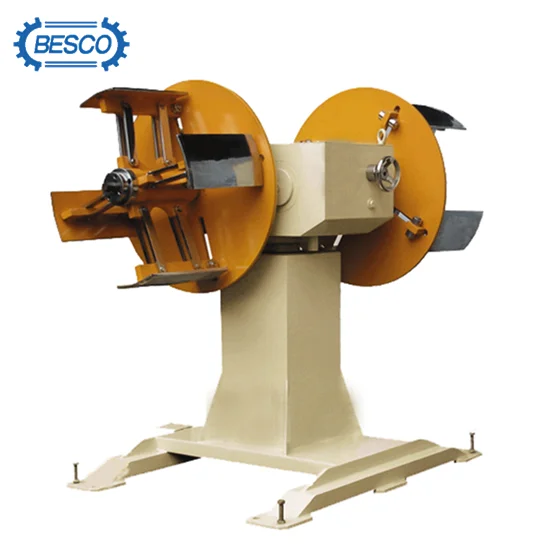

1. Decoiler With Coil Loading Car
Decoilers with coil car have capacity ranging from 3 tons to 20 tons and width ranging from 200 mm to 1600 mm.The design of our reels incorporates a unique "bearing tube" with dual cup and cone Timken bearings to the mandrel and a heavy duty cabinet base. Both motorized and pull-off type reels are available, depending on the application.Single-end configurations are provided as standard, and Double-ended configurations can be provided to optimize production efficiency by lowering the coil changeover time. Most models are available as Traveling Reels that can be combined with automatic centering functions. Coil handling accessory options include Traveling Coil Cars, Coil Lift Stations, Traveling Up enders, Coil Storage Racks and Turnstiles.Productivity options include Coil Hold Downs, Hold Downs With Motorized End wheels, Coil Keepers, Power Coil Guides, and Automatic Back tension Systems.Custom engineering can be provided to meet any application demands.
2. Standard features and benefits of this equipment include
1.Wedge or link type expansion
2.Hydraulic expansion of the mandrel
3.AC variable speed drives
4.Hydraulic threading drives
5.Quick release narrow coil keepers
6.Loop controls
Type | Material width (mm) | Coil.I.Dia (mm) | Coil.O.Dia (mm) | Coil Weight (kg) |
MT-200 | 200 | 450-530 | 1200 | 3000 |
MT-300 | 300 | 450-530 | 1200 | 3000 |
MT-400 | 400 | 450-530 | 1200 | 3000 |
MT-500 | 500 | 450-530 | 1200 | 5000 |
MT-600 | 600 | 450-530 | 1200 | 5000 |
MT-700 | 700 | 450-530 | 1200 | 10000 |
MT-800 | 800 | 450-530 | 1200 | 10000 |
MT-1000 | 1000 | 450-530 | 1200 | 12000 |
MT-1300 | 1300 | 450-530 | 1200 | 15000 |
MT-1600 | 1600 | 450-530 | 1200 | 20000 |
Our Advantage:
1. Our guarantee time is one year, if any component is damaged during guarantee time, we can send the component to the customer by DHL, TNT freely.
2. Our factory can send our engineer to the customer's factory install, commission and training freely. The customer provide the double trip tickets, food and accommodation for our engineer. The customer also can send the engineer to our factory to learn the operation and maintains freely.
3. Our factory provide the service for the customer forever, if the customer need operation help, can contact us by MSN, Skype, Email and Telephone at any time, we provide 24 hours on-line service. Our factory also will make DVD to show the operation steps for the customer.

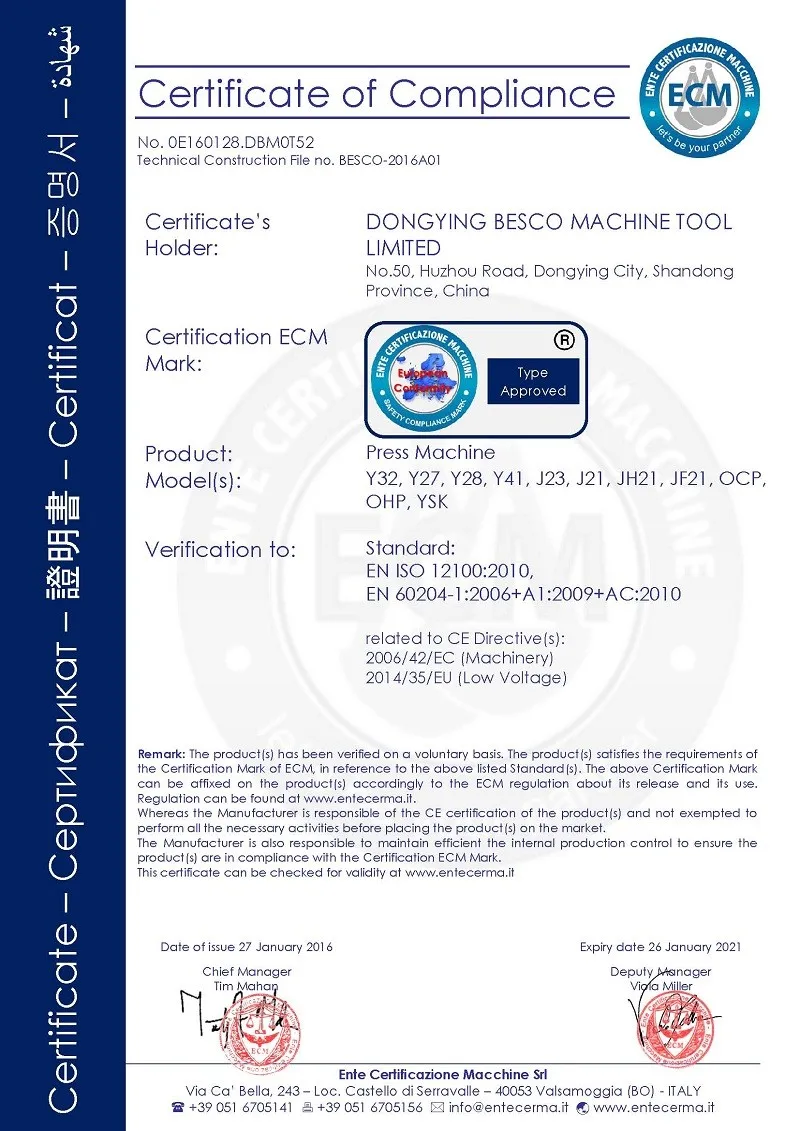

Certifications

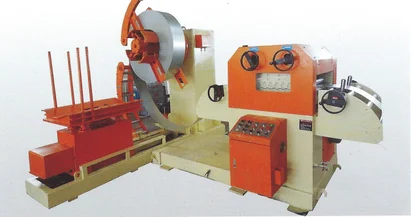

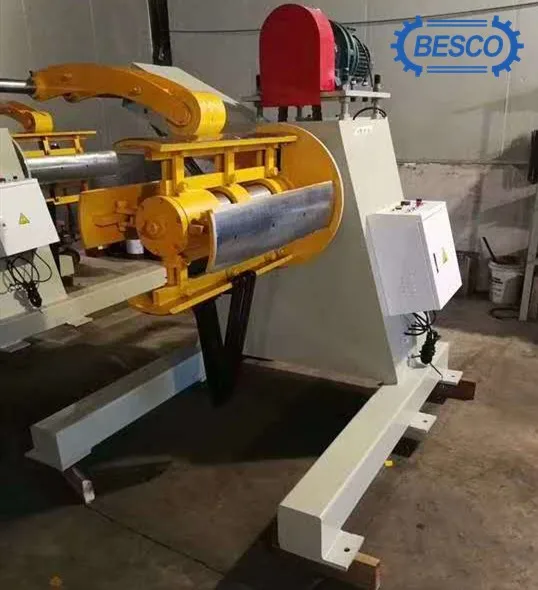

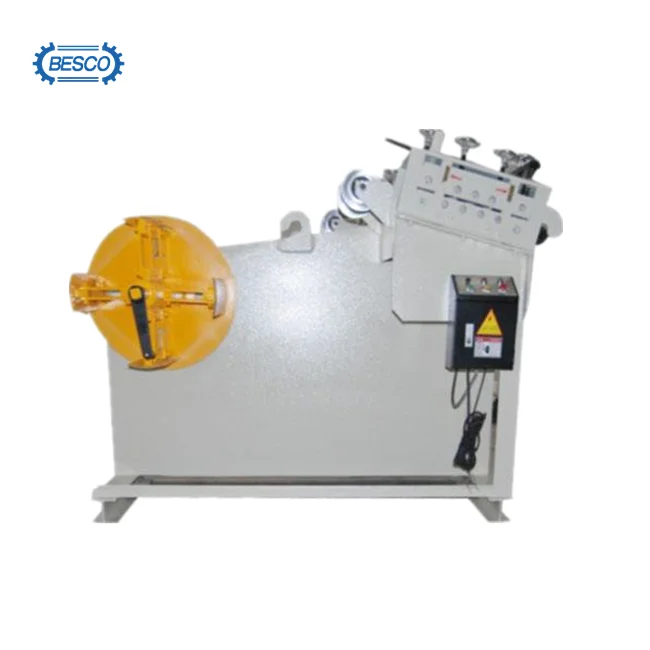

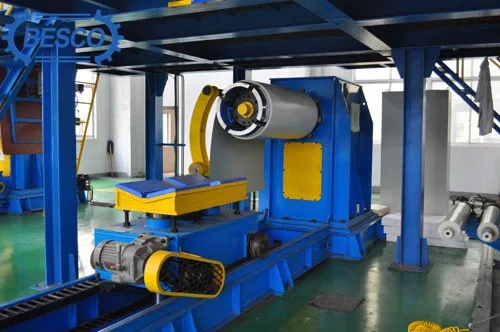

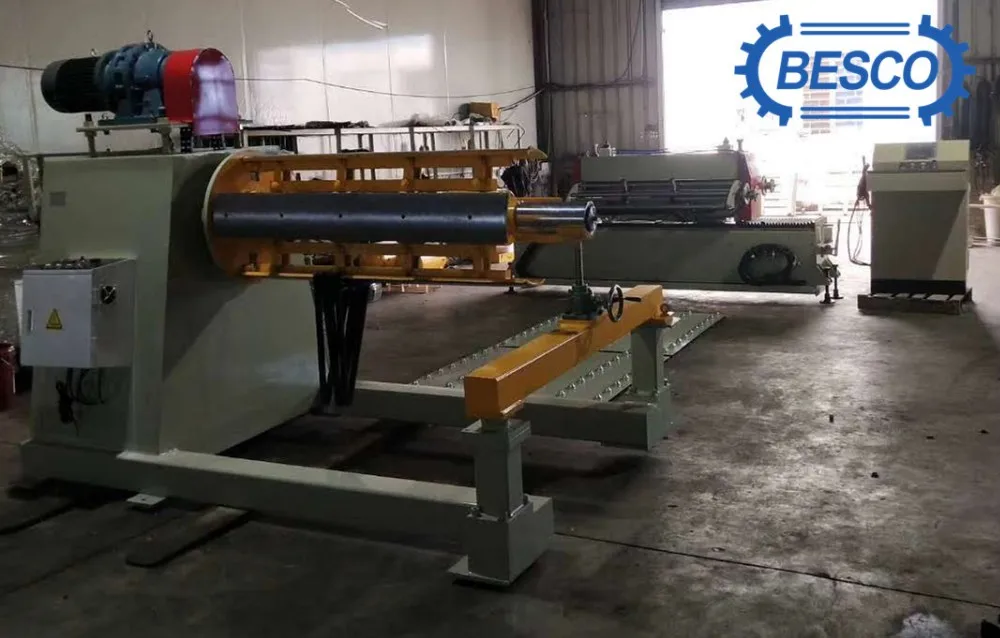

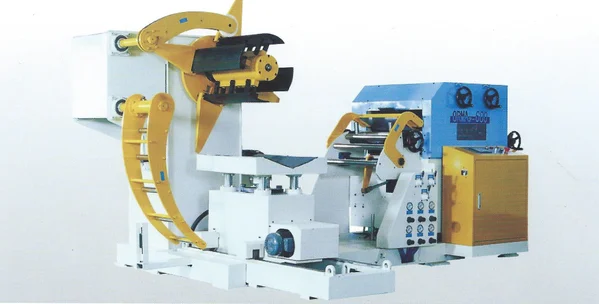

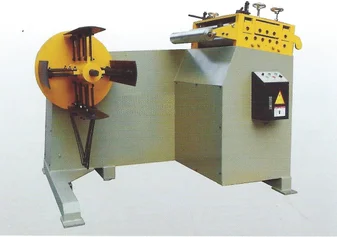

Detailed Images
Our Service
Pre-Sales Service
* Technical solution
* Online video authentication machine work.
* Cutting samples provided by Business express
After-Sales Service
* Supplier will provide detail manual for software, hardware and trouble shooting, also supplier should give necessary guidance online if Buyer need. If it's necessary, Buyer should send regular his technical staff to Supplier for technical training.
Our Customer
Packing & Delivery
Packaging | ||
Size | 1500(mm)X1000(mm)X1000(mm) | |
Weight | 2000Kg | |
Packaging Details | We packed the machines in wooden cases and fixed them in wooden cases to ensure the integrity of the machines. | |
FAQ
Q: How long is your delivery time?
A: That depend on the stocks.
Q: What is your terms of payment ?
A: Payment<=1000 USD, 100% in advance. Payment>=1000 USD, 30% T/T in advance ,balance before shipment.
