0.49inch oled micro display micro screen I2C interface small oled display
General Description
GDO0049W is the graphic OLED display module made of 64x32 individual white OLED pixels,diagonal is only 0.49 inch.The controller IC SSD1306, communicates via I2C serial interface only,thanks to controller's built-in voltage generation,only a single 2.8V power supply is needed.
Because the display makes its own light, no backlight is required. This reduces the power required to run the OLED and is why the display has such high contrast,extremely wide viewing angle and extremely operating temperature.The fpc is the soldering type, no need connector.Just solder the FPC on your PCB directly.
Because the display makes its own light, no backlight is required. This reduces the power required to run the OLED and is why the display has such high contrast,extremely wide viewing angle and extremely operating temperature.The fpc is the soldering type, no need connector.Just solder the FPC on your PCB directly.

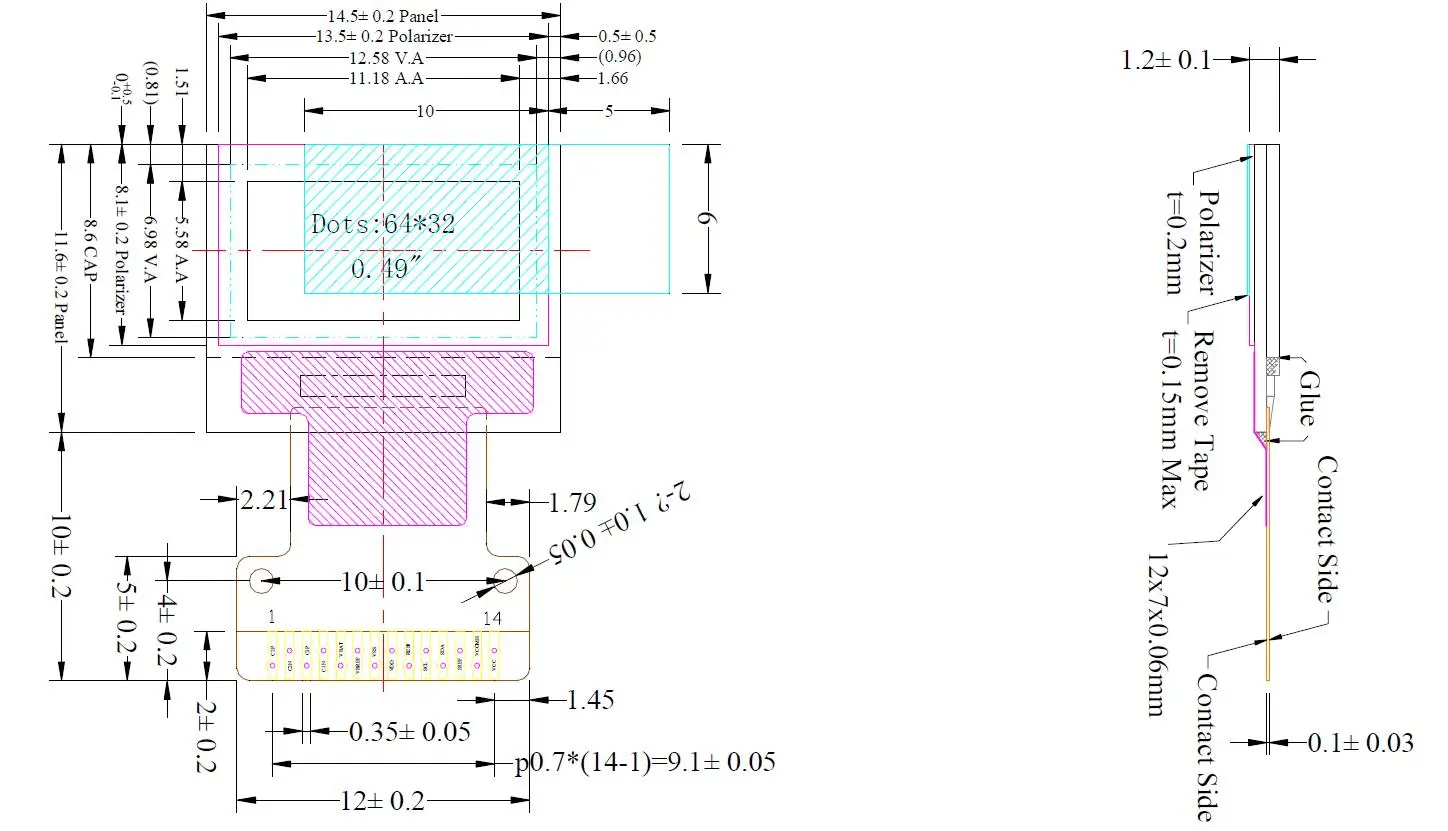

\t\t\t\t\t\t\t\t\tParameters & Drawing \t\t\t\t\t\t\t
Part Number | GDO0049W |
Diagonal Size | 0.49" |
Display Mode | Passive Matrix |
Display Color | Monochrome (White) |
Drive Duty | 1/32 Duty |
Number of Pixels | 64*32 |
Interface | IIC |
Driver IC | SSD1306 |
Connection | FPC-Soldering |
Outline Dimension | 14.5*11.6*1.2 (mm) |
View Area | 12.58*6.95 (mm) |
Active Area | 11.18*5.58 (mm) |
Pixel Pitch | 0.175*0.175 (mm) |
Pixel Size | 0.155*0.155 (mm) |
IC Package | COG |
Brightness (Typ) | 180cd/m2 |
View Angle | Free |
Power Supply (Typ) | 2.8V |
Operating Temperature | -40℃~85℃ |
Storage Temperature | -40℃~85℃ |
Weight | TBD |
