china  Multi-function digital stud finder  Wall Detector

Reliable partner

1. Established in 2011 , leading in the designing and manufacturing of laser meter, wall scanner, laser level etc. 2. More than 1million pcs annual output to a top quality guarantee . 3. All of our items are under the cover of patents applied 4. Experienced exports to the whole world, such as USA, Japan, Korea, Europe ,Russia and Australia ,etc, with completed certifications like FCC/ETL/CE/EMC/Rohs Certificates, BSCI, IS09001 management system.  5. Open for a wide cooperation 6. A great pack of policies supports to our VIP clients



PRODUCT FEATURES

1.Small size, light weight, easy to carry.

2.When detecting metal, the depth value can be displayed numerically.

3.Powerful function, stable perfor-mance-class level.

4.Can detect metals(iron and non-ferrous metals),wood beams and live cables hidden in walls,ceilings and floors.Referring to the wall, ceiling and floor are conven-tional concrete, ceramic tile and board.

PRODUCT APPLICATIONS

The application scope of this 4-in-one detector is:

1. It can be used to determine the moisture content of various kingds of tree species,wood,bambll ware,paper,Chiness medicinal materials, plasterboard, cement mortar and lime mortar.

2. Can test the moisture content of all kinds of wood and building materials.



PARAMETER

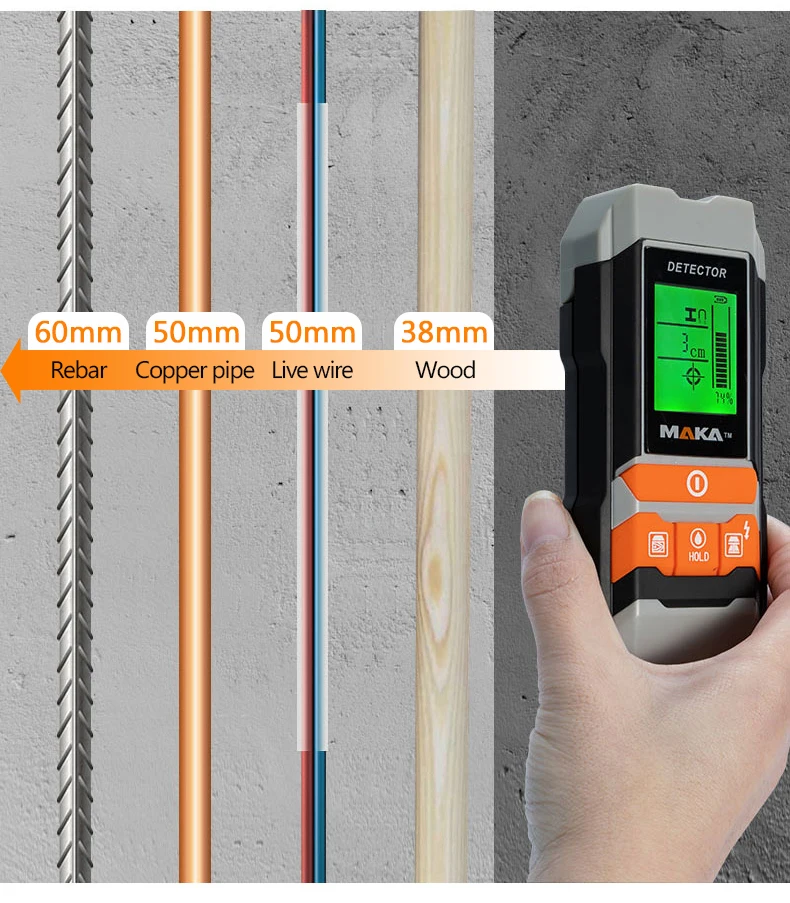

Maximum scanning depth:	Ferrous metals 60mm Non-ferrous metals(Copper) 50mm Copper conductors(live)** 50mm Wood exact mode 20mm/deep mode 38mm
Moisture maximum detection depth	8mm
Moisture test range/accuracy	WOOD 5%-50%/±2% Building materials 1.5%-33%/±2%
Automatic switch off after approx	5min
Working humidity range	Metal 0-85% RH Wood 0-60% RH Copper conductors(live)** 0-30% RH
Operating temperature	-10℃+50℃
Storage temperature	-20℃+70℃
Battery	2*1.5V AAA
Operating lifetime approx.	6h

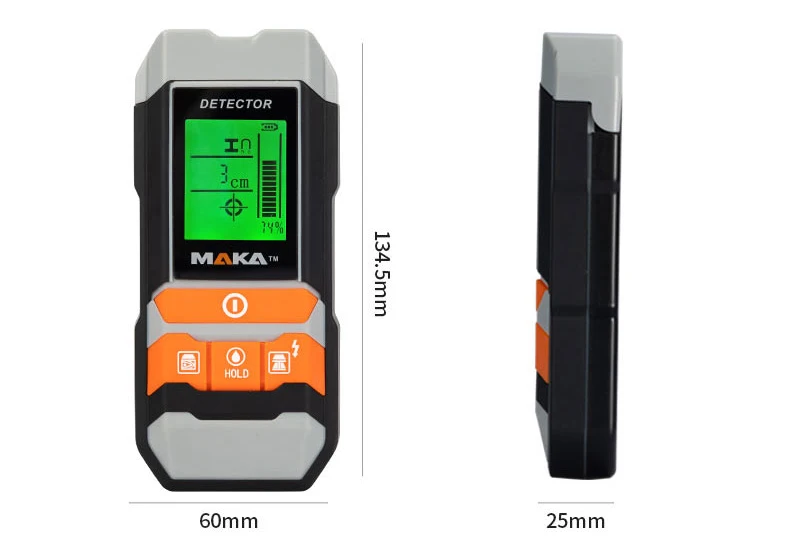

Product size	134.5*60*25mm

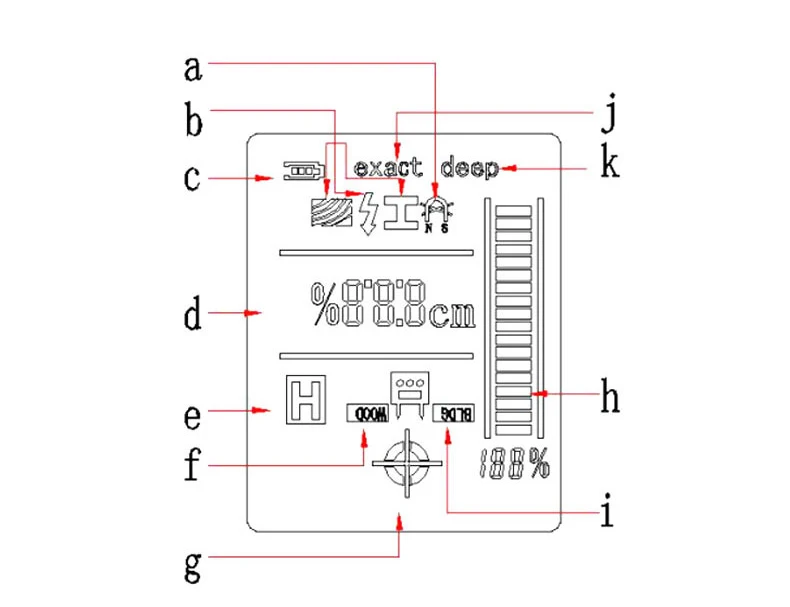

Display Elements

a. Current is the "deep" mode of detecting foreign objects such as wood (maximum depth of detection is 38mm).

b. Current is the "exact" mode of detecting foreign objects such as wood (maximum depth of detection is 20mm).

c. Indicator for the current detection mode(Wood,live wire,metal.

d. Metal detecting depth and moisture test data display area(this depth means :the distance is from the center of detection area to the object measured).

e. Current it is the moisture measurement model of building materials.

f. Current it is the moisture measurement model of the wood.

g. Moisture test completed locking test data.

h. Battery power indicator.

i. Indicator for magnetic/non-magnetic metals.

j. Detecting signal strength display area.











4-in-1

DIGITAL DETECTOR

WITH MOISTURE TESTER

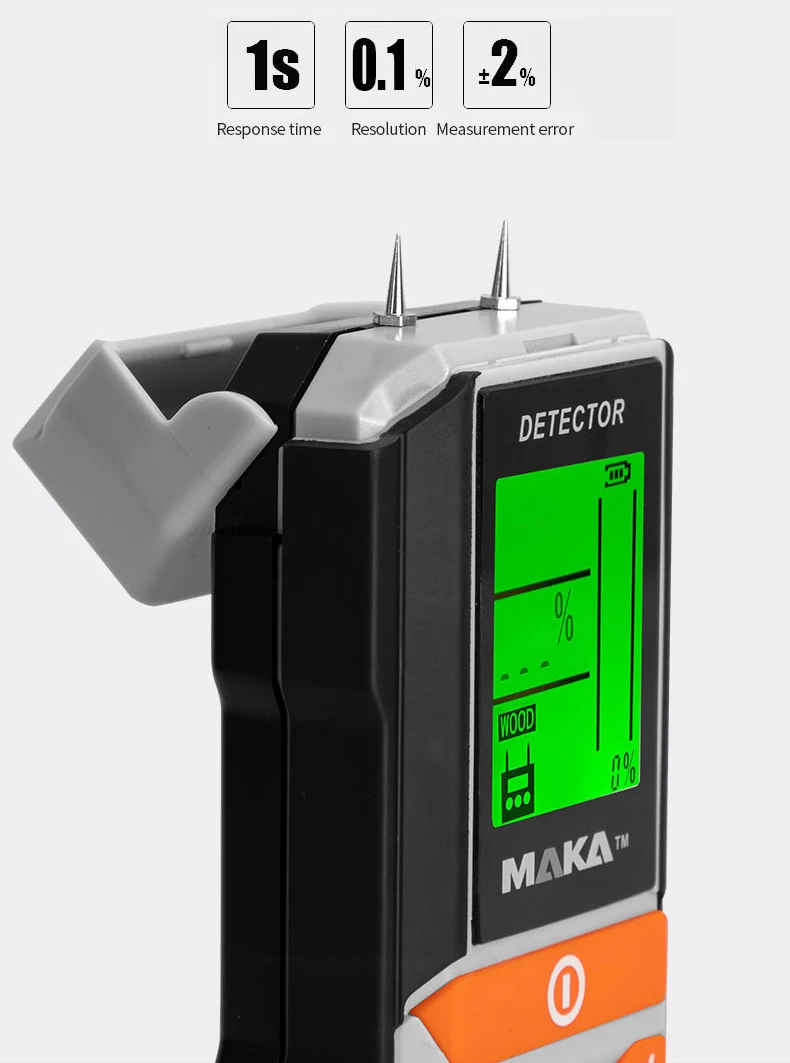

Press the HOLD button to enter moisture measurement mode









HIGHLY SENSITIVE

METAL PROBE

Measure sensitive accuracy with new low-power chip technology



MULTIPLE DETECTION

PRECISE POSITIONING

Suitable for a variety of materials, avoiding the cumbersome and easu to use

The screen displays the probe distance data to accurately detect the position

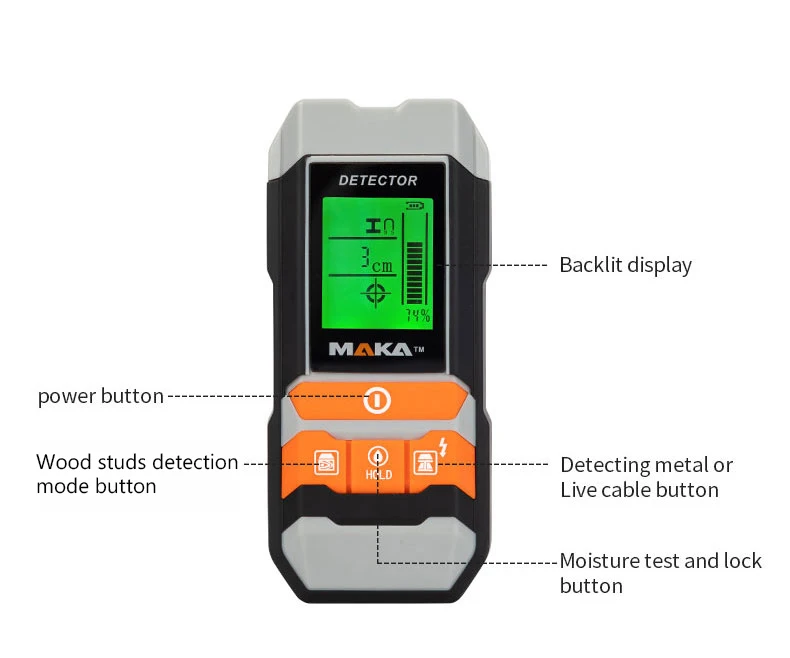

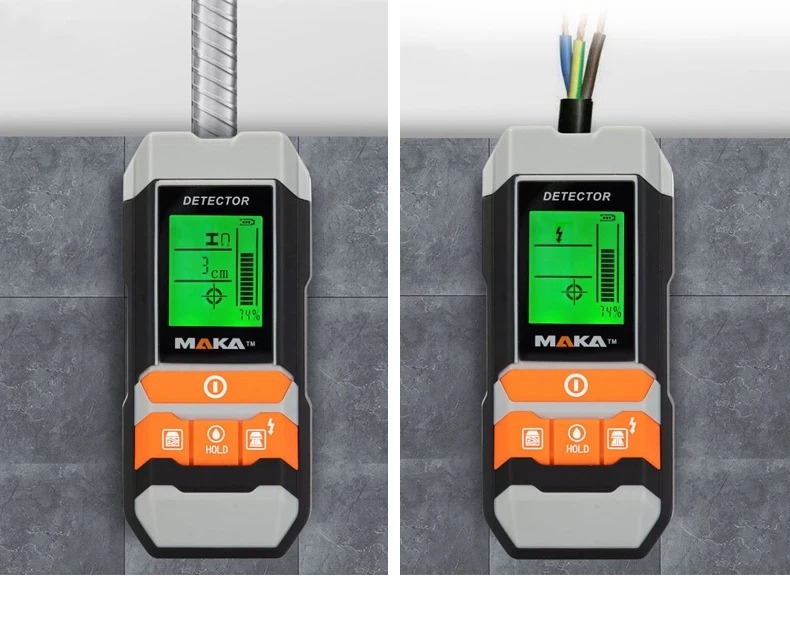

ONE-CLICK CONVERSION

Metal detection / wood detection / wire detection / moisture detection

Easy to switch

Metal detection

wire detection



wood detection

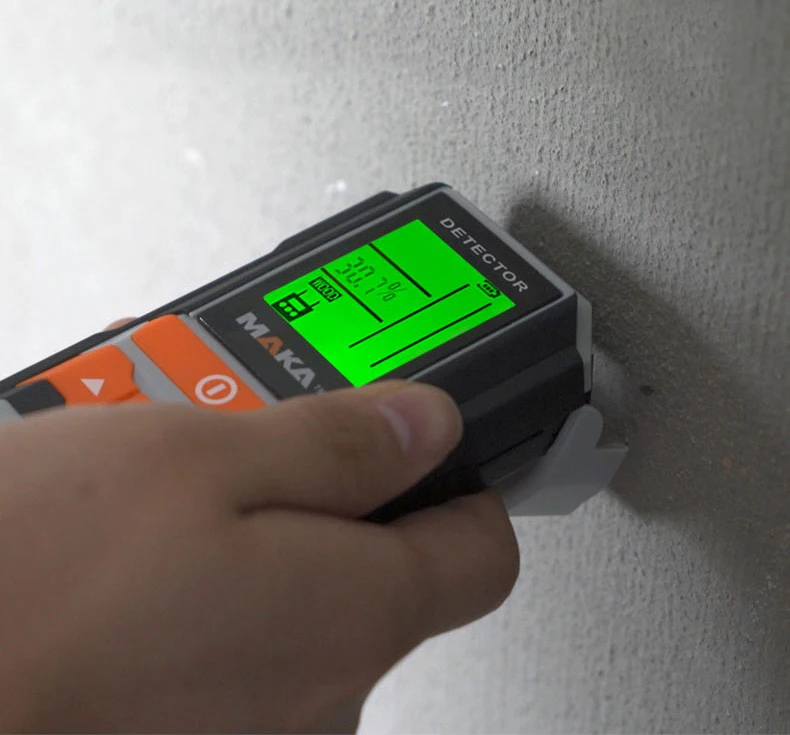

moisture detection

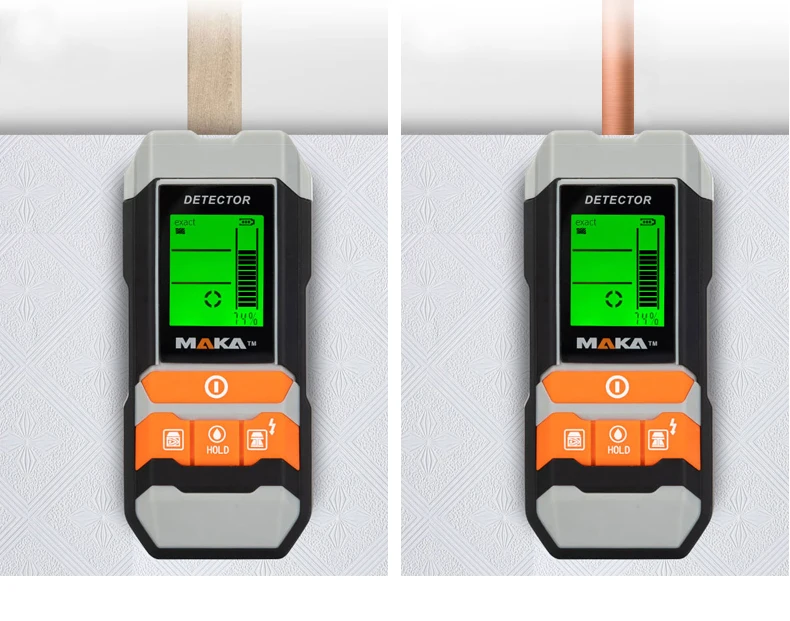

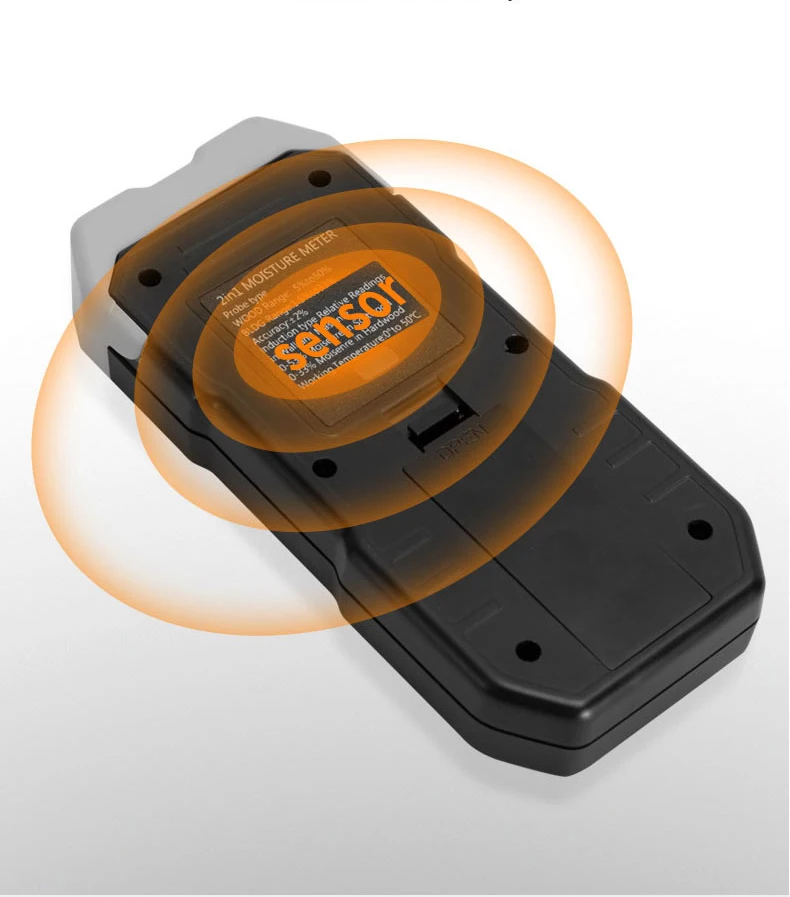

IMPROVE  ACCURACY

LARGE  AREA  SENSOR

The sensor is located near the marked hole and center target is positioned

Ensure detection accuracy

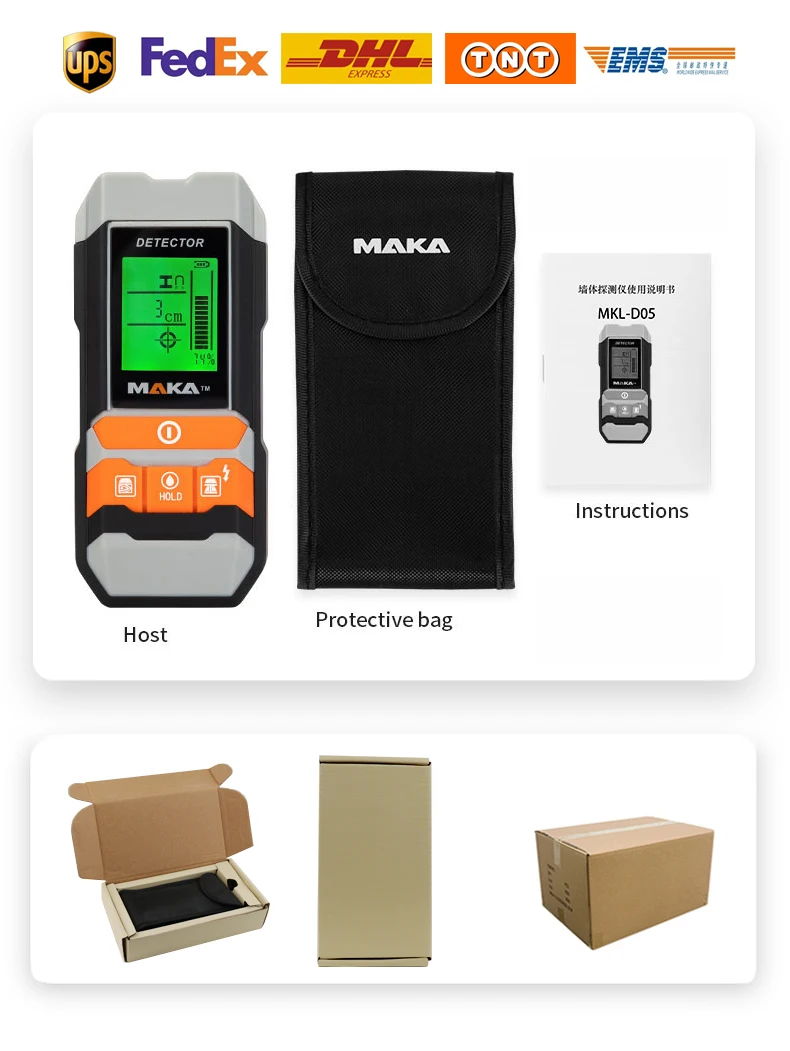

PACKAGE & TRANSPORTATION

Warm tip: a small number of orders, not including batteries when shipped.
