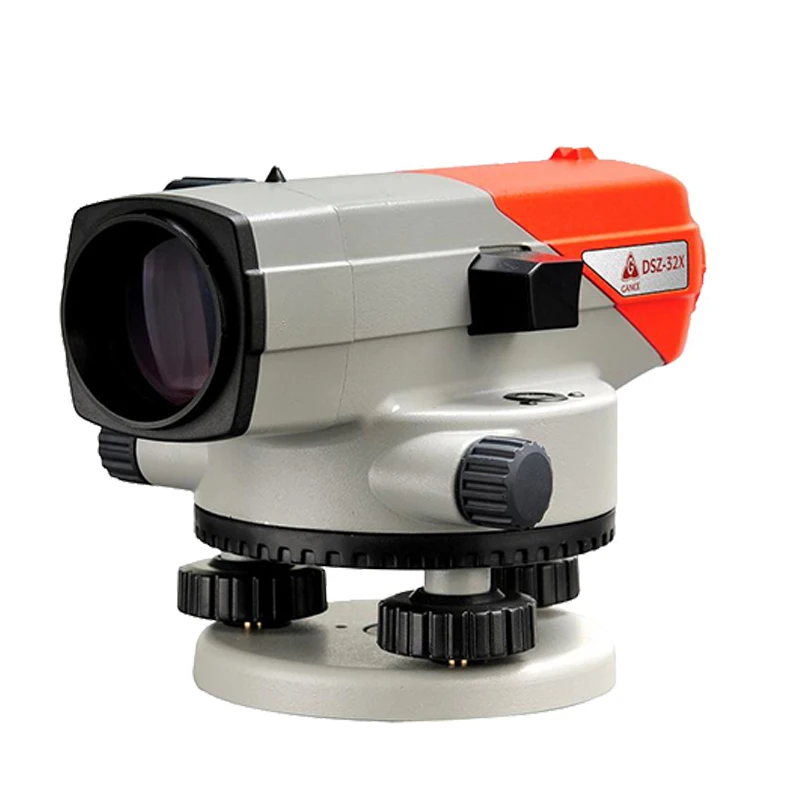

Измерительные приборы Dsz-32X магнитный автоматический



Models and technical parameters		HJC-DSZ-32X	HJC-DSZ-B30	HJC-DSZ-B20
Telescope	Length of tube	215mm
	Image	Erect
	Objective aperture	32mm	36mm	42mm
	Magnification	24X	28X	32X
	Field of view	1°25′	1°25′	1°20′
	Resolution(JIS standard)	4.0″	3.5″	3.0″
	Minimum focus	0.3m(from the centre of the instrument)
	Stadia ratio	100
Horizontal scale	Diameter	103mm
	Value of division	1°
Automatic       compensator	Type	Magnetic
	Range	±15
	Accuracy	0.5/1		0.3/1
Circular bubble sensitively		≤8′/2mm
Sighting device		/	With sighting device
Standard deviation of 1km round-trip leveling measurement	Without Micrometer	±2.0mm	±1.5mm	±1.0mm
	With Micrometer	/		0.8mm
Waterproof grade		IP66
Size		215×130×135mm
Weight		1.75kg	1.75kg	1.75kg
Case weight(include accessories)		1.38kg
