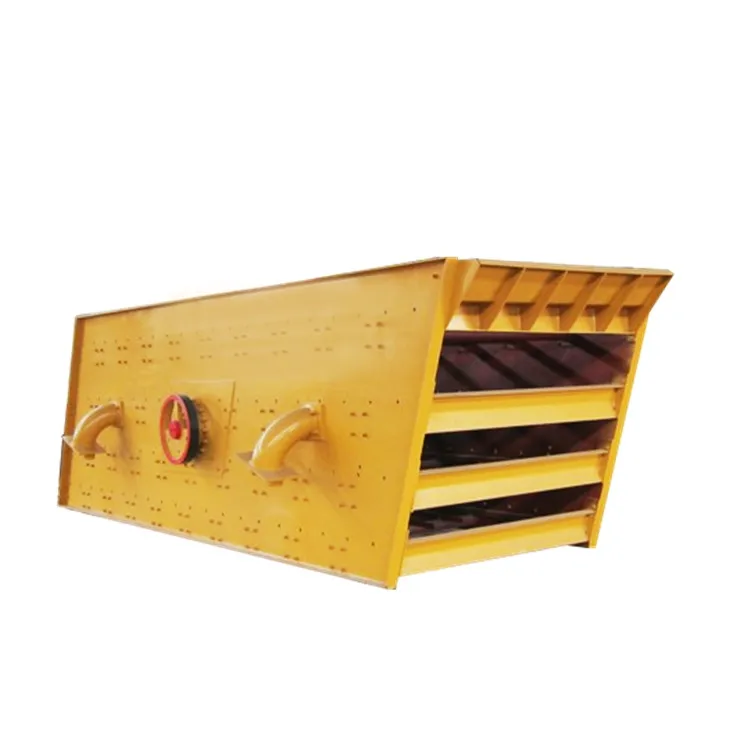

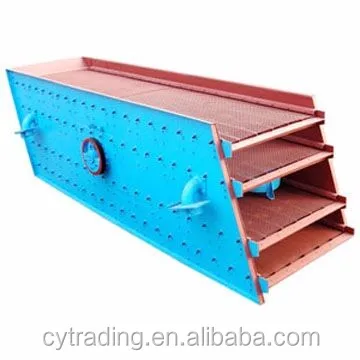

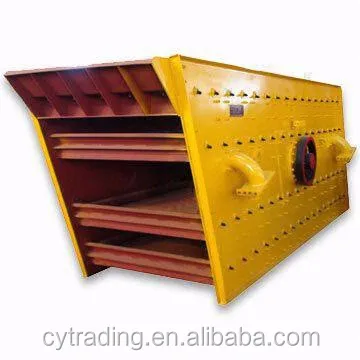

Factory Price Sand Making Vibrating Screen
Product Description
Description of Factory Price Sand Making Vibrating Screen:
The vibration screen trajectory movement of the circular elliptical. It is a multi-layer, high-efficiency new type vibrating screen designed specifically for quarry screening stones. Widely used in mining, coal, smelting, building materials, refractories, light industry, chemical and Other industries of product classification.
 |  |
Features
Features of Factory Price Sand Making Vibrating Screen:
1.Stable performance and high screening efficiency
The circular vibrating screen follows the structural design of the classic screening equipment, and its performance is fully guaranteed
2. A variety of screens to choose from
To meet the requirements of various classification operations after coarse crushing and medium crushing in the crushing process, we have configured a variety of screens for the circular vibrating screen. So that we can meet different production needs through simple screen replacement operations.
Working principle
Working Principle of Factory Price Sand Making Vibrating Screen:
The vibrating screen machine mainly consists of a screen box, a screen, a vibrator, a vibration absorber spring device, a chassis and so on. The vibrator is installed on the side plate of the screen box. The side plate of the screen machine is made of high quality steel plate, and the side plate is connected with the beam and the base of the exciter With high strength bolts or rivets of ring groove. The vibrator is mounted on the side plate of the screen box and rotated by the motor through the coupling to produce centrifugal inertia force, forcing the screen to vibrate.
Technical parameter
Technical Parameter and RAQ of Factory Price Sand Making Vibrating Screen:
Model | Screen size (mm) | No.of layer | Screen mesh (mm) | Max feed size (mm) | Capacity(t/h) | Power (kw) | Vibrating frequency (r/min) | Double swing (mm) |
2YZS1237 | 3700×1200 | 2 | 3-100 | 400 | 10-80 | 11 | 750-950 | 5-9 |
3YZS1237 | 3700×1200 | 3 | 3-100 | 400 | 10-80 | 11 | 750-950 | 5-9 |
2YZS1548 | 4800×1500 | 2 | 3-100 | 400 | 30-200 | 15 | 750-950 | 5-9 |
3YZS1548 | 4800×1500 | 3 | 3-100 | 400 | 30-200 | 15 | 750-950 | 5-9 |
2YZS1848 | 4800×1800 | 2 | 3-100 | 400 | 50-250 | 18.5 | 750-950 | 5-9 |
3YZS1848 | 4800×1800 | 3 | 3-100 | 400 | 50-250 | 18.5 | 750-950 | 5-9 |
4YZS1848 | 4800×1800 | 4 | 3-100 | 400 | 50-250 | 18.5 | 750-950 | 5-9 |
2YZS1860 | 6000×1800 | 2 | 3-100 | 400 | 65-586 | 22 | 750-950 | 5-9 |
3YZS1860 | 6000×1800 | 3 | 3-100 | 400 | 65-586 | 22 | 750-950 | 5-9 |
To meet your requirements more exactly and effeciently,kindly please provide the following information when you are sending us the inquiry:
1>What is raw material are you going to crush ?
2>What is the size of the raw material,and the size of the finnal products ?
3>What is the capacity do you want to reach?
