Application:
1).Materials:
Metals ( Gold, silver, copper, alloy, aluminum, steel, stainless steel, name card )
Non-metal ( Plastic: engineering plastic and hard plastic, etc. Used in electronic components integrated circuits,mobile communications, precision instruments, glasses watch and clocks, computer keyboard, accessories, auto parts, plastic buttons, plumbing fittings, sanitary ware, PVC pipe, medical equipment, packaging bottles, etc.)
2).Industry:
Jewellery, Keyboards of cell phone, Auto parts, Electronic components, Electronic appliance, Communication apparatus, sanitary wares, buckles, kitchenware, Sanitary equipment’s, Hardware tools, Knife, Glasses, Clock,Cooker, Stainless steel products etc.
Model | WD-20/30/50 |
Laser power | 10W/20W/30W |
Laser type | Fiber laser |
Machine power | 500W |
Minimum line width | 0.015mm |
Wave length | 1064nm |
Repetition rate | 20KHz-100KHz |
Marking speed | 7000mm/s |
Marking scope | 50*50/110*110/200*200/300*300mm (optional) |
Operating voltage | AC220±10% 50Hz / AC110±10% 60Hz |
Cooling type | Air cooling and protection system |
Acceptable graphic format | PLT, PCX, DXF, BMP, AI |
Operating temperature range | 15-35°C |
Minimum character | 0.15mm |
Repeat position accuracy | ±0.001mm |
Net weight | 65KG |

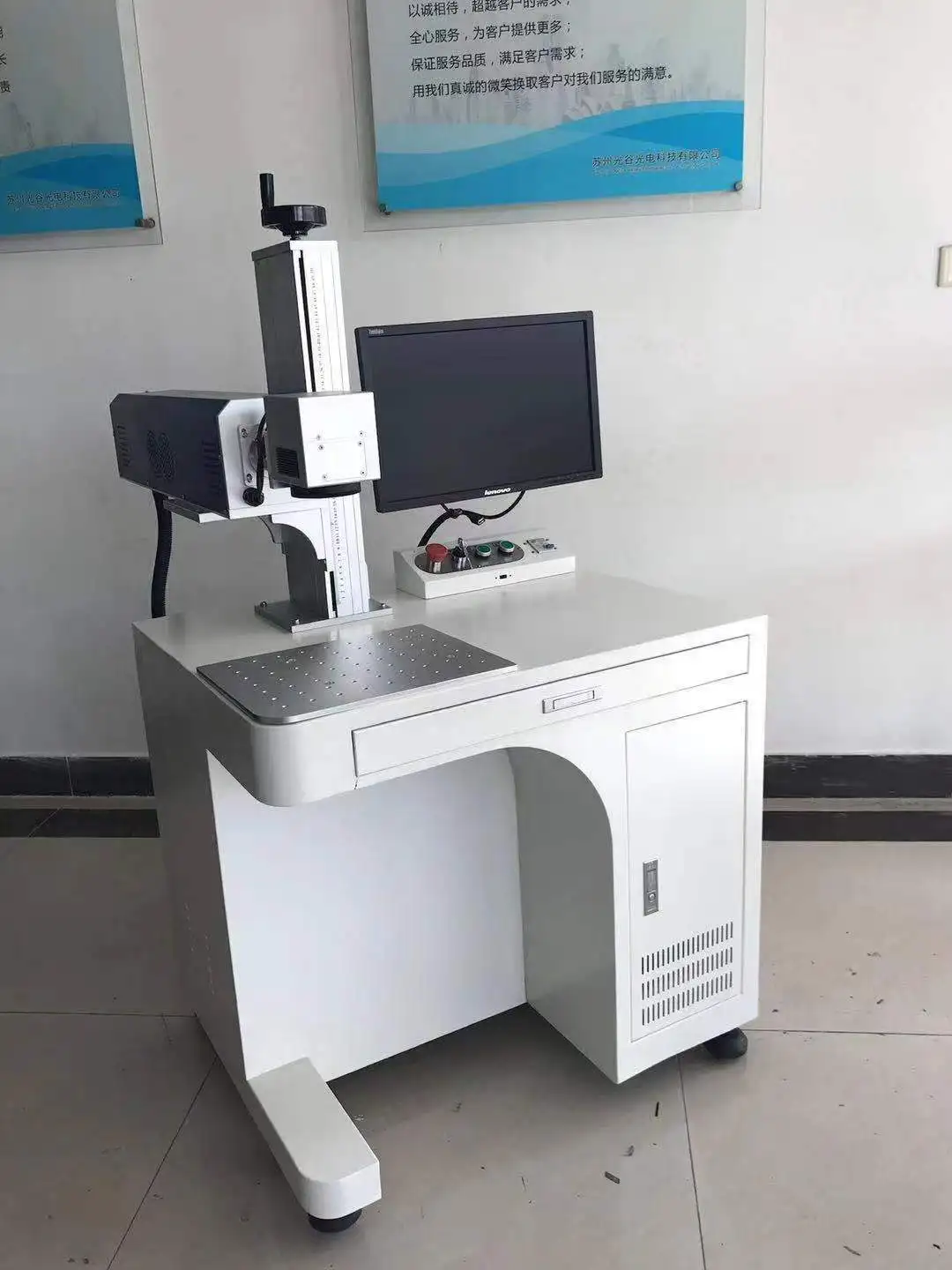

Product show

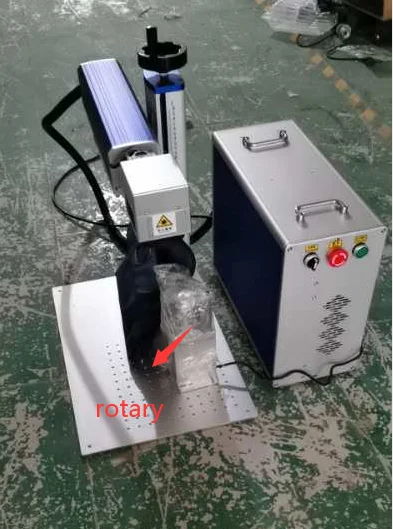

Machine marking on cylinder is no problem, we have different rotary for your options

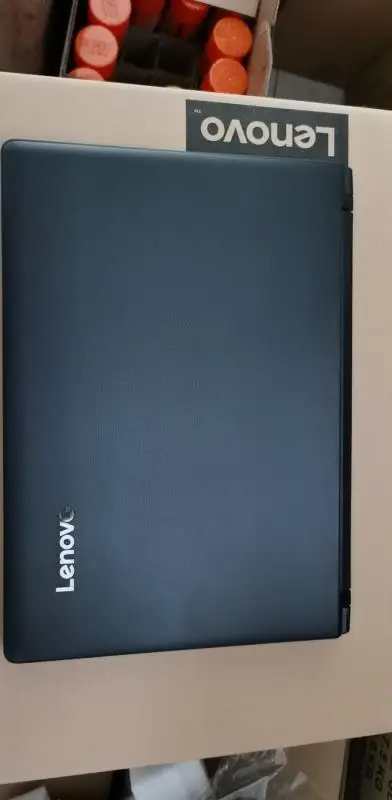

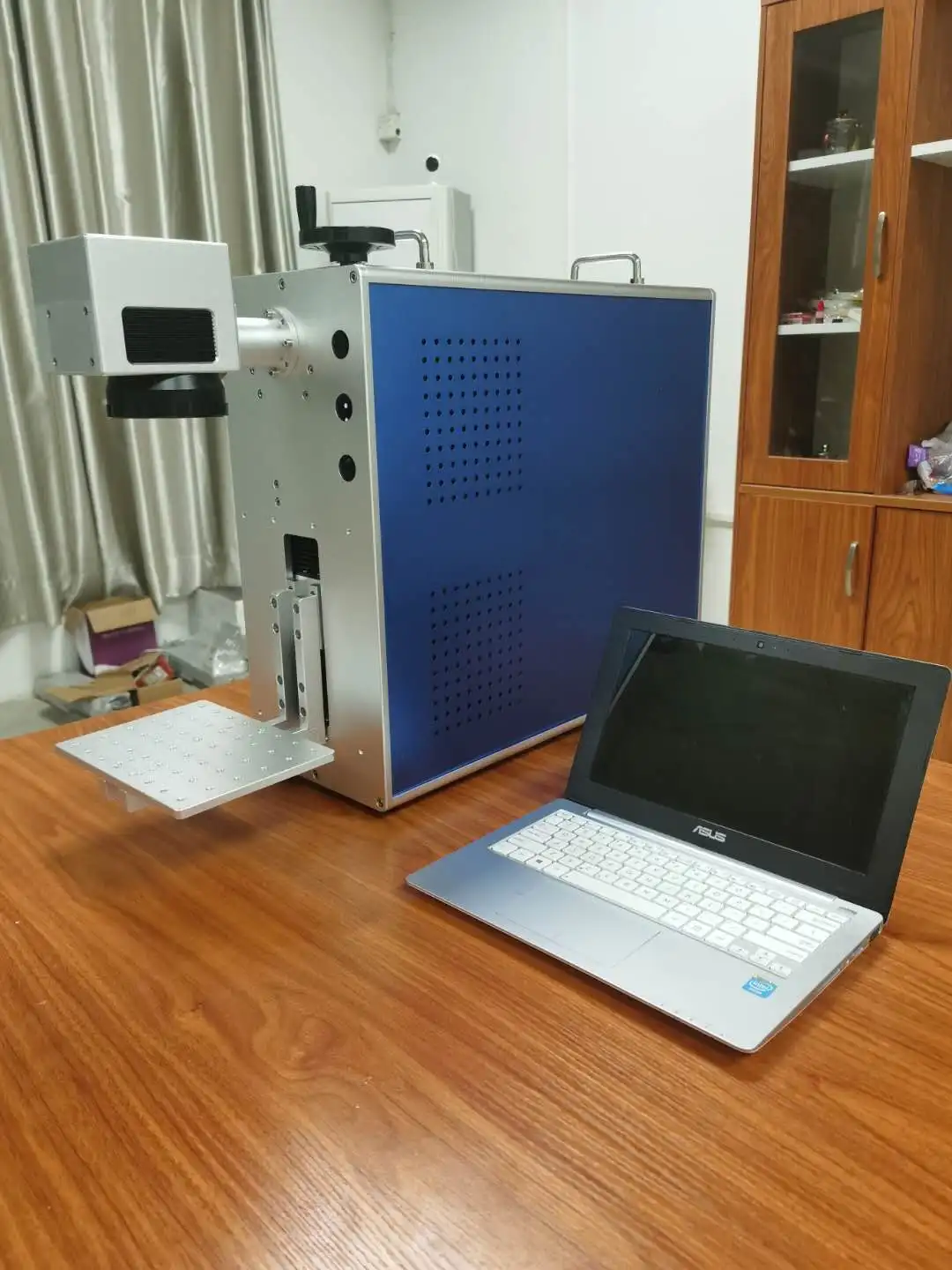

With computer

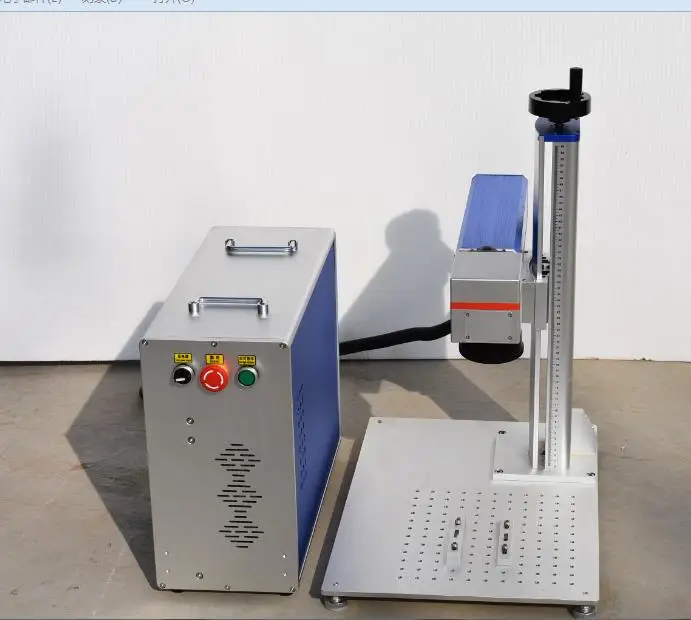

Different type laser marking machine
