Taidacent 5V 900mA 28 мм небольшие катушки высокий ток беспроводной зарядный приемник беспроводного зарядного устройства XKT412-46 адаптер

Описание и отзывы

Характеристики

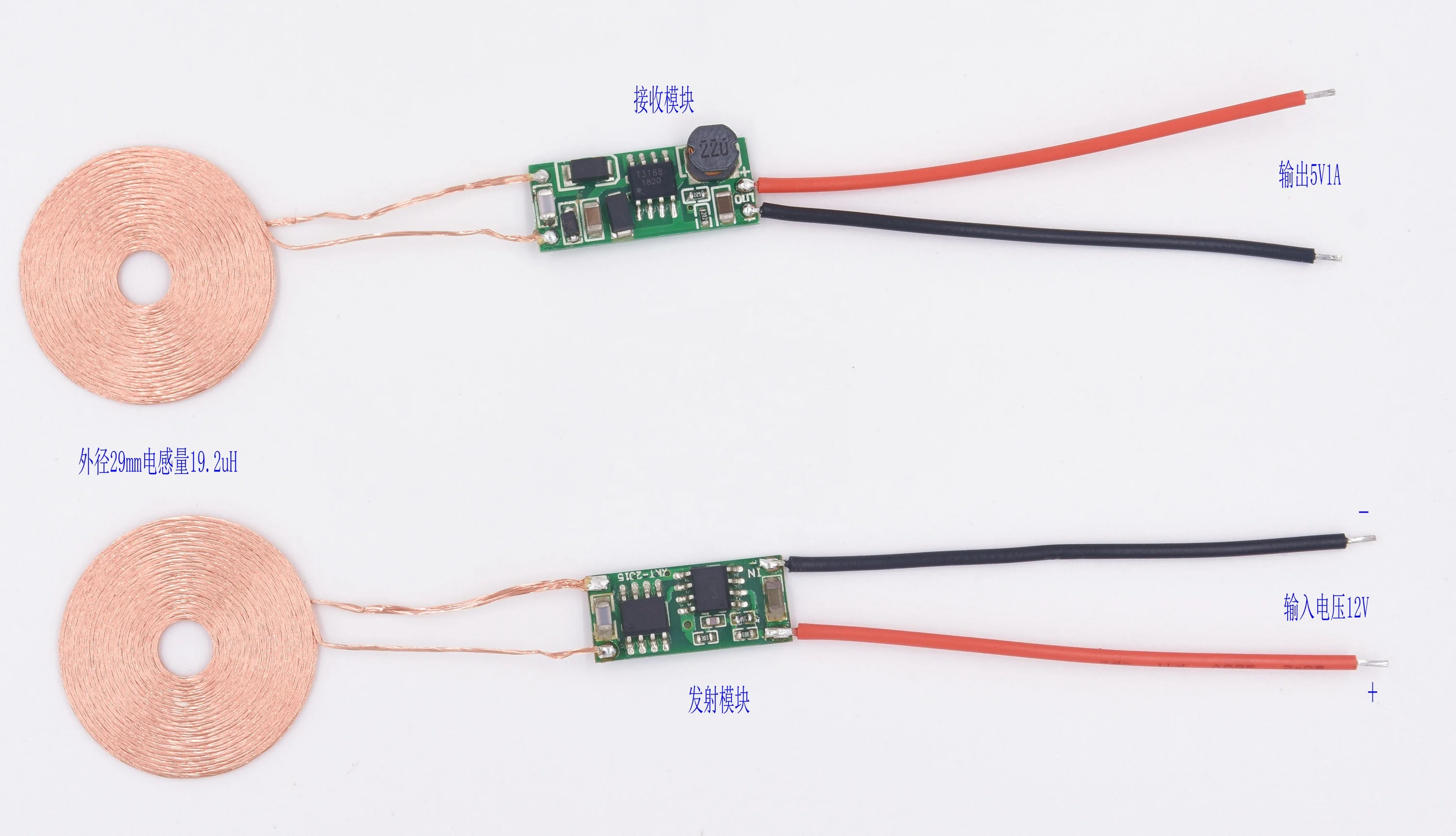

Taidacent 5V 900mA 28mm Small Coil High Current Wireless Charging Wireless Charger Receiver XKT412-46 Wireless Charging Adapter

XKT412-46

Main parameters of the module:

Input voltage	12v
Receive output voltage	5V
Receive maximum current output	5V1000mA
Transmitting coil	outer diameter 28mm inner diameter 6mm thickness 1mm inductance 19.2uH
Launch board	10mm*21mm
Receiving coil	outer diameter 28mm inner diameter 6mm thickness 1mm inductance 19.2uH
Receiver board	10mm*24mm
Use distance	2mm~8mm



Receiver coil distance and output voltage and current relationship

Receive output 5V1000mA at 2mm

Receive output 5V900mA at 3mm

4mm receiving output 5V700mA

5mm receiving output 5V500mA

6mm receiving output 5V400mA

7mm receiving output 5V300mA

8mm receiving output 5V200mA
