Концы стержня PHS Сферический плоский

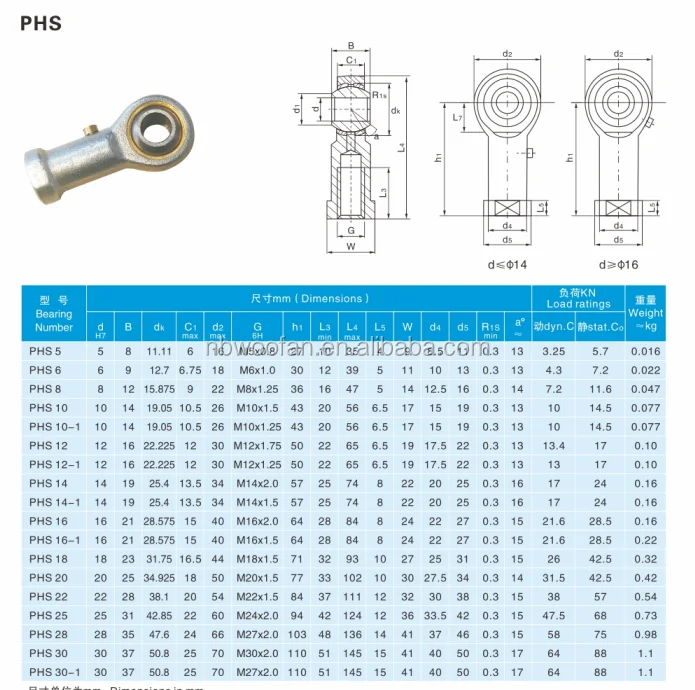

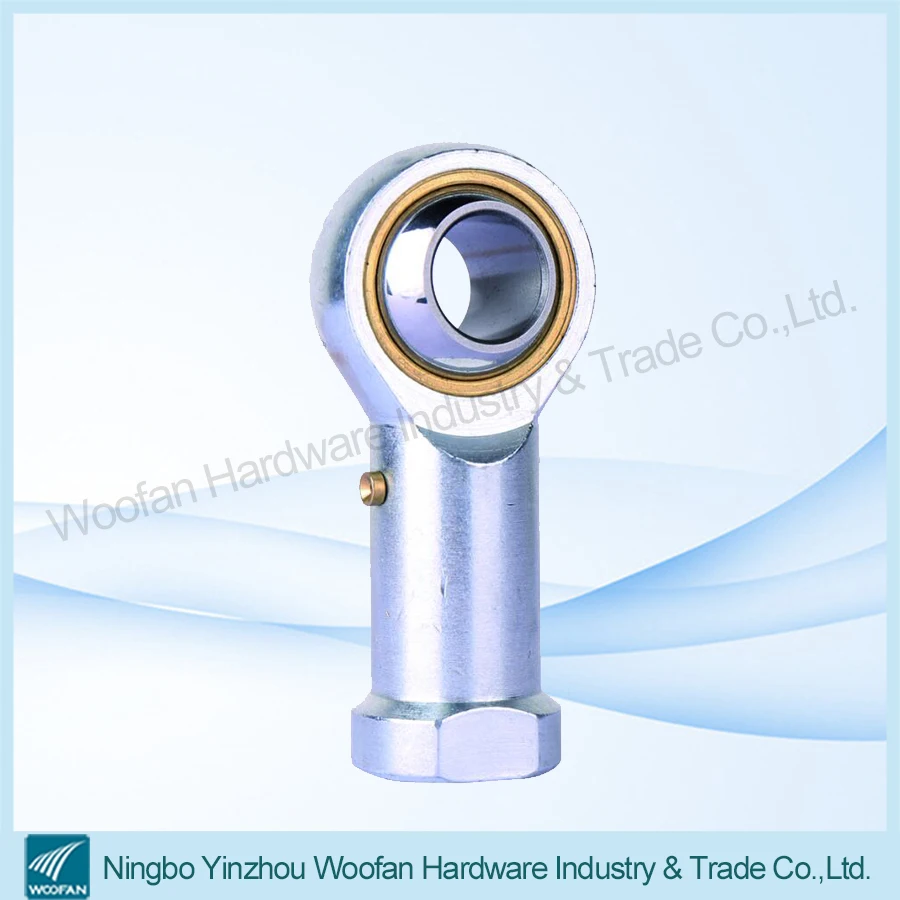

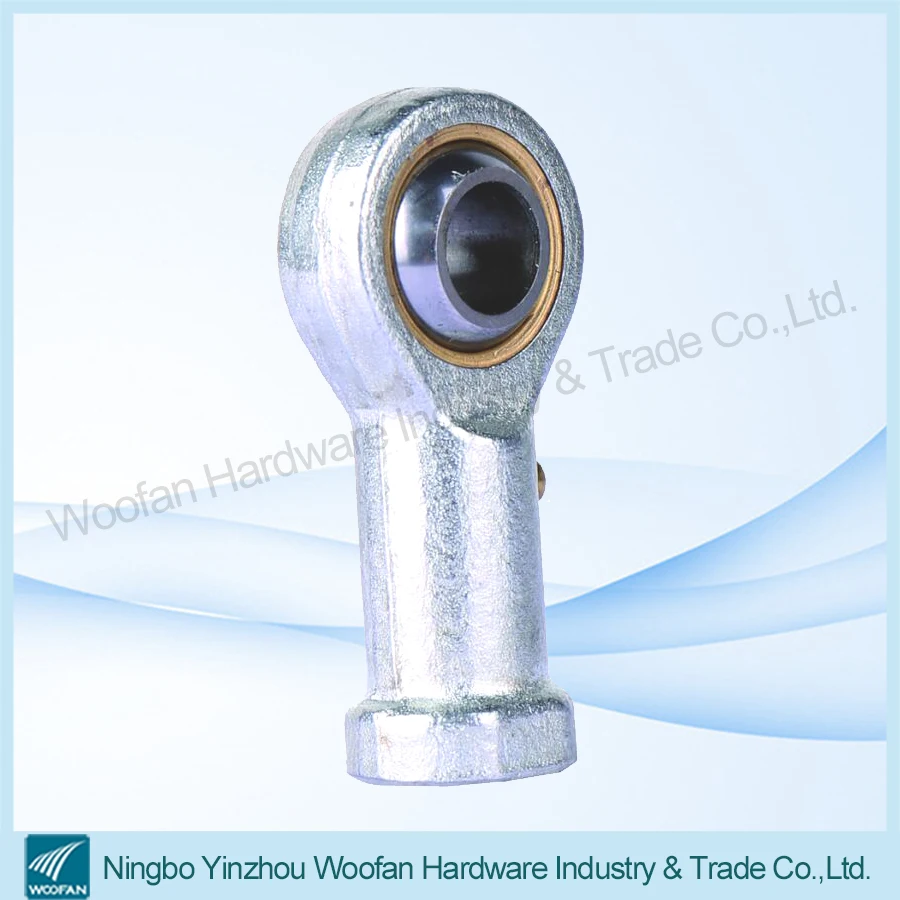

Rod ends PHS

Rod end of steel and zinc coated, with male or female thread; spherical surface with bronze liner; innering of carbon

chromium steelspherical surface with chromium plating; Can be lubricated via a nipple or a hole in the rod end. It has

characteristics of large load capability,easy mounting and dismounting and mechanism simplification.

Product Line: PHS
Thread Size: M5x0.8 - M30x2
Material: carbon steel; bearing steel
Operating temperature: -30ºC~+80ºC

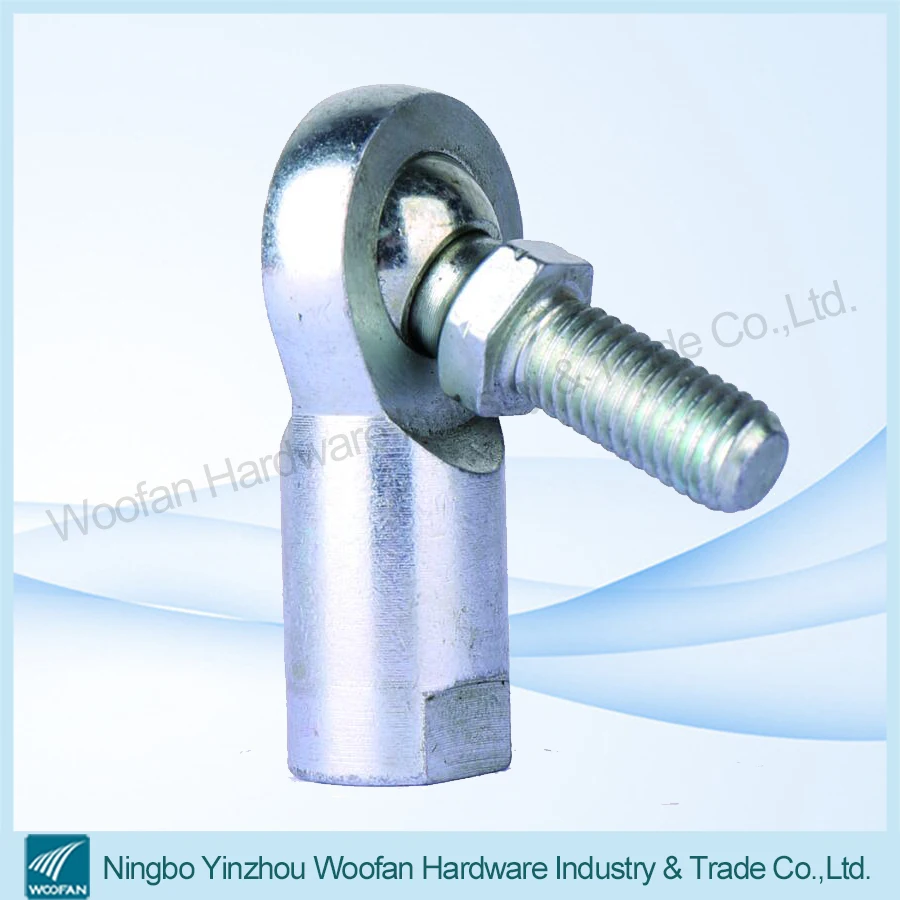

Rod body with right or left -hand male threads
