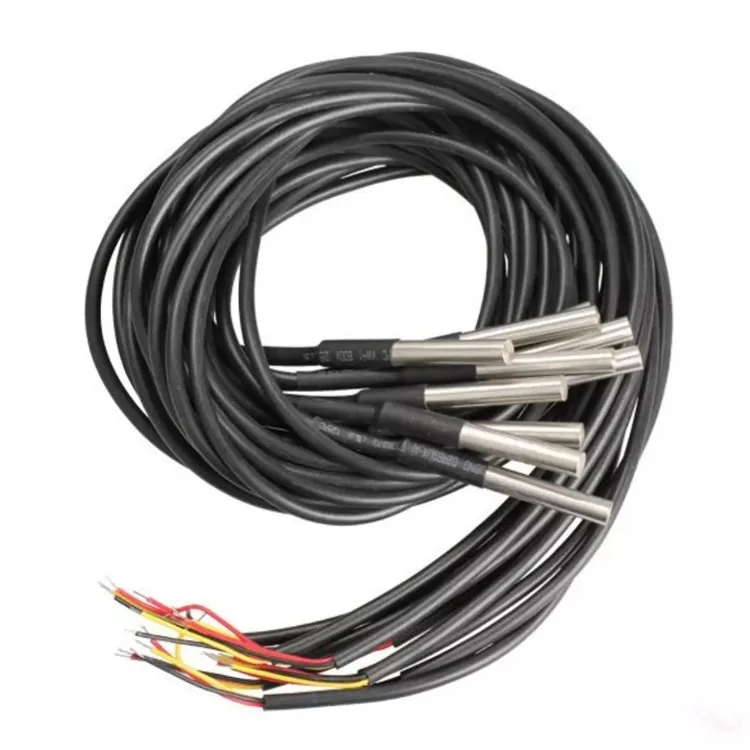

Custom digital waterproof high temperature Sensor ds18b20 with Cable 1m 2m 3m 5m 10m
Probe material | SS304 PVC |
Cable material | Silicone/PVC |
Probe size | 6*30mm /6*50mm/or customzied |
Waterproof | IP65/IP68 |
Specification:

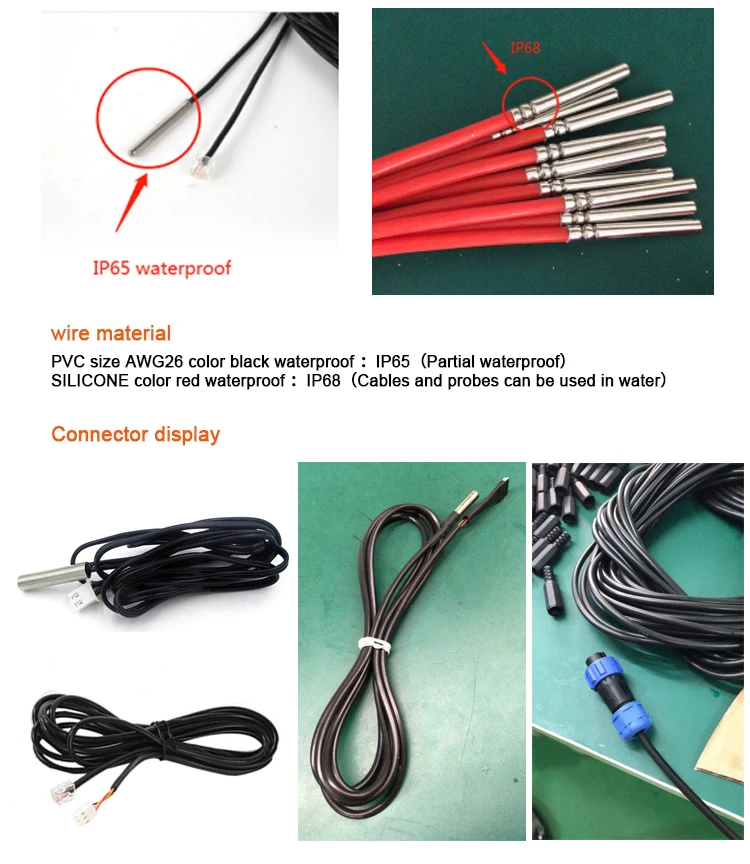

1:Waterproof:IP65/IP68
2:Operating voltage: 3.0 ~ 5.5V
3:Temperature range: -55 ℃ ~ + 125 ℃
4:Test accuracy: + 0.5 ℃ (within the range of -10 ℃ ~ + 85 ℃ in)

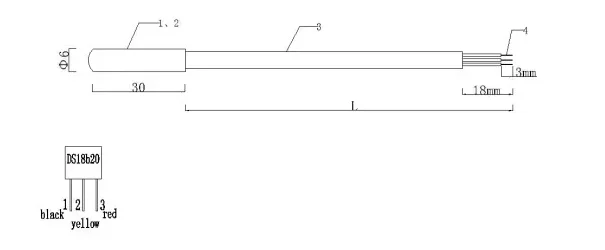

5:Stainless Steel Case Size: 6 x 50 mm 6x 30 mm
6:Cable length: 100 cm
7:Output leads: red (VCC), yellow (DATA), black (GND)
