CNC Milling Machine GT175B Precision Modular Vice
Product Description

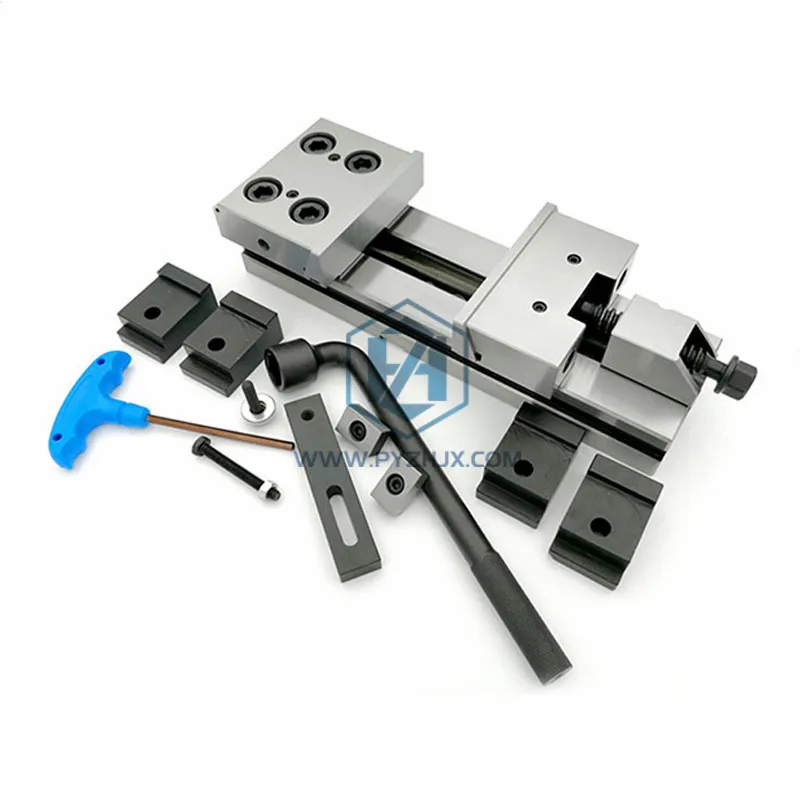

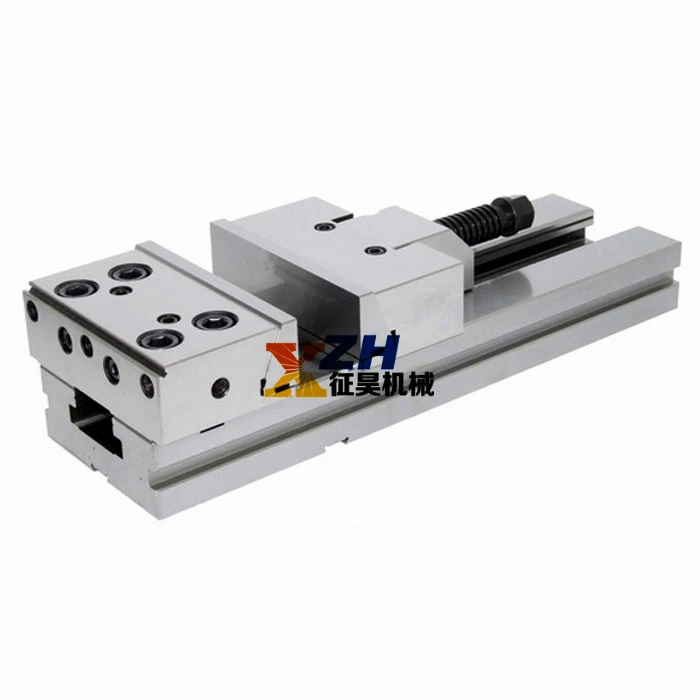

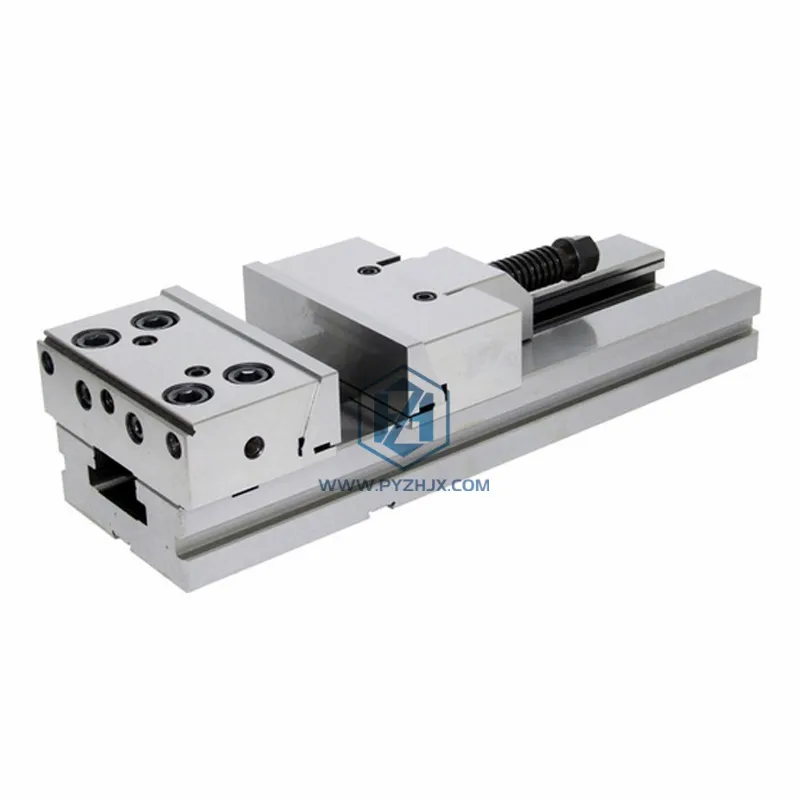

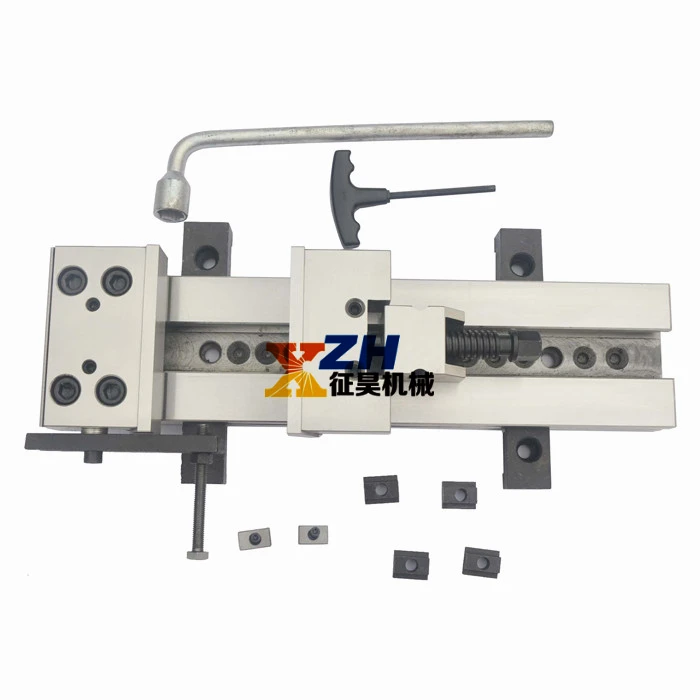

CNC Milling Machine GT175B Precision Modular Vice
Features for Precision Vise
Material:20CrMnTi Alloy steel
Hardness:HRC58~62
Parallelism:0.005/100mm
Spuareness:0.005mm
Usage:CNC Milling Grinding Machine
Drive mode: manual
Technical Parameters for Precision Vise
| GT Precision Modular Vises | |||||
| Order No. | B | H | Smax | L | Clamping force |
| mm | mm | mm | mm | Kg | |
| GT100-I | 100 | 30 | 100 | 270 | 3000 |
| GT125-I | 125 | 40 | 150 | 345 | 3000 |
| GT150A-I | 150 | 50 | 200 | 420 | 5000 |
| GT150B-I | 150 | 50 | 300 | 520 | 5000 |
| GT150C-I | 150 | 50 | 400 | 620 | 5000 |
| GT175A-I | 175 | 60 | 200 | 455 | 6000 |
| GT175B-I | 175 | 60 | 300 | 555 | 6000 |
| GT175C-I | 175 | 60 | 400 | 655 | 6000 |
| GT175D-I | 175 | 60 | 500 | 755 | 6000 |
| GT175E-I | 175 | 60 | 600 | 855 | 6000 |
| GT200A-1 | 200 | 65 | 200 | 495 | 10000 |
| GT200B-1 | 200 | 65 | 300 | 595 | 10000 |
| GT200C-I | 200 | 65 | 400 | 695 | 10000 |
| GT200D-I | 200 | 65 | 500 | 795 | 10000 |
| GT200E-I | 200 | 65 | 600 | 895 | 10000 |
| GT300A-1 | 300 | 80 | 200 | 535 | 12000 |
| GT300B-1 | 300 | 80 | 300 | 635 | 12000 |
| GT300C-I | 300 | 80 | 400 | 735 | 12000 |
| GT300D-I | 300 | 80 | 500 | 835 | 12000 |
| GT300E-I | 300 | 80 | 600 | 935 | 12000 |
| GT300F-I | 300 | 80 | 700 | 1035 | 12000 |
| GT300G-I | 300 | 80 | 800 | 1135 | 12000 |
Hot-sale Models for Precision Vise
 |  |  |
| GT150A | GT100 | GT125 |
Contact us

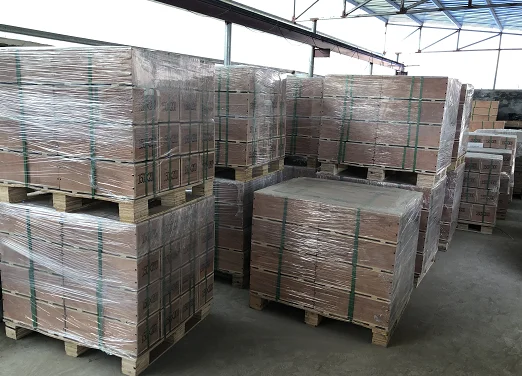

Packaging & Shipping
- Wooden box for the modular vise, cartons inside to keep the safe shipping
- We are able to provide neutral packing if you don't want our logo to show on your package.
- And we can also laser mark your logo if needed.International standard exporting wooden box is provided.
- We'll make sure the safe arrival and receipt of your goods.
Related Products
CNC Milling Machine GT175B Precision Modular Vice Related Products
FAQ
- Factory: We XZH are factory since 1998, also do trading.
- Market: different places of the world: USA, Australia, Switland, French, Belgium, Israel, Hungary, South Africa, Argetina...
- Products of vises: High precision Vise Products: tool vise QKG, QGG, precision modular vice GT series, universal tilting vises QW series, QM precision machine vises...
- Delivert and Shipping: delivery by air and courier, shipping by sea as per need.
- Customized products. OEM Service, logo lasing
- Service:24-hours service for inquiry, product presentaion and after-sales service.
- Trade Terms: EXW FOB CFR CIF DDU DDP
