Holykell Factory UE3003 Бесконтактный ультразвуковой датчик уровня воды для реки
- Категории: Level Measuring Instruments >>>
- Поставщик: Holykell,Technology,Company,Limited
Поделиться:
Описание и отзывы
Характеристики
Product Description

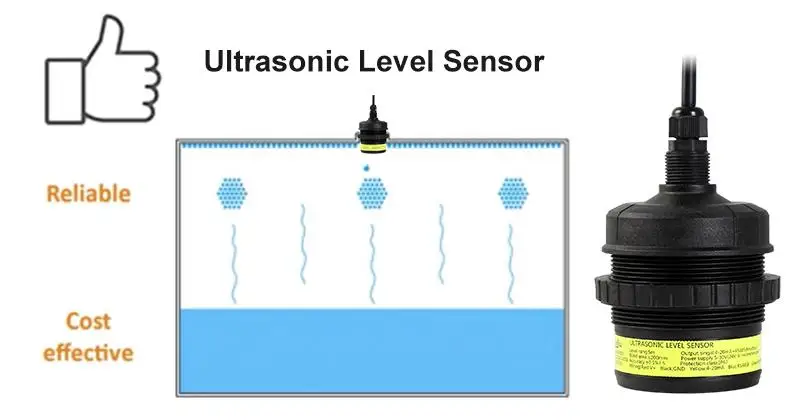

The ultrasonic level sensor emits a high frequency acoustic pulse from its transducer. The pulse travels through the air gap, reflects against the liquid surface and returns to the transducer. The ultrasonic level sensor measures the pulse time of flight and converts this into level height or distance.
The UE3003 ultrasonic liquid level sensor is a very practical level measuring sensor with simple installation and convenient on-site commissioning. Not affected by the measured medium. It can measure the liquid level of various mediums with an accuracy of 0.5%. It uses SMD components and ASC chip, which makes the circuit compact and concise. The circuit board is plated and has high stability and long-term reliability. Meanwhile, the shell uses Polypropylene materials with sturdy texture and good acoustic property. The transducer can be used in most working condition sites.
Product Parameter
Measuring range | 2.5m, 5m, 10m, others on request |
Blind area | ≤150mm(for 2.5m &5m ranges); ≤500mm(for 10m range) |
Accuracy | 0.5%F.S (typical), 0.25%F.S (by customized) |
Beam angle | 15° |
Measuring mode | Distance mode(default), or level mode optional |
Output signal | RS485+4~20mA; RS485+0~5V |
Power supply | 10~30VDC(24VDC recommended, 5~30VDC by customized) |
Working temperature | -10~50℃(-40~80℃ by customized) |
Working current | ≤100mA |
Installation mode | Nut clamping fixed installation, screw-in installation, M68×2 |
Response time | 0.1s~10s(adjustable) |
Product material | Polypropylene + glass fiber |
IP rating | IP67 typical, IP68 by customized |
Please Click Here To Get Datasheet!
Product Feature
Four major upgraded technologies with wide-ranging applications
01. 0-50℃ temperature compensation, can be used normally in condensing and steam environments
02. Low power consumption: <100mA
03. Measurement results are not affected by obstacles
04. With lightning protection, surge protection, and overcurrent protection
Application
*Water, oil, diesel level measurement
*Treatment plants
*Food industry
*Rivers, channels, lakes
Provide a Full Range of Liquid Level Control Solutions
Related Products
Why Choose HOLYKELL
HOLYKELL have been focusing on the R&D and sales of various measuring instruments such as submersible level sensors, ultrasonic level sensors, smart wireless solutions, electronic pressure switches, air differential pressure sensors for more than 20 years. More than 80% of HOLYKELL employees have bachelor's degree. At present, HOLYKELL has more than 120,000 customers worldwide and it's products are exported to 175 countries in Europe, America, Australia, Africa, SouthEast and Asia. In the latest petrochemical industry, our newest products have the advantages of small size, temperature changes resistance, high stability and reliability. HOLYKELL has a number of national patents. The purification workshop covers 5000 square meters with one automatic production line and two semi-automatic production lines and 1000 square meters modern office. The annual production capacity is one million sensors. Our products have passed the CE, ATEX, TUV CE and FCC certification of the European Union and North American, The factory have been passed ISO9001:2015 international quality management system certification. Our mature and advanced production processes and technologies can guarantee the safe, stable and long-life time operation on your project.
