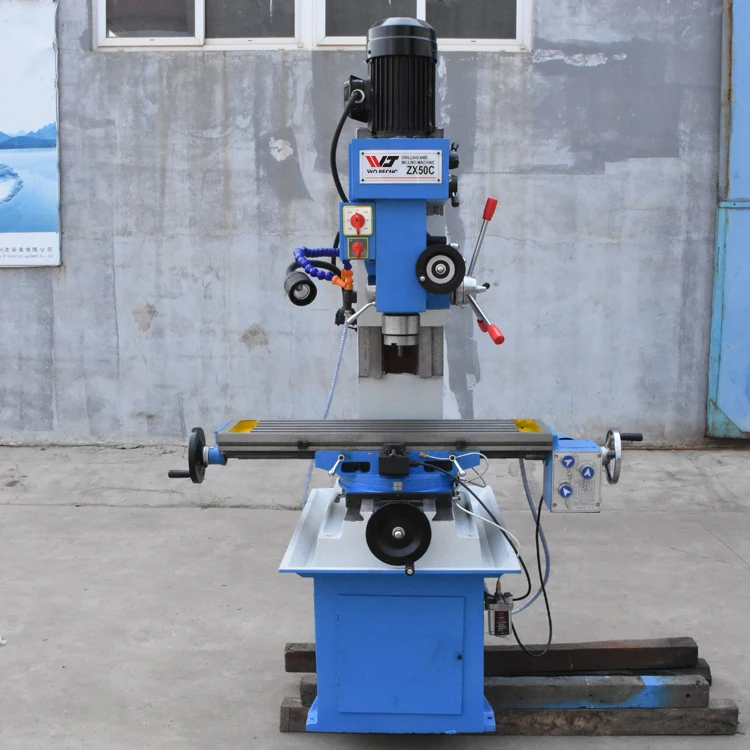

Китайская Вертикальная скамейка сверлильный фрезерный станок ZX50C Малый горизонтальный для
- Категории: Milling Machines >>>
- Поставщик: Zaozhuang,Wojie,CNC,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Product Description
Product Application
ZX50C drilling and milling machine has good abrasion resistance, the milling head can not only rotate backward on the vertical plane, but also rotate on the bed, which has good processing versatility. It can process planes, grooves, spiral surfaces,inclined surfaces, forming Noodles, etc.
Product main technical parameters
ZX50C drilling and milling machine has good abrasion resistance, the milling head can not only rotate backward on the vertical plane, but also rotate on the bed, which has good processing versatility. It can process planes, grooves, spiral surfaces,inclined surfaces, forming Noodles, etc.
Product main technical parameters
Specification | Unite | ZX50C milling machine |
Max. drilling diameter | mm | 50 |
Max.Horizontal Milling Dia. | mm | 100 |
Max.Vertical Milling Dia. | mm | 32 |
Max.Boring Dia. | mm | 100 |
Spindle Taper | MT4,R8 | |
Spindle Speeds Range | (5 step)115-1750 | |
Spindle Travel | 120 | |
Table Size | mm | 800*240 |
Table Travel | mm | 400*230*380 |
Main Motor Power | kw | 0.85/1.5 |
N.W/G.W | kg | 470/550 |
Dimension | mm | 1100*970*1650 |
Standard Accessories Optional Accessories
Work lamp Power feed
Cooling system 3-axis Digital Reading
Milling Chuck Machine Vise
Drilling Chuck Dividing Head
Draw bar Rotary Table
Oil collecting plate Clamping Kits
Tool & toolbox
Reduction sleeve
Work lamp Power feed
Cooling system 3-axis Digital Reading
Milling Chuck Machine Vise
Drilling Chuck Dividing Head
Draw bar Rotary Table
Oil collecting plate Clamping Kits
Tool & toolbox
Reduction sleeve

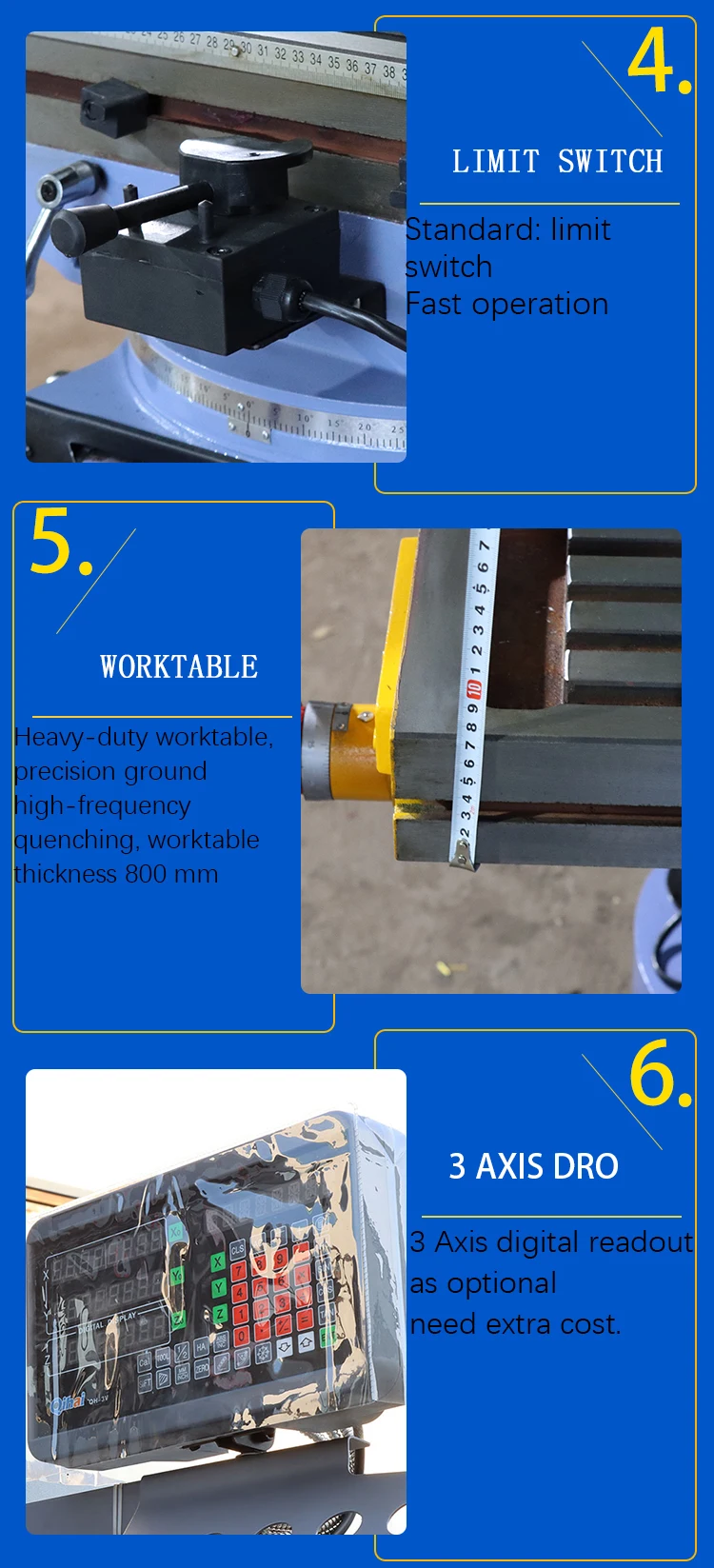

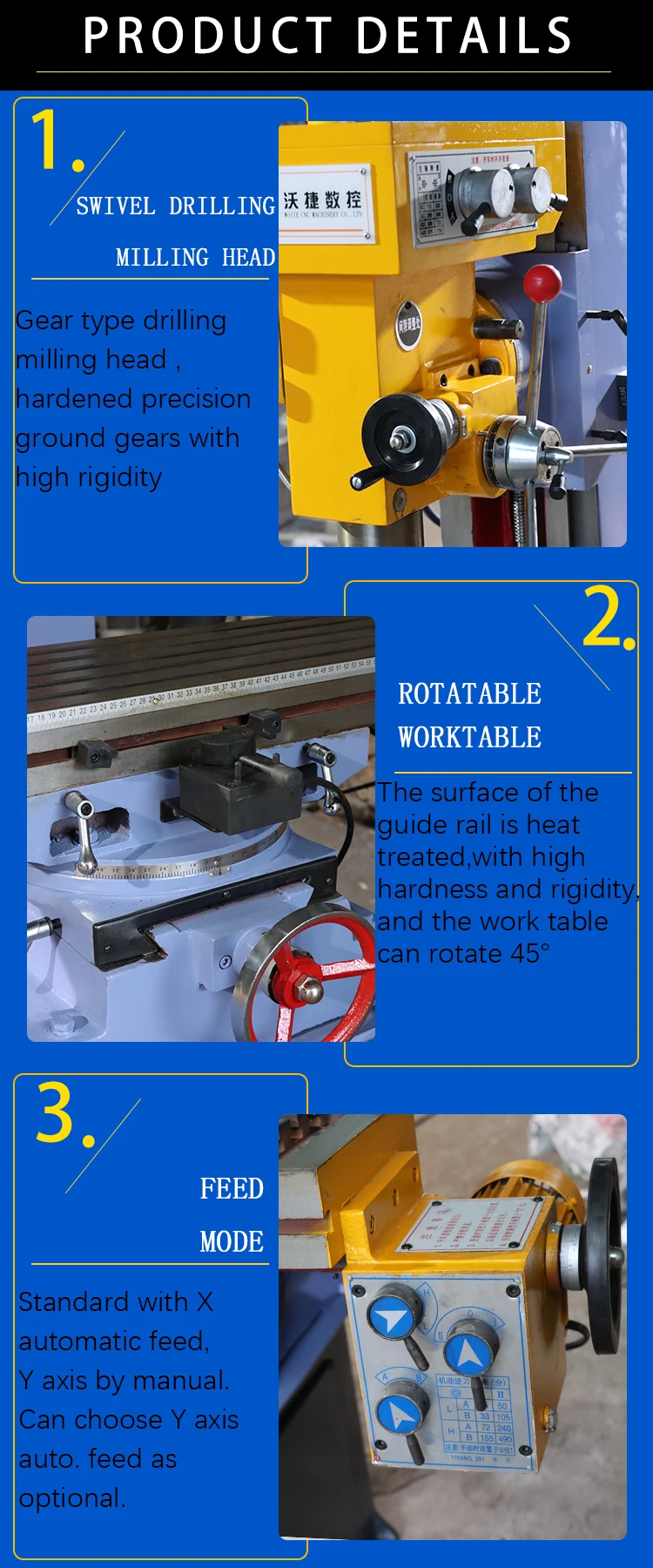

Detailed Images
Related Products
Company Introduction
Packing&Shipping
FAQ
1. What is the payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;Irrevocable LC at sight .When we receive the advance payment, we will start to make production.when the machine is ready , we will take pictures to you.after we got your balance payment. we will send the machine to you.
2. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
3.When is the delivery time?
A: If the machine you will order is standard machine, we can ready the machine within 15days. if some special machines will be some longer. The ship time is about 30 days to Europe, America. If you are from Australia, or Asia, it will be shorter. You can place order according to delivery time and ship time.we will give you the answer accordingly.
4. What is your trade terms?
A : FOB, CFR,CIF or others terms are all acceptable.
5. What is your minimum order quantity and warranty?
A: MOQ is one set, and warranty is one year.but we will offer lifetime service for machine.
6. What is the package of the machines?
A: The machines standard will be packed in plywood case.
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;Irrevocable LC at sight .When we receive the advance payment, we will start to make production.when the machine is ready , we will take pictures to you.after we got your balance payment. we will send the machine to you.
2. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
3.When is the delivery time?
A: If the machine you will order is standard machine, we can ready the machine within 15days. if some special machines will be some longer. The ship time is about 30 days to Europe, America. If you are from Australia, or Asia, it will be shorter. You can place order according to delivery time and ship time.we will give you the answer accordingly.
4. What is your trade terms?
A : FOB, CFR,CIF or others terms are all acceptable.
5. What is your minimum order quantity and warranty?
A: MOQ is one set, and warranty is one year.but we will offer lifetime service for machine.
6. What is the package of the machines?
A: The machines standard will be packed in plywood case.
Contact Us
Contact us for more factory price.shipping and discounts.
