3H Высокая точность металла Поворотная головка Фрезерный станок


Поделиться:

Цена:3 000,00 $ - 3 300,00 $*
Стоимость в USD (на сегодня):Узнать

Количество:

Описание и отзывы

Характеристики



Detailed Images




Product Application
The milling machine is a kind of universal light duty metal cutting machine,Has two functions of vertical and horizontal milling, Milling medium, small parts of the plane, inclined plane, groove and spline etc.. Widely used in mechanical processing, mold, equipment, instrumentation and other industries.

Product main technical specifications:


Specifications
Units

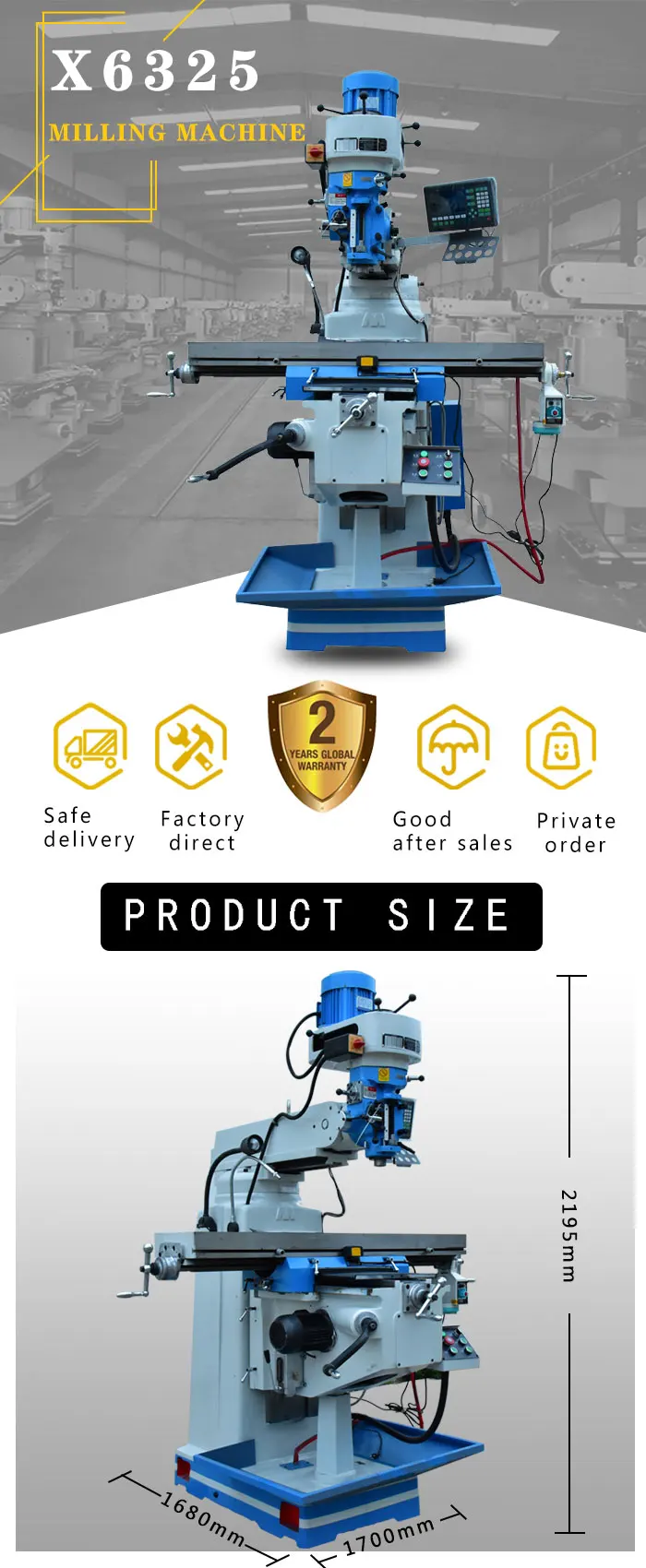

X6325
Table size
mm
1270x254(10”x50”)
Table travel
mm
800/300/420
T slot(number-width-pitch)
mm
3-16-50
Spindle taper
standard:R8 optional:ISO40
Spindle speed range
rpm
standard:16 steps,
50HZ:65-4500 ,60HZ:80-5440
Optional:variable 65-4000
Spindle travel
mm
127
Spindle feed range
mm
0.04,0.08,0.15(3 steps)
Distance between spindle nose and table surface
mm
90-510
Main motor power
kw
2.2
Head rotation (left - right )
°
±90°
Head rotation (front - rear)
°
±45°
Weight
kg
1550
Overall dimension
mm
1550x1650x2250


Standard Accessories: Optional Accessories:
Plastic splashing guard Power feed
Draw bar 3-axis Digital Reading
Oil collecting plate Machine Vise
Tool & toolbox Milling Chuck
Reduction sleeve Variable milling head
work lamp Air drawbar
cooling system Dividing Head


Product Description








Related Products




Company Information




Packaging & Shipping




SALES AND SERVICE NETWORK




FAQ


1. What is the payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;Irrevocable LC at sight .
When we receive the advance payment, we will start to make production.when the machine is ready , we will take pictures to you.after we got your balance payment. we will send the machine to you.

2. What is your trade terms?

A : FOB, CFR and CIF all acceptable.

3.When is the delivery time?

A: If the machine you will order is standard machine, we can ready the machine within 15days. if some special machines will be some longer. The ship time is about 30 days to Europe, America. If you are from Australia, or Asia, it will be shorter. You can place order according to delivery time and ship time.we will give you the answer accordingly.

4. What is your trade terms?

A : FOB, CFR,CIF or others terms are all acceptable.

5. What is your minimum order quantity and warranty?

A: MOQ is one set, and warranty is one year.but we will offer lifetime service for machine.

6. What is the package of the machines?

A: The machines standard will be packed in plywood case.
