With EDID emulator in each input port, keep PCs always having correct display information 2X1 HDMI KVM Switch
Product Description

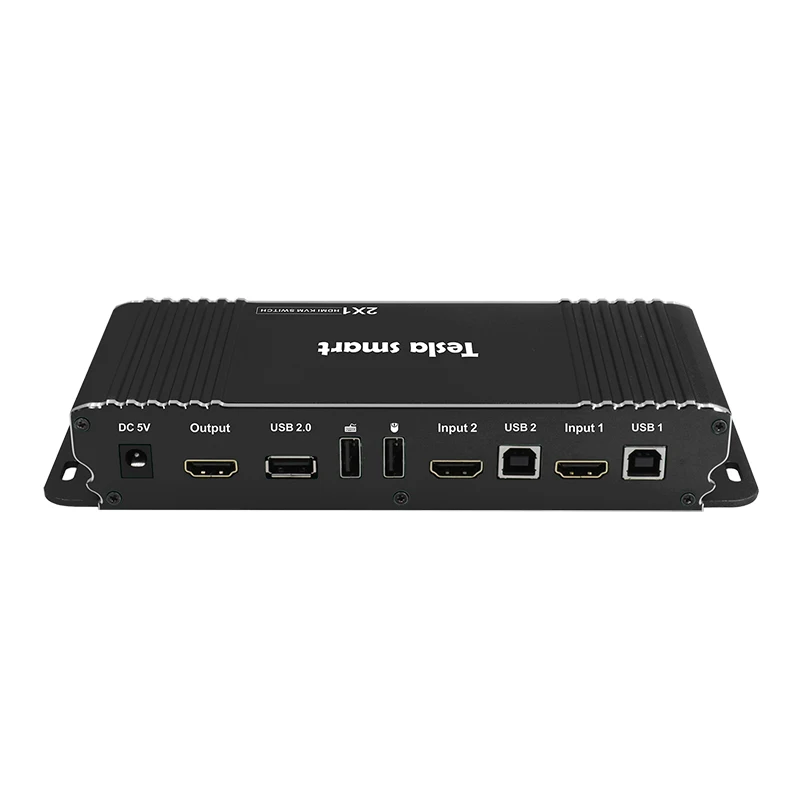

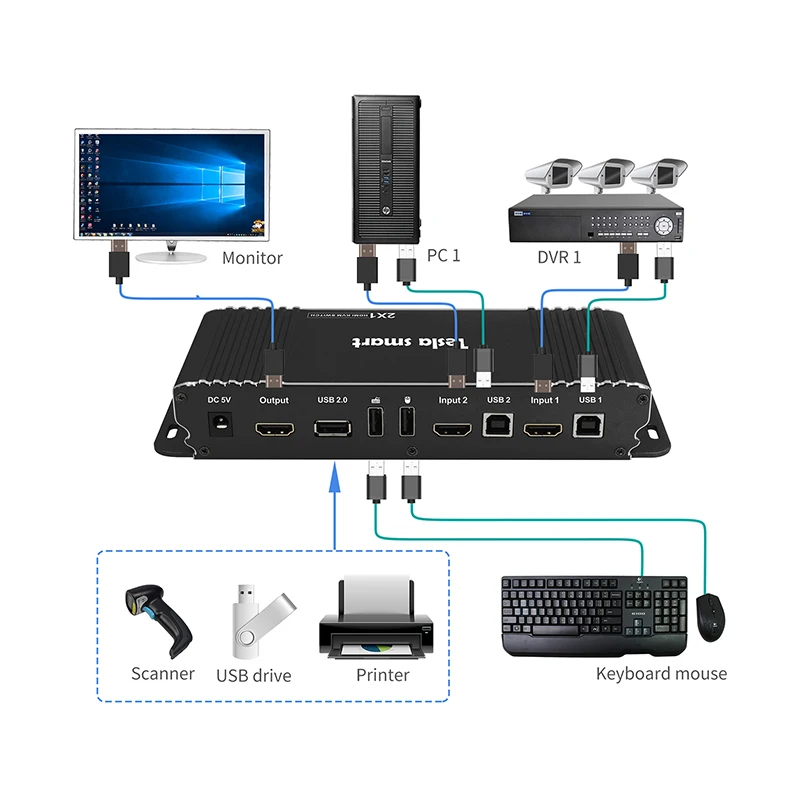

This 2x1 HDMI KVM Switch provides you with great flexibility in integrating cross-platform computer equipment easily. It makes you available to switch easily and reliably between any HDMI computers using one HDMI compliant display.
The 2x1 HDMI KVM Switch supports USB 2.0 hub and USB 2.0 keyboard /mouse. By using USB 2.0 hub ports on the KVM, you even can attach USB drive, printer, barcode scanner or other USB devices to the KVM. Switching can be controlled through multiple methods, such as the front panel buttons, IR signals and hot keys on keyboard.
Feature
Using only 1 set of keyboard, mouse and monitor to control 2 computers
Support Unix /Windows /Debian /Ubuntu /Fedora /Mac OS X /Raspbian /Ubuntu for Raspberry Pi and other Linux based systems
Support hot plug, connect or disconnect devices to the KVM switch at any time without turning off devices
Support auto switching to monitor computers in a specified time interval
Support front panel buttons, IR signals, keyboard hot keys and mouse gesture to control KVM switch
Available to use keyboard and mouse without any delay after switching input sources
Support resolution up to 3840*2160@30Hz
With extra standard USB 2.0 hub port, it is possible to connect bar code scanner, USB hard drive or other USB devices to KVM
With EDID emulator in each input port, keep PCs always having correct display information
Supports DVI-D single link sources and displays with the use of HDMI-to-DVI adapters
Specification

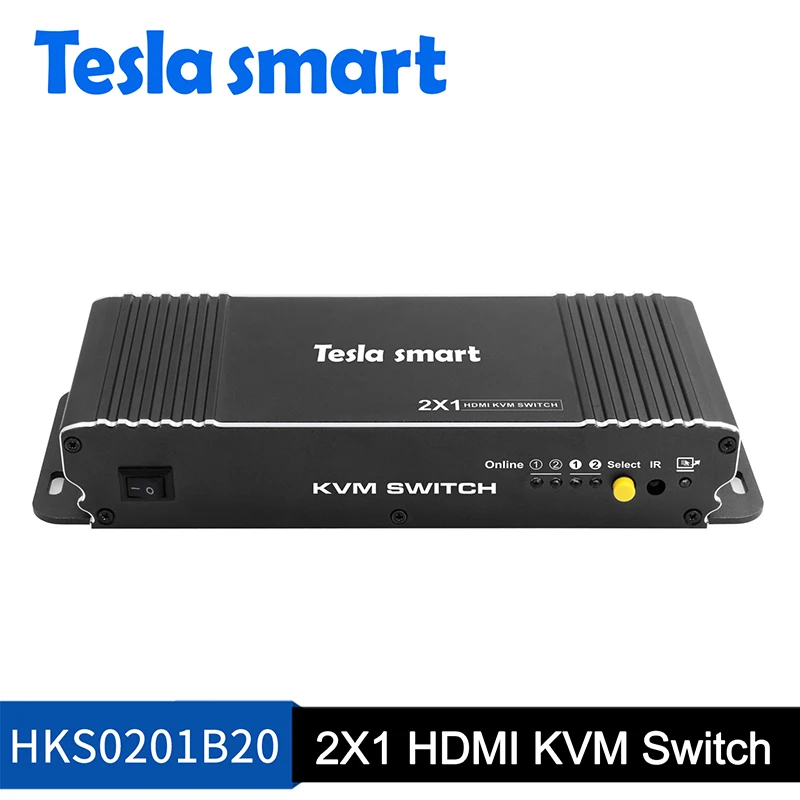

HKS0201B20 | 2x1 HDMI KVM Switch | |
Functionality: | ||
Auto Scan | Yes | |
Port selection | Front panel buttons | Yes |
Keyboard hotkeys | Yes | |
IR remote control | Yes | |
Mouse gesture | Yes | |
Console commands | No | |
Technical: | ||
Resolution | Up to 3840x2160@30Hz | |
Auto to get EDID | Yes | |
Data rate | 10.2 Gbps | |
Auto scan interval | 1~250 Seconds | |
Beep Sound | On/Off | |
OSD | No | |
Supported OS | Unix/Windows/Debian /Ubuntu /Fedora /Mac OS X/ Raspbian /Ubuntu for Raspberry Pi and other Linux based systems | |
Console ports | Keyboard emulation | 1 * USB Type A |
Mouse emulation | 1 * USB Type A | |
USB 2.0 Hub ports | 1 * USB Type A | |
Video /Audio | 1 * HDMI Type A | |
RS232 | NA | |
LAN | NA | |
System ports | USB Data | 2 * USB Type B |
Video / Audio | 2 * HDMI Type A | |
ESD protection | Human body model - ±8kV (Air-gap discharge) | |
Mechanical: | ||
Chasing material | Aluminum Alloy | |
Product Dimensions | 196 (L) x 80 (W) x 24 (H) mm | |
Item Weight | 500g | |

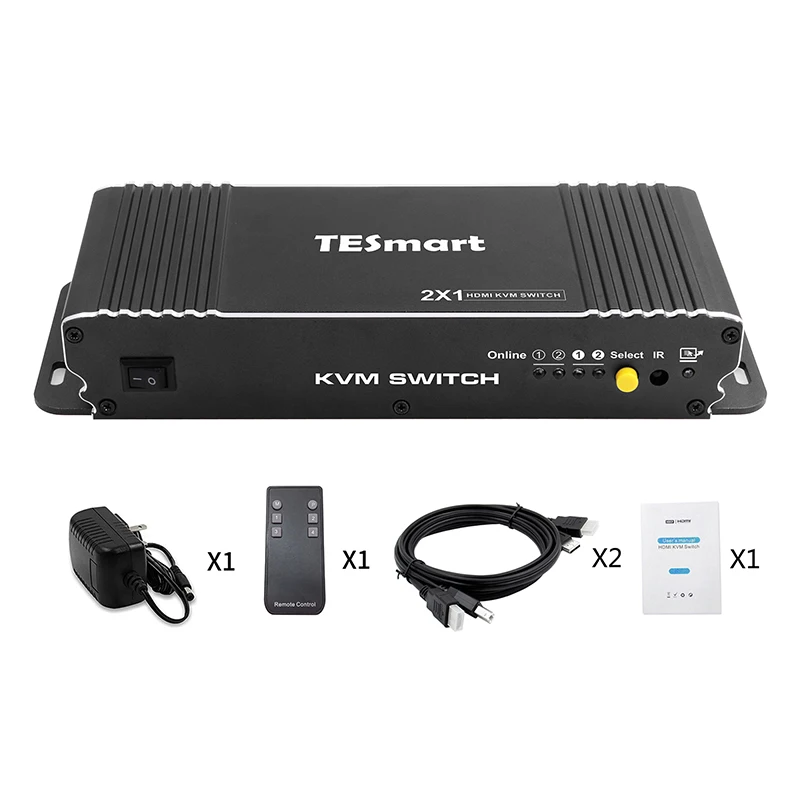

Packaging & Shipping
1* 2X1 HDMI KVM Switch
1* DC 5V Power adapter
1* IR Remote control
1* User manual
Company Information
Established in 2013, Tesla Elec Technology Company limited is a professional manufacturer and exporter that is concerned with the design, development and production of audio and video matrix, splitter, switcher, KVM, extender and converter.
All of our products comply with international quality standards and are greatly appreciated in a variety of different markets throughout the world. We have a R&D team with over ten years experience, providing good solutions and professional technology support.
Sales office: 6th Floor, DeShengChang Building, No. 94 HuanGuan South Rd, LongHua Dist. Shenzhen, GuangDong, China
Factory address: 4th Floor N Building, GuanLan Chuang Xin Industrial park, XinTian Community, JingTian Road, Longhua Dist, Shenzhen, GuangDong, China
Our Services
Benefits from commissioned SMT processing, we are able to keep quick delivery and focus more resources on new technology research, product test and improving our customer service. We are providing ODM and OEM services in various video related products, just tell us your requirements, we can do more than you can imagine. We are looking forward to forming successful business relationships with new clients around the world in the near future
