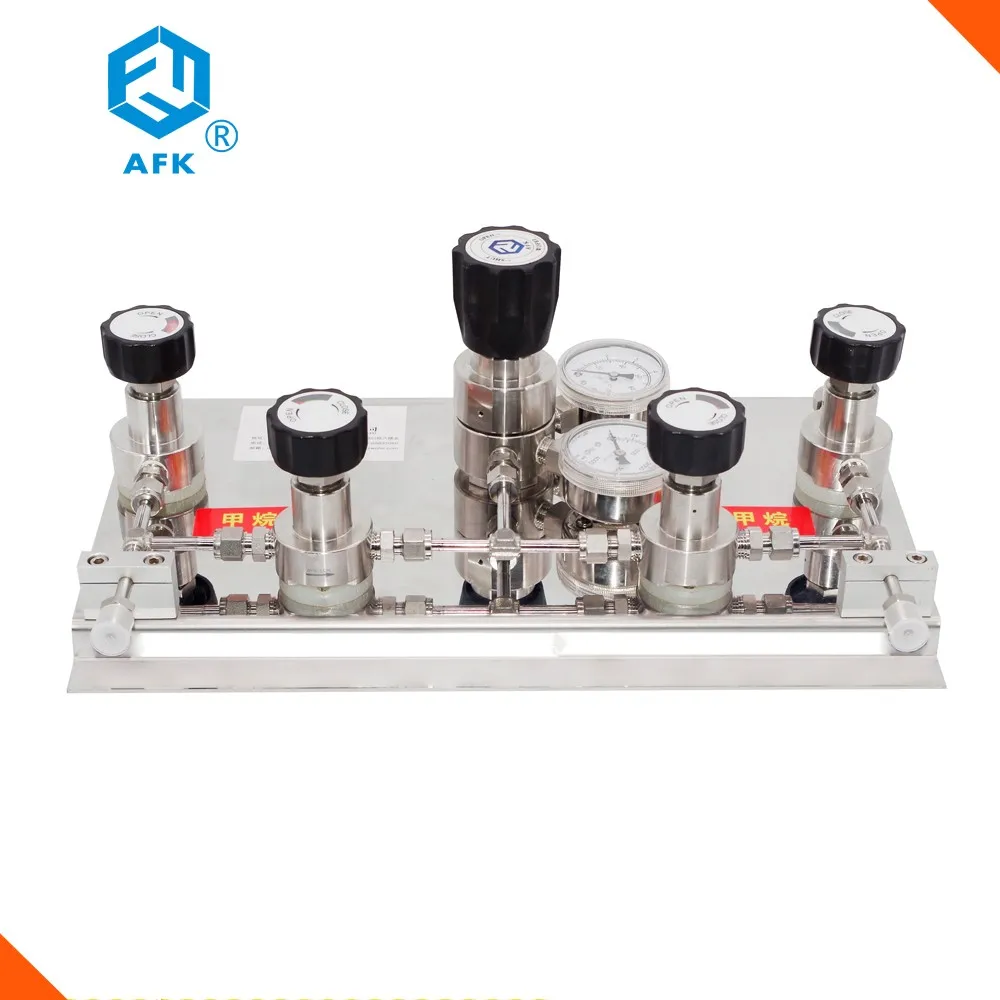

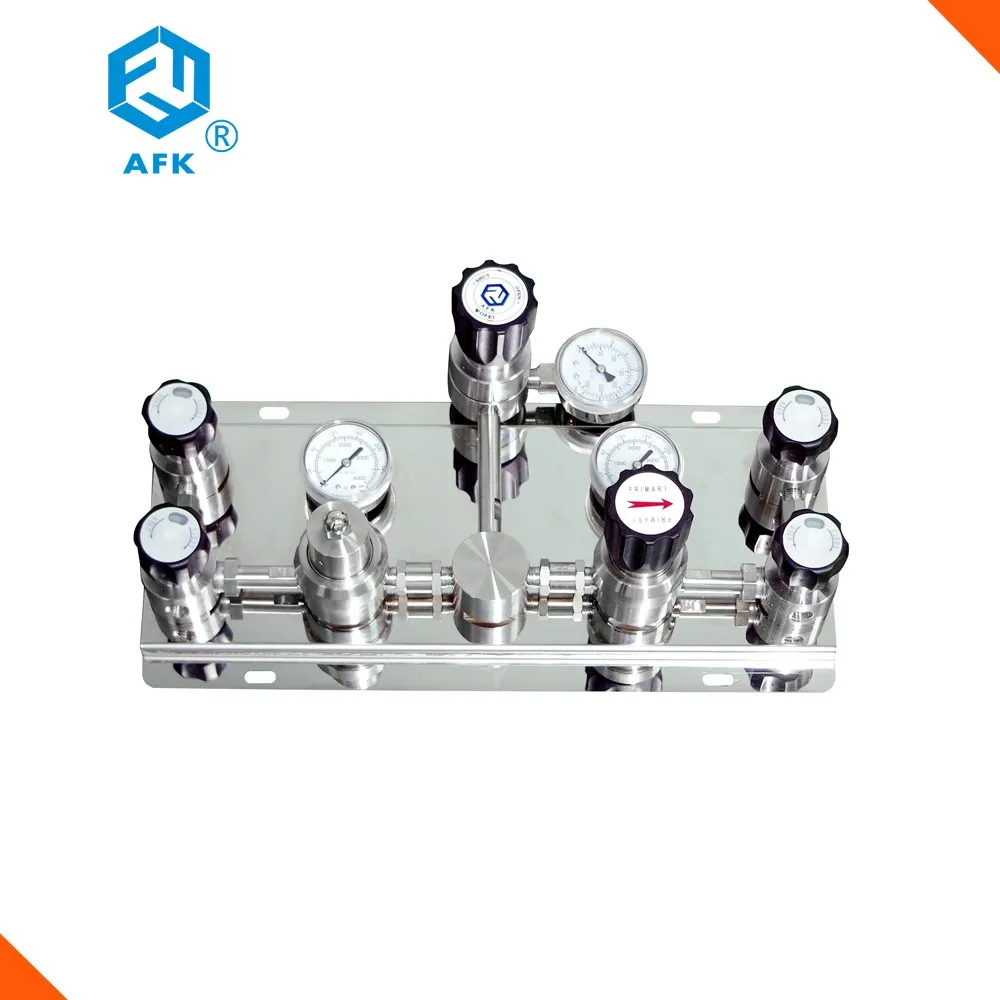

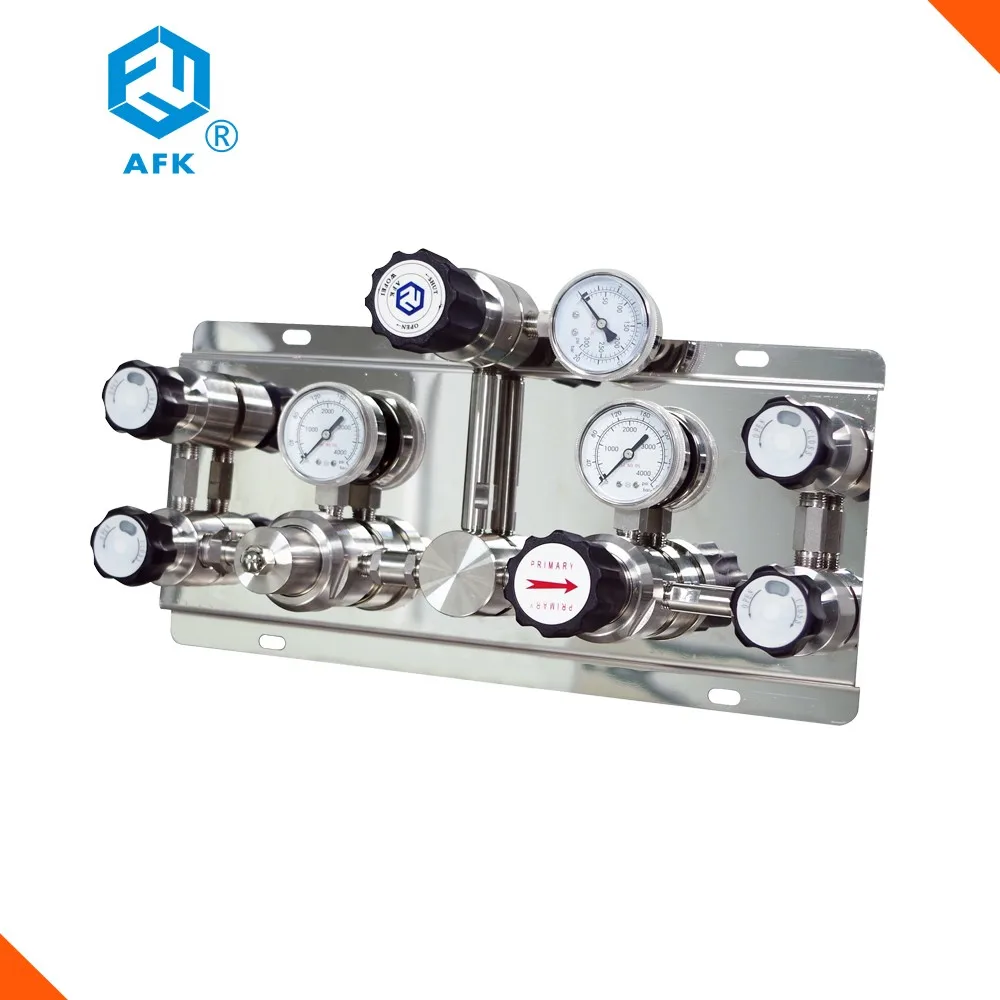

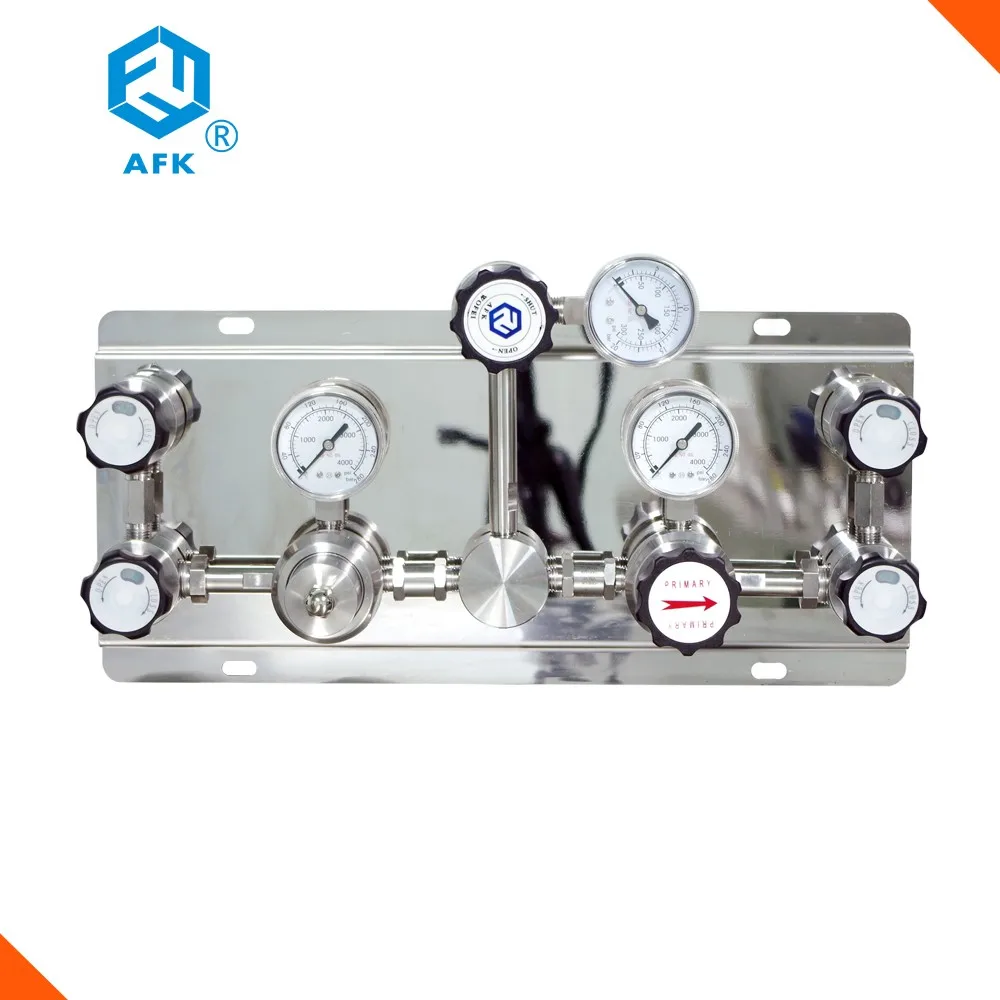

316/никелированная латунная панель управления кислородом WL300 аргоновый газовый
- Категории: Pressure Regulators >>>
- Поставщик: Shenzhen,Wofly,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Product Description
Product Application
It is used in the double-sided high-pressure gas cylinders to reduce the pressure supply.It can though the automatic changover to achieve continuous gas supply and purge function. The maximum input pressure can reach 20.7Mpa(3000psi), corrosion resistance, clean shop assembly test, gas analysis Such as high purity gas.
Main Features
1) Simple structure in linear type ,easy in installation and maintation.
2) Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts.
3) High pressure double crank to control the die opening and closing.
4) Running in a high automatization and intellectualization,no pollution
5) Apply a linker to connect with the air conveyor ,which can directly inline with filling machine .
Detailed Images
Material: 316L SS\t
Maximum Inlet Pressure:\t3000, 500psig
Output Pressure:\t0~25, 0~50, 0~100, 0~250psig\t
Output Pressure:\t0~25, 0~50, 0~100, 0~250psig\t
Working Temperature: -40~+74 Deg C
Applied Gas:\tHigh Pure Gases, Standard Gases, Corrosive Gases And So On\t
Applied Gas:\tHigh Pure Gases, Standard Gases, Corrosive Gases And So On\t
Certificate:\tISO9001:2008 CE
BodyThread : 1/4NPT F
Body ports: 3 ports
Type: can't be adjustable
Body material: nickled plated brass
Warranty:\t1 Year
Selling Units:\tSingle Item\tSingle Package
Size :\t36X15X26 Cm
Single Gross Weight:\t7.87 Kg
Package Type:\tPP Box +export Carton
Materials of Construction
※ Body: stainless steel
※ Seat: PU, PTFE, PCTFE
※ Inlet Connection: 1/4"tube fitting, 1/4"FSR, 1/2"FSR
※ Outlet Connection: 1/4" tube fitting , 1/4"FSR
※ Body of Diaphragm Valve: stainless steel
Certifications
Packing & Delivery
Related Products
Our Company
FAQ
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: No, we not offer the sample for free charge and also not pay the cost of freight.
Q: What is your payment ?
A: T/T , PayPal , Western Union
