HDR 10 и видение без каких-либо задержек после переключения входных источников 4X1 HDMI KVM переключатель совместим с HDCP
- Категории: KVM Switches >>>
- Поставщик: Shenzhen,Tesla,Elec,Technology,Co.,Ltd
Поделиться:
Описание и отзывы
Характеристики

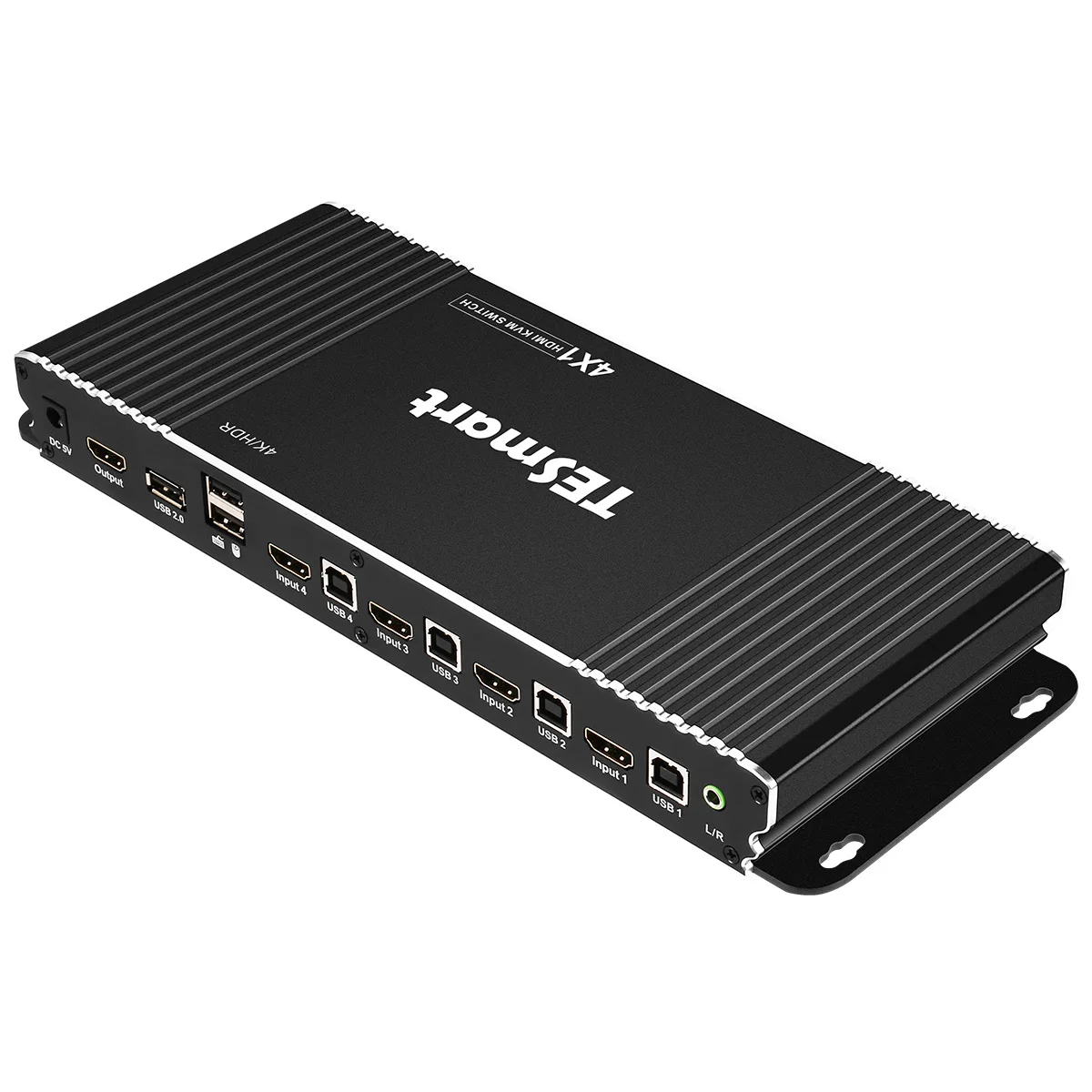

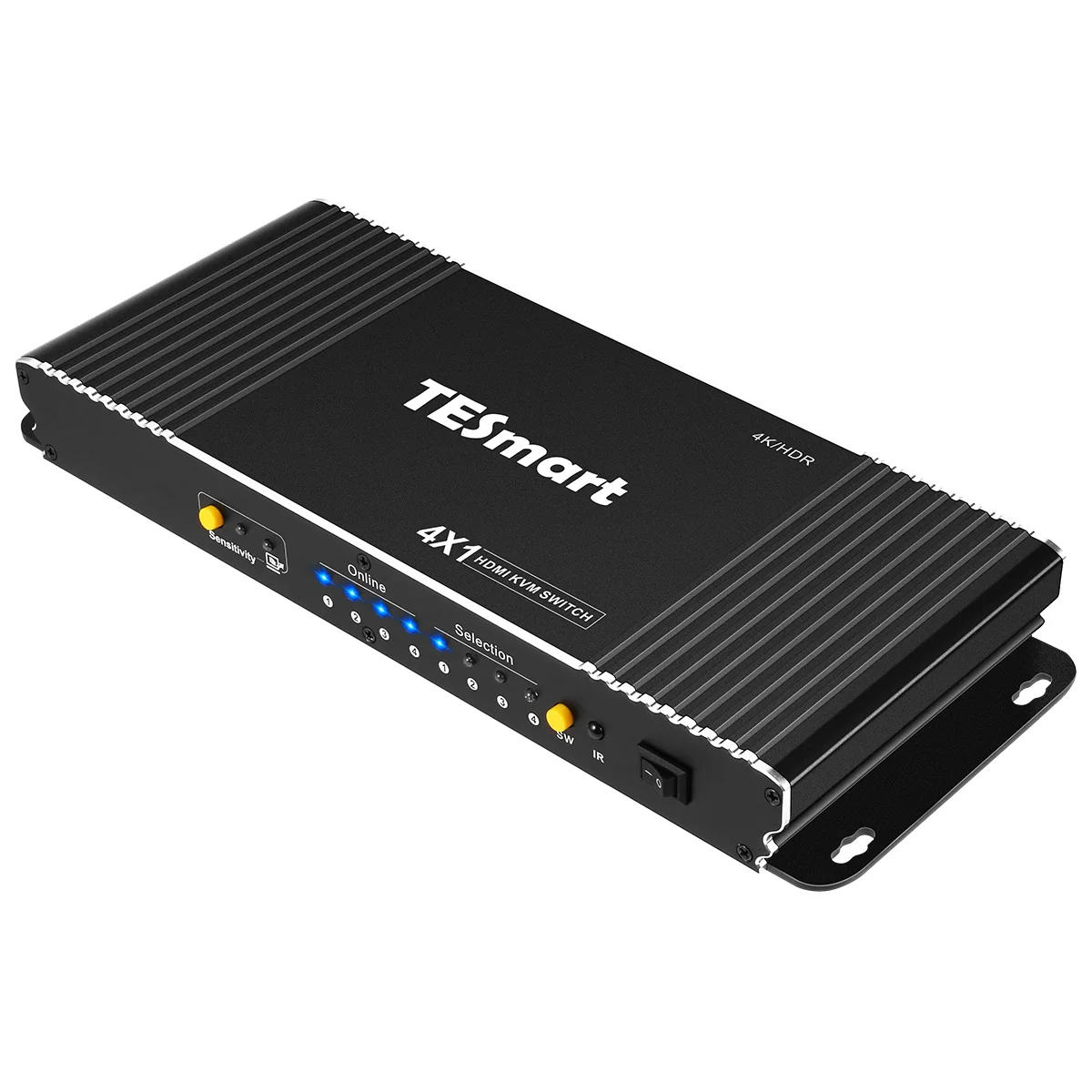

HDR 10 without any delay after switching input sources 4X1 HDMI KVM Switch Compliant with HDCP 2.2
 | HKS0401B1U This 4x1 HDMI KVM Switch provides you with great flexibility in integrating cross-platform computer equipment easily. It makes you available to switch easily and reliably between any HDMI computers using one HDMI compliant display. The 4x1 HDMI KVM Switch supports USB 2.0 hub and USB 2.0 keyboard /mouse. By using USB 2.0 hub ports on the KVM, you even can attach USB drive, printer, barcode scanner or other USB devices to the KVM. Switching can be controlled through variable methods, such as the front panel buttons, IR signals and hot keys on keyboard. With EDID emulator in each input port, keep PCs always having correct display information, prevent display settings changed while switching input ports. Support analog L/R audio output. |
Features
1. Using only 1 set of keyboard, mouse and monitor to control 4 PCs
2. Available to use keyboard and mouse without any delay after switching input sources
3. Support resolution up to 3840*2160@60Hz 4:4:4
4. Compliant with HDCP 2.2
5. Support USB2.0 for printers, USB drives,etc
6. With EDID emulator in each input port, keep PCs always having correct display information
7. Support front panel buttons, IR signals, keyboard hot keys and mouse gesture to control KVM to switch inputs
8. Support Unix/ Windows/ Debian/ Ubuntu/ Fedora/ Mac OS X/ Raspbian/ Ubuntu for Raspberry Pi and other Linux based system
9. Support auto switching among all devices so as to monitor the devices in a specified time interval
10. Support hot plug, connect or disconnect devices to the KVM switch at any time without turning off devices
11. Support analog L/R audio output
12. Support HDR 10
Image details
Specification sheet
HKS0401B1U | 4x1 HDMI KVM Switch 4K@60Hz 4:4:4 | |
Functionality: | ||
Auto Scan | Yes | |
Port selection | Front panel buttons | Yes |
Keyboard hotkeys | Yes | |
IR remote control | Yes | |
Technical: | ||
Resolution | Up to 3840x2160@60Hz 4:4:4 | |
Auto to get EDID | Yes | |
Data rate | 18 Gbps | |
Auto scan interval | 1~250 Seconds | |
Beep Sound | On/Off | |
OSD | No | |
Supported OS | Unix/Windows/Debian /Ubuntu /Fedora /Mac OS X/ Raspbian /Ubuntu for Raspberry Pi and other Linux based system | |

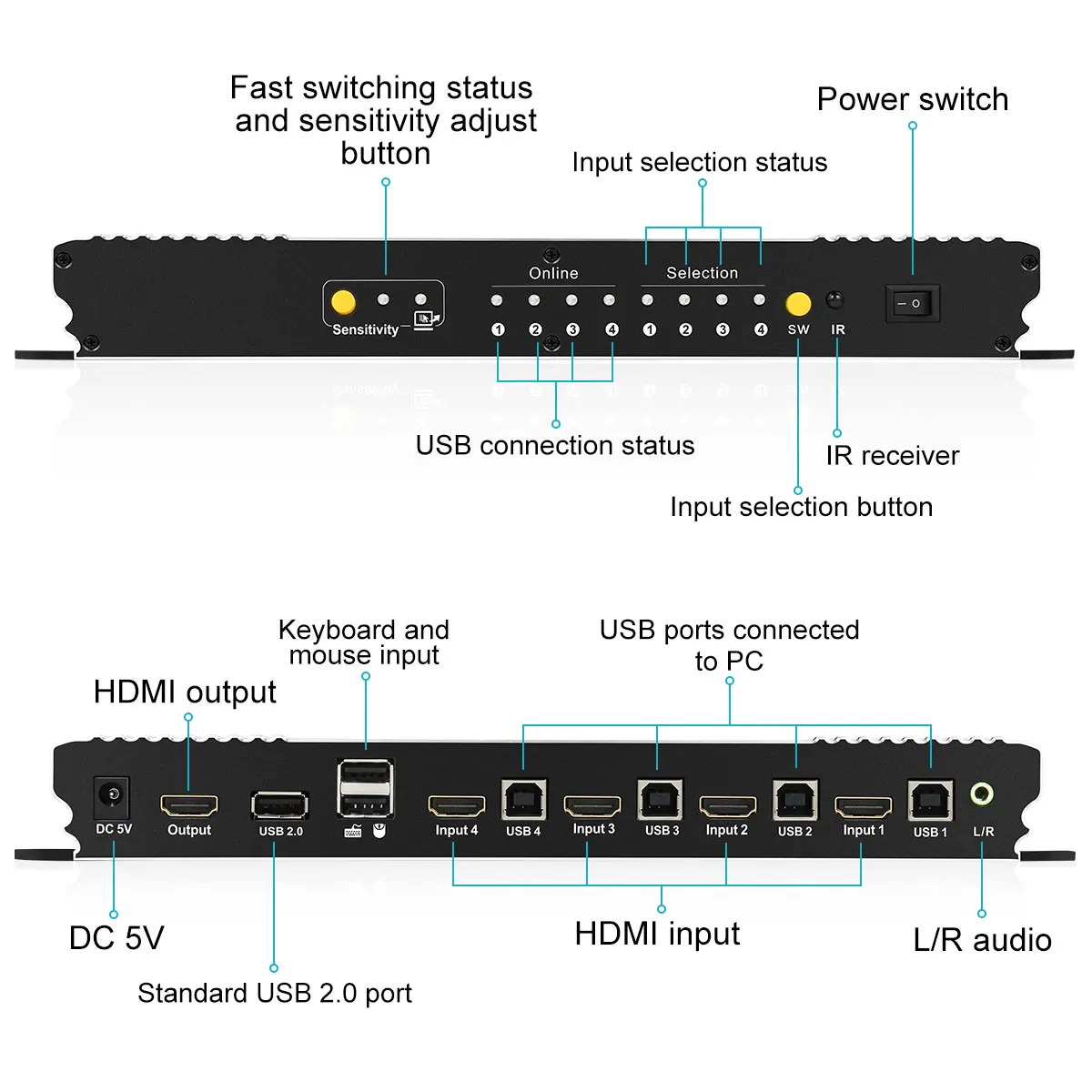

Console ports | Keyboard emulation | 1 * USB Type A |
Mouse emulation | 1 * USB Type A | |
USB 2.0 Hub ports | 1 * USB Type A | |
Video /Audio | 1 * HDMI Type A | |
System ports | USB Data | 4 * USB Type B |
L/R Audio output | 1 * AUX | |
Video / Audio | 4 * HDMI Type A | |
ESD protection | Human body model - ±8kV (Air-gap discharge) | |
Mechanical: | ||
Chasing material | Aluminum Alloy | |
Product dimensions | 262.5(L) x 112 (W) x 33.7 (H) mm | |
Item weight | 800g | |
Packing list
| 1*4X1 HDMI KVM Switch
|
Company information

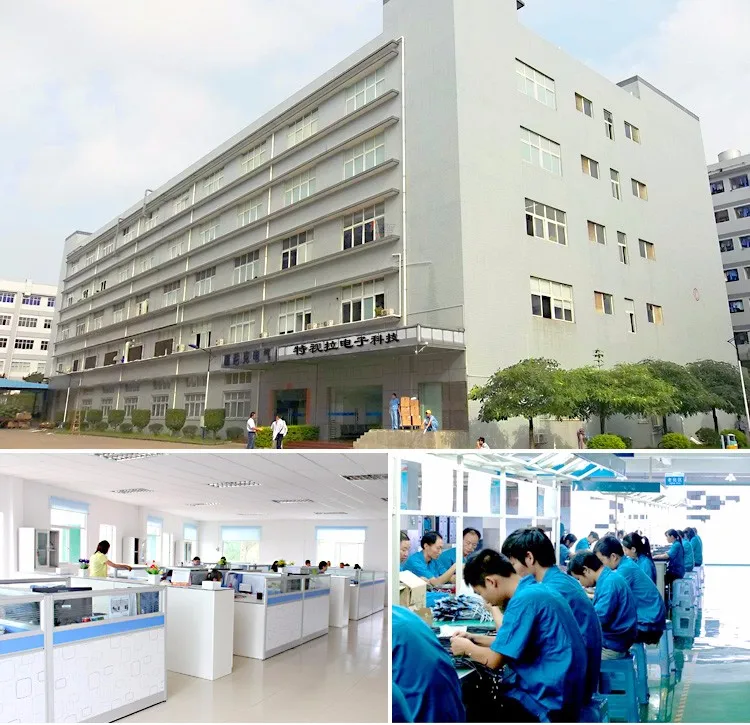

Tesla Elec Technology Company limited is a professional manufacturer and exporter that is concerned with the design, development and production of audio and video matrix, splitter, switcher, KVM, extender and converter.
All of our products comply with international quality standards and are greatly appreciated in a variety of different markets throughout the world. We have a R&D team with over ten years experience, providing good solutions and professional technology support. Benefits from commissioned SMT processing, we are able to keep quick delivery and focus more resources on new technology research, product test and improving our customer service.
