Разделенный тип CO-1000 Сверхмощный кабельный наконечник гидравлический обжимной

Описание и отзывы

Характеристики

CO-630B 300KN Hydraulic Cable Lug and Connector Heavy Duty Cable Lug Crimping Tool



Product Description

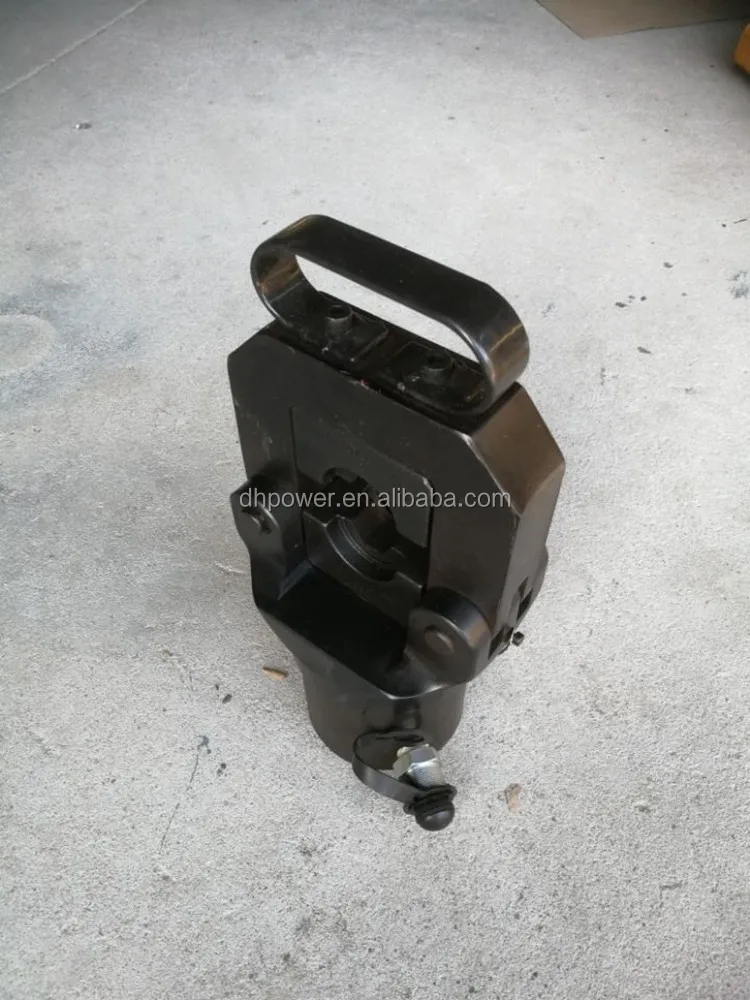

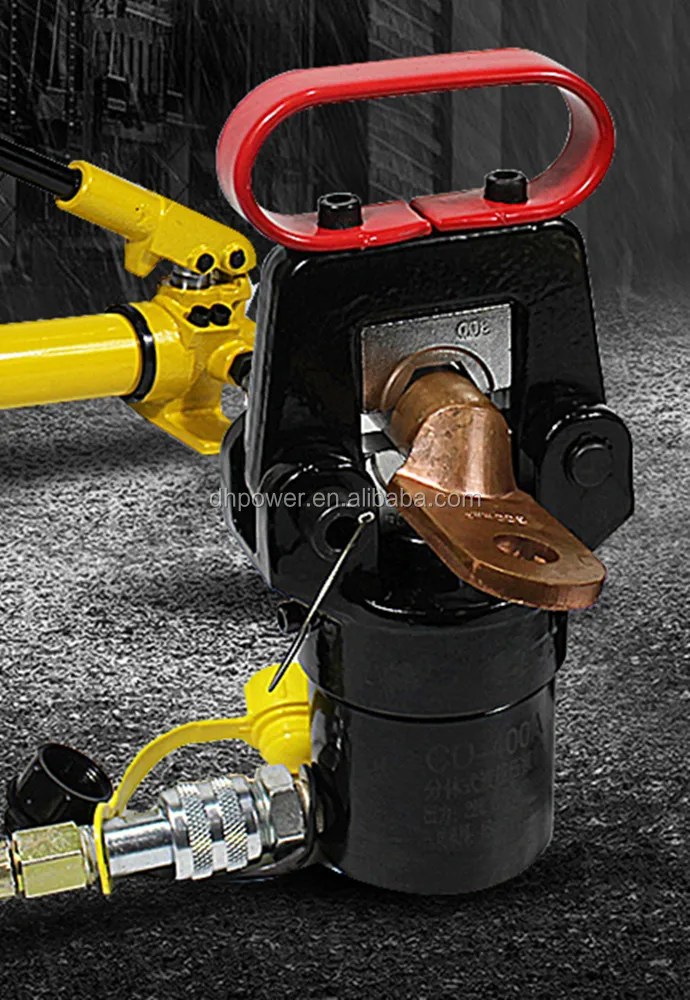

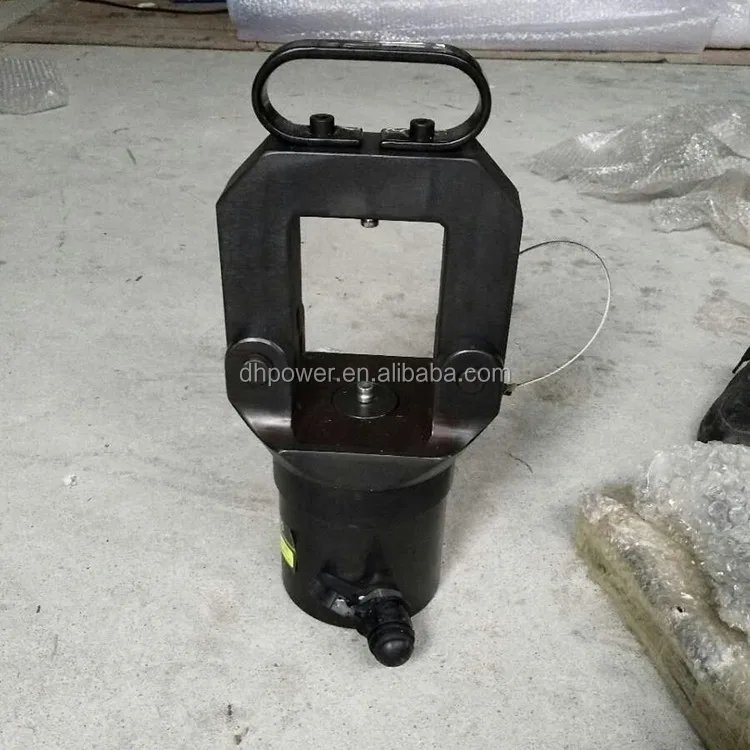

Split hydraulic crimping head can work with hydraulic pump

It is suit for crimping big size of lugs

It is suitable for outside and inside project of the distributor,it is the special tools for all kinds if connecting and building over head cable





Feature

1. It is suitable for outside and inside project of the distributor house, it is the special tools for all kinds of the        connecting and building over head cable.

2. It pressed tightly on 10kv-500kv high voltage cable casing pipe, clips nared ends and hexagon shape.

3. The oil pipe coipler fitted with PT 3/8'' thread.

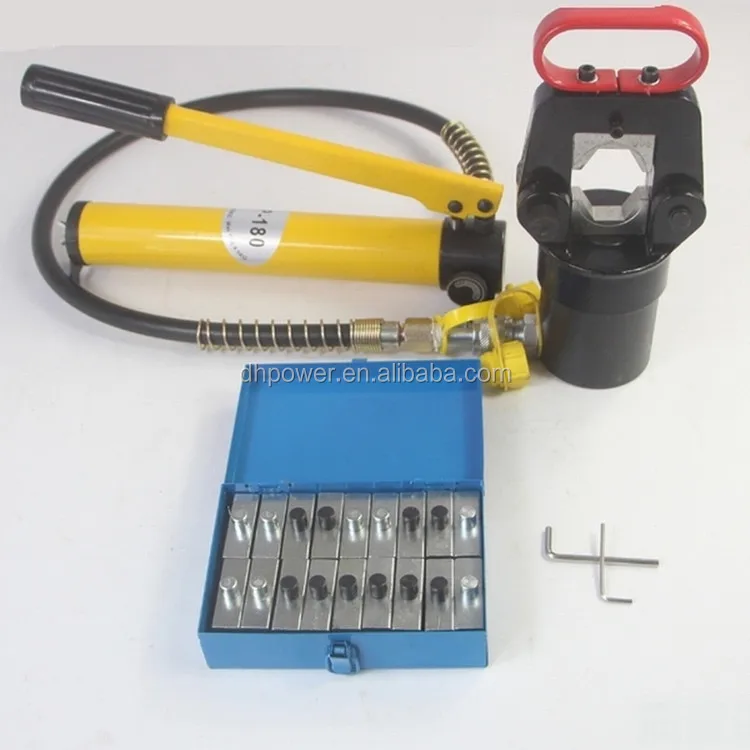

4.To be worked with pedal pump, manual pump and electric driven hydraulic pump.



Specification

Item number	16101	16101A	16101B	16101C
Model	CO-630B	CO-630A	CO-1000	CO-400
Crimping force	300KN	350KN	550KN	200KN
Crimping range	150-630mm²	150-630mm²	400-1000mm²	16-400mm²
Crimping type	hexagon crimping	hexagon crimping	hexagon crimping	hexagon crimping
Dies	150,185,240,300, 400,500,630mm²	150,185,240,300, 400,500,630mm²	400,500,630, 800,1000mm²	16,25,35,50, 70,95,120,150, 185,240,300,400mm²
Stroke	24mm	24mm	26mm	24mm
Heigth	approx.275mm	approx.350mm	approx.400mm	approx.250mm
Weight(KG)	approx.N.W11.5KG G.W20KG	approx.N.W16.7KG G.W25.5KG	approx.N.W32KG G.W39KG	approx.N.W5.4KG G.W10KG
Package	wooden case	wooden case	wooden case	paper box
