Product Description
RS485 Submerged Universal 100 Meter Distance Liquid Water Level Sensor Transmitter For Borehole

   Submersible level transmitter , based on the principle that, the hydro static pressure of measured level is proportional to the height of this liquid , adopts the piezoresistive effect of diffused silicon , converts pressure into electrical signal, by temperature compensation and linear calibration , then converts into standard current , voltage and RS485 signals and outputs .

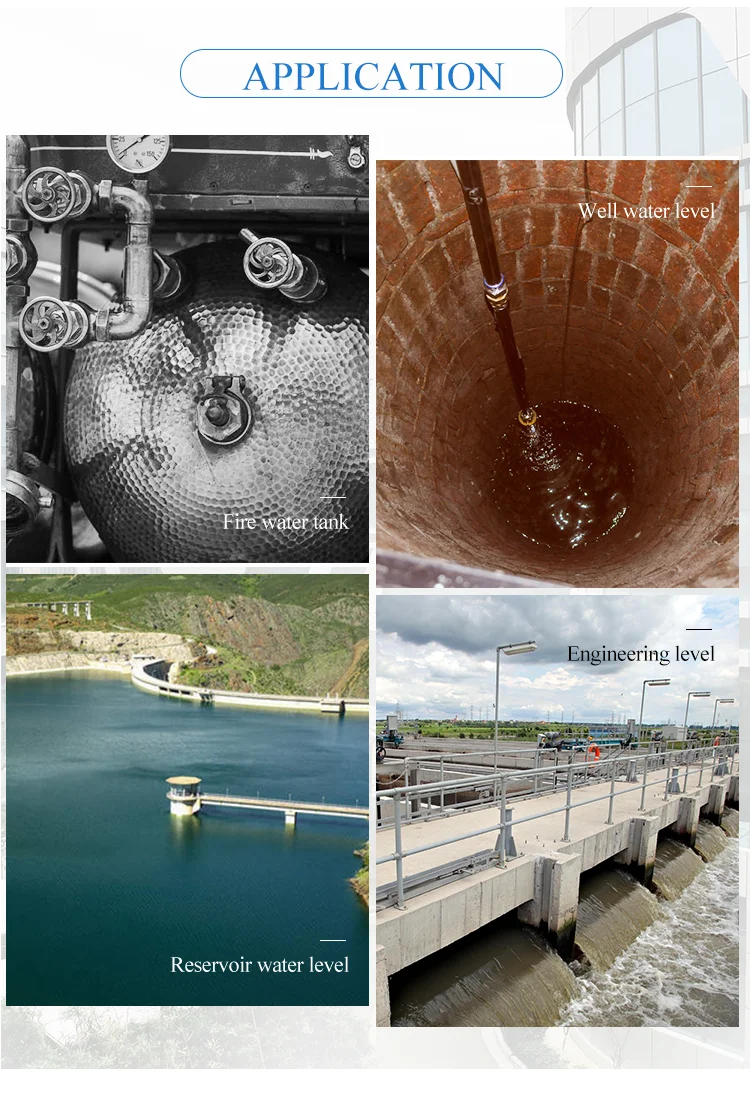

    It can be directly connected with PLC/DCS ,display instrument and computer , remote signal transmission also can be carried out. The level transmitter is widely used in liquids measurement of petrochemical , water supply and drainage , environmental protection and electric power .
Medium
Liquid
Measuring range
5meters (customized up to 500 meters )
Output
4-20mA or 0-5V;0-10V;RS485
Power supply
18-36VDC
Accuracy
0.25%F.S
Temperature
-20~80C
Protection class
IP68
Sealing material
Nitrile rubber
Probe material
stainless steel 304
Keywords
water level sensor for borehole

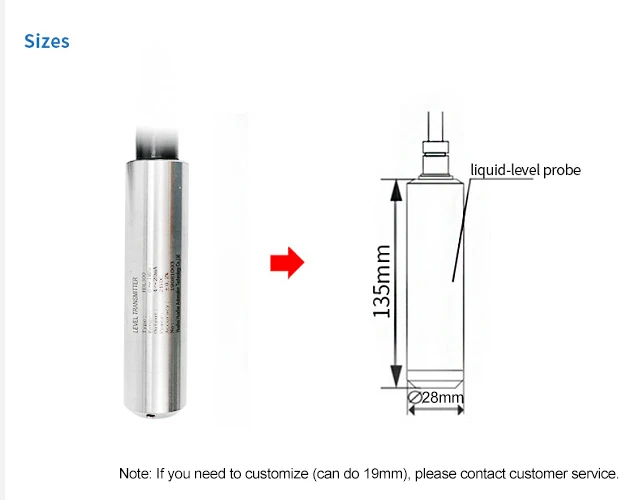

Detailed Images

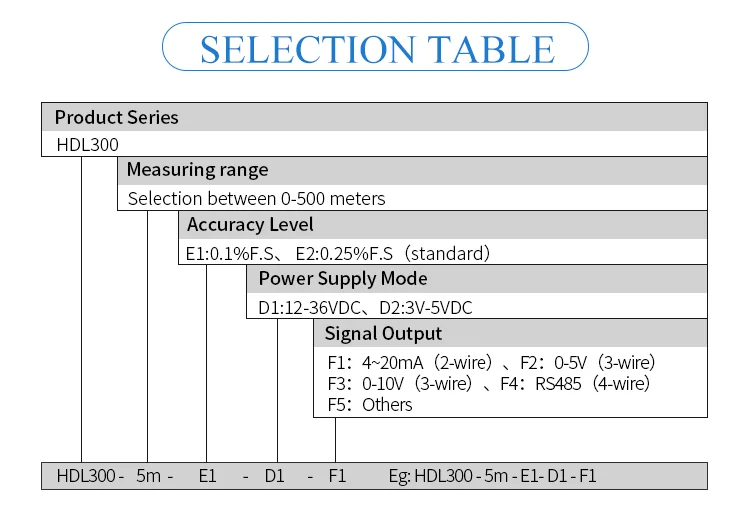

Selection table

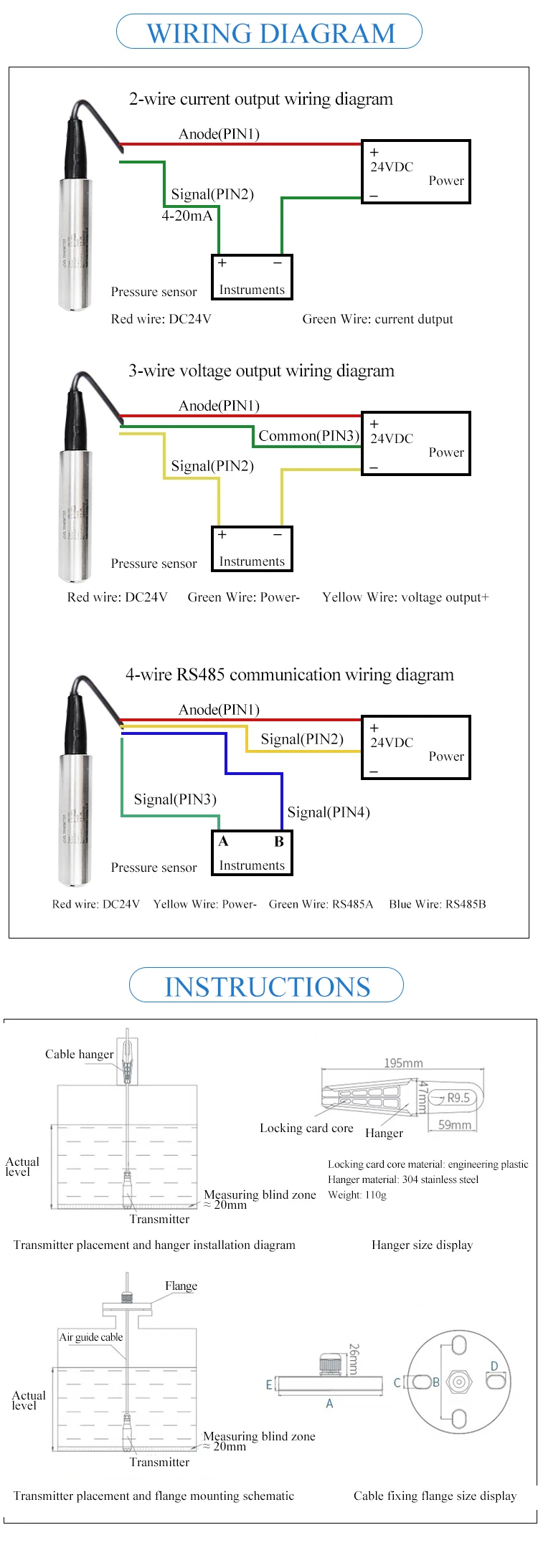

Installation Instructions
Shipping and Package
Contact Us
Huaibei Huadian Automation Technology Co,.ltd
Websites:www.huadianauto.com
Email:cecilia(@)huadianauto.com
Whatsapp/Wechat/Skype: +86 189 5651 8690
Factory address: 265 Suixi Road, Xiangshan District, Huaibei City, Anhui Province, China.
