Мембранная матричная клавиатура переключателя и гибкая с кабельным разъемом клейкой задней стороной 3

UTC specialize in manufacturing membrane switch solutions with demanding reliability and stringent  requirements.  We are proud to be industry leaders in producing membrane switches that meet or exceed our customers’ expectations.  Our Guangzhou based state-of-the-art manufacturing facility supports a variety of processes to bring you the best custom membrane switches in the market today.

We believe that there is a chance for collaboration to help you achieve a cost effective approach to current and future needs.

Fast Delivery —2 to 3 weeks

Competitive Price —Up to 50% cost saving on your current projects

High Quality —ISO 9001:2008, RoHS, IPC compliant

1,Screen and digital printing

2,Reverse engineering

3,Die cutting and laser fabrication

4,Laminating processes

5,Clean-room membrane switch assembly

6,Environmental and life cycle testing

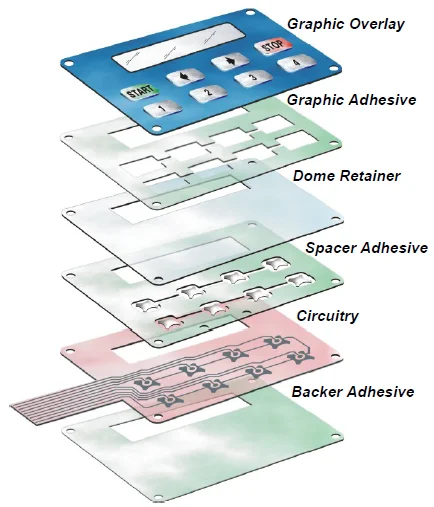

 A membrane switch is an electrical switch for turning a circuit on and off. It differs from a mechanical switch, which is usually made of copper and plastic parts: a membrane switch is a circuit printed on PET or ITO.

The ink used for screen printing is usually copper / silver / graphite filled and therefore conductive.

Membrane switches are user-equipment interface utilities that allow for the communication of commands from users to electronic devices.

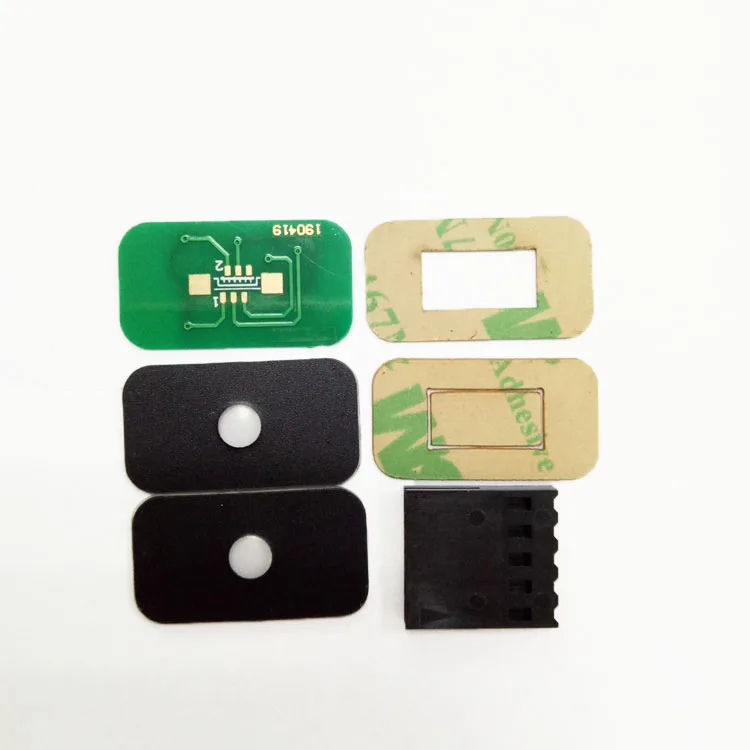

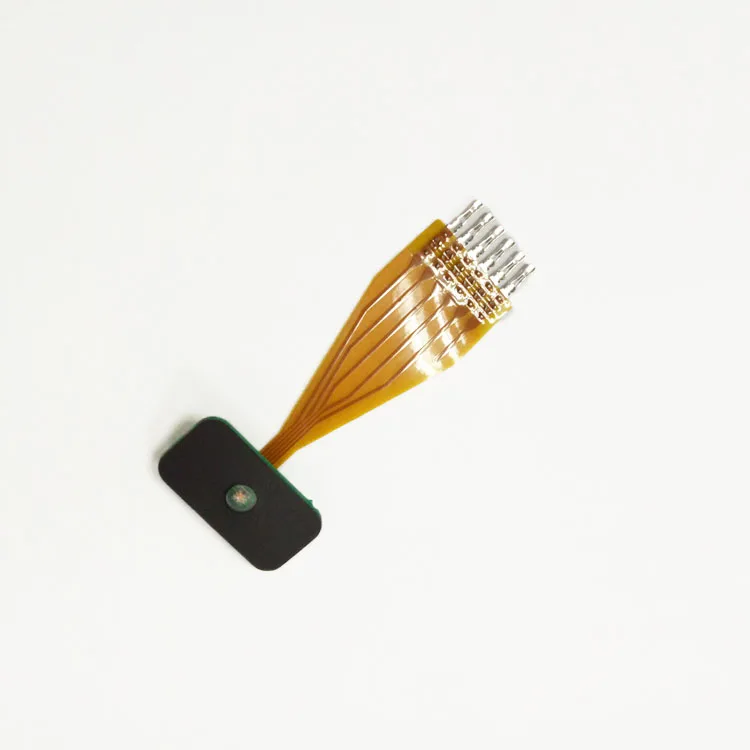

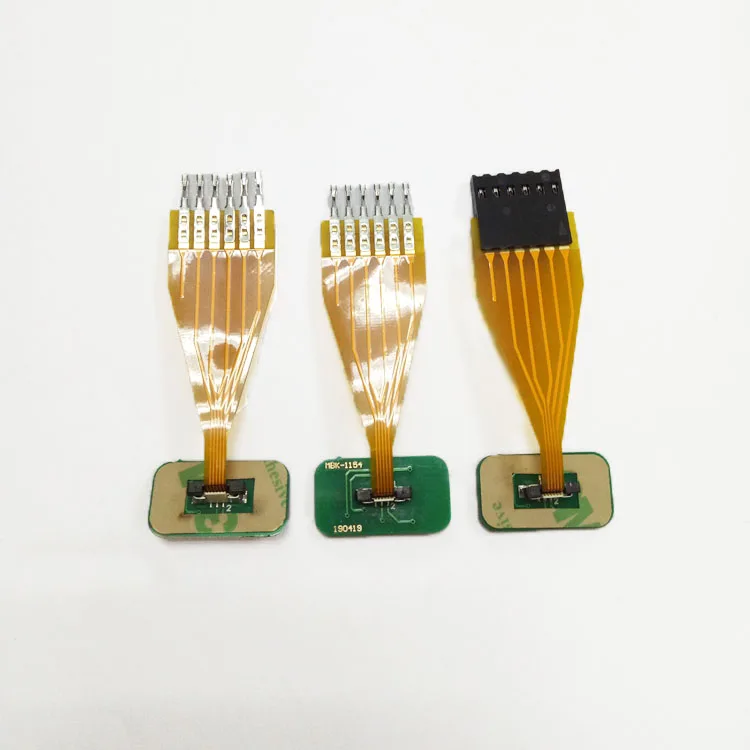

Membrane Switch Matrix Keypad and Flexible with Cable Connector and 3M Adhesive Back

--Moisture, Dust, and Impact Resistant

--Many Display Options

--Embedded Indicator LEDs and Backlighting

--Water tight Switches

--Multiply Color Choice

--Various Embossing Options

--Integrated with PCB or FPC

--RoHS Approved Materials

--Clear or Tinted Windows

--Alone or with Electronics

--Dead Front Panels

--Tactile or Non-tactile Feedback Switches

--Choice of Connectors and Enclosures

--Plastic or Metal Backer Plates Are Available

1,Membrane switch is to be installed in one go, otherwise the following adverse situation might appear:

a. Graphic overlay can be scratched and causing inferior appearance.

b. Back adhesive can be damaged and the level of adhesion is downgraded.

c. The rebound function of the metal dome can be damaged  and leading to short circuit

d. For the embossed type, the tactile feel effect can be defeated.

e. Circuit can be broken and causing malfunction of the product.

2,Be Careful for installing connector:

a. Do not cause scratches on the tail

b. For tail with small pitch, ensure to align them properly to prevent improper connection or high resistance.

c,For part without housing, installation should be done in one go to prevent damage to the conductive ink on the pins.

3,When handling part with window(s), please take care not to make scratches which will defect the transparency of the window.

4,When touch with LED’s and infra-red sensors, anti-static measures should be taken in order to prevent damage to them.

Sample order: 100% before produciton.

Batch order: 40% advance payment before production, 60% balance before delivery.

Packed with polybag and protected by foam in export carton
