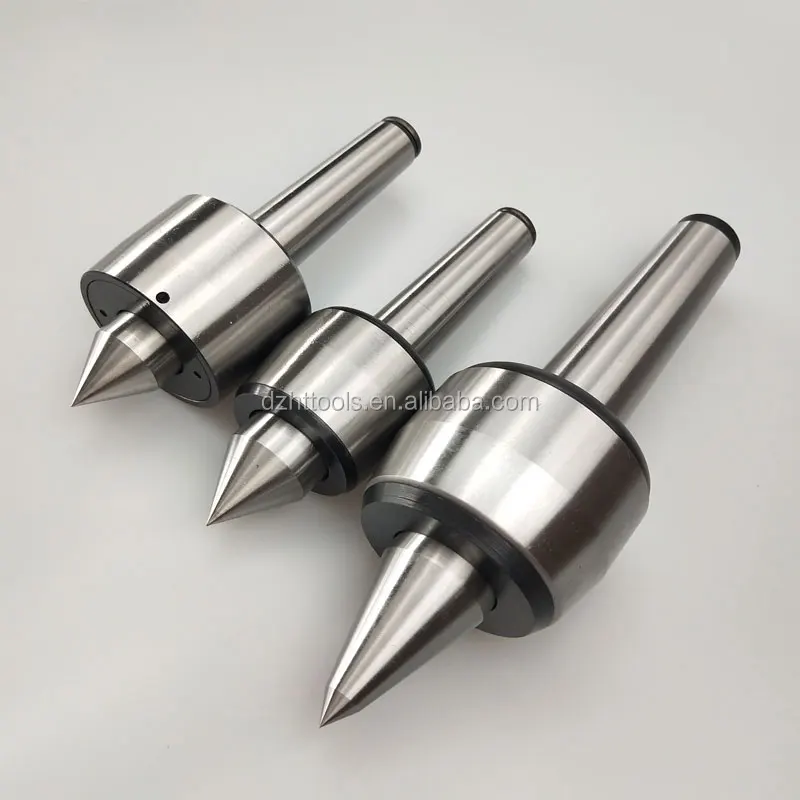

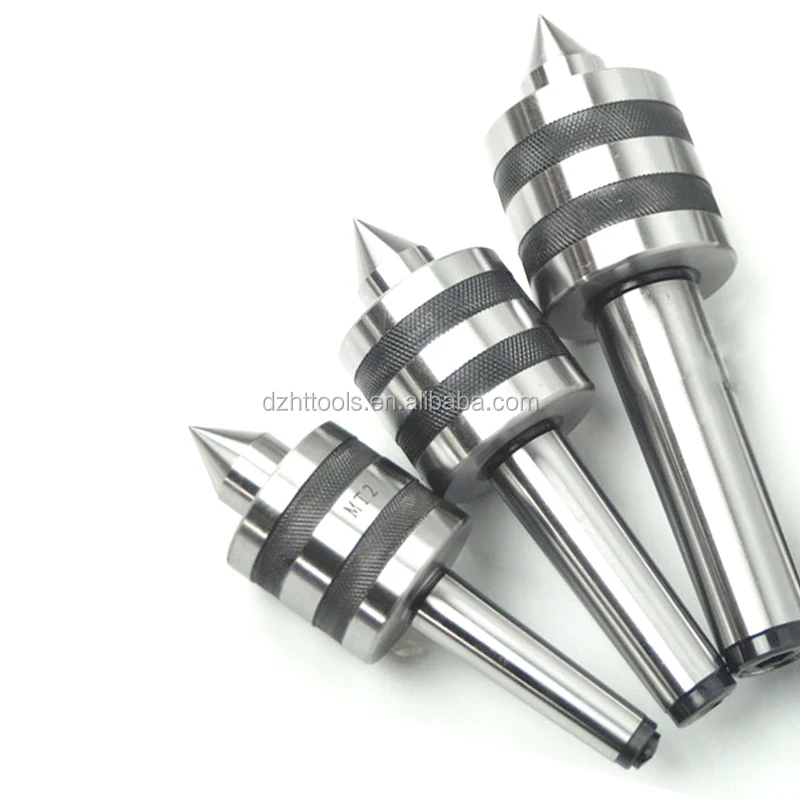

Wood Lathe Tailstock center Morse Taper precision medium-duty live center
Product Description
1.Center Point was tipped with hard carbide to enhance abrasion resistance.
2.Accurancy: 0.010mm.
3.Please refer to the following table for detailed sizes we supply.

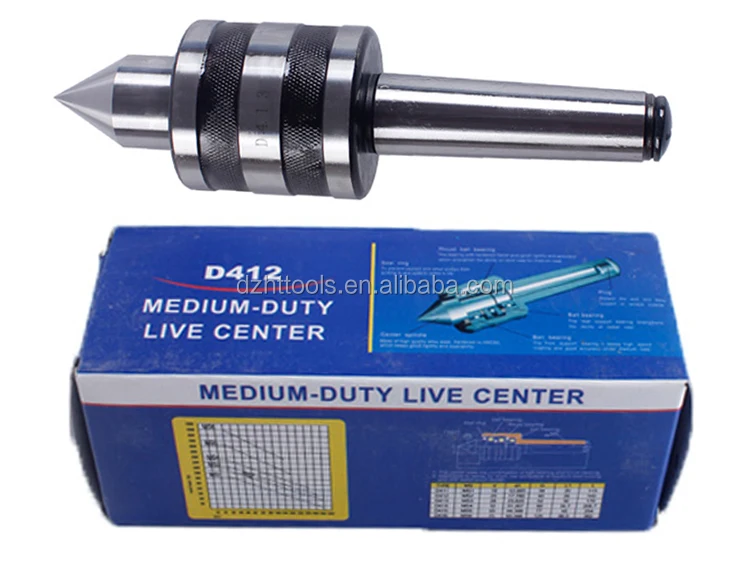

| HT-0049 | MEDIUM-DUTY LIVE CENTER | |||||||||

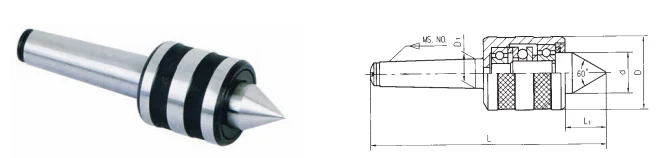

| Order No. | MS. NO. | L mm | L1 mm | D mm | D1 mm | d mm | N Max Radial Load | (rpm)Max Speed | Wt(kg) | Accuracy(mm) |
| D411 | MS1 | 115 | 20 | 34 | 12.065 | 18 | 900 | 5000 | 0.29 | 0.01 |
| D412 | MS2 | 145 | 26 | 45 | 17.778 | 25 | 1500 | 5000 | 0.70 | 0.01 |
| D413 | MS3 | 170 | 30 | 52 | 23.825 | 28 | 2000 | 4200 | 0.93 | 0.01 |
| D414 | MS4 | 205.7 | 34.7 | 60 | 31.2677 | 32 | 3200 | 3200 | 1.70 | 0.01 |
| D415 | MS5 | 254 | 45 | 77 | 44.399 | 45 | 6300 | 2400 | 3.39 | 0.015 |
| D416 | MS6 | 362 | 68.5 | 125 | 63.348 | 75 | 10000 | 1600 | 12.00 | 0.015 |
| D411L | MS1 | 125 | 30 | 34 | 12.065 | 18 | 900 | 5000 | 0.31 | 0.01 |
| D412L | MS2 | 155 | 36 | 45 | 17.78 | 25 | 1500 | 5000 | 0.74 | 0.01 |
| D413L | MS3 | 183 | 43 | 52 | 23.825 | 28 | 2000 | 4200 | 0.99 | 0.01 |
| D414L | MS4 | 222 | 51 | 60 | 31.2677 | 32 | 3200 | 3200 | 1.80 | 0.01 |
| D415L | MS5 | 272 | 63 | 77 | 44.399 | 45 | 6300 | 2400 | 3.62 | 0.015 |
| D416L | MS6 | 382 | 88.5 | 125 | 63.348 | 75 | 10000 | 1600 | 12.69 | 0.015 |
PictureShow
Related Products
CNC machine tools high precision live center DM314
Professional factory supply price High Speed Precision Medium Duty Lathe live center
Company Information
Dezhou Haotian Imp&Exp Co.,Ltd locate in the largest production base of machine tool accessories in China.Our company was founded in 2003,we have rich experience in trading area and have a lot of fixed custmosers.
Over the years, our products have been well received by China's leading companies and the demand for our product is growing everyday. All of our products are deeply trusted by customers both at home and abroad.
welcome to inquiry and visit us!
Why Chose Us
WHY CHOSE US :
1.Our company is located in the largest production base of machine tool accessoriesin China
2.We are specialized in researching,paoducing and developing mang kinds of collets,drill chuaks,CNC tool holders,retention knobs,er nuts,erspanner and so on .,
3.All of our products are deeply trusted by customers both at home and abrooad
4.Our biggest sales market :UK,USD,ITALY,RUSSIA,SOUTH AFRICA GERMANY....
5.The largest purchaser of cooperation:from Germany ,Monthly purchase amount:80 0000 usd,
6.Average cooperation time with regular customers: 8 years.
Main Products

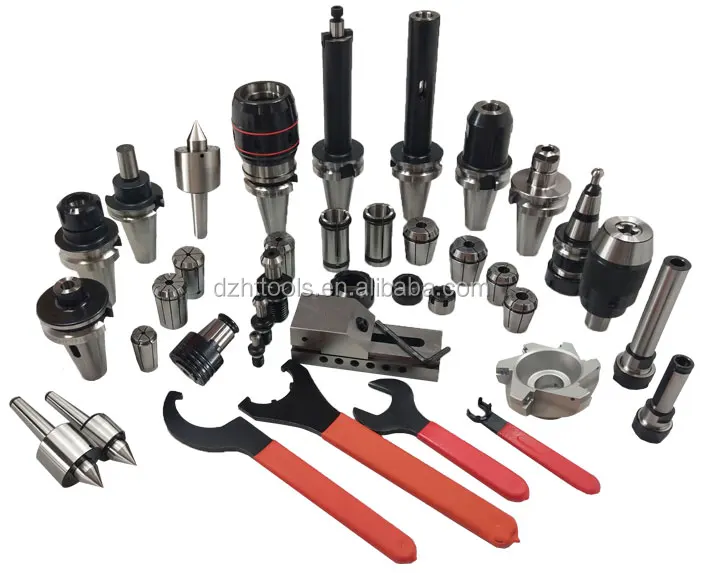

Machine too Accessories, please check below to know our main items.
Tool Holder Shanks: BT Tool Holders, DIN69871 SK Tool Holders, NT Tooling, CAT30 CAT40 CAT50 Tool Holders, HSK Tool Holders, DIN 69880 VDI Tool Holders, Morse Taper, Straight Shank Tool Holders, etc.
Tool Holders: Collet Chucks, Milling Chucks, Face Mill Holders, Weldon End Mill Holders, Morse Taper Adapters, Drill Chucks, Tapping Chucks, Shrink Chucks, Thread End Mill Tool Holders, Screw in Milling Cutter Holders, etc.
Collet: ER Collets, ERC Collets, ERG Collets,Milling Chuck set ,Straight Collets, OZ Collets, etc.
Accessories: Tool Holder Bushing, Nut and Spanner, Pull Stud, Tool Holder Locking Device,Machine Vise,Live Center etc.
Welcome to the link to learn more.
